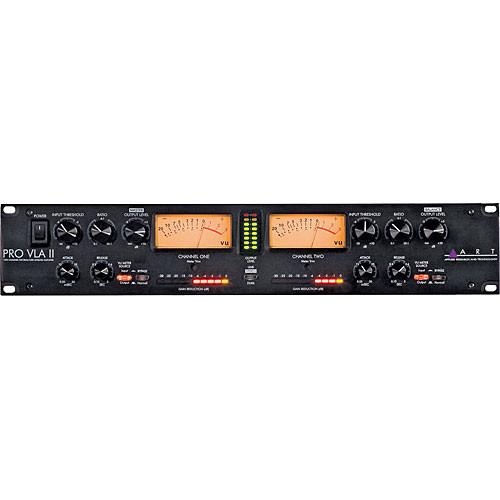

User Manual for ART Pro VLA II - Compressor Leveler Click to enlarge the picture
Contents of the user manual for the ART Pro VLA II - Compressor
- Product category: Dynamics Processors ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Dynamics Processors
|
User manual for the ART Pro VLA II - Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description - Leveling Amplifier
- Compressor
The Pro VLA II from ART is a dual-channel compressor/leveler that uses an opto-electrical design to provide smooth and musical dynamic range control. The unit features a mastering-quality audio signal path and a tube-based gain stage. Variable ratios that range from 2:1 to 20:1 allow the unit to work both as a compressor or a limiter. Metal rotary controls with detents provide for the adjustment of threshold and output level, along with variable and separate attack and release speeds. The front panel features large analog VU meters for each channel, while ten-segment, multi-colored LED arrays provide information on gain reduction. Back-lit push switches set whether either VU meter reflects input or output levels; select a straight wire bypass; and engage a link function, appropriate for stereo mastering. When the channels are linked, channel one controls act globally and the channel two output knob acts as a balance control. XLR and 1/4" TRS balanced input and output jacks are provided, along with a level selector to set the unit operating levels and metering to match either +4dBu or -10dBV systems. The unit is housed in a 2U space, rack-mountable steel chassis with a CNC routed, black anodized aluminum face panel. The Pro VLA II uses two hand-selected 12AT7 tubes and is designed for years of reliable operation in the studio and on the road. - Two-channel, opto-isolator tube-based leveling amplifier
- Non-VCA design provides transparent, classic sound
- Hand selected 12AT7 tubes in the output section
- Stereo linking of channels with master volume and balance control in Link Mode
- XLR balanced inputs and outputs along with 1/4" TRS phone active balanced inputs and outputs
- Variable Threshold and Ratio controls
- Variable Attack and Release controls
- Variable Output Level rotary controls
- VU metering of input and output levels
- LED metering of output level with peak-hold function
- Ten-segment Gain Reduction LED array
- Low noise circuitry with a healthy dynamic range
- Rack-mountable, all-steel enclosure
UPC: 840402018254 In the Box ART Pro VLA II - Compressor/Leveler AC Power Cable Five (5) Year Warranty User Manual PDF 1.9mbedyyetcuvztsavzaascuasd Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Pro VLA II - Compressor Leveler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART Pro-VLA II Specs | Function | Compressor/leveler | | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone (balanced or unbalanced) | | Outputs | 2 x XLR
2 x 1/4" TRS phone (balanced or unbalanced) | | Maximum Input Level | +20dBu | | Compression Threshold | -30 to +20dB | | Compression Ratio | 2:1 to 20:1 | | Attack Time | 0.25 ms to 50 ms, variable | | Release Time | 0.15 s to 3 s, variable | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | +20dBu (10kΩ, 0.1% THD) | | Make-up Gain | +20dB | | Frequency Response | 10Hz to 100kHz (+/- 0.5dB) | | Dynamic Range | >100dB (20Hz to 20kHz) | | Noise | EIN:
-99dBu, A-weighted (+4dBu mode)
-107dBu, A-weighted (-10dBV mode) | | Power Requirements | 105~125 VAC, 60 Hz | | Dimensions (WxDxH) | 19 x 9.2 x 3.5" (483 x 234 x 89 mm) | | Weight | 10.5 lb (4.8 kg) | | Specialties | Internal power supply | | | | Package Weight | 12.1 lb | | Box Dimensions (LxWxH) | 21.3 x 12.0 x 5.6" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
