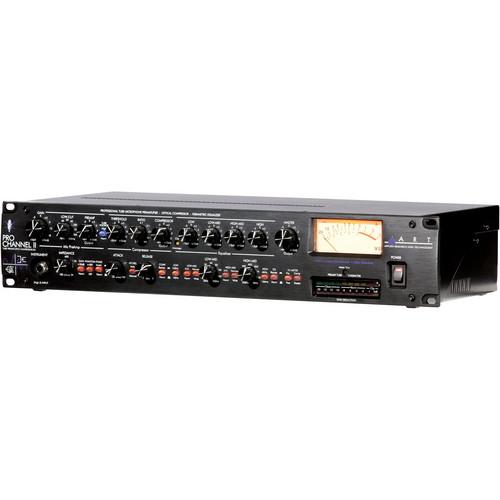

User Manual for ART ProChannel II - Channel Strip Click to enlarge the picture
Contents of the user manual for the ART ProChannel II - Channel Strip
- Product category: Channel Strips ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Channel Strips
 |
User manual for the ART ProChannel II - Channel Strip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

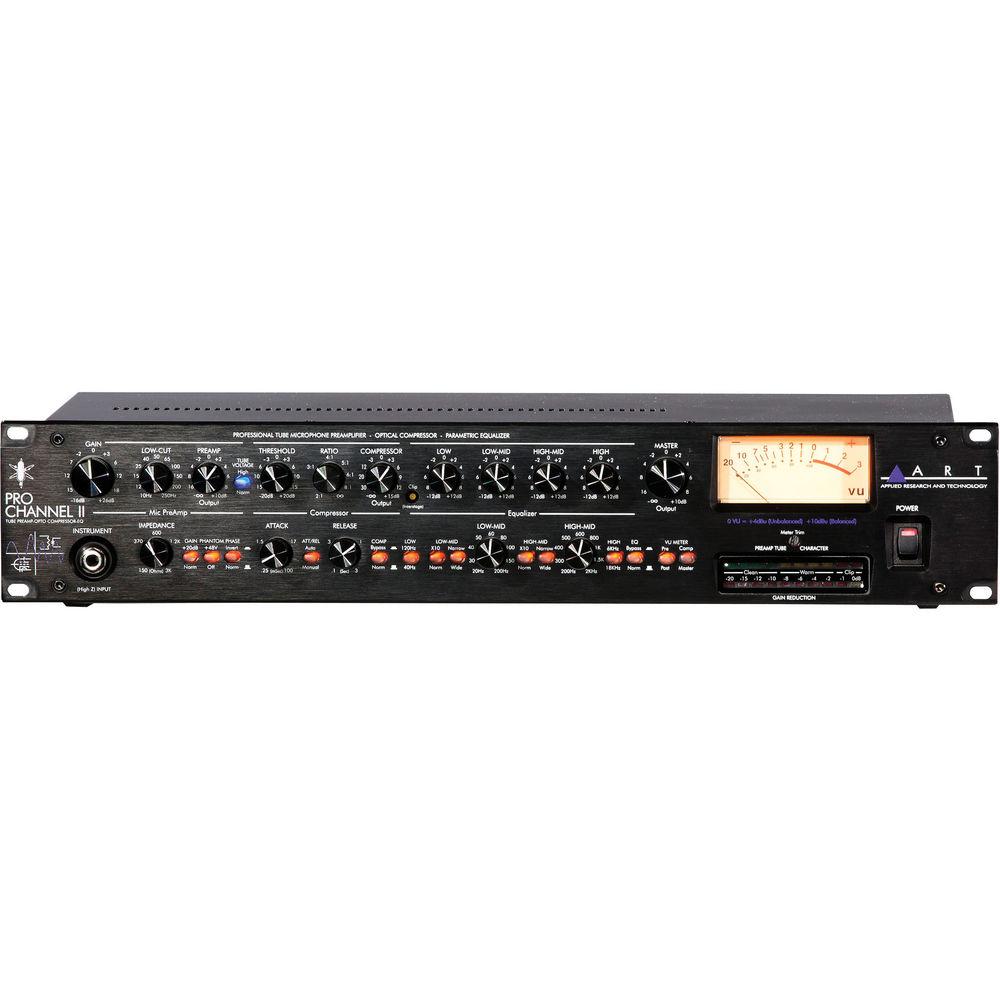

Product description The Pro Channel II from ART is a channel strip featuring a second-generation discrete Class-A microphone preamp, followed by a compressor and a 4-band semi parametric EQ section. The electronics of the preamp provide clean quiet gain while maintaining transparency. Analog and LED meters provide a detailed indication of audio levels.

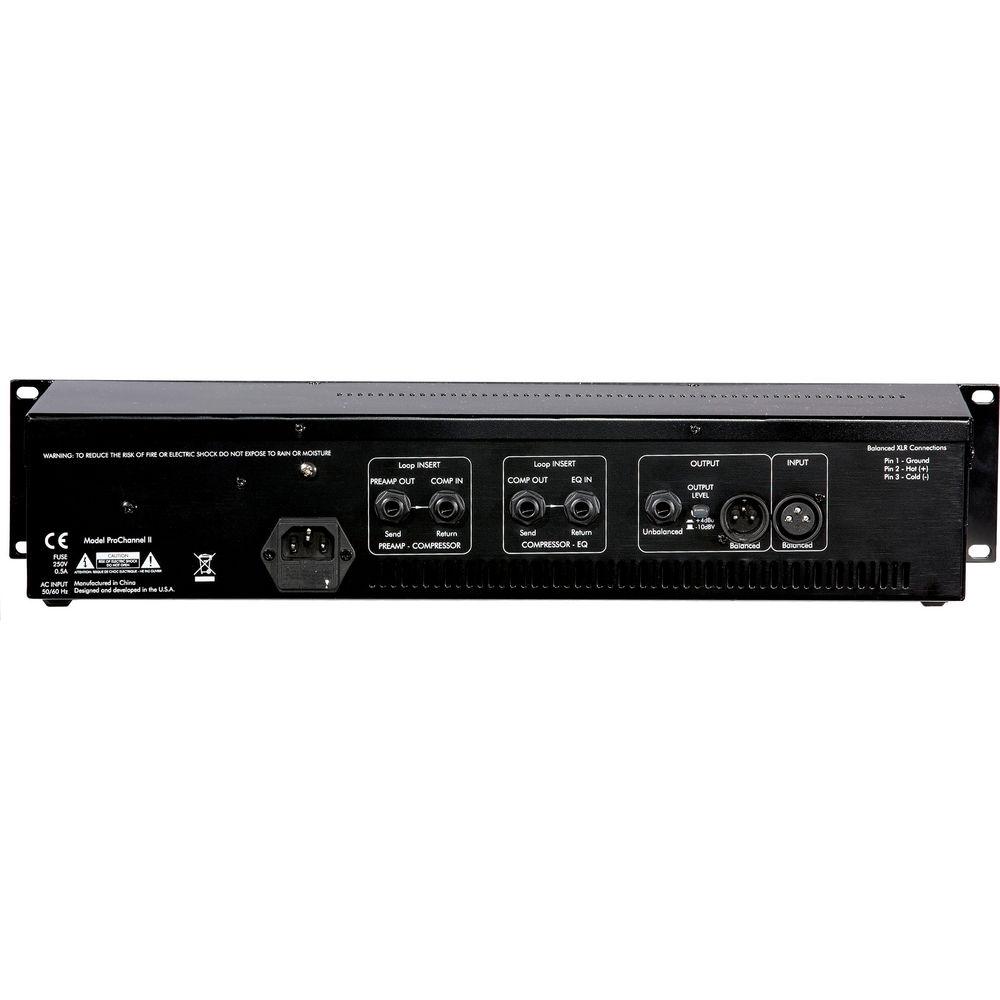

The compressor is able to subtly control transients and noise on the most demanding sources, while the EQ offers wide tune-ability, and can be patched before or after the dynamics processor. Separate rear panel insert points allow patching in external signal processors immediately after the microphone preamp, and before the EQ and dynamics processor. - Variable input impedance for flexible microphone voicing
- Backlit function switches
- Discrete Class-A input microphone preamplifier
- Low noise at lower gain settings
- Extremely low Total Harmonic Distortion (THD)
- Additional front mounted instrument input jack
- Supports Mid/Side mic'ing technique
- Operates at +4 dBm/-10 dBv output
- Selectable stereo/dual operation of output controls
- Automatic instrument input selection
UPC: 840402019312 In the Box ART ProChannel II - Channel Strip AC Power Cable Three (3) Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART ProChannel II - Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART ProChannel II Specs | Number of Channels | Single | | Inputs | 1 x 1/4" TS phone Instrument (front panel) 1 x XLR Microphone 1 x 1/4" TS phone Comp In (return) 1 x 1/4" TS phone EQ In (return) | | Outputs | 1 x XLR
1 x 1/4" TRS phone | | Frequency Response | 12 Hz to 100 kHz, +0,-1.0 dB | | THD | 1 kHz: < .015% typical
20 Hz to 20 kHz: < .033% typical | | Noise | EIN
Mic/Line: -128 dBu, input shorted, maximum gain, A-weighted
Instrument: -109 dBu, input shorted, maximum gain, A-weighted | | | | Gain Range | Microphone: 70 dB (XLR to balanced output)
Instrument: 64 dB (1/4" to balanced output) | | Input Impedance | Microphone: 150 to 3.4kΩ, variable
Instrument: 2.5MΩ
Preamp Insert: 7. 5kΩ | | Maximum Input | Microphone: +18 dBu balanced
Instrument: +15 dBu | | Output Impedance | Balanced Output: 600Ω balanced
Unbalanced Output: 300Ω
Insert Outputs: 300Ω | | Maximum Output | Balanced: +24 dBu
Unbalanced: +20 dBu
Output Level @ Meter 0 VU:+4 dBu/-10 dBV | | Phantom Power | +48 V | | | | Threshold Range | -20 dB to +20 dB | | Ratio | 2:1 to 30:1 | | Attack Time | 250 µs to 100 ms | | Release Time | 100 ms to 3 s | | Sidechain | No | | | | Frequency Bands | Low: 40/120 Hz, selectable
Low-Mid: 20 Hz to 2 kHz, continuously variable
High-Mid: 200 Hz to 20 kHz, continuously variable
High: 6 kHz/18 kHz, selectable | | Bandwidth | Low- and High-Mid can be switched to Wide or Narrow | | Range (Boost/Cut) | +/-12 dB on each band | | | | Power Requirements | 105~125 VAC, 60 Hz | | Dimensions (WxDxH) | 19 x 9.2 x 3.5" (483 x 234 x 89 mm) | | Weight | 11 lb (5 kg) | | Specialties | Low-Cut Filter: 10 Hz to 250 Hz, 1-pole, 6 dB/octave | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 21.9 x 11.2 x 5.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
