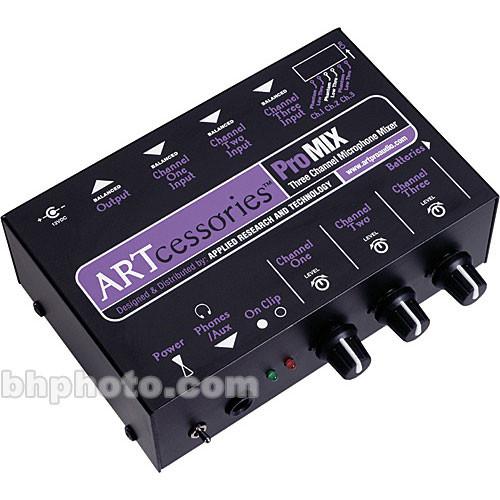

User Manual for ART ProMIX 3-Channel Portable Mono Microphone Submixer Click to enlarge the picture
Contents of the user manual for the ART ProMIX 3-Channel Portable Mono Microphone
- Product category: Analog Utility Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Analog Utility Mixers
|
User manual for the ART ProMIX 3-Channel Portable Mono Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The ART ProMIX is a four-channel microphone mixer designed as an effective solution for mixers and preamps with minimal microphone inputs. The ProMIX features 3 microphone inputs with 3-pin XLR female connectors. The mixer is capable of supplying 12V phantom power to condenser microphones (18V if you utilize two 9V batteries).A single, balanced XLR male mic-level output is provided. A 1/4" headphone output doubles as an alternate line-level output. Low-frequency cut off eliminates hum and rumble, and level adjustment controls are located on each channel. - 3 Microphone Inputs
- The ProMIX features 3 microphone channels with balanced 3-pin XLR female connectors.
- Balanced Mic-Level Output
- The main output features a single, microphone-level 3-pin XLR male output. The Output is also balanced for maximum gain with low noise.
- Headphone / Auxiliary Output
- The headphone output features a 1/4" phone connection and doubles as a secondary (unbalanced) line-level output.
- Phantom Power
- The ProMix is capable of providing 12V phantom power with the supplied AC adapter.
- AC & Battery Operated
- The mixer is designed to operate with the included 12 VDC power supply or a pair of 9V alkaline batteries.
- Low-Cut Filter Switches
- Low-cut filter switches eliminate noise caused by hum and rumble.
UPC: 840402014225 In the Box ART ProMIX 3-Channel Portable Mono Microphone Submixer Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART ProMIX 3-Channel Portable Mono Microphone Submixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART ProMIX Specs | Input Connections | 3 x XLR inputs | | Output Connectors | 1 x XLR output
1 x 1/4" line/headphone output | | Impedance | 600 Ohms (input and output) | | Phantom Power | 12 VDC | | Maximum Level | Input: -14 dB
Output: +14 dB | | THD | 0.0002% | | Low Cut Filters | -3 dB at 100 Hz | | Headroom Before Clipping | 3 dB | | Power Requirements | AC Power: 12 VDC
Battery: 2 x 9 V (alkaline) | | Dimensions (W x D x H) | 5.6 x 3.8 x 1.9" / 143 x 92 x 45 mm | | Weight | 24.0 oz / 680.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 14.173 x 6.929 x 1.969" |
