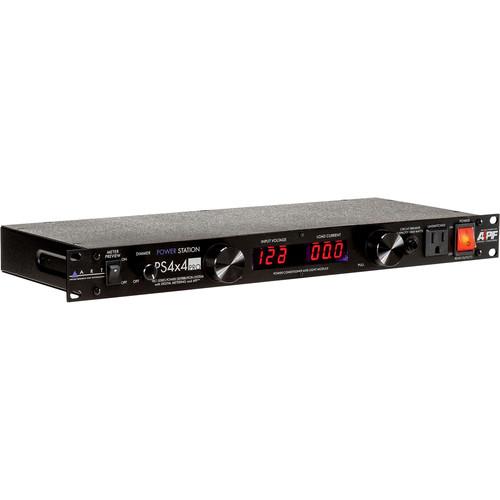

User Manual for ART PS 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Volt & Ammeters, Dual Lights & Gooseneck Light Click to enlarge the picture
Contents of the user manual for the ART PS 4x4 Pro Rackmount 8-Outlet
- Product category: Power Distributors & Conditioners ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Power Distributors & Conditioners
 |
User manual for the ART PS 4x4 Pro Rackmount 8-Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

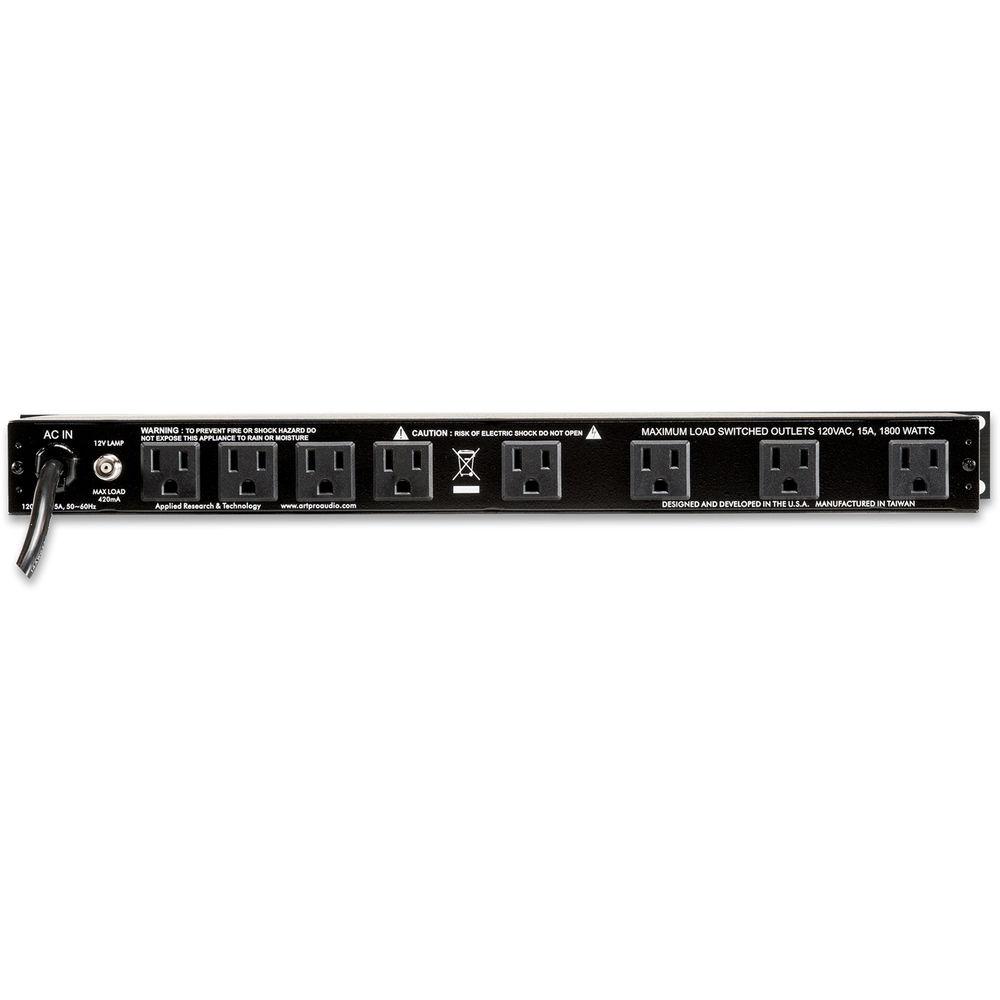

Product description The ART PS 4x4 Pro Rackmount 8-Outlet Power Conditioner is a complete AC power solution for rackmount systems. The PS 4x4 Pro can be installed into the top slot of a rack. Its eight switched AC outlets in the rear panel will power up and protect all your equipment, up to a 15A load. The LED meter displays incoming voltage and current metering, and the two slide-out, swiveling light fixtures provide illumination for all your gear. They are adjustable via the front-panel dimmer control. The PS 4x4 Pro conditions your delicate electronic equipment with a high-voltage surge and transient suppressor and an RFI/EMI interference filter. Pro Series models have an additional internal discrete module called APF (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high frequency noise that is above the audio range. By using this high power discrete design, the filter stays effective over the full operating range. The SP 4x4 Pro also features ART's "4x4" distribution on the back of the unit - four of the eight rear outputs are 1.25" apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from. - A front-mounted circuit breaker reset switch is provided on the front panel. If the total load on the unit (combining all outlets) exceeds the 15A (or 1800W) limit the circuit breaker will trip.

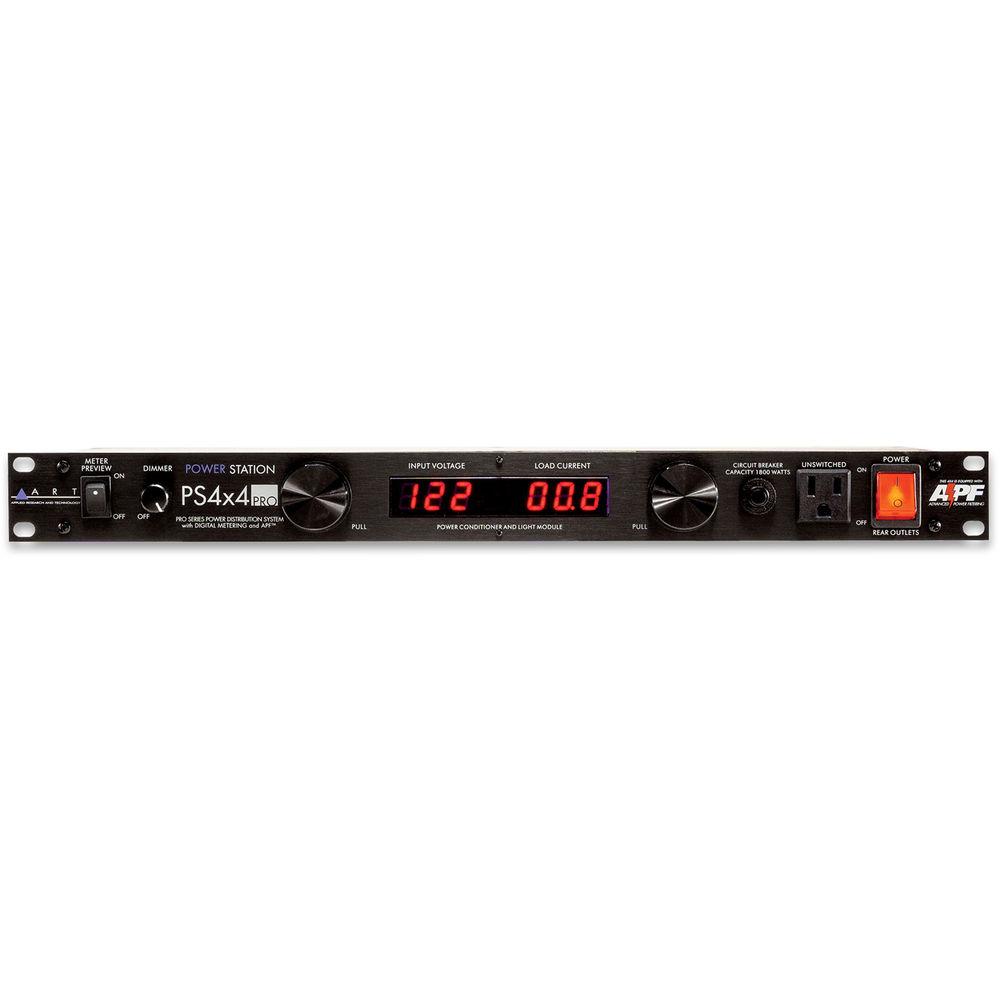

- A convenient master switch for the rear outlets that glows when the power is on. There is a separate "Rack Lights" switch for the lamps, plus a dimmer control knob that regulates the lamps' brightness.
- Common Mode and Differential Mode topologies in series for the filter design block virtually all of the unwanted noise that is between the AC line and ground, and also the two sides of the AC line. This has the additional benefit of reducing ground loop problems in the system.
- Any signals above 10kHz are filtered from the line with over 40dB of attenuation above 100kHz and beyond.

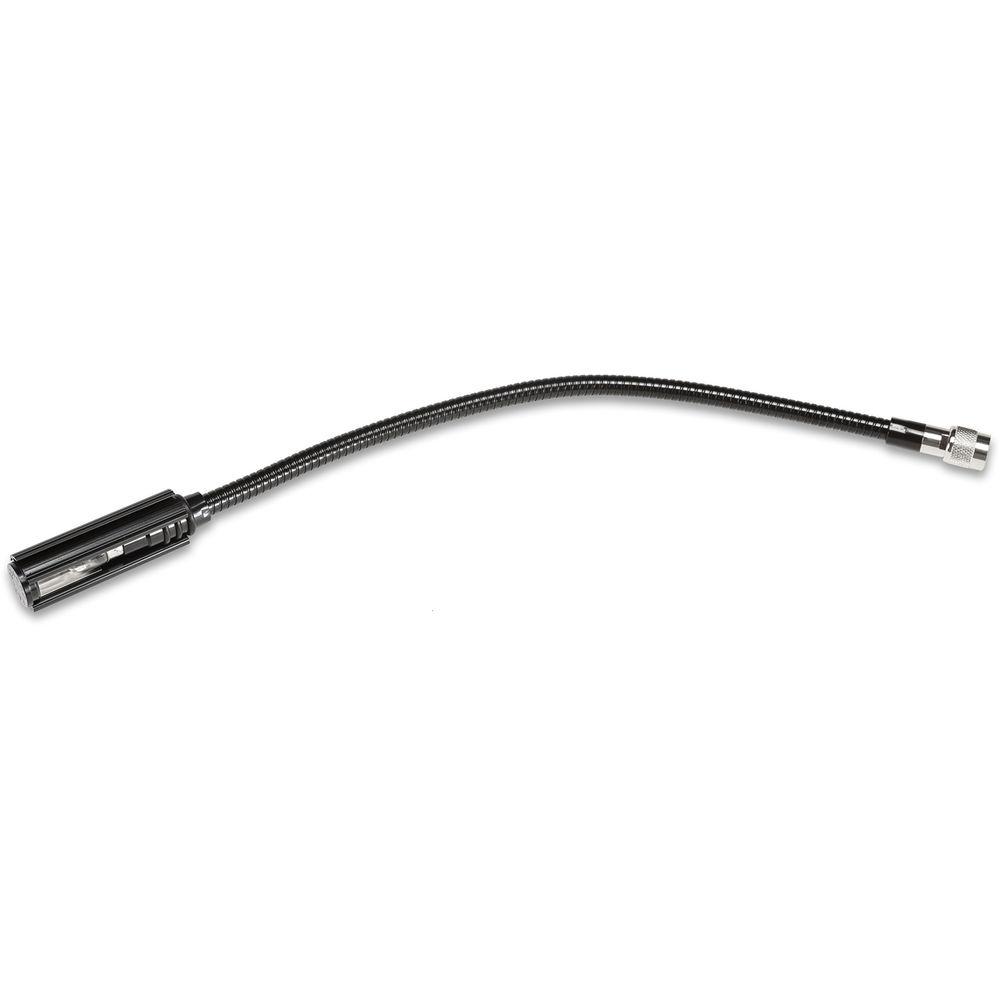

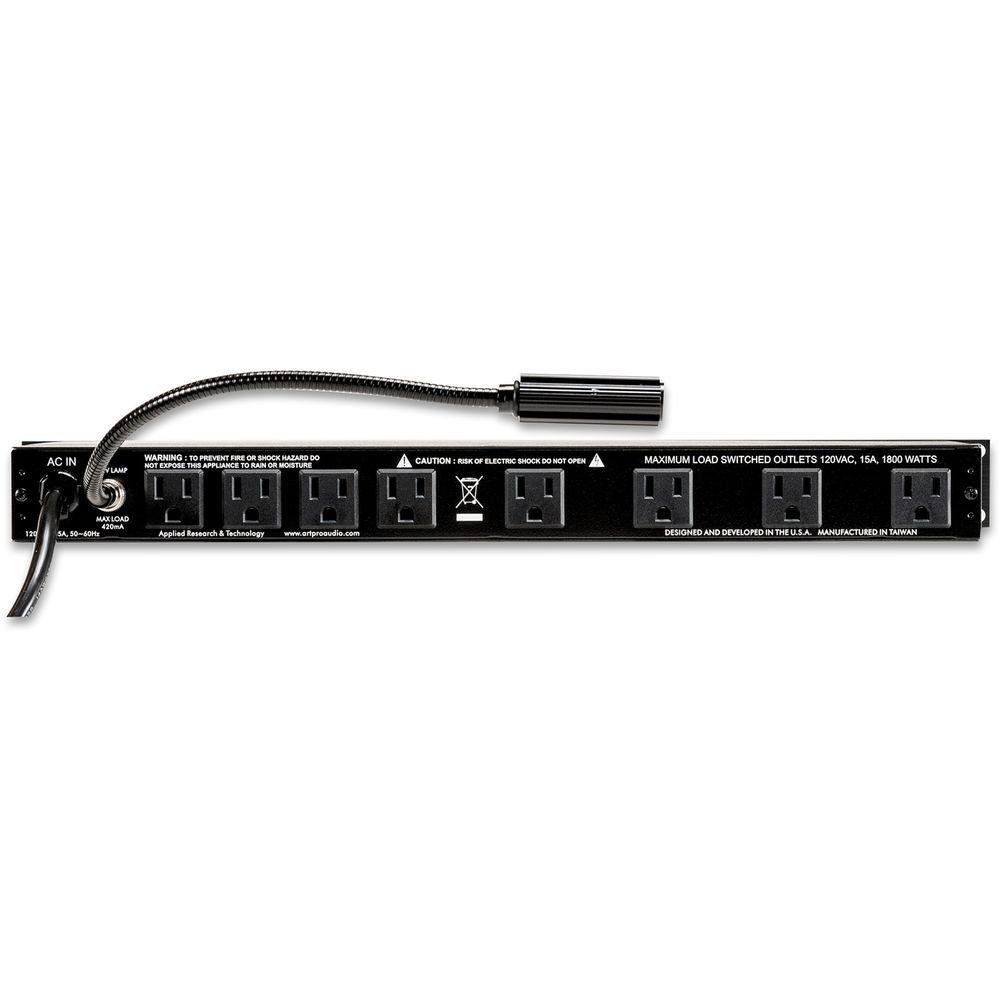

- Rear-mounted gooseneck lamp for rear rack illumination.
UPC: 840402017714 In the Box ART PS 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Volt & Ammeters, Dual Lights & Gooseneck Light 1-Year Warranty User Manual PDF 113.9kbduvttczrsywdurwcxwsr Table of Contents
|
Upload User Manual
Have you got an user manual for the ART PS 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Volt & Ammeters, Dual Lights & Gooseneck Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART PS4X4PRO Specs | Input | Power cord with 3-prong plug | | Output | 8x spaced rear panel 3-prong AC power outlets | | Surge Energy Rating | Not Specified by Manufacturer | | Audible Alarm | N/A | | Compatibility | 19" rack system | | Agency Certifications | None listed | | Dimensions | 19 x 8 x 1.75" (48.3 x 20.0 x 4.5 cm) WxDxH | | Weight | 5 lbs (2.2 kg) | | Equipment Protection | None | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 20.0 x 10.0 x 4.0" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
