Product description The RM5 from ART is a pair of versatile, professional-quality studio monitors, which can deliver high-quality audio from a compact design. Each speaker features a high-resolution ring radiator tweeter and 5" woofer which combine to deliver a frequency response of 45 Hz to 22 kHz with a maximum SPL of 109 dB. Additionally, each monitor features dual opposing passive radiators, which help lower distortion and help achieve the low frequency response of a much larger woofer.
The monitor design features a master speaker with integrated amplifiers and DSP that connect and power the satellite speaker. There are two 25W amplifiers for each set of tweeters and two 125W amplifiers for each set of 5" woofers. The master speaker includes a pair of combo XLR-1/4" inputs, a single 1/8" TRS stereo input, and Bluetooth connectivity for wireless audio playback. The speaker offers room compensation modes for 1/4, 1/2, and full space, as well as DSP settings for Reference, Hi-Fi, and Theatre, for a broad selection of tone shaping and volume controls to help you get most out of your monitoring setup. The aluminum unibody design ships with user-removable heavy-duty monitor bases and integrated 100mm Vesa mounting points, allowing the monitor to be mounted in a variety of ways including wall or rack enclosure mounting. The RM5 ships with a speaker connection cable, and a power cord. -
- Delivers exceptional clarity and precision in a compact studio monitor
- Space saving aluminum unibody design
- High resolution Ring Radiator with center plug waveguide ensures outstanding off-axis response for a wide "sweet spot"

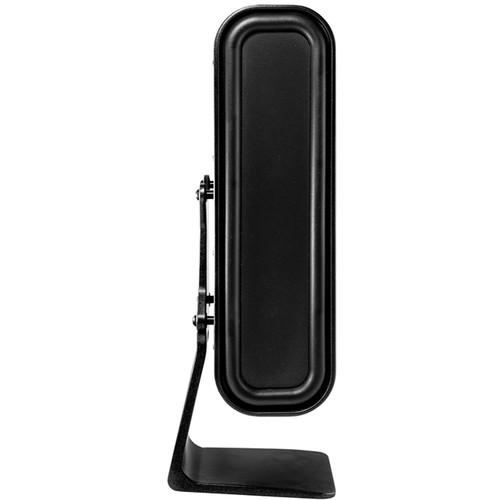

- Ultra-extended bass response is achieved by the dual opposing passive radiator design
- Three preset DSP modes for audio playback applications (Reference, Hi-Fi, Theatre)

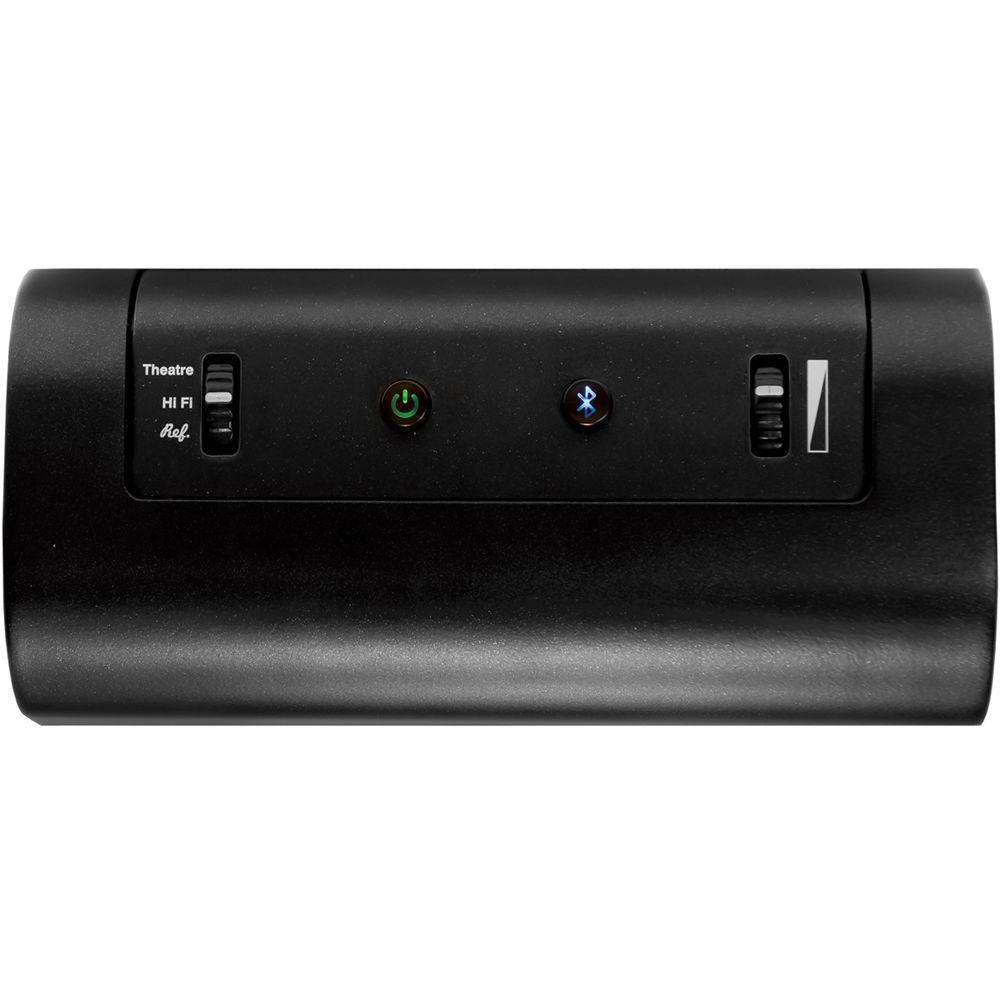

- Easily integrates into any system with accessible top mounted controls eliminating the need for a separate monitor controller
- Quarter, Half and Full Space room compensation modes
- Versatile Input Connectivity: 2 x combo XLR-1/4" (L/R), 1 x stereo 1/8" TRS, or Bluetooth connectivity for wireless streaming
- Integrated 100mm Vesa wall mount points
- Designed and engineered in Canada
In the Box ART RM5 300W Active 2-Way Studio Monitor (Pair) Power Cable Speaker Connection Cable Vesa Mount Stands and Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART RM5 300W Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART RM5 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Passive Radiator, Shielded | | Power Rating | 300 W Peak | | Drivers | HF Driver: 1 x / Ring Radiator Tweeter
LF Driver: 1 x 5" / 127 mm Woofer | | Amplification | 2 x HF Amplifier: Rated at 25 W
2 x LF Amplifier: Rated at 125 W | | | | Frequency Response | 45 Hz to 22 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 109 dB | | Protections and Limiting | Peak Limiter, Thermal Limiting | | | | Crossover Frequency | 2.2 kHz | | | | I/O | 2 x Combo XLR / 1/4" Balanced Analog Input
1 x 1/8" (3.5 mm) TRS Balanced Analog Input | | | | Enclosure Material | Aluminum | | Dimensions (W x H x D) | 7.6 x 12.4 x 3.6" / 193.0 x 315.0 x 91.4 mm | | Weight | 20.0 lb / 9.1 kg (Pair) | | | | Package Weight | 24.07 lb | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 5.0" |
