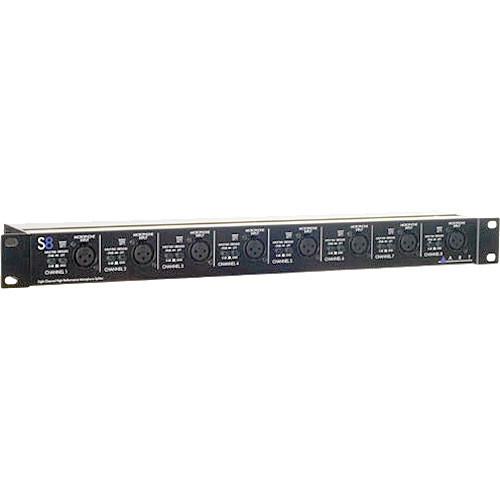

User Manual for ART S8 - 8-Channel Microphone Signal Splitter Click to enlarge the picture
Contents of the user manual for the ART S8 - 8-Channel Microphone Signal
- Product category: Splitters & Combiners ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Splitters & Combiners
 |
User manual for the ART S8 - 8-Channel Microphone Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

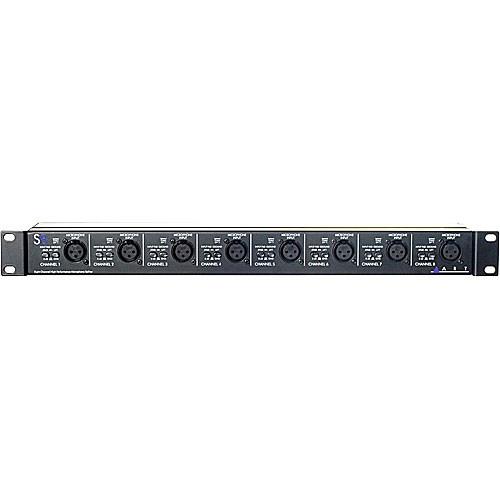

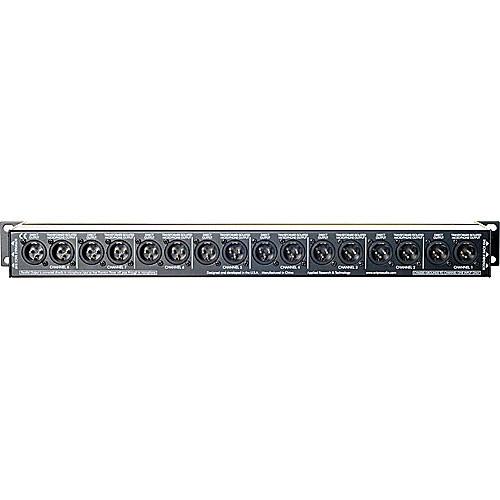

Product description The ART S8 8-Channel Microphone Signal Splitter is ideal for sending a secondary microphone signal to a monitor mixer, recording device, etc. The S8 features eight XLR inputs and 16 outputs. Eight direct outputs pass phantom power to the microphone and are intended to feed the main preamplifiers, mixer inputs or other input devices. The eight isolated outputs are provided to feed a secondary input device, such as a recording device or monitor mixer input. A -29dB input Pad switch is provided on each channel. Ground-lift switches eliminate ground loop noise caused by connected devices. UPC: 840402018285 In the Box ART S8 - 8-Channel Microphone Signal Splitter 1 Year Warranty User Manual PDF 157.1kbebcatutctxyyyawbsrad Table of Contents
|
Upload User Manual
Have you got an user manual for the ART S8 - 8-Channel Microphone Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART ARTS8 Specs | Inputs | XLR Microphone x8 | | Outputs | XLR Direct Output x8
XLR Transformerless Output x8 | | Input Impedance | greater than 1.1kΩ @ 1kHz (Typical) | | Maximum Input Level | -1.4dBu @ 20Hz / +3.5dBu @ 30Hz / +9.4dBu @ 50Hz | | Output Impedance | Less Than 255Ω @ 1kHz (Typical) | | THD & Noise | Less Than 0.1% From 45Hz To 20kHz @ -15dBu Input | | Frequency Response | 20Hz to 20kHz | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 20.9 x 7.0 x 3.5" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
