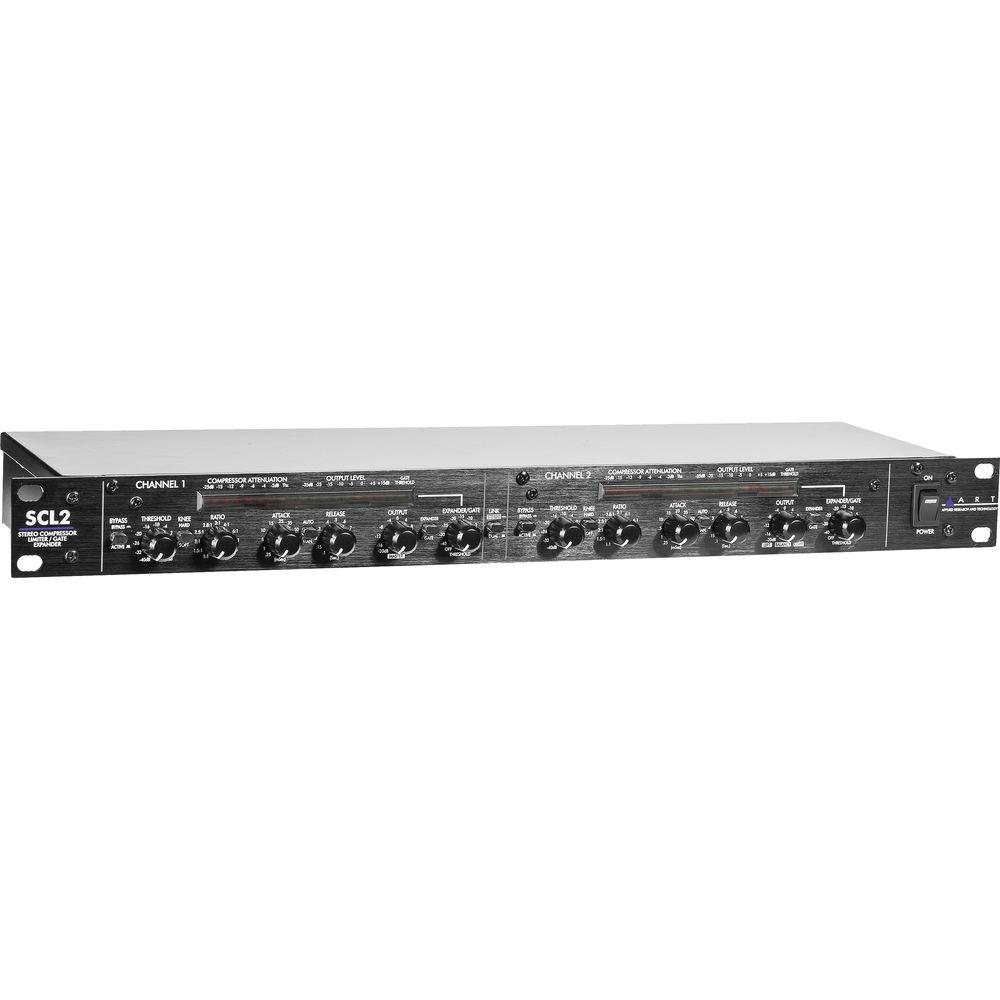

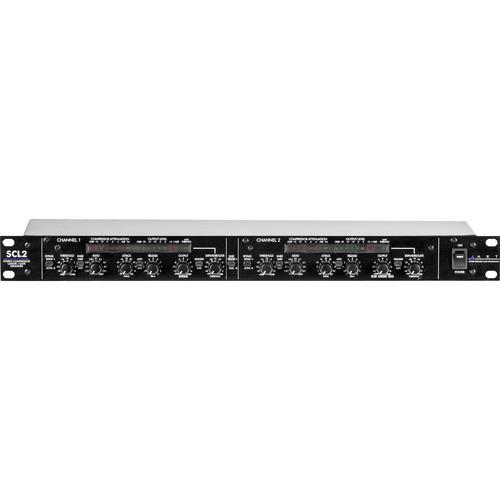

User Manual for ART SCL2 - Dual Stereo Compressor Limiter Expander With Gate Click to enlarge the picture
Contents of the user manual for the ART SCL2 - Dual Stereo Compressor
- Product category: Dynamics Processors ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Dynamics Processors
 |
User manual for the ART SCL2 - Dual Stereo Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

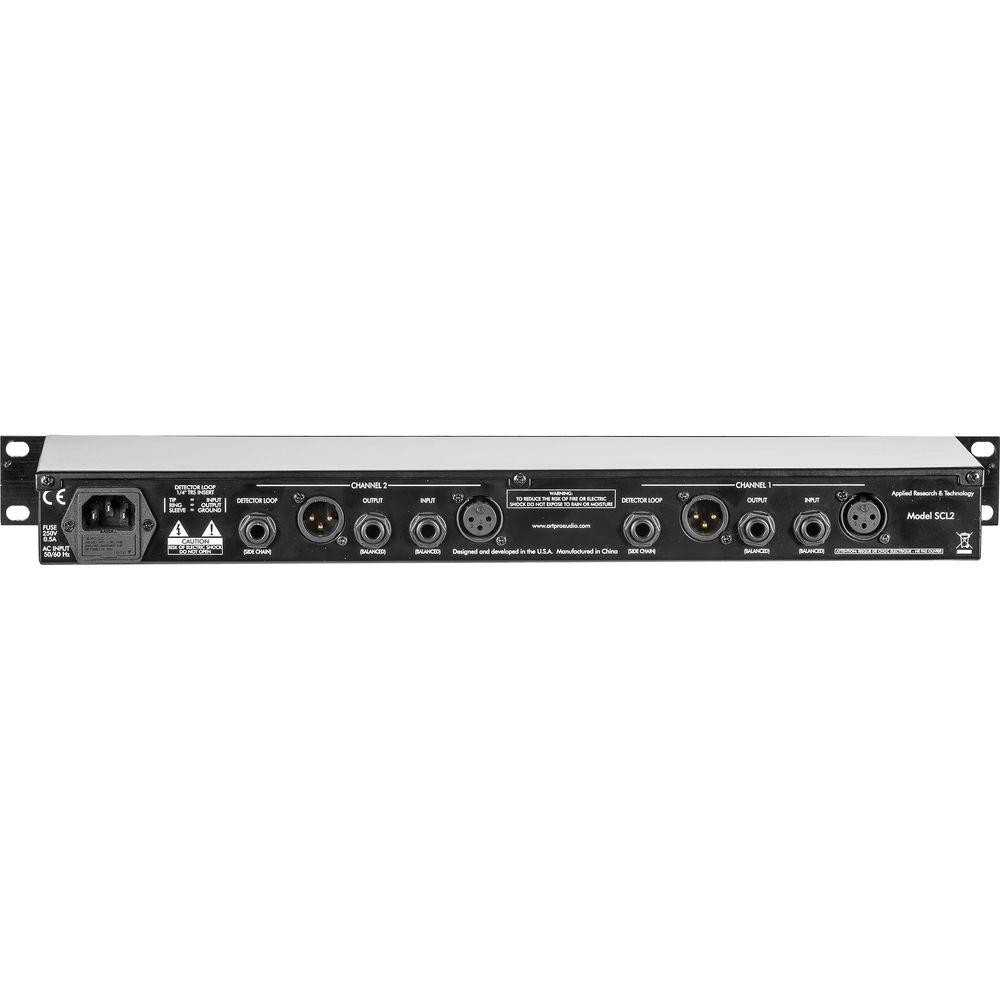

Product description The ART SCL2 - Dual Stereo Compressor Limiter Expander With Gate is a dynamic signal processor designed for studio recording and live sound reinforcement applications. The 1RU rackmountable device is housed in a durable steel chassis and features balanced 1/4" TRS connectors and balanced XLR connectors for main channel inputs and outputs, as well as a 1/4" TRS connector for a sidechain input.
The device can be used to provide anything from smooth subtle compression to hard limiting, as well as reducing noise with fast gating or through expansion. The knee, the attack, and the release of the compressor can be set by the user or the device can be set to auto mode. A bank of LED meters provide visual feedback of each channel's gain reduction. UPC: 840402035992 In the Box ART SCL2 - Dual Stereo Compressor Limiter Expander With Gate Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART SCL2 - Dual Stereo Compressor Limiter Expander With Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART SCL2 Specs | Input | 2x balanced XLR-3F (left and right channels)
2x balanced 1/4" TRS (left and right channels)
1x 1/4" TRS sidechain input | | Output | 2x balanced XLR-3F (left and right channels)
2x balanced 1/4" TRS (left and right channels) | | Input Impedance | 10 kΩ | | Output Impedance | 200 Ω balanced, 100 Ω | | Maximum Input Level | +20 dBu balanced | | Maximum Output Level | +20 dBu balanced | | Frequency Response | 10 to 40,000 Hz ±0.5 dB | | Dynamic Range | 120 dB | | Attack Time | 0.25 ms to 100 ms adjustable | | Release Time | 100 ms to 3 s adjustable | | Total Harmonic Distortion (THD) | <0.06% (typical) | | Power Requirements | 120 VAC, 50/60 Hz, 10 W max | | Dimensions | 1.75 x 19.0 x 6" (4.50 x 48 x 15.2 cm) | | Weight | 4.2 lb (1.9 kg) | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 21.1 x 10.6 x 3.5" |
