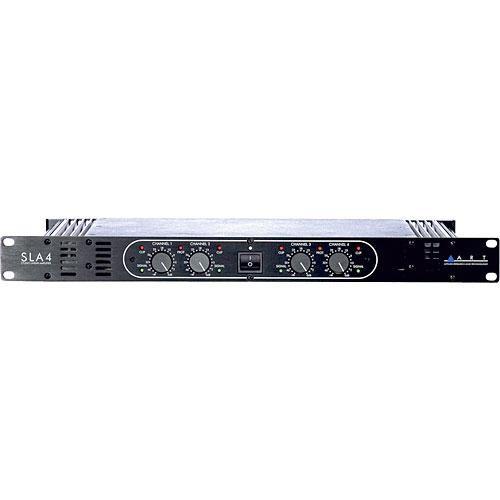

User Manual for ART SLA-4 4-Channel Studio Linear Power Amplifier Click to enlarge the picture
Contents of the user manual for the ART SLA-4 4-Channel Studio Linear Power
- Product category: Power Amplifiers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Power Amplifiers
|
User manual for the ART SLA-4 4-Channel Studio Linear Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The SLA-4 from ART is a rack mountable 4-channel power amplifier designed for studio use. It offers a wide frequency response with very low noise and distortion for quality audio output. Input is via 1/4" and Euroblock connectors, while output is via 5-way binding posts. Each channel has its own level control on the front panel.
The SLA-4 can operate in multi-channel, stereo, or bridged mode, and features a ground-lift switch to eliminate hum caused by ground loops. The unit offers full protection circuitry for short circuits, overloads, and overheating. If any faults are detected, the amplifier will disconnect the outputs and automatically return to normal operation when the fault is fixed. The SmartFan cooling system offers silent fan-assisted convection cooling to keep the system running reliably. - High quality audio with low distortion
- Individual level controls for all 4 channels
- 1/4" and Euroblock inputs, and 5-way binding post outputs
- Multichannel, stereo, or bridged operating modes
- Ground-lift switch for eliminating hum
- LED indicators for power, signal, clip, and protect
- SmartFan cooling system is fan-assisted for quiet, reliable operation
- Protection circuitry prevents damage from overheating, overloads, and short circuits. It will disconnect the outputs when a fault is present, and resume normal operation when the fault has been removed
UPC: 840402018322 In the Box ART SLA-4 4-Channel Studio Linear Power Amplifier (100W/Channel @ 8 Ohms) Power Cord 3-Year Limited Warranty User Manual PDF 678.7kbewaqzsurzsarfsuzffx Table of Contents
|
Upload User Manual
Have you got an user manual for the ART SLA-4 4-Channel Studio Linear Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART SLA-4 Specs | Output Power | 4 x 100W RMS @ 8 Ohms Stereo
4 x 140W RMS @ 4 Ohms Stereo
2 x 200W RMS @ 16 Ohms Bridged
2 x 280W RMS @ 8 Ohms Bridged | | Damping Factor | > 100 | | Input Sensitivity | 1V for Full Power into 8 Ohms | | Input Impedance | 44 kOhms, Balanced
22 kOhms, Unbalanced | | Gain | Not Specified by Manufacturer | | Frequency Response | 10Hz - 40kHz, ±0.5dB | | Signal-to-Noise Ratio | > 100dB | | Total Harmonic Distortion (THD) | < 0.05% (Typical) | | Input Connections | 4 x 1/4" (6.3mm) Jacks
1 x 6-Pin Removable Terminal Block
1 x AC Power In | | Output Connectors | 8 x 5-Way Binding Posts (2 Per Channel) | | Controls Front Panel | 1 x Power Switch
4 x Level Control Knobs | | Controls (Rear) | 1 x Stereo/Bridge Mode Selector Switch
1 x Ground-Lift Switch | | Indicators | 1 x Blue Power LED
4 x Red Protect LEDs
4 x Red Clip LEDs
4 x Green Signal LEDs | | Cooling | SmartFan Convection Cooling, Silent Fan-Assisted System | | Power | 120VAC, 60Hz, 1000W (Max) | | Dimensions (WxHxD) | 19 x 1.75 x 13.5" (483 x 44 x 343mm) | | Weight | 19.8 lbs (9kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 22.9 x 18.5 x 5.0" |
