ART SP 4x4 Pro Rackmount 8-Outlet

Search your instruction manual in PDF to download

User Manual for ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light

Click to enlarge the picture
ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light Contents of the user manual for the ART SP 4x4 Pro Rackmount 8-Outlet
  • Product category: Power Distributors & Conditioners ART
  • Brand: ART
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ART Power Distributors & Conditioners

ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light
User manual for the ART SP 4x4 Pro Rackmount 8-Outlet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ART product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!



Product description

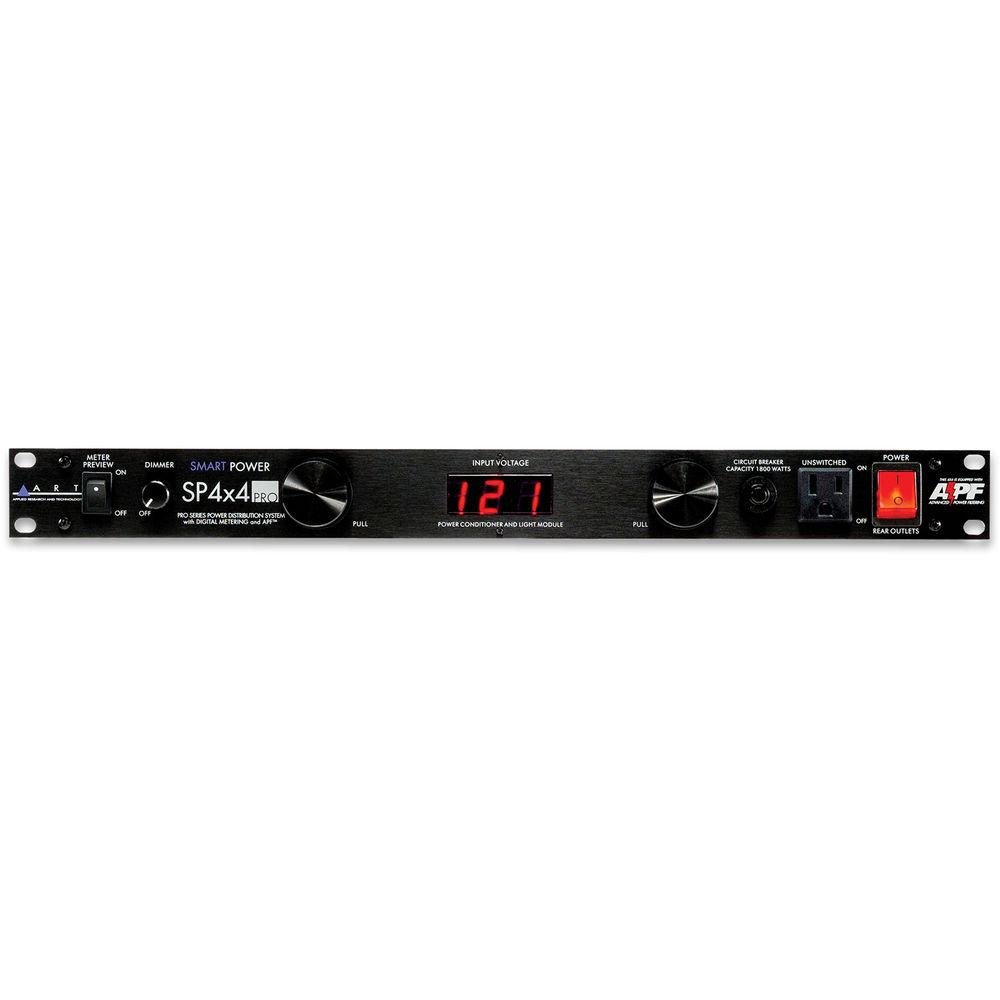

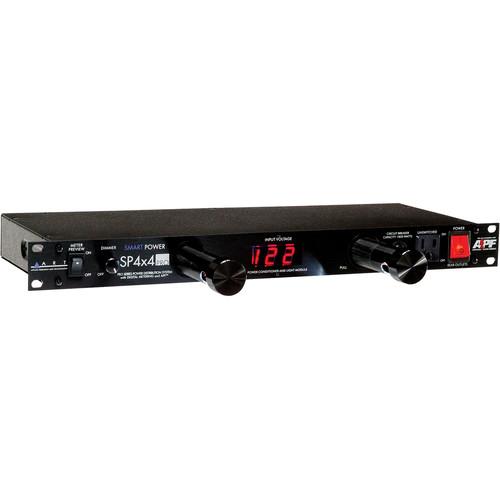

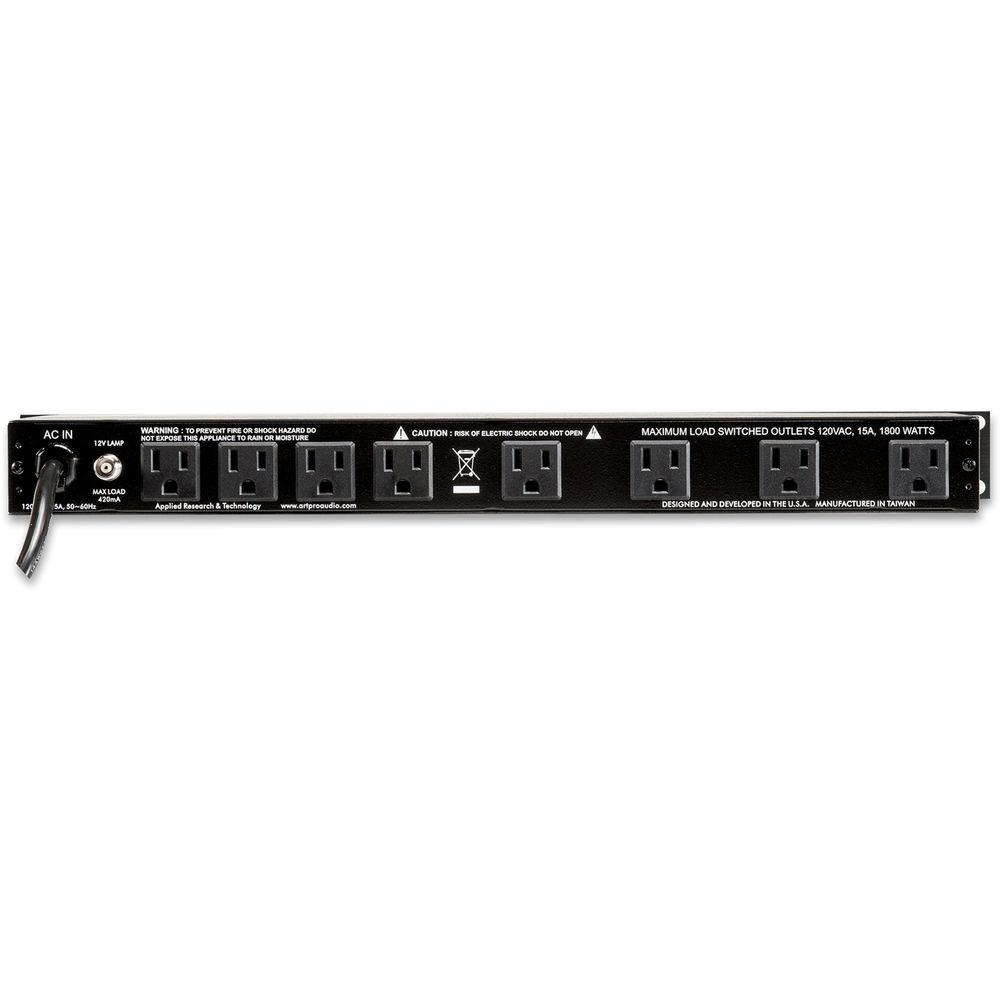

The ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner is a low-cost AC power solution for rackmount systems. The SP 4x4 Pro can be installed into the top slot of a rack. Its eight switched AC outlets in the rear panel will power up and protect all your equipment, up to a 15A load. The LED input voltage meter displays incoming voltage, and the two slide-out, swiveling light fixtures provide illumination for all your gear. They are adjustable via the front-panel dimmer control. The SP 4x4 Pro conditions your delicate electronic equipment with a high-voltage surge and transient suppressor and an RFI/EMI interference filter. Pro Series models have an additional internal discrete module called APF (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high frequency noise that is above the audio range. By using this high power discrete design, the filter stays effective over the full operating range. The SP 4x4 Pro also features ART's "4x4" distribution on the back of the unit - four of the eight rear outputs are 1.25" apart. This allows the user to plug in wide power cables and multiple wall wart devices, and still have eight total power outlets to choose from.
  • A front-mounted circuit breaker reset switch is provided on the front panel. If the total load on the unit (combining all outlets) exceeds the 15A (or 1800W) limit the circuit breaker will trip.
  • A convenient master switch for the rear outlets which glows when the power is on. There is a separate "Rack Lights" switch for the lamps, plus a dimmer control knob which regulates the lamps' brightness.
  • Common Mode and Differential Mode topologies in series for the filter design block virtually all of the unwanted noise that is between the AC line and ground, and also the two sides of the AC line. This has the additional benefit of reducing ground loop problems in the system.
  • Any signals above 10kHz are filtered from the line with over 40dB of attenuation above 100kHz and beyond.

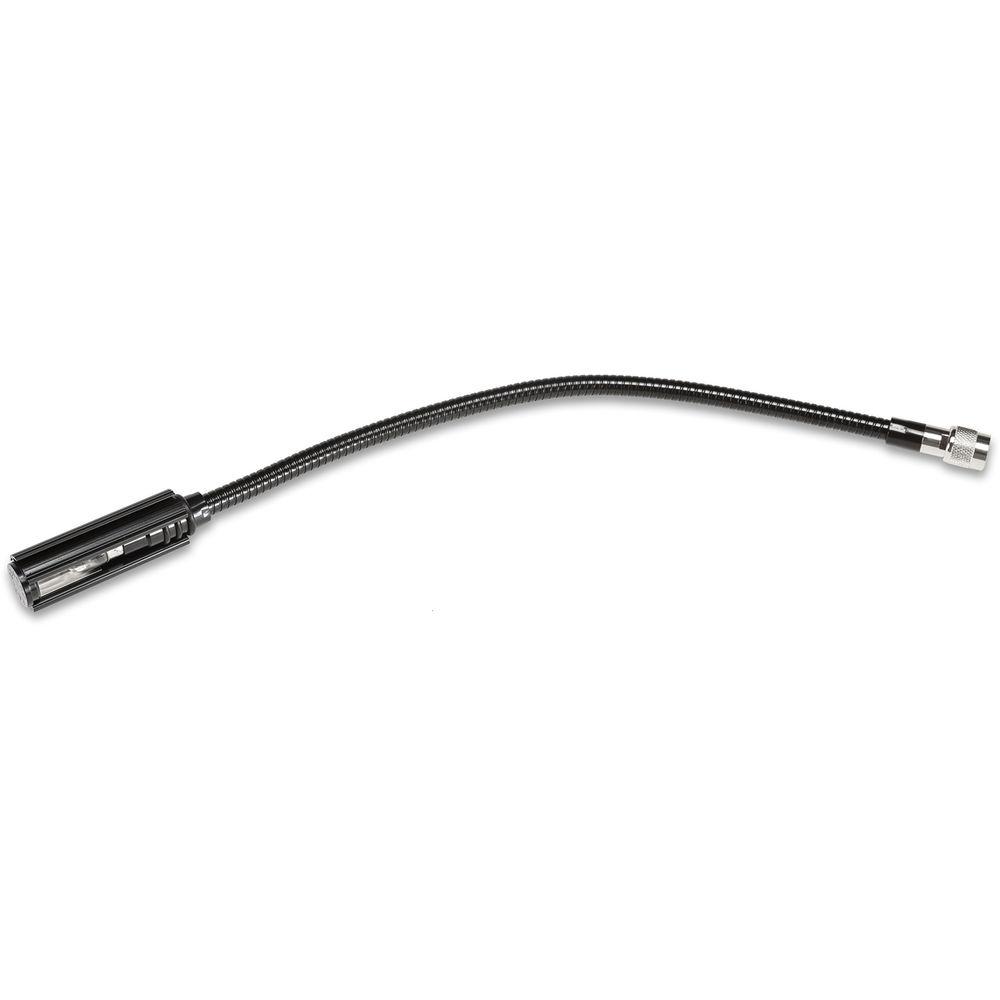

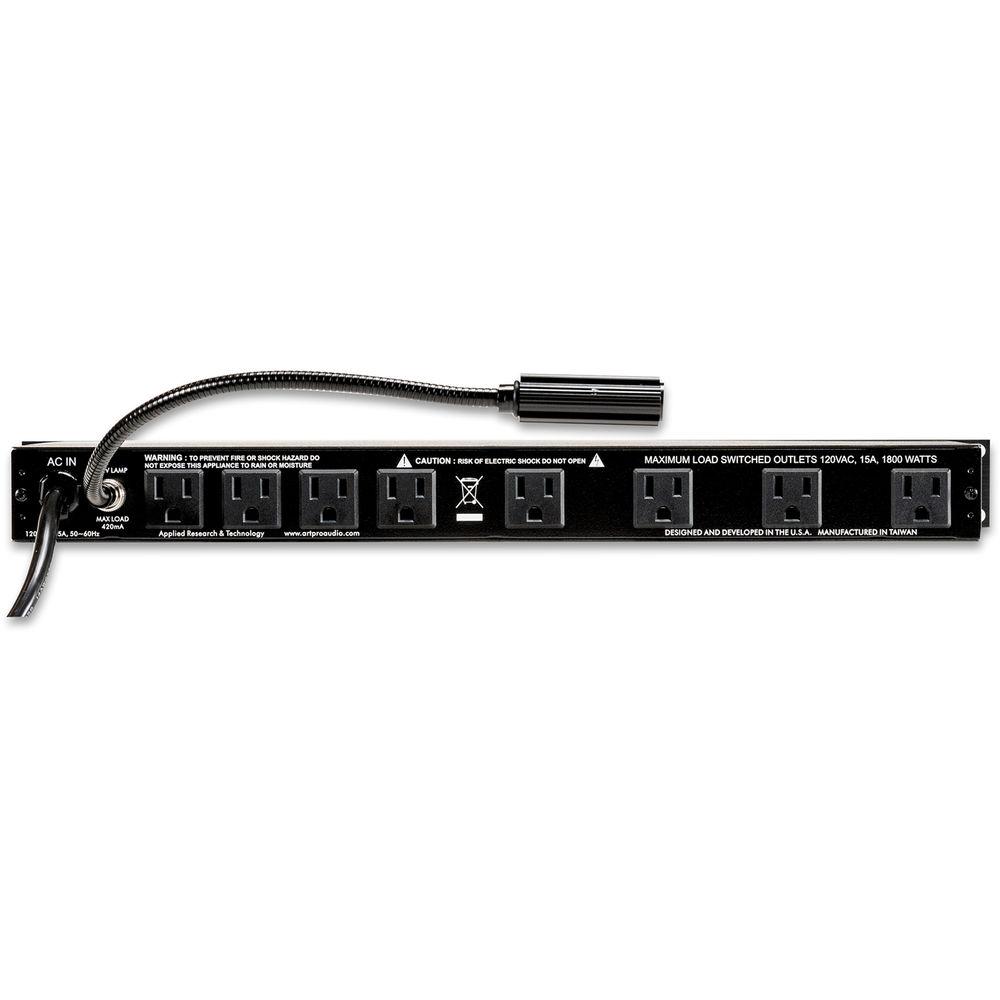

  • Rear-mounted gooseneck lamp for rear rack illumination.
UPC: 840402017721 In the Box ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light
  • 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ART SP 4x4 Pro Rackmount 8-Outlet Power Conditioner & Surge Protector - with LED Voltmeter, Dual Lights & Gooseneck Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ART SP4X4PRO Specs

    Input Power cord with 3-prong plug
    Output 8x spaced rear panel 3-prong AC power outlets
    Surge Energy Rating Not Specified by Manufacturer
    Audible Alarm N/A
    Compatibility 19" rack system
    Agency Certifications None listed
    Dimensions 19 x 8 x 1.75" (48.3 x 20.0 x 4.5 cm) WxDxH
    Weight 5 lbs (2.2 kg)
    Equipment Protection None
    Package Weight 7.5 lb
    Box Dimensions (LxWxH) 21.6 x 9.7 x 2.9"
