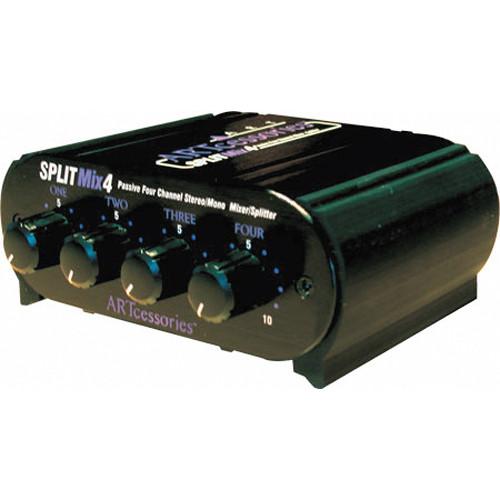

User Manual for ART SPLITMix4 4-Channel Passive Splitter Mixer Click to enlarge the picture
Contents of the user manual for the ART SPLITMix4 4-Channel Passive Splitter Mixer
- Product category: Splitters & Combiners ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Splitters & Combiners
|
User manual for the ART SPLITMix4 4-Channel Passive Splitter Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The SPLITMix4 from ART is a passive hybrid mixer that can be configured for a variety of applications. The compact unit can mix 4 stereo inputs down to a single stereo output, split a single stereo input to 4 outputs, and more. The unit has 1/4" TRS input and output connectors, which can also accept mono TS connectors. Each channel has its own level control for convenient customization. The unit is entirely passive, so no batteries or power supply are required. - Standard 1/4" TRS stereo input and output connectors provide a variety of configuration possibilities 1
Please Note: Connectors are also compatible with 1/4" TS mono plugs close - Independent level controls on each channel
- Entirely passive; no batteries or power supply required
UPC: 840402018834 In the Box ART SPLITMix4 4-Channel Passive Splitter/Mixer 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART SPLITMix4 4-Channel Passive Splitter Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART SPLITMix4 Specs | Frequency Response | 20Hz - 20kHz | | Total Harmonic Distortion (THD) | < 0.005% | | Phase Response | < 10° @ 20kHz | | Connectors | 5 x 1/4" TRS Inputs
5 x 1/4" TRS Outputs | | Input Impedance | 25-100 kOhms | | Output Impedance | 1-4 kOhms | | Insertion Loss | 12dB | | Attenuation / Gain | > 90dB | | Channel Isolation | > 90dB | | Dimensions (HxWxD) | 1.85 x 4.6 x 4.1" (47 x 117 x 104mm) | | Weight | 0.84 lbs (0.38kg) | | | | Package Weight | 0.915 lb | | Box Dimensions (LxWxH) | 6.8 x 5.1 x 2.85" |
