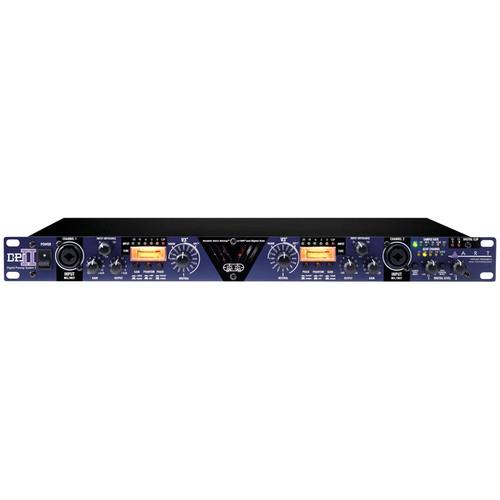

User Manual for ART TPS II - 2 Channel Tube Microphone Preamplifier with V3 Valve Voicing and Variable Impedance Click to enlarge the picture
Contents of the user manual for the ART TPS II - 2 Channel
- Product category: Microphone Preamps ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Microphone Preamps
|
User manual for the ART TPS II - 2 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The TPS II is a two-channel high performance preamplifier coupled with V3 (Variable Valve Voicing) functionality. It also features variable input impedance that allows users to dial in and match any microphone type from large condensers to ribbon microphones. The V3 feature provides optimized reference points to begin the recording process for guitars, bass guitars, synthesizers, acoustic instruments, percussion, vocals and more. The TPS II displays level monitoring with two analog meters as well as two newly added input monitoring LED meters. The TPS II can accept +20dB peaks while maintaining over 120dB dynamic range, quiet performance and incredibly low distortion. The OPL (Output Protection Limiting) feature is used to control overshoots and normalize levels before clipping occurs. The unit also functions as a direct box, with impedance matching and preamplification for instrument or line-level sources. High-Z instruments or balanced microphone signals can be input through front and rear panel jacks. - Two channel preamplifier system
- V3 Variable Valve Voicing presets
- Adjustable input impedance
- OPL - Output Protection Limiter
- Balanced XLR inputs and outputs
- High impedance instrument inputs and line level outputs
- Automatic instrument input switching
- 48v phantom power (switch selectable)
- Input gain and output level controls
UPC: 840402015635 In the Box ART TPS II - 2 Channel Tube Microphone Preamplifier with V3 Valve Voicing and Variable Impedance AC Power Cord Three (3) Year Warranty User Manual PDF 290.5kbdxysdaexzwsvfzfuswvcarzea Table of Contents
|
Upload User Manual
Have you got an user manual for the ART TPS II - 2 Channel Tube Microphone Preamplifier with V3 Valve Voicing and Variable Impedance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART TPS II Specs | Number of Channels | 2 | | Inputs | 2 x Neutrik combi XLR (front)
2 x 1/4" TRS phone (rear) | | Output | 2 x XLR
2 x 1/4" TS phone | | Phantom Power | +48v | | Multi Function | Line and instrument-level inputs | | Gain Range | 80dB, XLR to XLR | | Maximum Output Level | +28dB | | Frequency Response | 5Hz to 50kHz, +/-0.1dB | | Noise | EIN: -129dBu XLR to XLR (A weighted) | | Dimensions (WxDxH) | 19" X 6 1/2" x 1 1/2" | | Specialties | Hand selected 12AX7A dual triode tube | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 21.1 x 10.5 x 3.7" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
