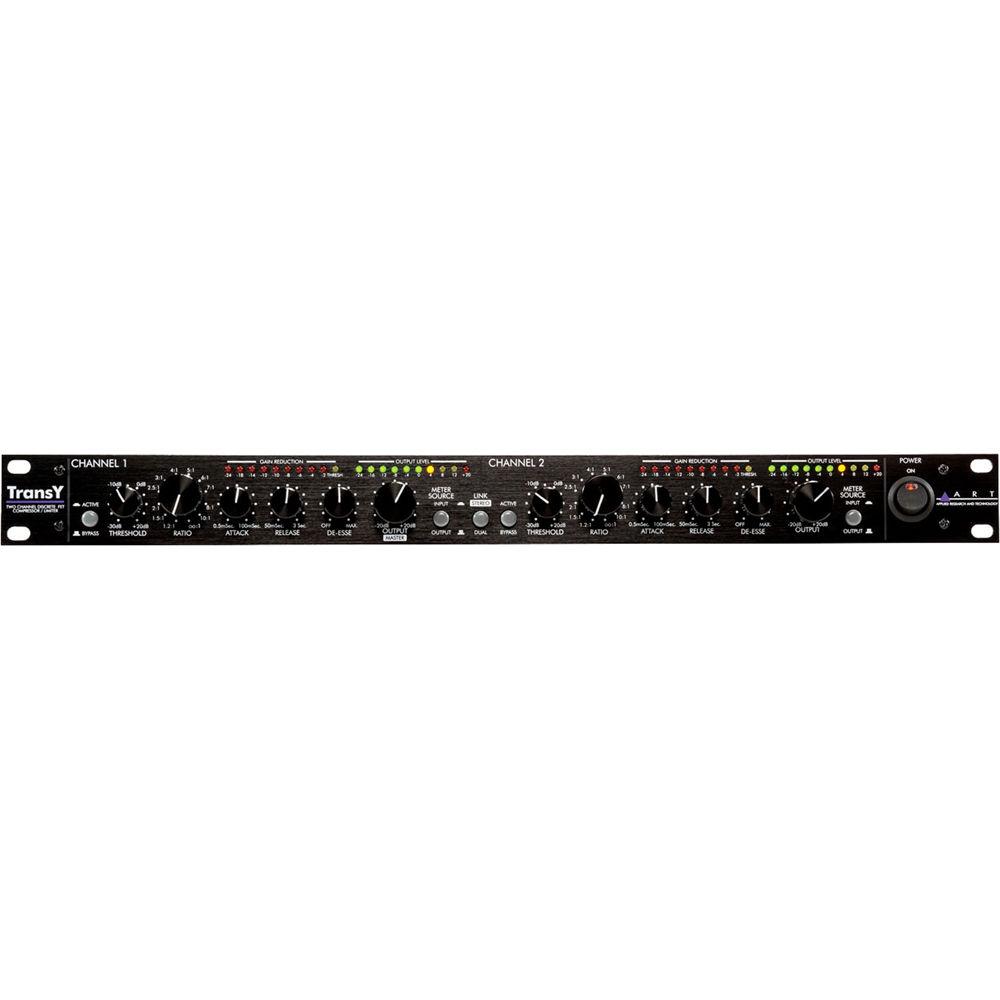

Product description The ART TransY is a 1 RU rack-mountable, two-channel FET compressor/limiter designed to deliver dynamics processing with enhanced flexibility, minimal noise, and low distortion for musicians and audio engineers in recording studios and live stage applications. Its linkable channels allow stereo or dual-mono operation and can be independently bypassed. Each channel features twelve selectable ratios and adjustable threshold, output, attack, and release. Additionally, up to 16 dB of de-essing at 6 kHz is available per channel. XLR and 1/4" balanced inputs and outputs enable proper connectivity with audio interfaces and mixing consoles. Use the 1/4" detector I/O to insert outboard gear before each channel's sidechain. Ten-segment LEDs provide easy metering of gain reduction and input/output levels. The TransY's included 48 VDC external power supply utilizes a locking connector to prevent accidental disconnects. - Two channels of dynamics processing
- Selectable stereo linking
- Low-noise, low-THD discrete transistor audio path
- Servo-controlled FET gain reduction circuit
- Custom output transformer reduces ground noise and maintains level for balanced and unbalanced connections

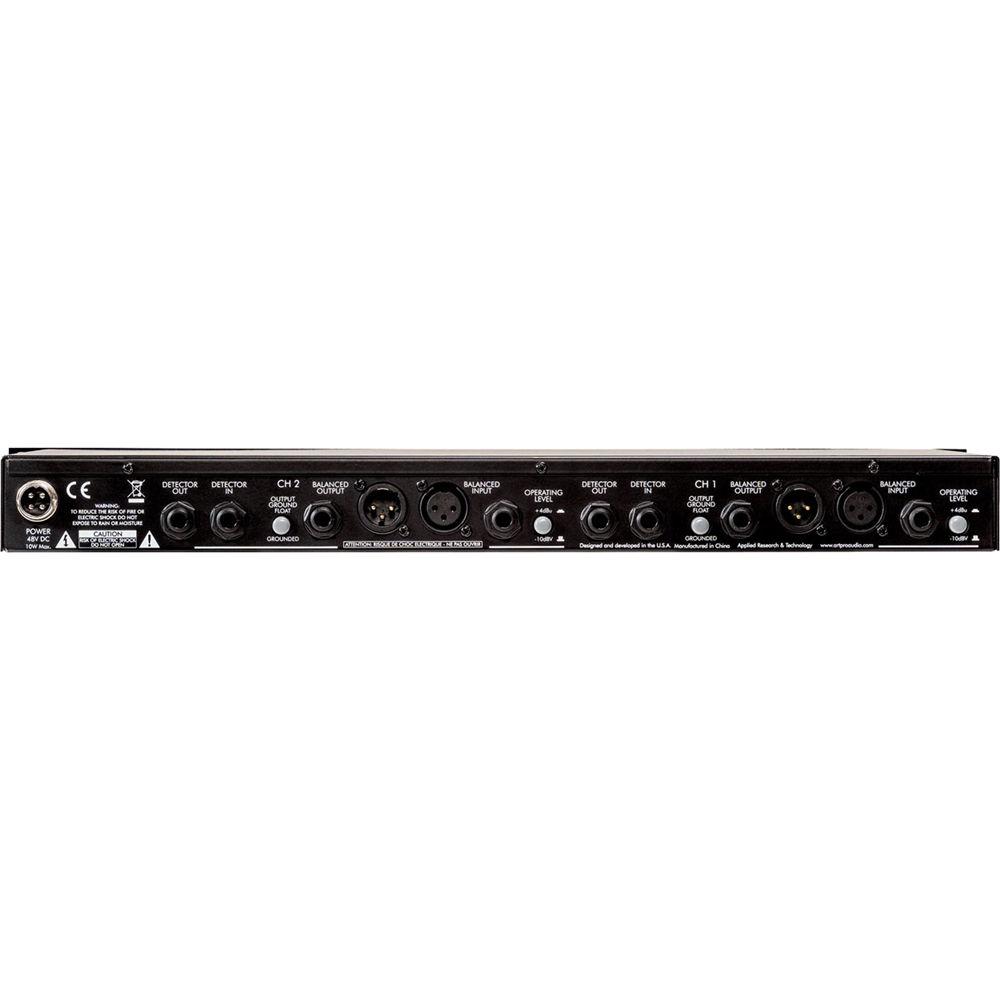

- XLR and 1/4" balanced inputs and outputs
- Per-channel 1/4" detector I/O allow insertion of outboard gear before the sidechain
- Selectable ratios via stepped rotary control
- Variable threshold and output levels per channel
- Variable attack and release controls per channel
- Selectable +4 dBu or -10 dBV operating level
- Hardwire bypass simplifies troubleshooting and functions even when power is lost
- Ten-segment gain reduction LEDs
- Ten-segment LEDs for metering input or output
- Includes 48 VDC external power supply with locking connector
- Rugged rack-mountable steel chassis occupies 1 RU of rack space
In the Box ART TransY Two-Channel FET Compressor/Limiter 48 VDC Power Supply IEC Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART TransY Two-Channel FET Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART TransY Specs Function | Compressor/limiter | Number of Channels | 2 | Inputs | 2 x XLR 3-pin balanced 2 x 1/4" / 6.3 mm TRS balanced | Outputs | 2 x XLR 3-pin balanced 2 x 1/4" / 6.3 mm TRS balanced | Inserts | 2 x 1/4" / 6.3 mm TRS balanced sends (between input and detector stages) 2 x 1/4" / 6.3 mm TRS balanced returns (between input and detector stages) | Input Impedance | Balanced Input: 33 kOhms Detector Input: 2 MOhms | Output Impedance | Balanced Output: 110 Ohms Detector Output: 270 Ohms | Maximum Input Level | Balanced Input at +4 dBu Operating Level: +21 dBu Balanced Input at -10 dBV Operating Level: +9 dBu Detector Input: +20 dBu | Compression Threshold | -30 to +20 dB | Compression Ratio | 1.2:1 to ∞:1 | Attack Time | 0.5 to 100 ms | Release Time | 50 ms to 3 sec | Maximum Output Level | Balanced Output at +4 dBu Operating Level: +21 dBu Balanced Output at -10 dBV Operating Level: +9 dBu Detector Input: +20 dBu | Overall Gain | 40 dB (-20 to +20 dB) | Frequency Response | 15 Hz to 100 kHz (
