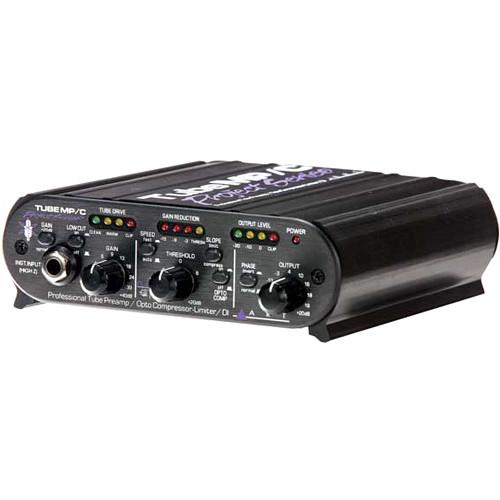

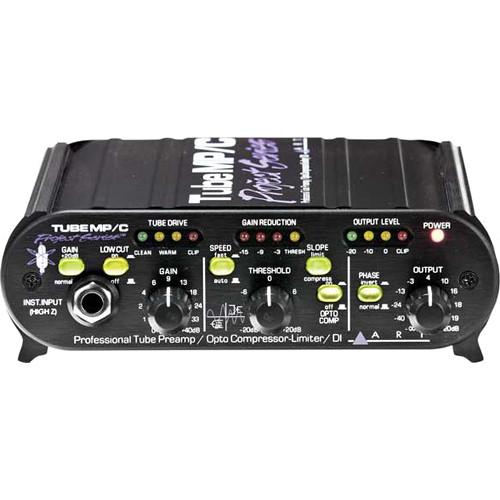

Product description The Tube MP/C from ART is a single channel tube preamp with a switchable optical compressor, all housed in a rugged desktop enclosure. Used as a microphone/line preamp or as a DI (direct) box, the unit is designed to work seamlessly with any recording, live sound, or electronic instrument setup. The preamp's active balanced solid-state input delivers extremely low noise and good common mode rejection.
The Hi-Z input prevents the loading of connected devices, perfect for DI or line level applications. The preamp's second stage 12AX7a tube runs on a regulated DC voltage providing an additional 20 dB of gain. The compression circuit features a VCA-less design and utilizes optical electronics coupled with a 12AX7a vacuum tube gain stage. - Tube-based microphone/line preamplifier with up to 80dB of gain
- Hand-selected 12AX7a tube
- Optical compressor circuitry for transparent dynamic control (no VCA)

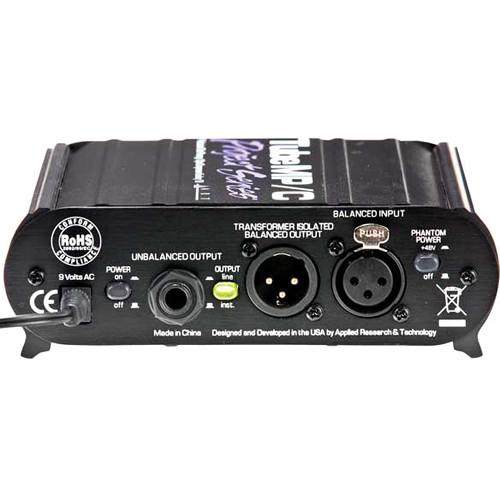

- XLR balanced inputs and outputs
- Transformer isolated XLR output
- 1/4" unbalanced inputs and outputs
- Selectable output range for line/instrument interface levels
- LED meters for Tube Warmth, Gain Reduction and Output level
- Custom extruded aluminum chassis
UPC: 840402019466 In the Box ART Tube MP/C - Tube Preamp/Opto Compressor/DI External Power Supply Three (3) Year Warranty User Manual PDF 276.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Tube MP C - Tube Preamp Opto Compressor DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART Tube MP/C Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x 1/4" TS phone Instrument (front panel) | | Outputs | 1 x XLR
1 x 1/4" TS phone | | Frequency Response | 30Hz to 60kHz, +/-1.0dB XLR output
20Hz to 60kHz, +/-1.0dB 1/4" output | | Noise | EIN: -128dBu typical (A-weighted, shorted XLR balanced input, gain @ maximum) | | CMRR | >60 dB @ maximum gain | | | | Gain Range | +80dB (balanced in-out)
+64dB (unbalanced input, balanced output) | | Maximum Input Level | XLR: +10dBu
1/4": +15dBu | | Maximum Output Level | +19dBu (line mode) | | Input Impedance | XLR: 5kΩ
1/4": 1MΩ | | Phantom Power | Switch selectable, +48VDC, filtered, current limited | | | | Threshold Range | -20dB to +20dB | | Attack Time | <1mSec (limit), 20mSec (comp) | | Release Time | 150mSec (Fast), 20mSec to 3Sec program dependent (Auto) | | Slope | 2:1 (Comp)
11:1 (Limit) | | Sidechain | No | | | | Power Requirements | 9VAC @ 1000mA via included external adapter | | Dimensions (WxDxH) | 5.9 x 6.5 x 1.75" (150 x 165 x 45mm) | | Weight | 2.9 lb (1.3kg) | | | | Package Weight | 2.92 lb | | Box Dimensions (LxWxH) | 10.95 x 6.75 x 2.65" |
