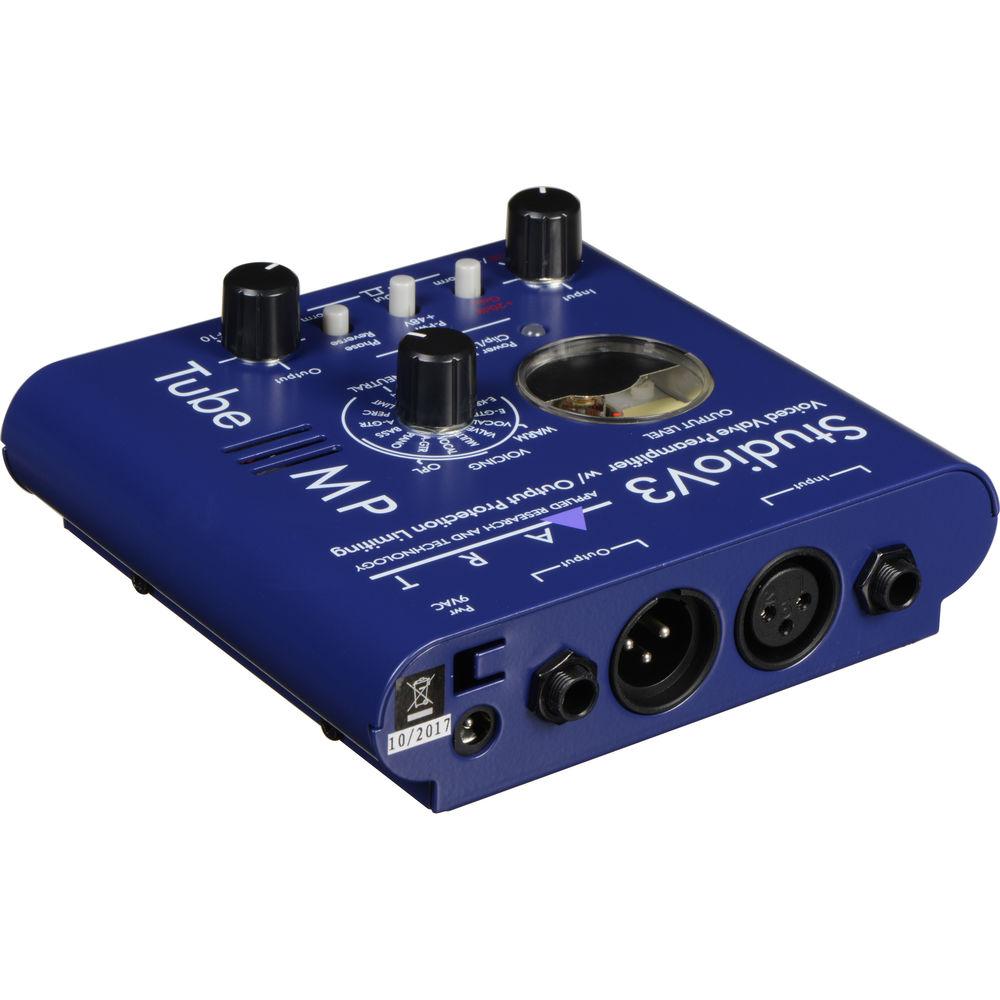

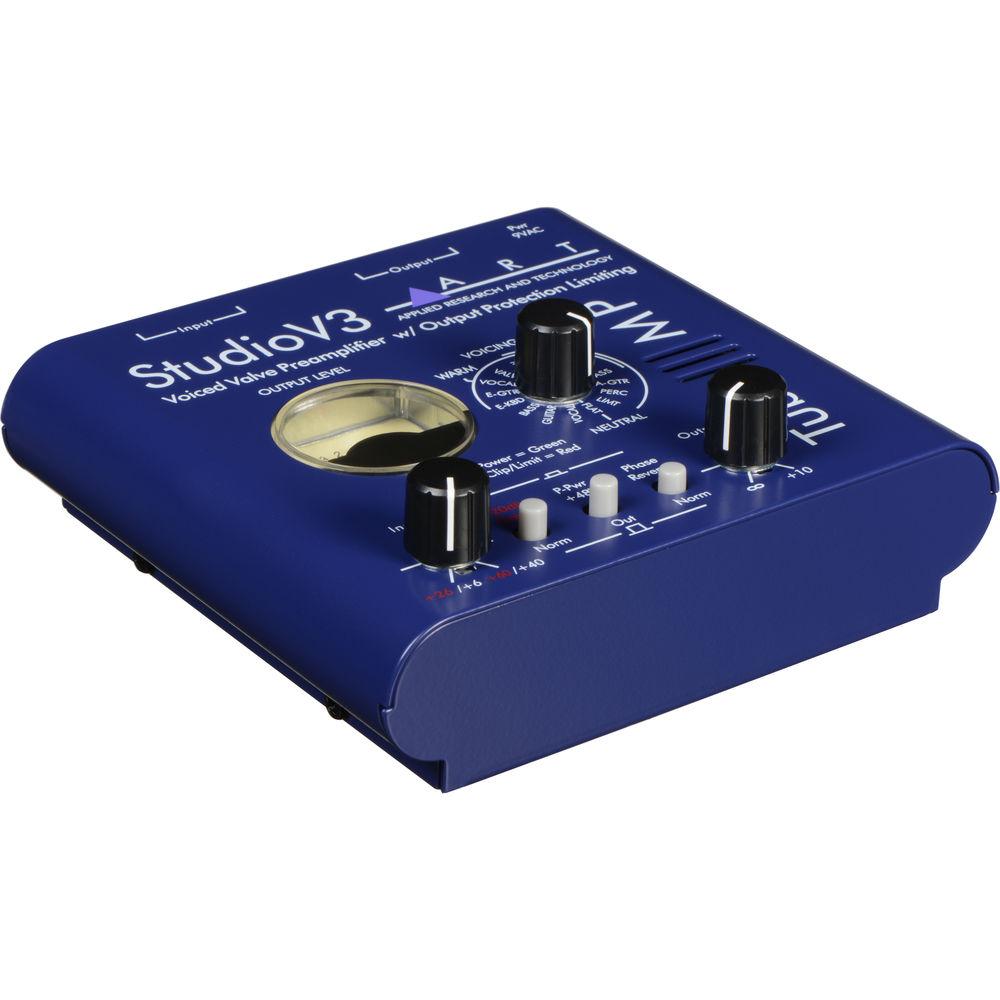

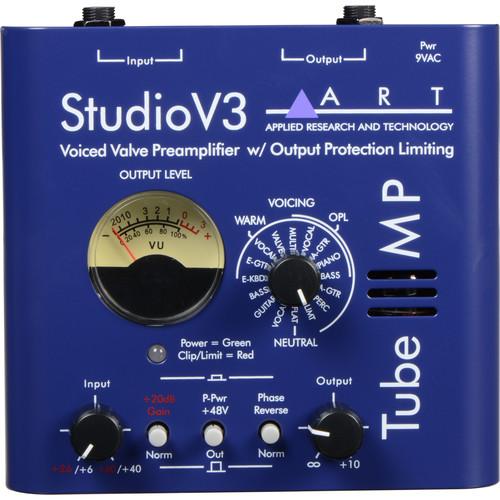

User Manual for ART Tube MP Studio V3 Single Channel Tube Microphone Preamp with V3 Preset Technology and Output Protection Limiter Click to enlarge the picture
Contents of the user manual for the ART Tube MP Studio V3 Single
- Product category: Microphone Preamps ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Microphone Preamps
 |
User manual for the ART Tube MP Studio V3 Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The Tube MP Studio V3 is a single channel tube based microphone preamp that builds on the success of the original Tube MP but with added features. Primarily, the unit features V3 technology which provides optimized reference points - presets that allow the user to select between preamp settings designed for guitars (electric and acoustic), keyboards, bass guitars, drums, vocals, and more. Also included is OPL (Output Protection Limiter), which precisely and accurately controls and maintains the output peak signal.While its primary function is as a microphone preamp, the Tube MP Studio V3 is also a great direct box - impedance matching, amplifying and improving the sound of any instrument. Additionally the usage of external mic/line preamps has become increasingly popular over the past several years. The unit offers better performance and sound quality over that which can obtained from the onboard preamps included in many of today's low-cost mixers and multitrack recorders.The hybrid design of the Tube MP allows it to add warmth and fatness to a signal, while maintaining exceptionally low-noise. Quality sound combined with features like a 12AX7a tube, phantom power, and phase reverse, are what have made the Tube MP a staple in many studios. For a minimal investment, a Tube MP Studio V3 can provide the single largest improvement to the sound of a studio. - Single-channel tube microphone preamplification
- V3 Technology
- Variable Valve Voicing provides preamp presets for vocals along with a variety for instruments
- OPL
- Output Protection Limiter precisely and accurately controls and maintains the output peak signal
- Hand-selected 12AX7A Vacuum Tube
- Variable input and output gain controls
- Ideal for use as a tube DI box
UPC: 840402011446 In the Box ART Tube MP Studio V3 Single Channel Tube Microphone Preamp with V3 Preset Technology and Output Protection Limiter External 9v Power Supply One Year Warranty User Manual PDF 33.9kbytwrrxrwcrequbdzecxaqswafvqaxwtxwwxct Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Tube MP Studio V3 Single Channel Tube Microphone Preamp with V3 Preset Technology and Output Protection Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART TUBE MP STUDIO V3 Specs | Number of Channels | 1 | | Inputs | 1 x XLR, 1 x 1/4" TS phone | | Output | 1 x XLR, 1 x 1/4" TS phone | | Phantom Power | +48V | | Multi Function | No | | Gain Range | 70dB (XLR to XLR typical) | | Maximum Output Level | +28dB (XLR), +22dB (1/4") | | Frequency Response | 10Hz to 20kHz | | Noise | EIN: -129dBu ("A" weighted XLR to XLR) | | Dimensions | 5" x 5.5" x 2" heavy duty desktop enclosure | | Specialties | Phase reversal switch | | | | Package Weight | 2.38 lb | | Box Dimensions (LxWxH) | 9.55 x 6.15 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
