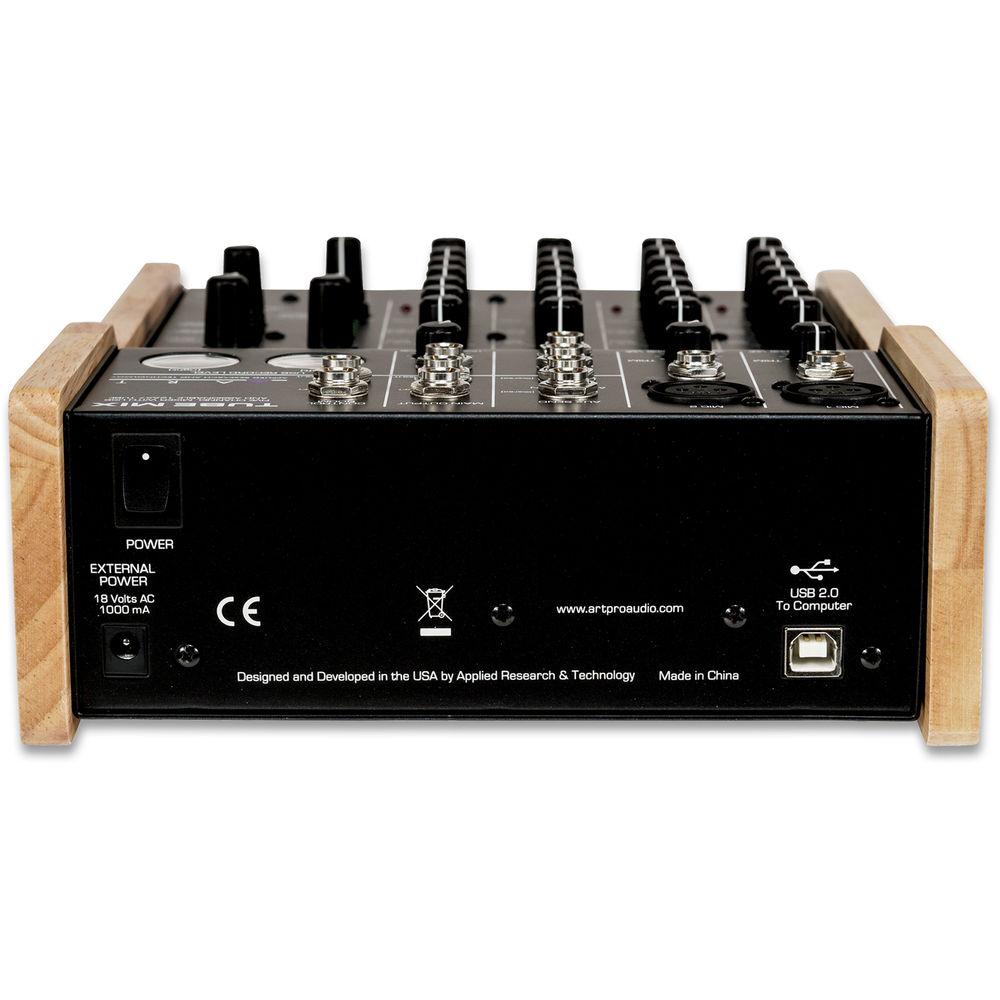

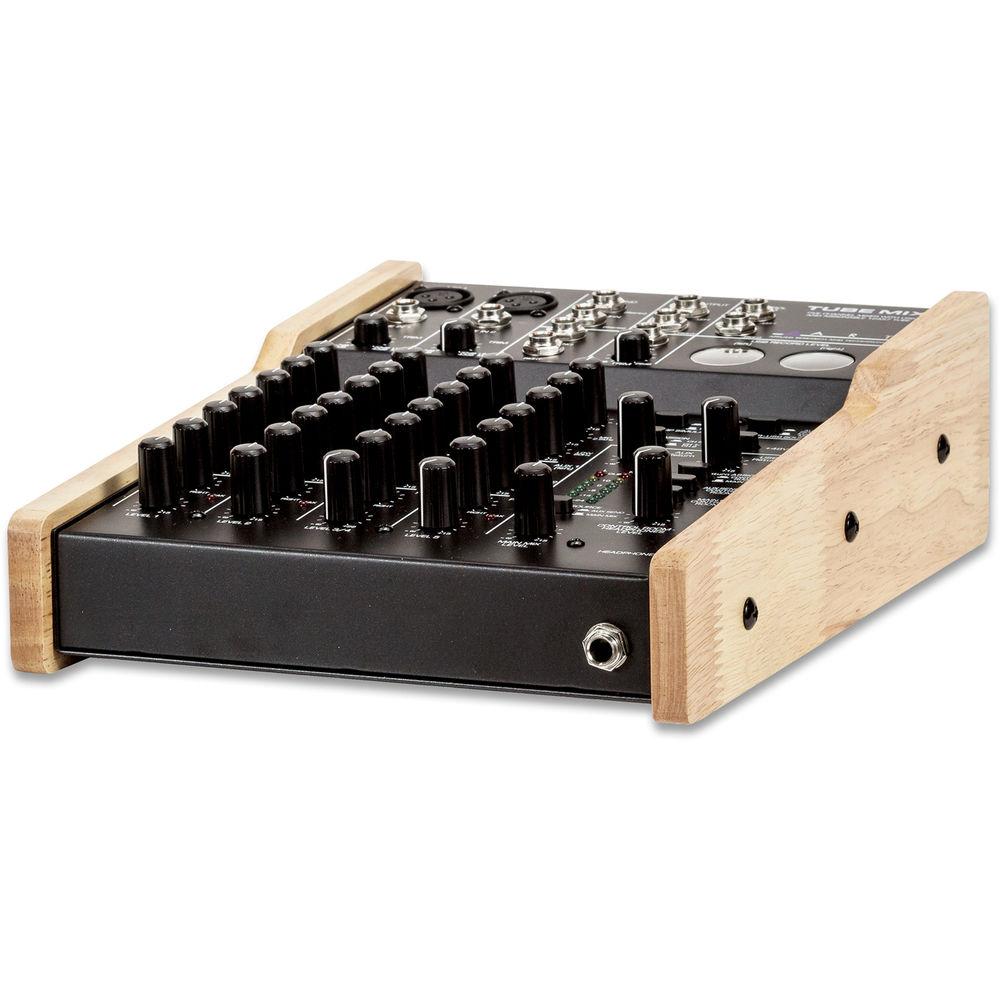

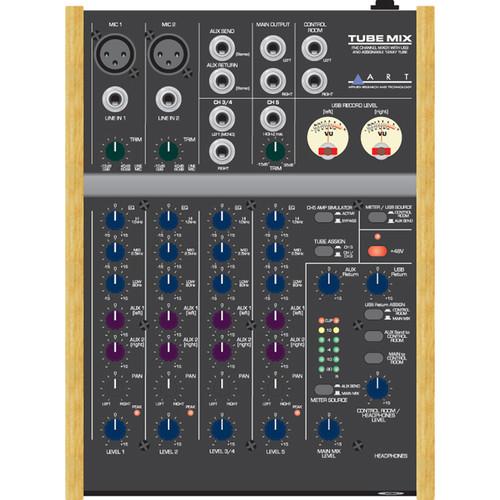

User Manual for ART TubeMix 5-Channel Mixer with USB Interface Click to enlarge the picture
Contents of the user manual for the ART TubeMix 5-Channel Mixer with USB
- Product category: Analog Recording Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Analog Recording Mixers
 |
User manual for the ART TubeMix 5-Channel Mixer with USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description The TubeMix from ART is a 5-channel mixer with an integrated USB audio interface well suited for studio and mobile recording and performance applications. The mixer features two tube-driven microphone preamplifiers, a stereo line-input channel, and a dedicated Hi-Z instrument-input channel with an on-board amp simulator. The two tube preamps can be reconfigured and stacked on the instrument channel for added warmth and tone with guitar or bass.
Each channel is fully featured with a 3-band EQ, two aux sends, and pan and level controls. Channels 1, 2, and 5 offer input trim controls and clip indicators for optimum level setting. The output section allows for separate stereo monitor mixing on the main bus while recording via the aux buses, or vice versa. A flexible Control Room / Headphone section allows routing to monitor the main mix, USB input, and aux sends. The TubeMix features a metal enclosure with wooden sides and ships with a power adapter. -
- Two low-noise mic preamp channels
- High-impedance instrument input with amp simulator
- Assignable-input tube circuit
- USB I/O for desktop-recording applications
- Precise VU meters and wide-range LED meters with selectable source
- Fully featured input channels
- Flexible control room / monitor section
- High-output headphone jack
- Rugged metal and wood case
UPC: 840402041610 In the Box ART TubeMix 5-Channel Mixer with USB Interface Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART TubeMix 5-Channel Mixer with USB Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART TUBEMIX Specs | Input Connections | Channels 1 & 2: XLR balanced or 1/4" / 6.35 mm TS unbalanced
Channels 3 & 4: 2x 1/4" / 6.35 mm
Channel 5 (Hi-Z): 1/4" / 6.35 mm
Aux Return: 1/4" / 6.35 mm | | Output Connections | Main: 2x 1/4" / 6.35 mm balanced
Control Room: 2x 1/4" / 6.35 mm balanced
Headphone: 1/4" / 6.35 mm
Aux: 2x 1/4" / 6.35 mm | | Frequency Response | 10 Hz to 20 kHz (±1 dB) | | Maximum Input Level | Mic: +14 dBu balanced
Inst, Line, Aux: +15 dBu unbalanced | | Maximum Output Level | Balanced: +26 dBu
Unbalanced: +20 dBu | | Power | 90-125 VAC, 50-60 Hz | | Dimensions (H x W x D) | 3.3 x 7.5 x 9.7" / 8.3 x 19.1 x 24.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 14.9 x 10.0 x 5.6" |
