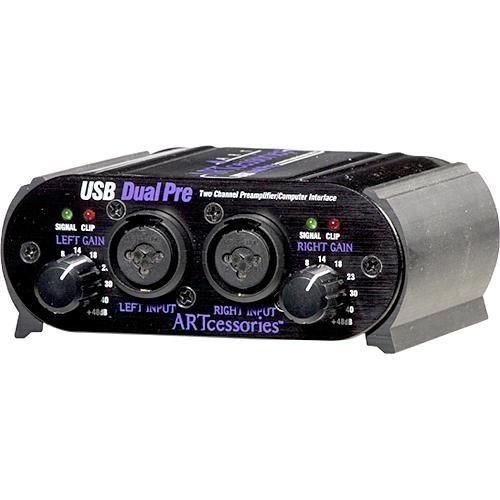

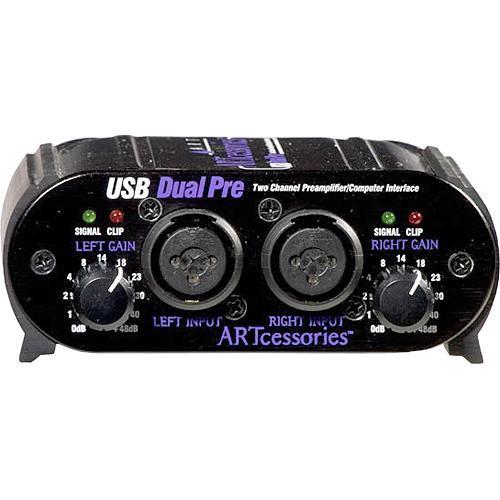

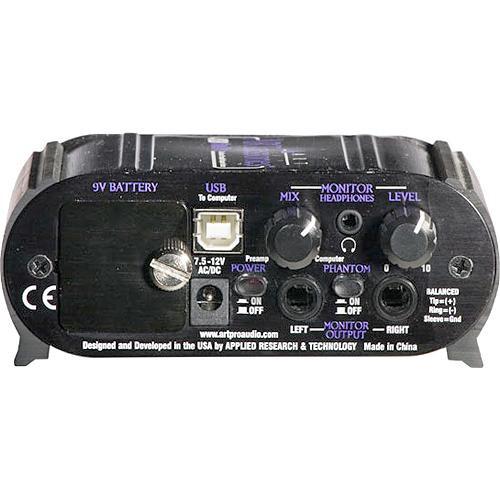

Product description The USB Dual Pre from ART is a combination portable preamplifier and computer interface, housed in a compact rugged case. The unit is suitable for a wide variety of applications including remote field work to desktop/studio recording. The 2 input channels can accept either a microphone or line input and provide up to 48dB of gain. Phantom power is available for use with condenser microphones even when running from the USB bus or any of the other powering options. Those include using an optional external power supply, or an optional internal 9V battery. When running off the battery, operational hours are in excess of 50 hours with phantom power off. A stereo mini headphone jack is provided for monitoring and the rear level and monitor mix controls allow for latency-free recording. The monitor mix is also routed to the main outputs. The USB interface is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record. - Portable USB interface with dual microphone preamps
- Low-noise, fully balanced XLR and 1/4" TRS combi inputs
- Preamps provide up to 48dB of gain and feature independent gain controls
- Built-in, low-noise phantom power supply
- Signal present and clip LED indicators
- Latency free monitoring with mix and level controls
- Includes Audacity recording and production software
- 3-way powering options - via the USB bus, an optional external power supply, or with an optional 9V battery
UPC: 804040201904 In the Box ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps USB Cable Three (3) Year Warranty User Manual PDF 502.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART USB Dual Pre - USB 1.1 Digital Audio Interface with Dual Microphone Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART USB Dual Pre Specs | | | Max Sample Rate/Resolution | 48 kHz / 16-Bit | | | | Host Connection | USB Type-B (USB 1.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Input
2 x 1/4" (6.3 mm) TRS Balanced Output
1 x 1/8" (3.5 mm) TRS Headphone Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | 20 Hz to 20 kHz +0/-1 dB | | THD+N | < 0.01% | | | | Sample Rates | 44.1 and 48 kHz | | Bit Depth | 16-Bit | | | | OS Compatibility | macOS 9.1
macOS
Windows 2000
Windows XP
Windows Vista | | Required Hardware | Available USB 1.1 Port | | | | Power Requirements | AC/DC Power Adapter (Not Included), USB Bus-Power | | AC/DC Power Adapter | 9.5 to 12 V (Not Included) | | Battery Type | 1 x 9V | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.3 x 6.2 x 3.7" |
