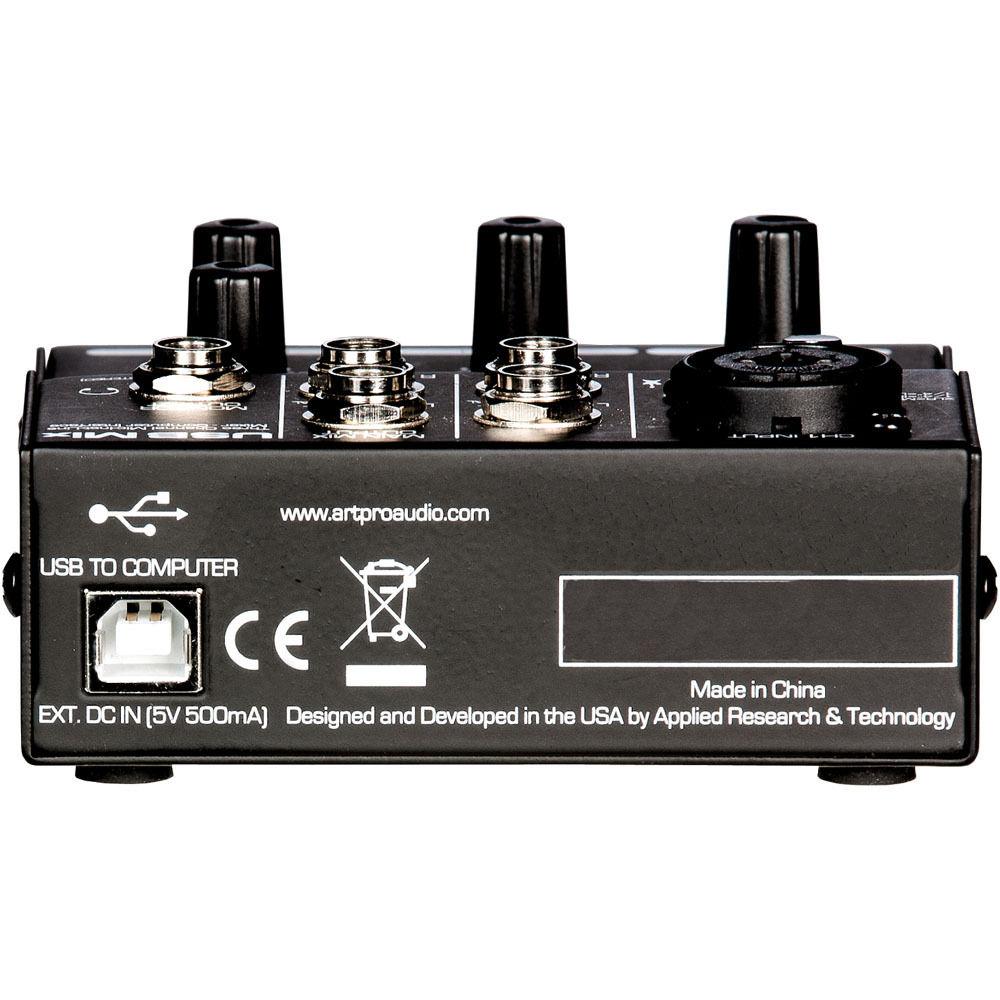

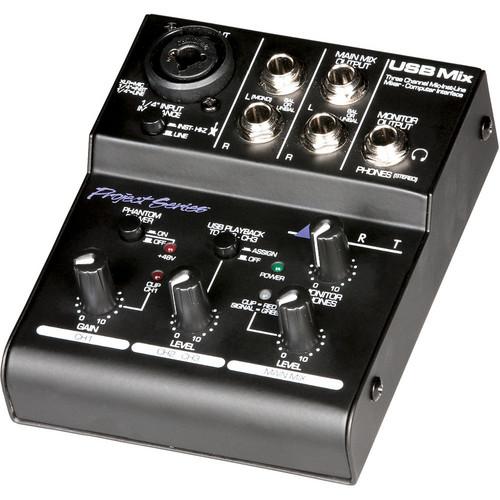

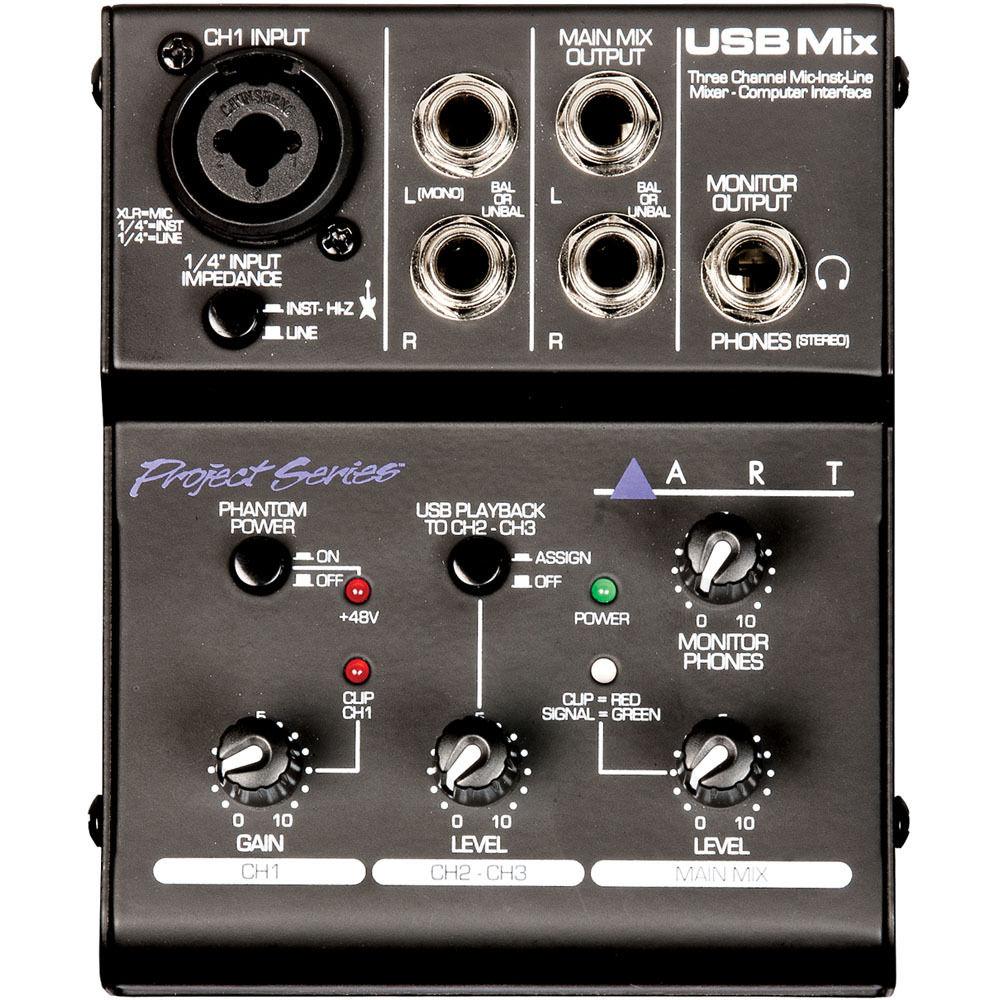

Product description The compact ART USB Mix is a 3-channel mixer and USB audio interface, ideal for home or mobile studios. The mixer has an XLR-1/4" combo jack input that can support mic, instrument, or line signals, allowing you to connect your favorite microphone or instrument. The input supplies condenser mics with 48V phantom power. There is also a a pair of 1/4" TRS inputs for stereo or mono line-level sources, ideal for connecting CD players, MP3 players, tape decks, and similar devices.The built-in audio interface converts analog input signals into digital signals that can be sent to your computer via the USB port for recording and editing your songs. Independent gain and level controls are provided for each input, the main output, and the headphone output. For added versatility, the USB playback switch enables you to monitor the output of your computer through channels 2 and 3.When used with a computer, the USB Mix is powered via the USB bus. As a standalone, the unit is powered with the included AC adapter. The Audacity recording software is also included so you can get started recording on your computer right away. Key Features - Compact design ideal for home or mobile studios
- USB-powered, no external power supply needed when used with a computer
- Unit can be used as a standalone mixer or as an audio interface to convert analog input signals into digital USB signals for your computer
- The XLR/1/4" combo input can be switched for mic, instrument, or line use
- Switchable low-noise +48V phantom power
- Balanced 1/4" TRS inputs for stereo or mono line-level sources
- 1/4" TRS output jacks work with balanced or unbalanced lines
- Independent volume controls for main output, headphone monitor, and both sets of inputs
- Switchable assignment of USB playback to channels 2 and 3
- Powered via the included AC adapter when used without a computer
- Green/Red LED signal/clip indicator
- USB cable and Audacity recording software included
UPC: 840402019565 In the Box ART USB Mix 3-Channel Mixer and USB Audio Interface AC Adapter USB Cable Audacity Recording Software Limited 3-Year Warranty User Manual PDF 488.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART USB Mix 3-Channel Mixer and USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART USBMix Specs | Inputs | 1 x XLR-1/4" / 6.3 mm balanced/unbalanced combo jack input (ch 1, mic / line / instrument)
2 x 1/4" / 6.3 mm balanced/unbalanced line inputs (ch 2/3, L/R) | | Outputs | 2 x 1/4" TRS balanced line outputs (main mix, L/R)
1 x 1/4" TRS stereo headphone jack (monitor output) | | Input Impedance | 240 kOhms (instrument/Hi-Z)
20 kOhms (line)
>4 kOhms (mic) | | Output Impedance | <1 kohm (balanced 1> <500 ohms (unbalanced 1> 100 Ohms (monitor) | | Frequency Response | 20 Hz to 20 kHz (+0, -1 dB) | | Total Harmonic Distortion | <0.01% at 1 kHz | | CMRR | >54 dB, typical | | Phase Response | All connections are phase-coherent | | Signal to Noise Ratio | >90 dB, typical (ref 0 dBu) | | EIN | -120 dBu, typical (XLR balanced, max gain)
-100 dBu, typical (1/4" / 6.3 mm) | | Input Level | +4 dBu, maximum (XLR)
+14 dBu, maximum (1/4" / 6.3 mm) | | Output Level | +14 dBu, maximum (main mix)
+13 dBu, maximum (monitor) | | Gain | In to Main Out:
+53 dB (XLR)
+32 dB (1/4" / 6.3 mm, ch 1)
+10 dB (1/4" / 6.3 mm, ch 2 & 3)
In to USB:
+44 dB (XLR)
+23 dB (1/4" / 6.3 mm, ch 1)
+1 dB (1/4" / 6.3 mm, ch 2 & 3)
USB to Out:
+14 dB (main mix)
+13 dB (monitor) | | Phantom Power | Switch-selectable, +48 VDC, filtered, current-limited | | AD/DA Conversion | Resolution: 16-bit, 44.1 kHz or 48 kHz, selectable from computer
A/D latency: 0.4 ms at 44.1 kHz | | Computer Interface | USB 2.0 compliant
Windows 7, Vista, XP, 2000, ME, 98SE
Mac OS 9.1/OS X computers with native USB support
Linux | | Chassis | All-steel with black finish | | Power Requirements | 5.0 VDC at <500 ma (external)
USB-bus-powered at 150 mA, typical | | Dimensions (HxWxD) | 1.6 x 4 x 4.75" / 41 x 101 x 121 mm | | Weight | 1.1 lb / 0.5 kg (with AC adapter and USB cable) | | | | Package Weight | 1.545 lb | | Box Dimensions (LxWxH) | 9.25 x 6.1 x 3.6" |
