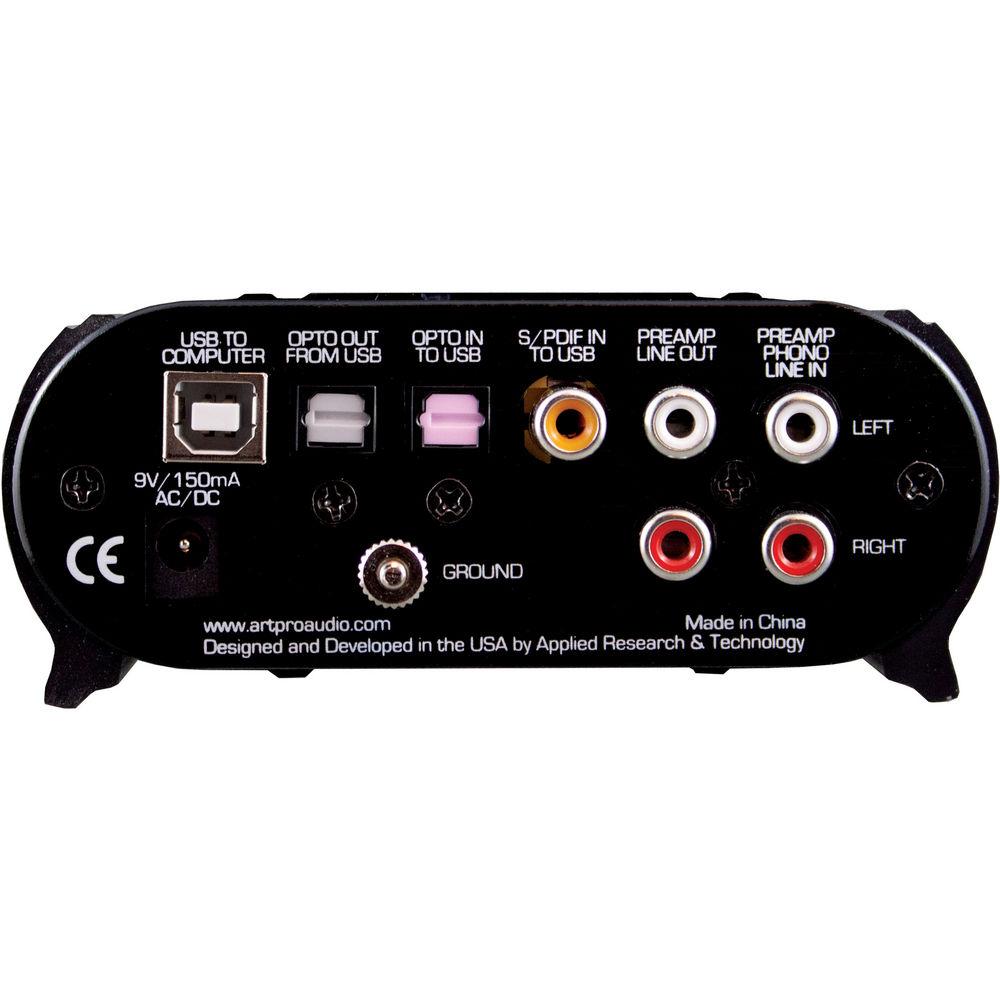

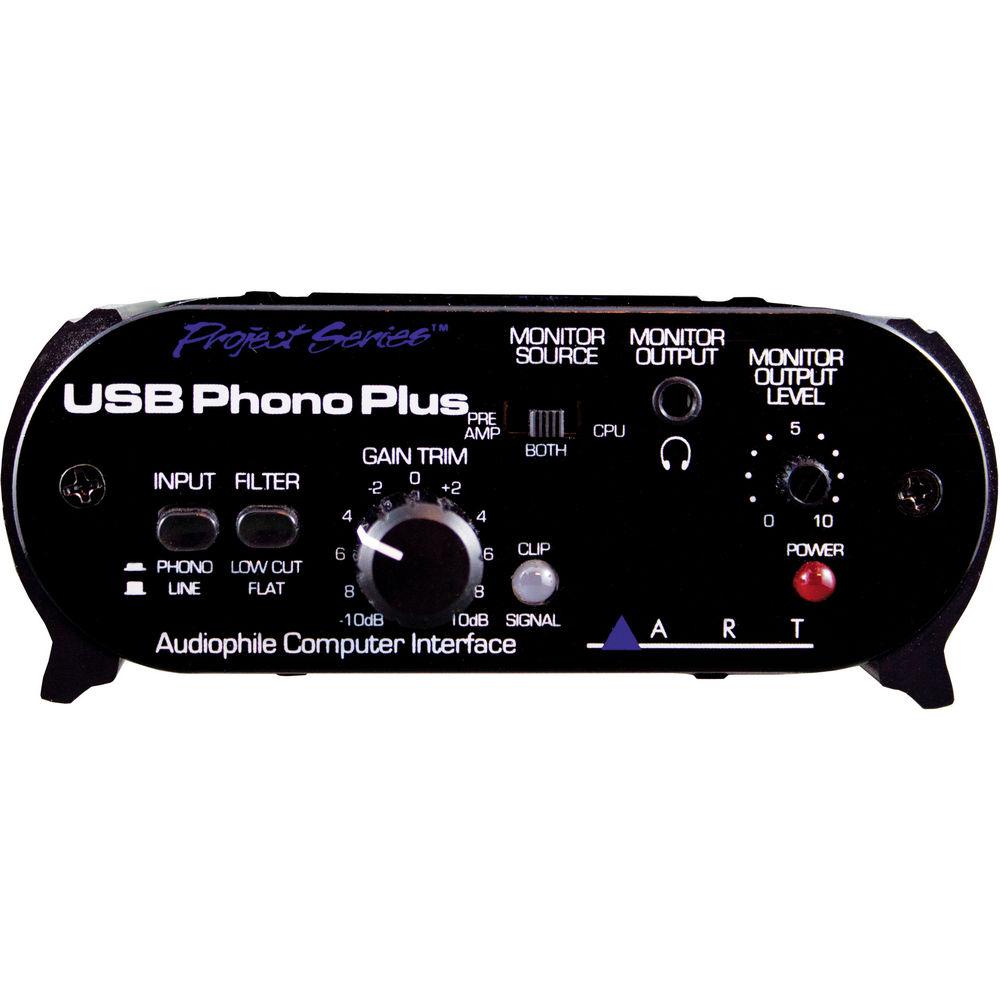

Product description The ART USB Phono Plus is a flexible phono (turntable) preamp with a USB interface and digital connections. The USB Phono Plus is an ideal solution for quality recordings while digitizing old vinyl collections, connecting a turntable to a line input, or as a simple audio interface for your Windows or Mac OS computer. There are optical digital inputs and outputs, S/PDIF input and analog preamp outputs. Also featured is a headphone output, gain control and monitor level adjustment controls. A line / phono input switch allows for line or turntable signals to pass, and a low-cut filter switch eliminates hum, rumble and other low frequency artifacts associated with vinyl recordings. - USB connectivity to desktop and laptop computers
- RIAA accurate low noise phono preamp
- S/PDIF or optical to USB and USB to optical interfaces included
- Preamp line out allows use as a stand-alone phono preamp
- Includes recording & production software
- Compact, stackable all aluminum chassis
- Flexible power from USB or external power supply (not included)
UPC: 840402019527 In the Box ART USB Phono Plus Phono Preamp with USB Software CD 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART USB Phono Plus Phono Preamp with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART USBPhonoPlus PS Specs | System Requirements | Mac:
• G4, G5, or Intel-based Mac (1 GHz or faster processor recommended) • Mac OS X v. 10.5 or later
• 1.25 GB RAM • 25 MB available disk space
Windows: • Intel CPU (P4 or greater), or AMD Athlon CPU, with SSE instructions (1.5 GHz or faster processor recommended)
• Windows 7/Vista/XP (SP3) • 2 GB RAM for Windows 7 or Vista; 1 GB RAM for XP
• 55 MB available disk space | | Frequency Response | 10Hz - 50kHz, +/- 0.5% | | THD | < 0.01% typical @ 1kHz | | Hum and Noise | > 90dB below clipping | | Input Impedance | 47k Ohms/100pf (phono), 270k Ohms (line) | | Line Max Input Level | 40mV rms @ 1 kHz (phono), +19dBu (line) | | Maximum Gain | 45dB @ 1 kHz (phono), 6dB (line) | | Analog Input | RCA (preamp / phono/line output) | | Analog Output | RCA (preamp line output)
1/8" (monitor/headphone output) | | Max. Output Level | +6dBu (1.4V rms) | | Filter Type | Switchable, high pass (low cut) -3dB @ 22Hz | | A/D Conversion | 16 bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz | | Digital Connections | TOSLINK Opto In to USB
TOSLINK Opto Out from USB S/PDIF coax (RCA) In to USB | | Computer Interface | USB 2.0 compliant | | Chassis | All aluminum black anodized with integral rubber sides | | Power Requirements | USB bus powered or
7-12V DC or 9-12V AC @ 150mA (external—not included) Either polarity of the tip will work with DC power | | Dimensions | 1.85 x 4.6 x 4.5" (47 x 117 x 114mm) | | Weight | 1.35lb (0.61kg) | | | | Package Weight | 1.41 lb | | Box Dimensions (LxWxH) | 9.4 x 6.35 x 3.55" |
