User Manual for ART USBMIX4 Project Series 4-Channel Mixer and Computer Interface Click to enlarge the picture
Contents of the user manual for the ART USBMIX4 Project Series 4-Channel Mixer
- Product category: Analog Recording Mixers ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Analog Recording Mixers
 |
User manual for the ART USBMIX4 Project Series 4-Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|

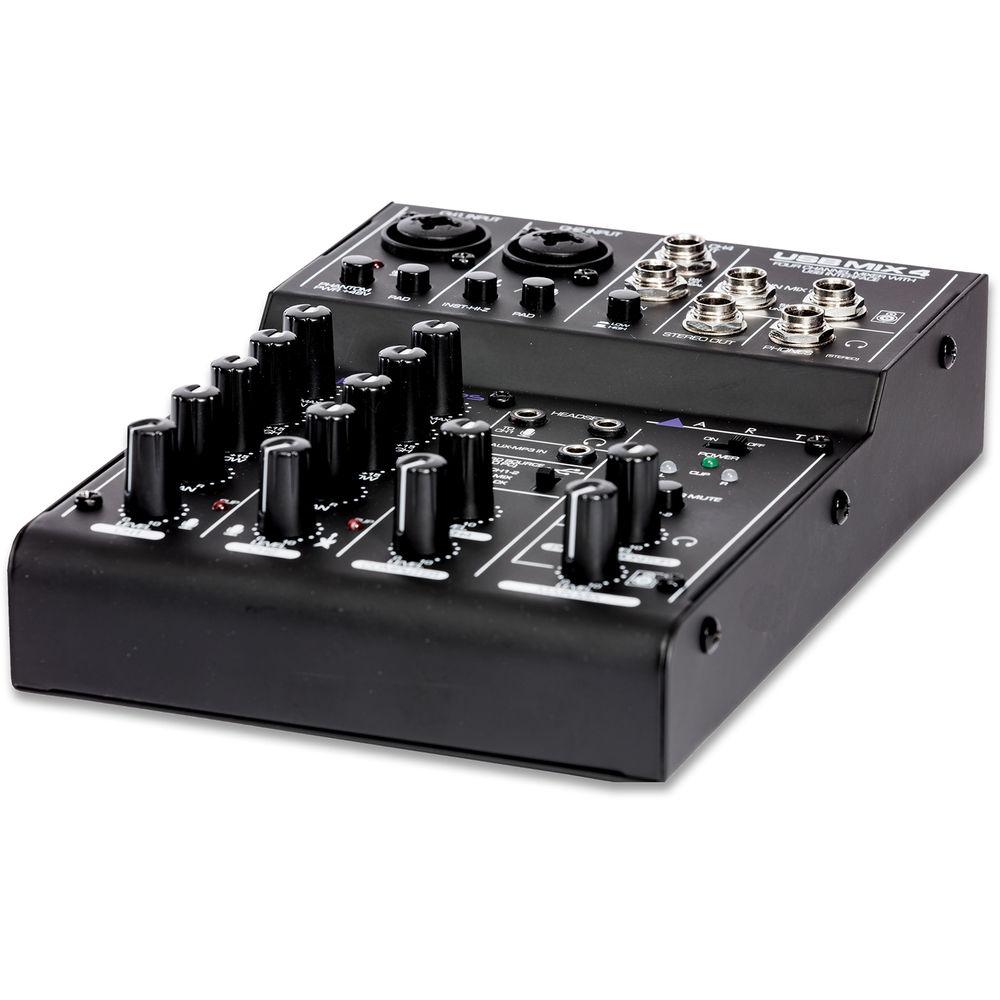

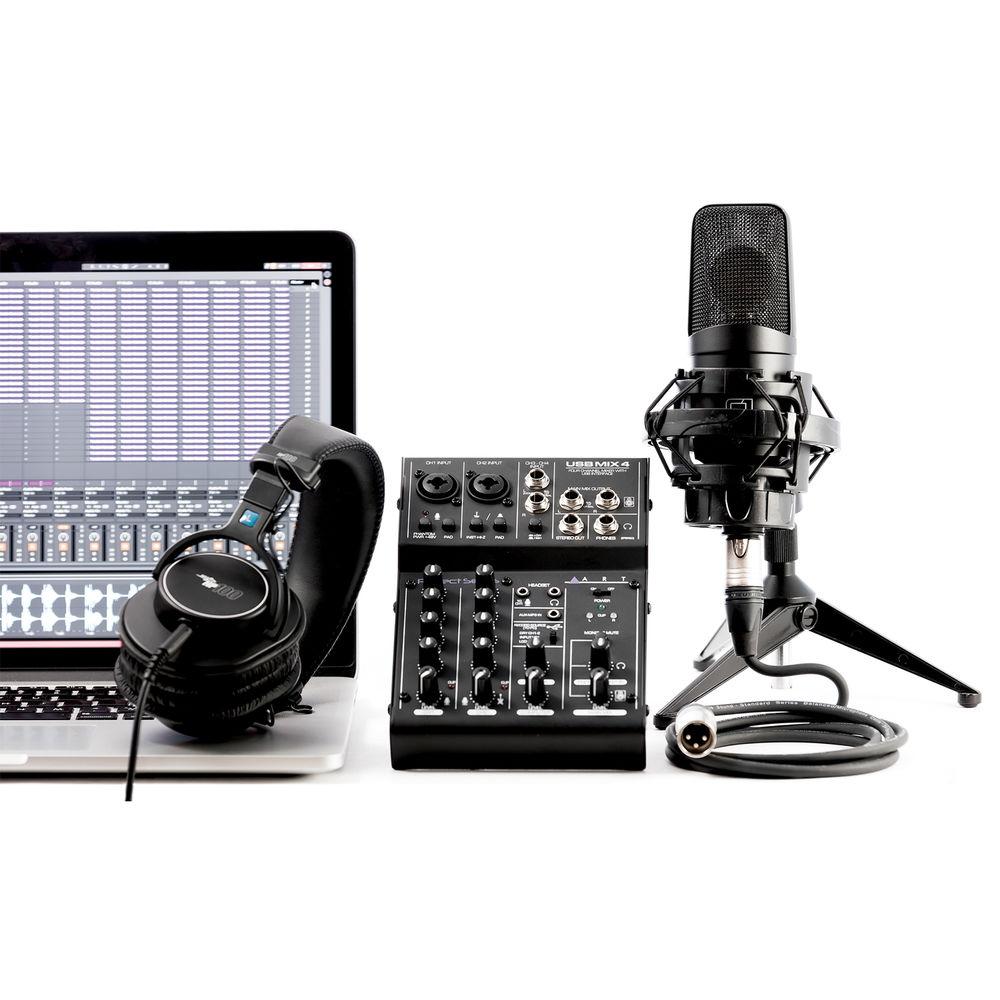

Product description The ART Project Series USBMIX4 is a mixer for microphones, instruments, and line-sources; it also doubles as a USB interface with assignable recording/playback sources. It can operate as a standalone mixer in the analog domain, as well as a one-stop shop for recording podcasts with up to two microphones. The USBMIX4 features two combination inputs that take both XLR and 1/4" connections, allowing you to plug in a microphone, a high-impedance instrument, or a line level source. Two more input channels are provided for 1/4" sources, and a 3.5mm auxiliary input for devices such as MP3 players, tablets, and more.On the output side, you’re given two balanced, TRS 1/4" jacks for your main mix, as well as TRS terminations for stereo and headphone outputs. If you prefer headphones with a 3.5mm connection point, a compatible jack is on hand for that particular purpose. Channel one sports switchable 48V phantom power, while channel two gives you an impedance switch for HI-Z instrument sources. Both channels give you a pad, gain pots, level pots, pan pots, and a two-band EQ.The mixer can be bus-powered when used with your computer, though in standalone applications, you can operate the USBMIX4 with the included adapter. The unit works with Mac and PC computers, providing class-compliant, plug-and-play compatibility and obviating the need to download any drivers. A USB cable is provided, as is Audacity—software to handle the recording, editing, and basic mixing of audio material. - Key Features at a Glance
- Low-noise design2 x Combination XLR-1/4" balanced XLR / unbalanced instrument inputs with switchable impedancesBalanced 1/4" TRS inputs for stereo or mono line-level sources on CH31/4" TRS output jacks work with balanced or unbalanced lines3.5mm TRS stereo Aux/MP3 inputStereo output, independent from the PC interface switchStereo 1/4” TRS headphone jack with independent level control for output monitoringIndependent controls for both sets of inputs, main output, and headphone monitorRed LED signal/clip indicator for channels 1 and 2Switchable assignment of USB playback to channels 1 and 2 or monitorAssignable USB record sourceUSB 2.0 compliant: no special drivers are needed with most modern versions of Windows or Mac OSUSB cable and Audacity recording software includedOperates on USB power or 5 VDC external power supply (included)
UPC: 840402042983 In the Box ART USBMIX4 Project Series 4-Channel Mixer and Computer Interface USB Cable Power Adapter Audacity Software Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART USBMIX4 Project Series 4-Channel Mixer and Computer Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART USBMIX4 Specs | I/O | 2 x XLR-1/4" combination inputs
2 x 1/4" inputs
1 x 3.5 mm auxiliary input
1 x 3.5 mm mono microphone input
2 x 1/4" outputs, balanced TRS
2 x 1/4" stereo output, TRS
1 x 3.5 mm headphones output | | Input Impedance | 1/4" HI-Z Input: 240 kOhms
1/4" Line Input: 20 kOhms (Line)
XLR Inputs: >4 kOhms | | Output Impedance | Balanced 1/4" Output: 440 Ohms
Unbalanced 1/4" Output: 220 Ohms
Monitor Output: 100 Ohms
Stereo Output: 2 kOhms | | Frequency Response | 20 Hz to 20 kHz (0, -1 dB) | | THD | <0.02% at 1 kHz | | CMRR | >52 dB, typical | | Phase Response | All connections are phase coherent | | SNR | >90 dB, typical (Reference: 0 dBu) | | EIN | Balanced XLR: -120 dBu, typical (max gain)
1/4" Connection: -95 dBu, typical | | Maximum Input Level | XLR: 8 dBu
1/4": 16 dBu | | Maximum Output Level | Main Mix Output: 15 dBu
Monitor Output: 14 dBu
Stereo Output: 12 dB | | Maximum Gain | Inputs to Main Outputs
Channel 1 Input: 60 dB (XLR), 47 dB (1/4")
Channel 2 Input 55 dB (XLR), 37 dB (1/4")
Channels 3 and 4: 5 dB (1/4")
Inputs to USB
Channel 1 Input: 46 dB (balanced XLR), 32 dB (balanced 1/4"), 33 dB (unbalanced 1/4")
Channel 2 Input: 40 dB (balanced XLR), 17 dB (balanced 1/4"), 23 dB (unbalanced 1/4")
Mic to Channel 1: 46 dB (3.5 mm)
Channels 3 and 4: -8 dB (1/4")
Auxiliary Input: -8 dB (3.5 mm)
USB to Out
Main Mix Outputs: 18 dB

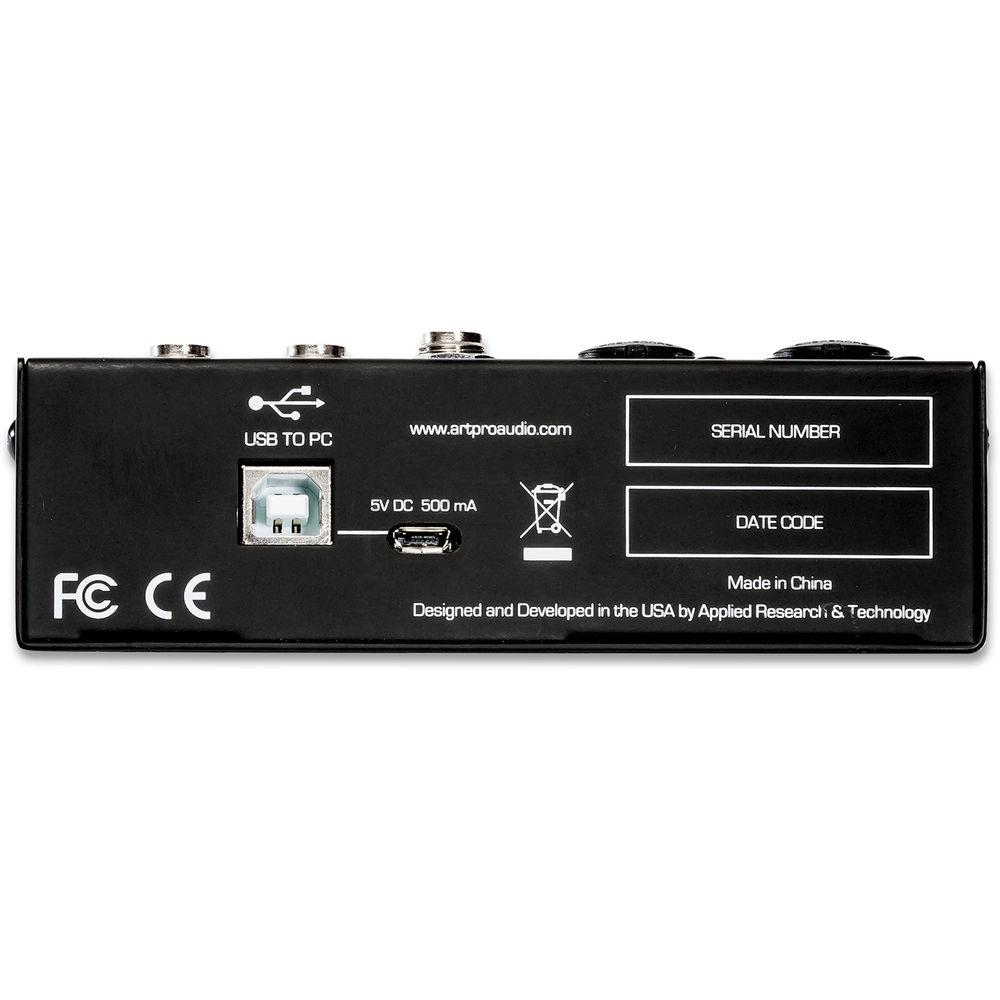

Monitor Output: 18 dB | | Phantom Power | Switch selectable, +48 VDC, filtered, current limited (channel 1 only) | | Computer Interface | USB, Class-compliant, plug-and-play Mac and PC interface | | Power Requirements | Buss-Powered via USB Port: 5 V at 500 mA Via External Power Supply: 100 to 240 VAC, 50/60 Hz (included) | | Dimensions (HxWxD) | 1.8 x 5.1 x 7.5" / 4.4 x 13.0 x 19.1 cm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.2 x 7.6 x 4.0" |
