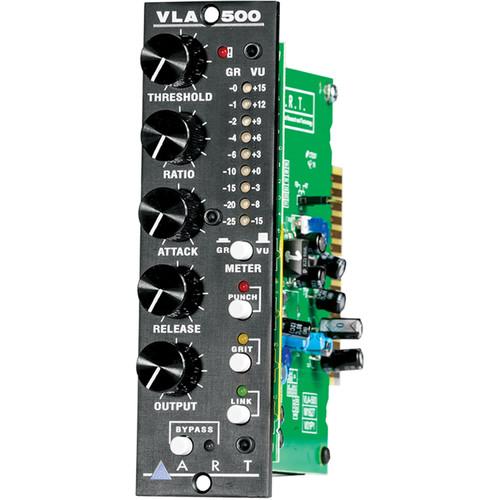

User Manual for ART VLA 500 Series Compressor and Limiter Click to enlarge the picture
Contents of the user manual for the ART VLA 500 Series Compressor and
- Product category: Dynamics Processors ART
- Brand: ART
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ART Dynamics Processors
|
User manual for the ART VLA 500 Series Compressor and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ART product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ART user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ART product will considerably shorten its lifespan!
|
Product description Delivering well-regarded Pro-VLA sonics in a 500-series "Lunchbox" form factor, the ART VLA-500 is an opto-style dynamics processor suitable for compression and limiting applications in pro audio situations. It provides all the controls you'd typically associate with a hardware compressor—Attack, Release, Threshold, and Output—plus additional circuits for adding pleasing saturation effects. For example, the Punch circuit adds even-order harmonic distortion for a punchier tone, while the Grit circuit introduces both sustain distortion in a more frequency-dependent manner, allowing the processed signal to differentiate itself from the rest of the audio material.
Both the attack and release times are adjustable, and with ratios going up to 20:1, it's possible to achieve limiting to the order of 30 dB in gain reduction. This unit provides balanced input and output connection points, and it can be linked with other VLA-500s, rendering compression suitable for stereo instruments and stereo-bus applications. Indeed, with its comparatively low noise level and subtle harmonic enhancements, the ART VLA-500 can be used to provide both gain-reduction and vibe in mastering scenarios. - Notable Features
-
- 2 additional selectable solid-state tone-shaping circuits: Punch and grit
- Variable threshold, ratio, and output controls
- Stereo / multi-channel linkable
- LED metering
- Single-channel opto-isolator based leveling amplifier
- Compatible with API 500 series racks.
- Comparatively low power at less than 100mA
- Stereo linking of channels
- Analog optical isolator (AOI) used for gain reduction
- Non-VCA design for a transparent sound
- LED metering of gain reduction or output levels
- Balanced inputs and outputs
- Variable Threshold & Ratio controls
- Variable Attack and Release controls
- Variable Output Level rotary control
- 10 Hz to 100 kHz frequency response (±0.5 dB)
- Dynamic range of more than 120 dB
- Comparatively low noise (-100 dBm ‘A’ weighted EIN)
UPC: 840402031505 In the Box ART VLA 500 Series Compressor and Limiter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART VLA 500 Series Compressor and Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART VLA 500 Specs | Connections | Work in conjunction with a 500 series chassis | | Impedance | Input: 10 kOhms
Output: 100 Ohms | | Maximum Level | Input: +20 dBu
Output: +20 dBu | | Output Gain | +20 dBu max | | Frequency Response | 20 Hz to 100 kHz, ±0.5 dB | | Dynamic Range | > 120 dB, 20 Hz to 20 kHz | | THD | <0.003% (at 0 dBm out, 1 kHz, typical) | | Equivalent Input Noise | -102 dBu, A-weighted | | Attack Time | 0.25 ms to 50 ms, variable | | Release Time | 150 ms to 3 s, variable | | Slope | Variable: 2:1 to 20:1 | | Gain Reduction | 30 dB maximum | | Power Requirements | 80 mA (75 mA at ±15 V, 4 mA at 48 V) | | Dimensions (H x W x D) | 5.2 x 1.5 x 6.6" / 133 x 38 x 168 mm | | Weight | 0.7 lb / 0.32 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.3 x 6.6 x 2.4" |
