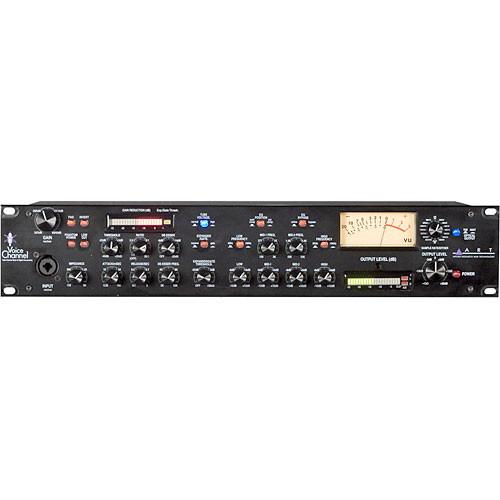

Product description The Voice Channel from ART is a single channel recording strip that features a tube based microphone preamp, a comprehensive dynamics section, a semi-parametric 4-band EQ and an output section that provides both analog and digital connectivity. - Microphone Preamp
-
- Class-A differential preamp optimized for low impedance microphones as well as line level signals
- The impedance of the front and rear XLR inputs is continuously variable for fine-tuning the preamp to a wide variety of microphones
- Selectable tube plate voltage
- Switchable phantom power
- Selectable 100Hz 6dB/8ve low-cut filter for removing rumble, and wind noise
- Switchable 20dB pad and phase invert switches
- Front panel DI provides a high impedance unbalanced input for instrument
- Dynamics
-
- Consists of an above threshold Compressor/Limiter with De-esser, plus a selectable Expander/Gate
- Variable ratio control
- Variable attack and release controls
- De-esser control sets how much more the gain is reduced at high frequencies when using the compressor/limiter - commonly used for taking out sibilance
- De-esser frequency control selects which frequencies to reduce
- Gate has an intelligent detector with a fast attack and release, coupled with a program dependant hold
- Gain reduction LED meter
- EQ
-
- 4-band semi-parametric equalizer
- EQ can be bypassed and also positioned before or after the dynamics section
- High and Low EQ bands are shelving type with a switch selectable turnover point
- The Mid bands can be continuously tuned over a 5-octave range
- +/-12dB boost on each band
- Output
-
- Output level control provides gain or attenuation and affects the levels sent to the analog-to-digital converter, and to the balanced analog output jacks
- Mic preamp output provides a direct signal from the preamp and in conjunction with the insert input allows for insertion of external processing prior to the EQ and dynamics
- Signal processing can be added between the analog output of the Voice Channel and the "left" and "right" channels of the A/D converter by using the A/D main insert and the A/D CH2 insert respectively
- In ADAT mode, channels 1 and 2 are the "left" and "right" A/D outputs of the Voice Channel respectively. If the A/D insertion jacks are not being used, both channels 1 and 2 carry the same signal
- If the ADAT input is being used, channels 3 through 8 are passed through along with channels 1 and 2 of the Voice Channel
- Sample rate/dither knob selects the sample rate for the AES/EBU, S/PDIF and optical digital outputs
- Wordclock input and "thru" on BNC connectors
- USB 1.1 jack provides the output to a computer USB connection
- Analog and digital output meters
UPC: 840402018292 In the Box ART Voice Channel - Tube Channel Strip AC Power Cable Three (3) Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ART Voice Channel - Tube Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART Voice Channel Specs | Number of Channels | Single | | Inputs | 1 x 1/4" TRS/XLR combo analog (rear panel)
1 x 1/4" TS/XLR combo analog (front panel)
1 x 1/4" TS phone EQ/dynamics Insert
1 x 1/4" TRS phone A/D Main Insert
1 x 1/4" TRS phone A/D CH-2 Insert
1 x TOSLink optical ADAT
1 x BNC Wordclock In | | Outputs | 1 x XLR analog
1 x 1/4" TRS phone analog
1 x 1/4" TS phone Mic Pre Direct Out
1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x TOSLink optical ADAT
1 x BNC Wordclock Thru | | Frequency Response | 12Hz to 100kHz, +0/-1.0dB (analog in to analog out) | | Noise | EIN:
-130dBu A-weighted, input shorted, maximum gain (mic/line)
-105dBu A-weighted, input shorted, maximum gain (instrument) | | | | Gain Range | Microphone: 60dB
Instrument: 37dB | | Maximum Output | +20dBu, balanced and unbalanced | | Input Impedance | 150Ω to 3.4kΩ, variable | | Phantom Power | +48V | | | | Threshold Range | -40dB to +20dB | | Ratio | 1:1 to 20:1 | | Attack Time | 250µSec to 100mSec | | Release Time | 100mSec to 3Sec | | Slope | 1:1.5 (expander) | | Sidechain | No | | | | Filter Type | High and Low: Shelving
Mid: Peaking | | Frequency Bands | Low: 50Hz/150Hz, selectable
Mid 1: 100Hz to 3kHz, continuously variable
Mid 2: 500Hz to 15kHz, continuously variable
High: 5kHz/15kHz, selectable | | Bandwidth | Fixed | | Range (Boost/Cut) | +/-12dB on each band | | Light Indication | | | Threshold Range | As per compressor section | | Ratio | As per compressor section | | Attack Time | As per compressor section | | | | Threshold Range | Off to -20dB | | Frequency Range | 2.5kHz to 15kHz, continuously variable | | | | Gate Threshold | Off to +20dB | | Gate Rate | Fixed | | | | Power Requirements | 105 to 125VAC/60Hz | | Dimensions (WxDxH) | 19 x 9.2 x 3.5" (483 x 234 x 89mm) | | Weight | 10.5 lbs (4.8kg) | | Specialties | Sample rates: 44.1, 48, 88.2, 96, 176 and 192kHz
Wordclock rates: 30kHz to 204kHz
USB 1.1 port | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 21.9 x 11.1 x 5.4" |
