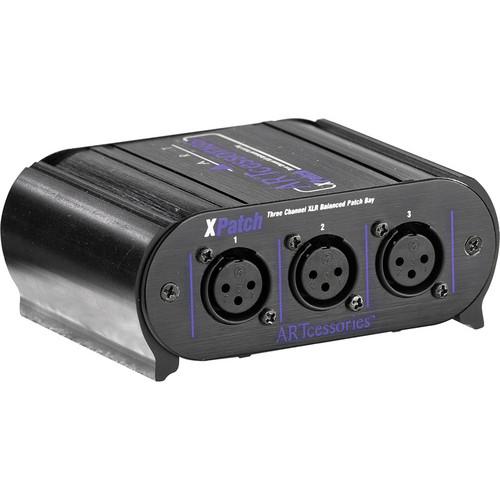

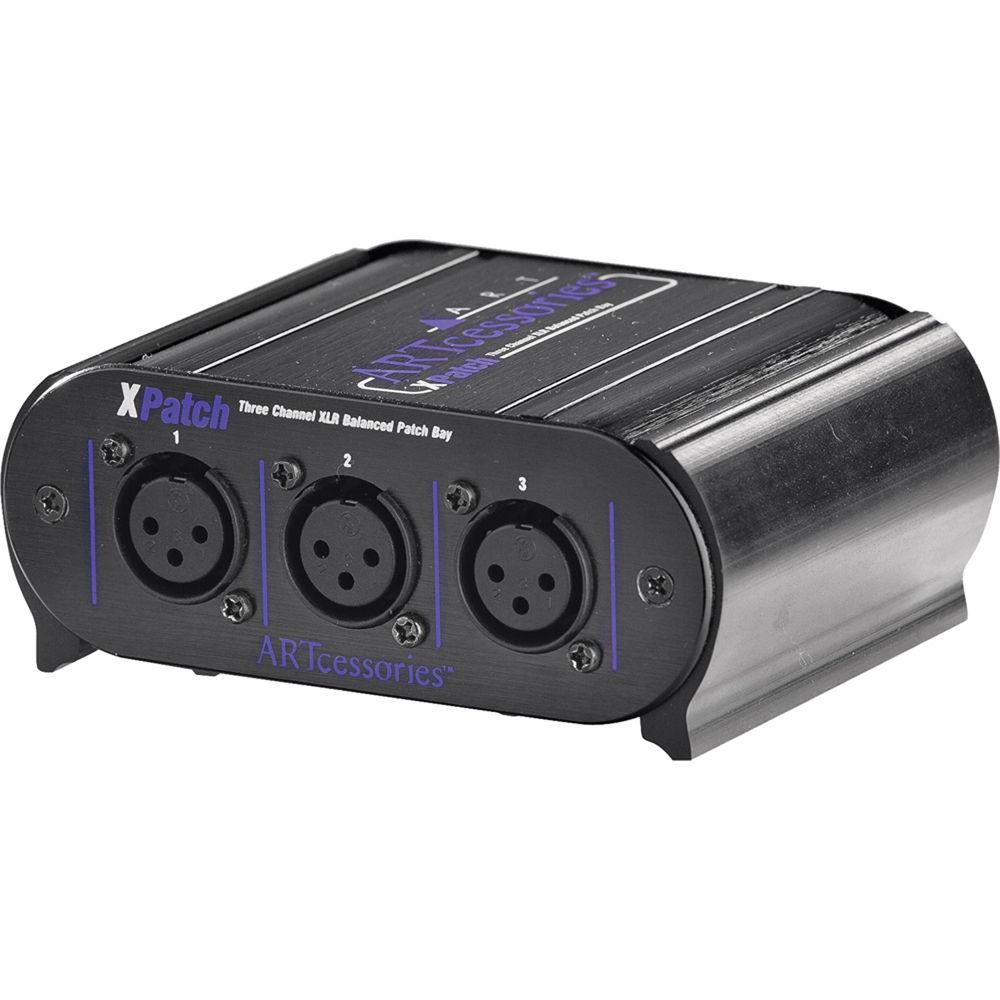

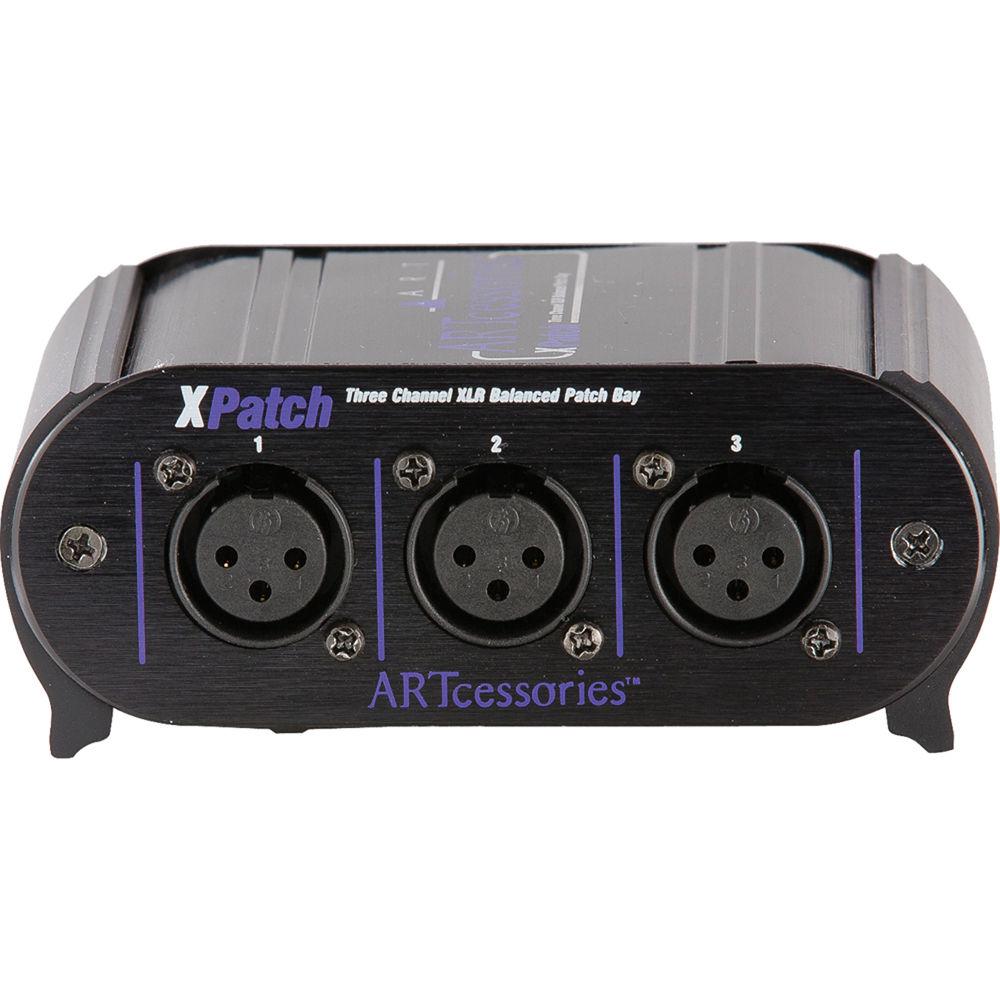

Product description The XPatch 3-Channel Balanced XLR Patch Bay from ART is a high-quality 3-channel patch bay ideal for cable organization and optimized connectivity in home and desktop studios. It also saves wear and tear on the connectors of your other equipment. The unit has a compact black anodized aluminum casing for lasting durability.
The patch bay offers 3 balanced channels with high-quality XLR connectors. It is completely passive, providing simplicity and preventing the distortion and noise that can be introduced by power sources. The internal connections are made with PCB wiring for excellent reliability. - Offers 3 channels of balanced audio signals with a high-quality passive interface, providing terrific organization and access, while also reducing wear and tear on your audio equipment
- The compact aluminum chassis is durable and stylish, ideal for use in home, project, or desktop studios

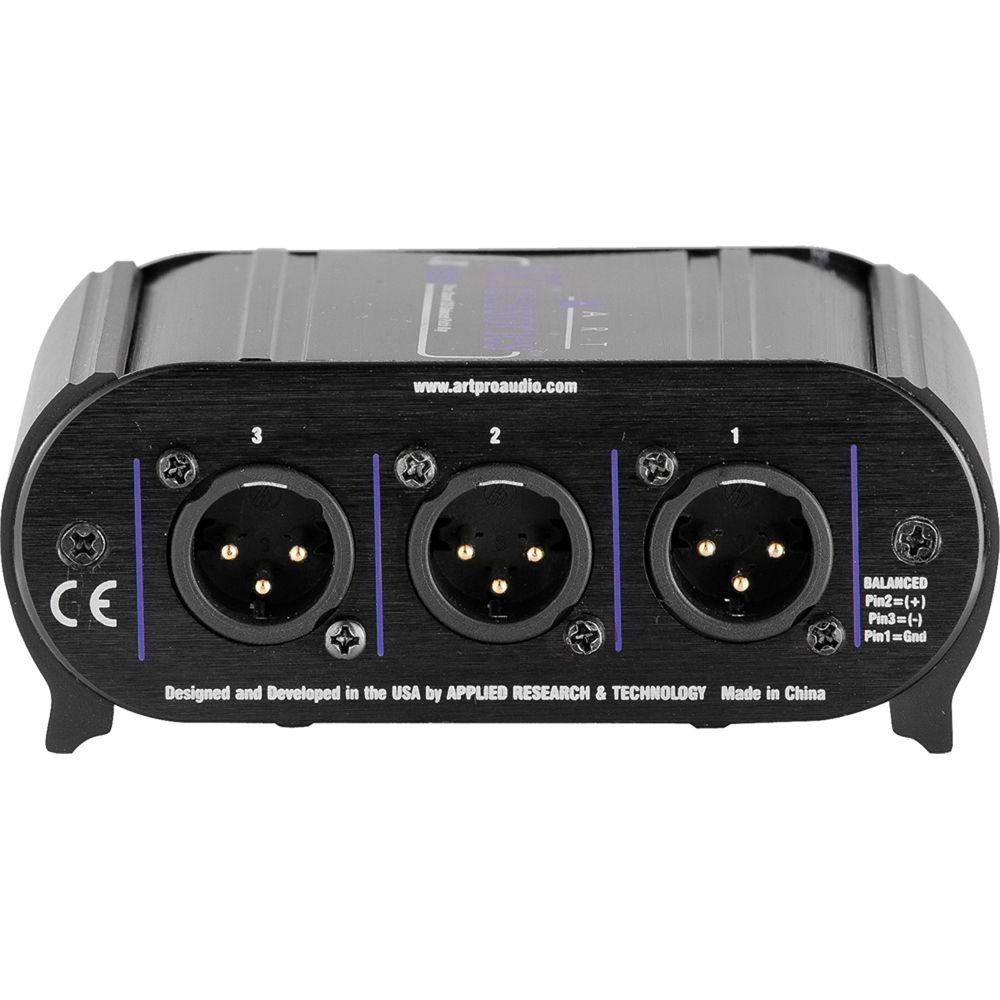

- The XLR connectors are internally connected with PCB wiring for lasting reliability
UPC: 840402019459 In the Box ART XPatch 3-Channel Balanced XLR Patch Bay 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ART XPatch 3-Channel Balanced XLR Patch Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersART XPATCH Specs | CMRR | > -95dB Typical | | Isolation | > -95dB Typical | | Connectors | 3 x XLR Female Inputs
3 x XLR Male Outputs | | Construction | Aluminum, Black Anodized | | Dimensions (HxWxD) | 1.85 x 4.6 x 3.9" (47 x 117 x 99mm) | | Weight | 0.84 lbs (0.38kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 13.3 x 6.5 x 2.3" |
