User Manual for Artiphon INSTRUMENT 1 MIDI Controller Click to enlarge the picture
Contents of the user manual for the Artiphon INSTRUMENT 1 MIDI Controller
- Product category: Performance & Wind Controllers Artiphon
- Brand: Artiphon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Artiphon Performance & Wind Controllers
 |
User manual for the Artiphon INSTRUMENT 1 MIDI Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Artiphon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Artiphon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Artiphon product will considerably shorten its lifespan!
|

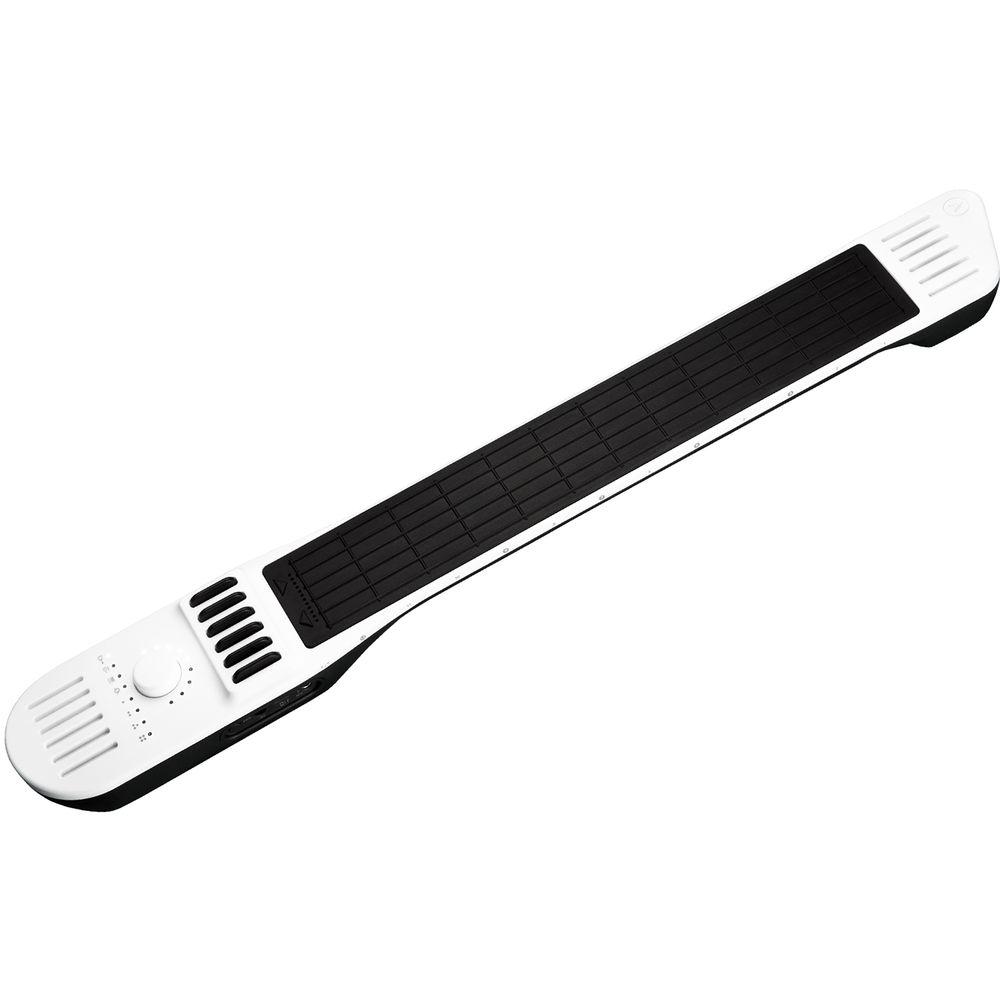

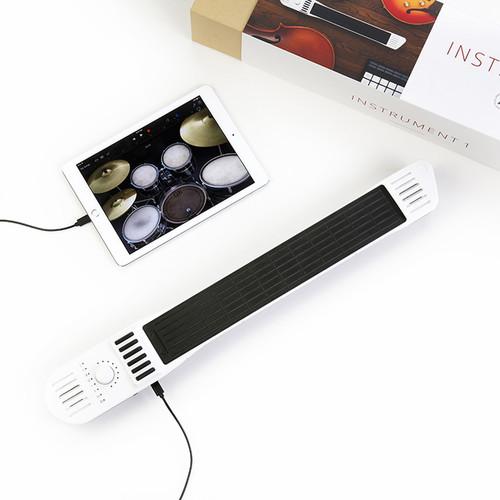

Product description The white Artiphon INSTRUMENT 1 is a portable MIDI controller and multi-instrument designed to provide versatile playing and expression styles for producers, musicians, and beatmakers in writing sessions, on-the-go idea exploration, and studio and live stage productions. It features six digital strings and 12 frets on a velocity- and pressure-sensitive fingerboard, which can be configured in one of several stringed or pad-based modes. An integrated accelerometer offers mod wheel control via physical movement.Play the guitar, violin, piano, or drum instrument presets, or trigger sounds in your favorite DAW. The INSTRUMENT 1 supports MIDI and audio via USB and is customizable via the Artiphon iOS app. Listen through the built-in stereo speakers or monitor through headphones plugged into the 3.5mm TRRS mini-jack, which also serves as a microphone input.Power can be sourced from the included 12 VDC power supply or the internal 6-hour rechargeable battery. Weighing in at only 1.6 lb, it can easily be transported anywhere your creativity takes you. - Pressure- and velocity-sensitive fingerboard with six digital strings and 12 frets
- Selectable fingerboard modes include fretted, fretless, grid, and pad
- Strum, pluck, or fingerpick any instrument sound
- Play melodies and chords on pressure-sensitive strings
- Use fretless mode to enable continuous gliding between notes
- Tap out drum beats via velocity-sensitive pads
- Selectable arpeggiator, string bending, Multidimensional Polyphonic Expression (MPE), string flip, and more
- Integrated accelerometer controls modulation wheel for additional musical expression
- Adjustable instrument tuning
- Adjustable sensitivity for velocity, hammer-on, and aftertouch
- Four preset instrument sounds including guitar, violin, piano, and drums
- 3.5mm TRRS jack provides microphone input and headphone output
- Internal rechargeable battery offers hours of portable fun
- Power LED indicates battery status
- Supports MIDI and audio up to 24-bit / 48 kHz resolution via USB
- Lightweight at only 1.6 lb
- Includes Lightning and USB cables and 12 VDC power supply
UPC: 869302000107 In the Box Artiphon INSTRUMENT 1 MIDI Controller (White) 12 VDC Power Supply 3 x International Power Adapter Prongs Lightning Cable USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Artiphon INSTRUMENT 1 MIDI Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArtiphon Instrument 1 Specs | Presets | 4 (guitar, violin, piano, and drums) | | I/O | 1 x 1/8" (3.5 mm) TRRS (serves as microphone input and headphone output) | | USB | 1 x mini-USB 2.0
USB 1.0 audio class compliant
USB MIDI class compliant | | Bit Depth | 16-bit, 24-bit | | Sample Rate | 44.1 kHz, 48 kHz | | Speakers | 2 x 1.3" / 31.8 mm | | Maximum Input Level | 35 dB | | Maximum Output Power | Speaker Amplifier: 4.2 W RMS into 4 Ohms (x 2)
Speaker Amplifier: 8.4 W peak into 4 Ohms (x 2)
Speaker Amplifier: 7.4 V power supply
Headphone Amplifier: 5.5 mW into 32 Ohms | | Maximum Output Level | 94 dB SPL @ 1 m | | Frequency Response | 100 Hz to 18 kHz | | Battery | Lithium-ion polymer, 2000 mAh / 1 C | | Battery Life | At least 6 hours at medium volume | | Battery Lifetime | 80% capacity after 500 full charging cycles | | Power Supply | 12 VDC, 100 to 240 VAC, 1.5 A | | Dimensions (W x D x H) | 23.5 x 3.2 x 2.1" / 597.0 x 81.3 x 54.6 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 26.4 x 6.6 x 4.6" |
