Product description

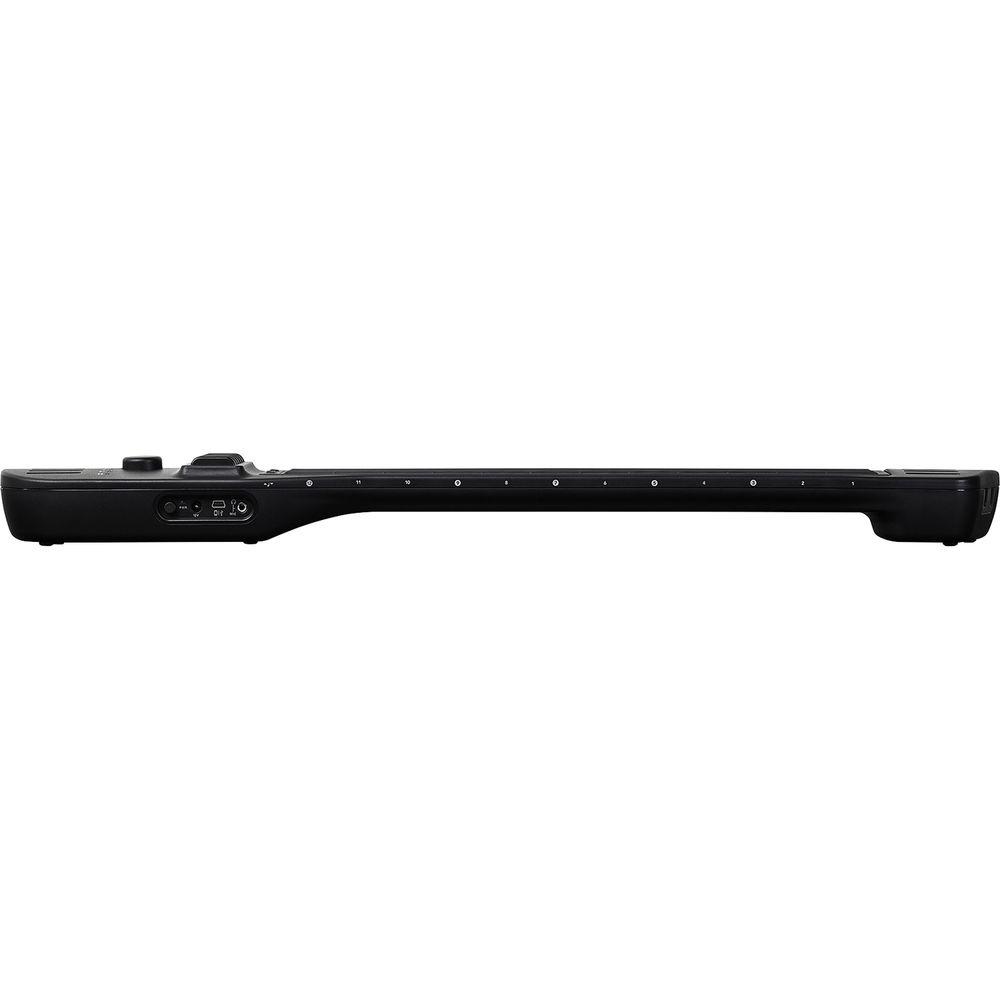

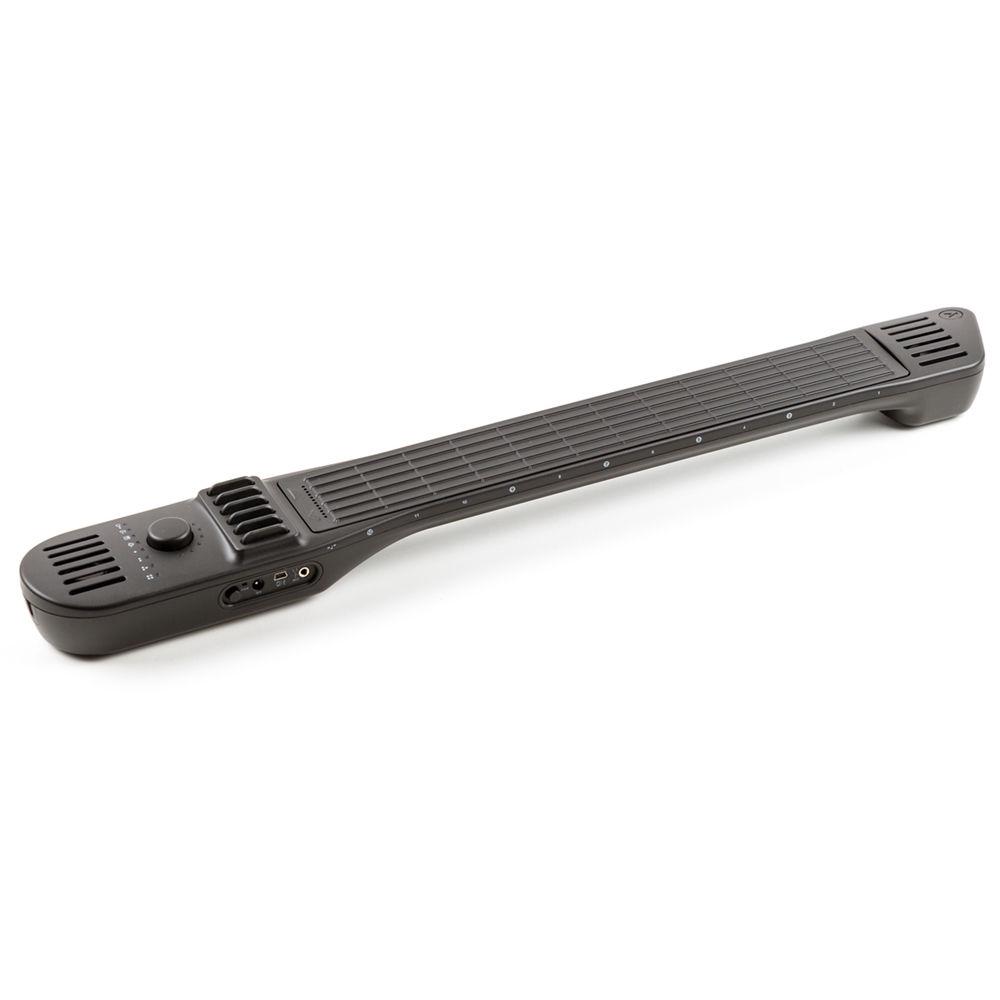

The black Artiphon INSTRUMENT 1 is a portable MIDI controller and multi-instrument designed to provide versatile playing and expression styles for producers, musicians, and beatmakers in writing sessions, on-the-go idea exploration, and studio and live stage productions. It features six digital strings and 12 frets on a velocity- and pressure-sensitive fingerboard, which can be configured in one of several stringed or pad-based modes. An integrated accelerometer offers mod wheel control via physical movement.Play the guitar, violin, piano, or drum instrument presets, or trigger sounds in your favorite DAW. The INSTRUMENT 1 supports MIDI and audio via USB and is customizable via the Artiphon iOS app. Listen through the built-in stereo speakers or monitor through headphones plugged into the 3.5mm TRRS mini-jack, which also serves as a microphone input.Power can be sourced from the included 12 VDC power supply or the internal 6-hour rechargeable battery. Weighing in at only 1.6 lb, it can easily be transported anywhere your creativity takes you.
  • Pressure- and velocity-sensitive fingerboard with six digital strings and 12 frets
  • Selectable fingerboard modes include fretted, fretless, grid, and pad
  • Strum, pluck, or fingerpick any instrument sound
  • Play melodies and chords on pressure-sensitive strings
  • Use fretless mode to enable continuous gliding between notes
  • Tap out drum beats via velocity-sensitive pads
  • Bridge and capo buttons
  • Selectable arpeggiator, string bending, Multidimensional Polyphonic Expression (MPE), string flip, and more
  • Integrated accelerometer controls modulation wheel for additional musical expression
  • Adjustable instrument tuning
  • Adjustable sensitivity for velocity, hammer-on, and aftertouch
  • Four preset instrument sounds including guitar, violin, piano, and drums
  • Built-in stereo speakers

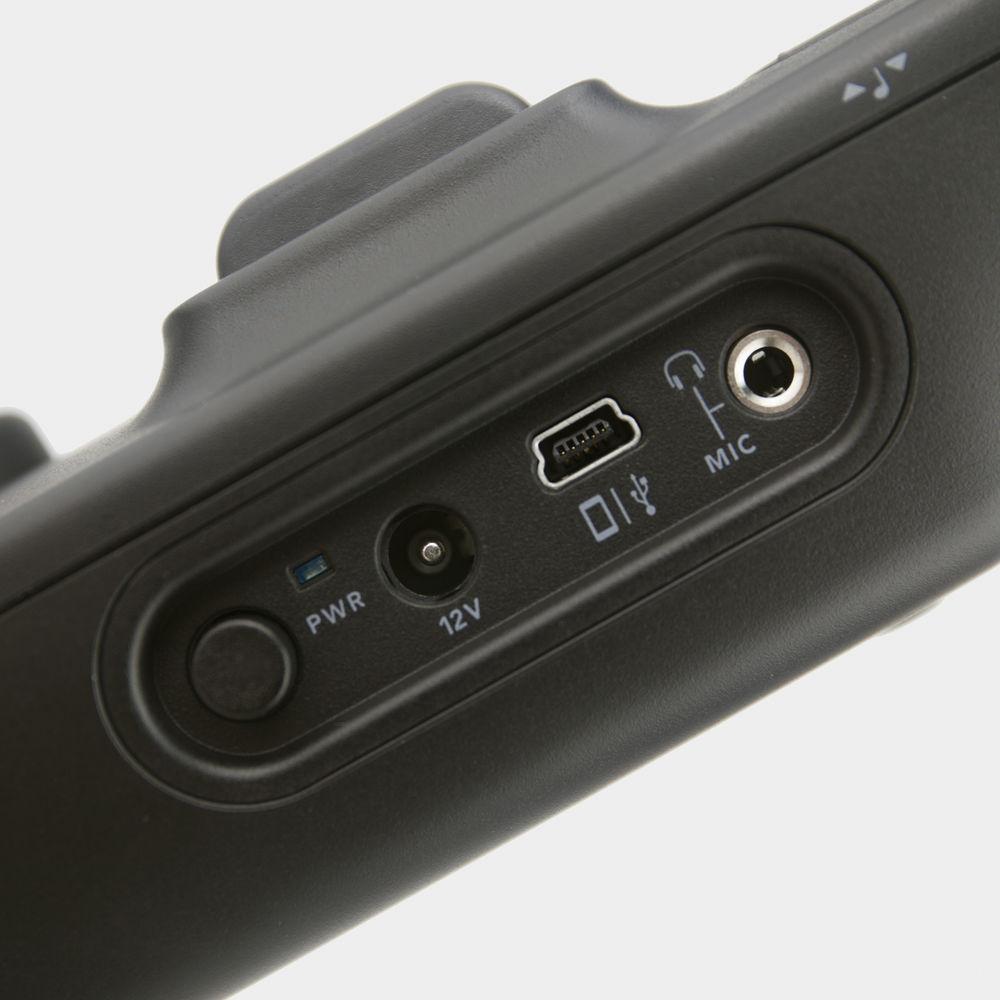

  • 3.5mm TRRS jack provides microphone input and headphone output
  • Internal rechargeable battery offers hours of portable fun
  • Power LED indicates battery status
  • Supports MIDI and audio up to 24-bit / 48 kHz resolution via USB
  • Lightweight at only 1.6 lb
  • Includes Lightning and USB cables and 12 VDC power supply
  • Customizable via iOS app
UPC: 869302000114 In the Box Artiphon INSTRUMENT 1 MIDI Controller (Black)
  • 12 VDC Power Supply
  • 3 x International Power Adapter Prongs
  • Lightning Cable
  • USB Cable
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Artiphon INSTRUMENT 1 MIDI Controller in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    Artiphon Instrument 1 Specs

    Presets 4 (guitar, violin, piano, and drums)
    I/O 1 x 1/8" (3.5 mm) TRRS (serves as microphone input and headphone output)
    USB 1 x mini-USB 2.0
    USB 1.0 audio class compliant
    USB MIDI class compliant
    Bit Depth 16-bit, 24-bit
    Sample Rate 44.1 kHz, 48 kHz
    Speakers 2 x 1.3" / 31.8 mm
    Maximum Input Level 35 dB
    Maximum Output Power Speaker Amplifier: 4.2 W RMS into 4 Ohms (x 2)
    Speaker Amplifier: 8.4 W peak into 4 Ohms (x 2)
    Speaker Amplifier: 7.4 V power supply
    Headphone Amplifier: 5.5 mW into 32 Ohms
    Maximum Output Level 94 dB SPL @ 1 m
    Frequency Response 100 Hz to 18 kHz
    Battery Lithium-ion polymer, 2000 mAh / 1 C
    Battery Life At least 6 hours at medium volume
    Battery Lifetime 80% capacity after 500 full charging cycles
    Power Supply 12 VDC, 100 to 240 VAC, 1.5 A
    Dimensions (W x D x H) 23.5 x 3.2 x 2.1" / 597.0 x 81.3 x 54.6 mm
    Weight 1.6 lb / 0.7 kg
    Package Weight 5.5 lb
    Box Dimensions (LxWxH) 26.7 x 6.6 x 4.7"
