Product description - Hands-On Review: Arturia AudioFuse

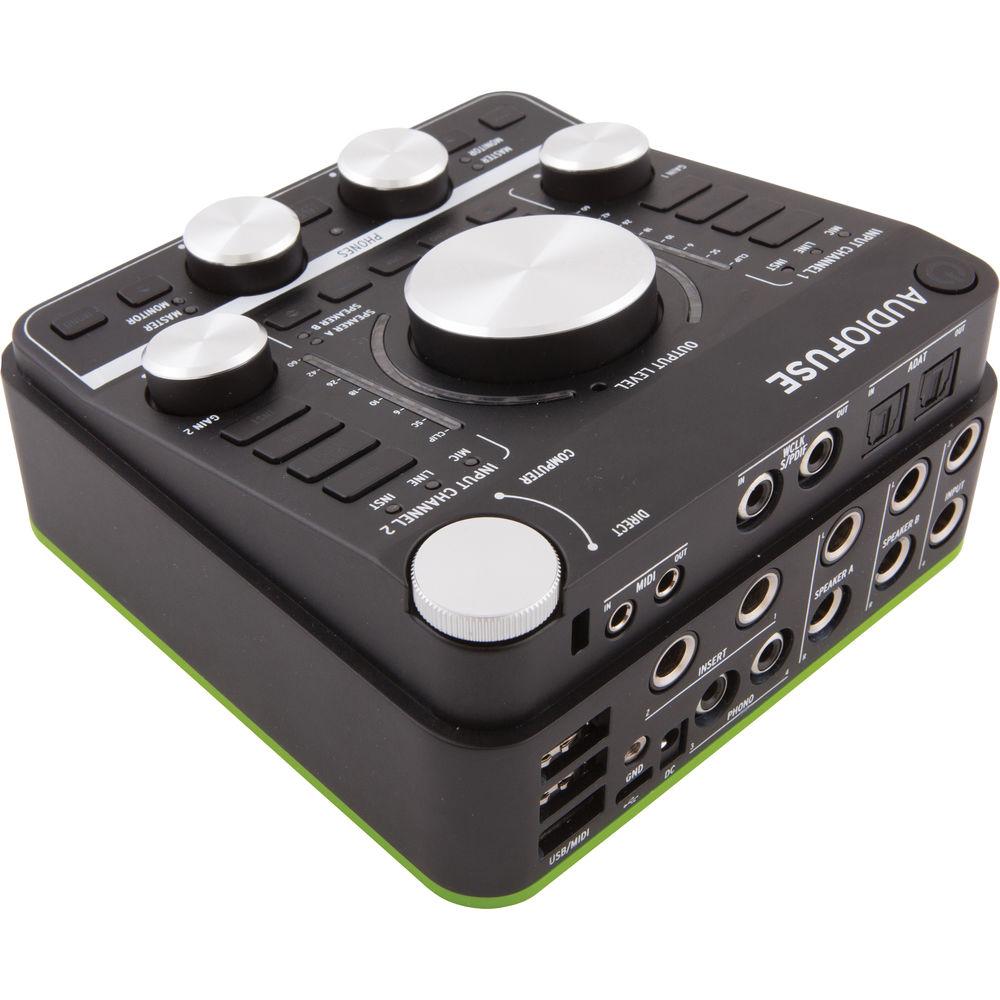

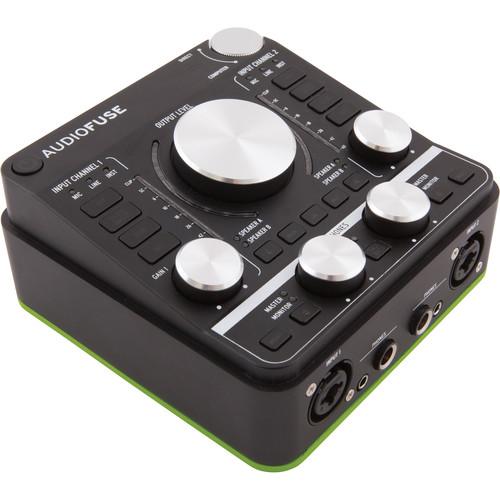

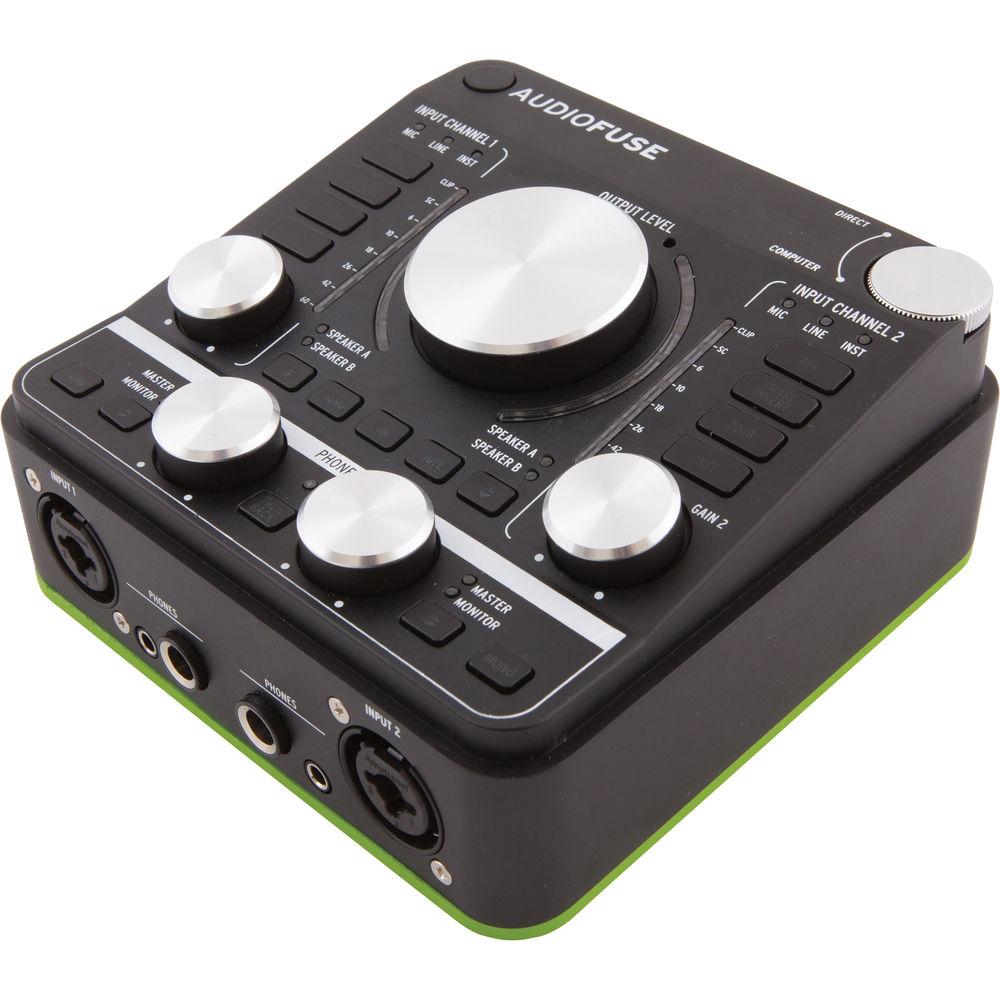

The black AudioFuse from Arturia is a 14 x 14 audio interface created for the discerning professional who requires the sound of a high-end analog console with the flexibility of a solid mobile interface. The AudioFuse was designed from the ground up utilizing DiscretePRO microphone preamps, which rely on a discrete component topology to achieve studio-quality performance. A temperature-compensated oscillator controls the reference clock to ensure jitter free analog-to-digital conversion and provide remarkable transparency at sampling rates up to 192 kHz. There are no menus to dive through as every function is a single layer with dedicated knob and button controls.

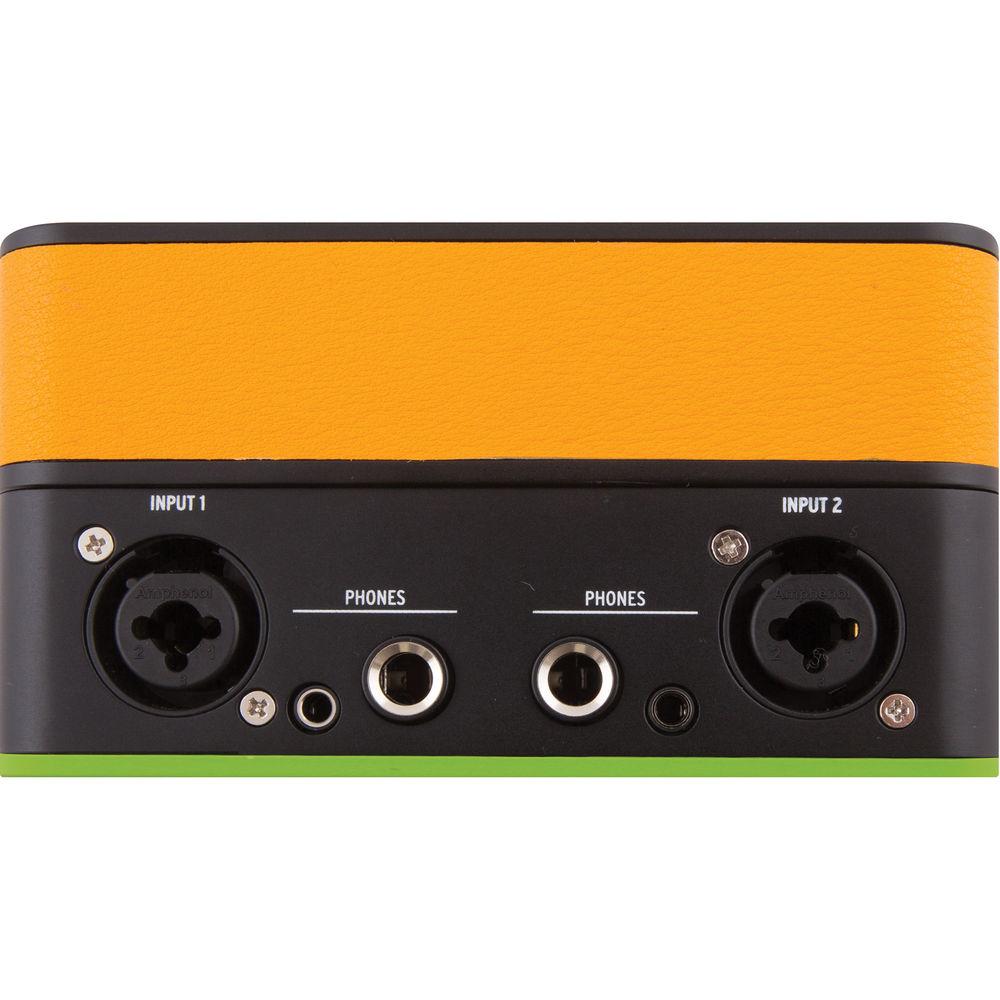

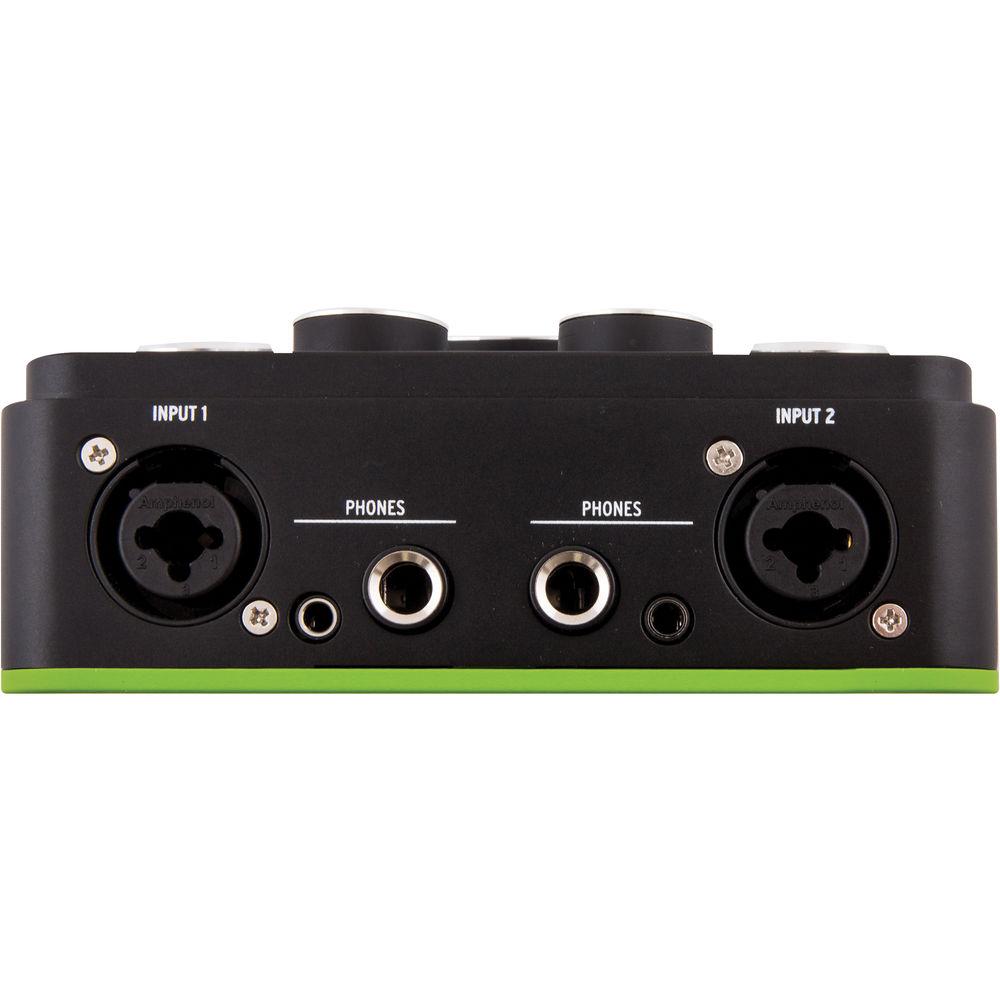

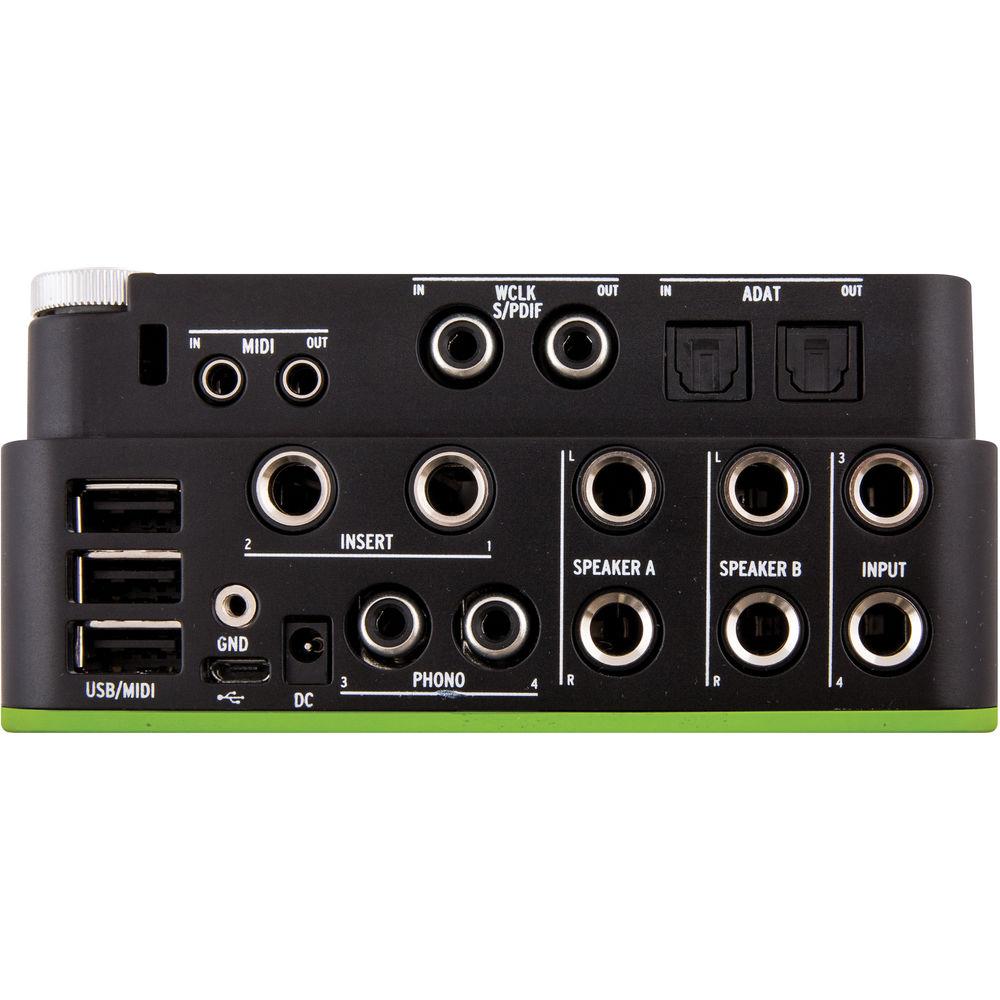

Inputs 1 and 2 feature combo XLR/TRS 1/4" connectors for mic pres, line inputs, and instrument inputs. Inputs 3 and 4 share a set of stereo 1/4" connectors with a stereo RCA RIAA phono preamp with ground for connecting a turntable. Speaker output A and B offer two sets of stereo 1/4" outputs for connecting two sets of monitors, while the two dedicated headphone outputs feature independent volume control and offer both 1/4" and 1/8" jacks. The digital ADAT lightpipe ports add an additional eight channels of input and output, while two coaxial connectors offer S/PDIF and wordclock I/O.
Connect any hardware MIDI device with the included MIDI cable adapters, or use the USB hub to connect controllers and other devices. The dedicated micro-USB port offers connections to your computer, tablet, or phone. The AudioFuse offers 3 ms round trip latency into and out of your computer, while the direct monitoring function allows for the blending of a recorded track with the direct signal for true zero latency performance. The built-in talkback microphone allows communication from the control room to musicians in a remote studio. The output control section controls output level with VU meters, audio mix selection, mono mode, output dimming, mute, and speaker A/B selection. -
- 14 input and output channels
- 4 analog inputs
- 2x mic/instrument/line
- 2x phono/line
- 4 analog outputs
- 2 analog inserts
- ADAT in & out
- S/PDIF in & out
- Word clock in & out
- MIDI in & out
- 3-port USB hub
- 2 microphone preamps with DiscretePRO technology
- 2 phono RIAA preamps
- 24-bit latest generation AD/DA converters at up to 192 kHz sampling rate
- Option for analog soft-clipping
- Talkback feature with a dedicated built-in microphone
- A/B speaker switching
- Direct monitoring
- Separate master & monitor mix channels
- USB interface with PC, Mac, iOS, Android & Linux compatibility
- Aluminum chassis, leather-covered top
In the Box Arturia AudioFuse 14x14 Audio Interface (Black) Limited 1-Year Warranty User Manual PDF 8.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia AudioFuse 14x14 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia 810101_B Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | Micro-USB (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" TRS Input
2 x RCA Line Input
2 x 1/4" (6.3 mm) TRS Input
1 x 1/4" (6.3 mm) TRS Insert Input
1 x 1/4" (6.3 mm) TRS Insert Output
4 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/8" (3.5 mm) TRS Headphone Output | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | Hi-Z Inputs:
20 Hz to 20 kHz
