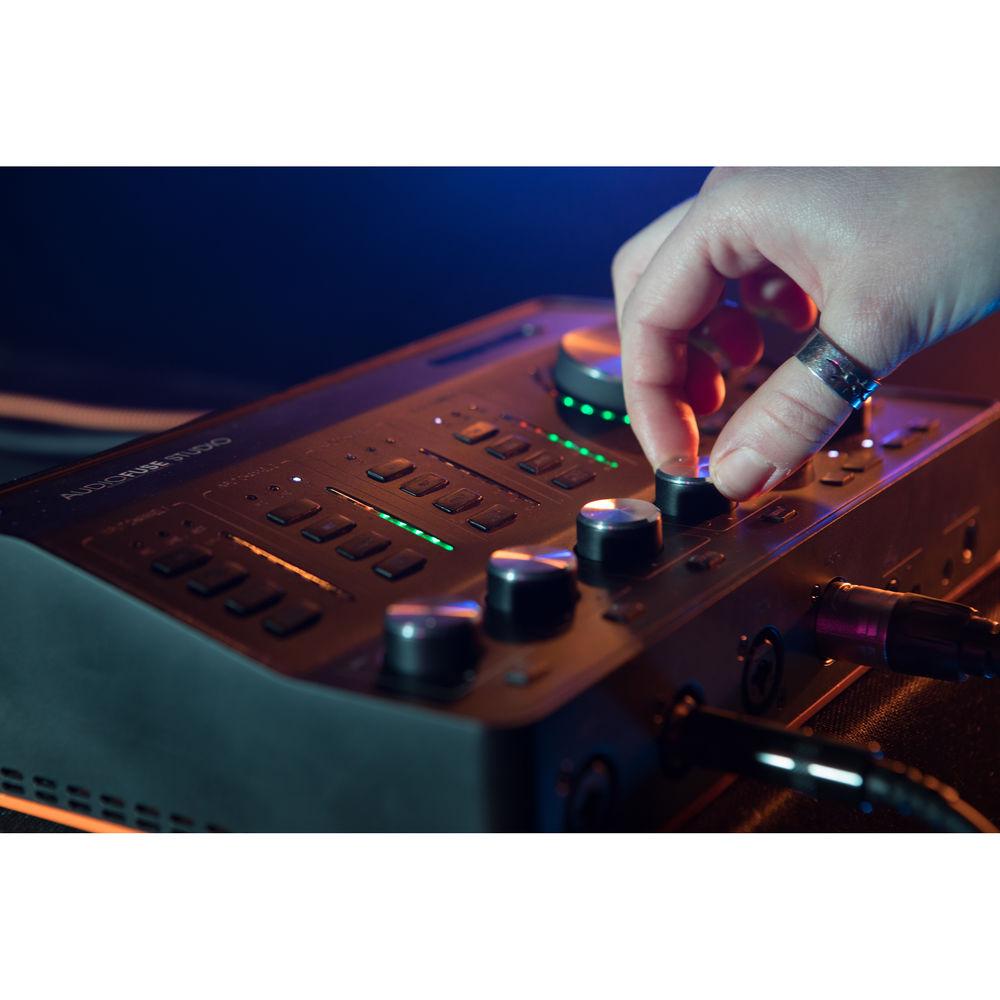

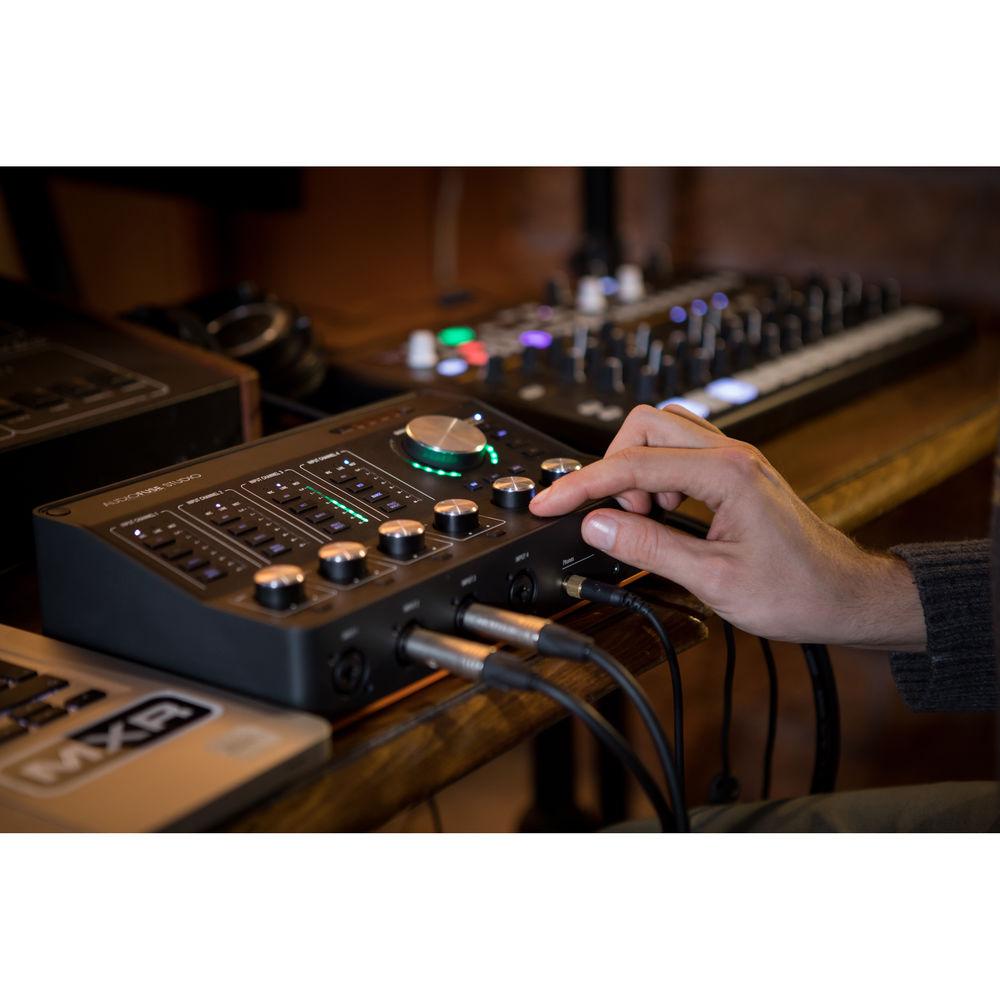

User Manual for Arturia AudioFuse Studio - 18x16 Audio Interface with Bluetooth Click to enlarge the picture
Contents of the user manual for the Arturia AudioFuse Studio - 18x16 Audio
- Product category: Audio Interfaces & Systems Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Audio Interfaces & Systems
 |
User manual for the Arturia AudioFuse Studio - 18x16 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|
Product description Building upon the success of the original AudioFuse, the Arturia AudioFuse Studio is an 18 x 16 audio interface created for the discerning professional who requires the sound of a high-end analog console with the flexibility of a solid mobile interface. Notable upgrades to the AudioFuse Studio include two additional microphone preamps (or four total), four inserts, and two auxiliary outputs, which double as a stereo reamp channel for rerecording guitar or bass, and an integrated Bluetooth receiver for wireless audio streaming. What's more, the Bluetooth receiver employs the highest codec, ensuring high-quality audio and performance for playback and tracking.
The AudioFuse Studio utilizes DiscretePRO microphone preamps, which rely on a discrete component topology to achieve studio-quality performance. A temperature-compensated oscillator controls the reference clock to ensure jitter-free analog-to-digital conversion and to provide remarkable transparency at sampling rates up to 192 kHz. There are no menus to dive through as every function is a single layer with dedicated knob and button controls.

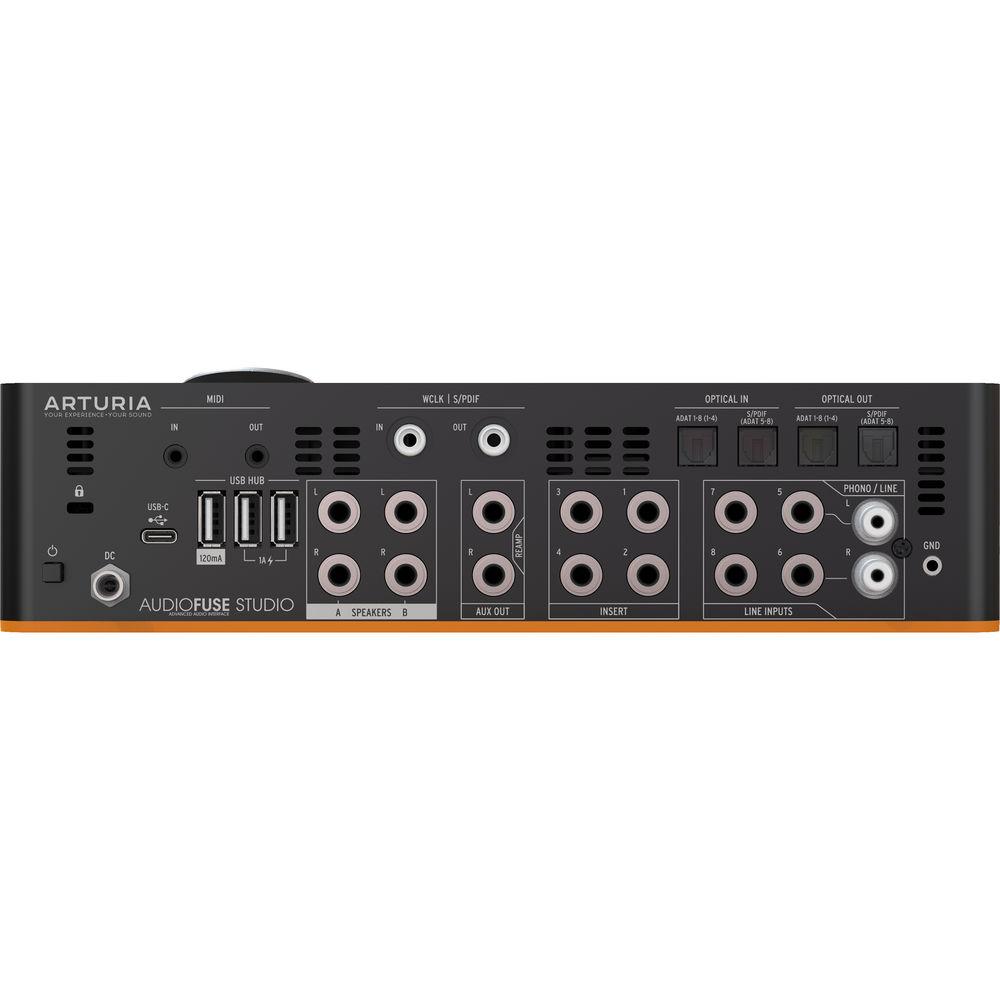

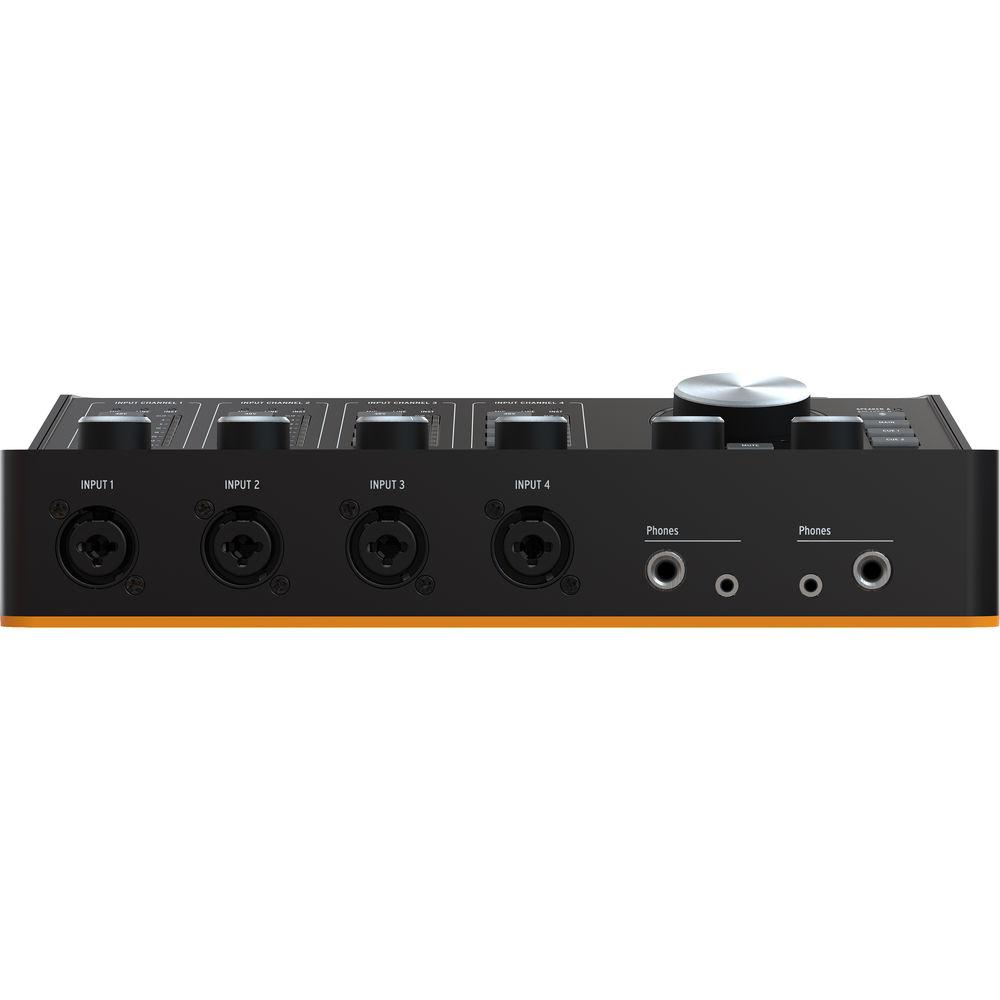

Inputs 1-4 feature combo XLR/TRS 1/4" connectors for mic pres, line inputs, and instrument inputs, while inputs 5-8 use 1/4" connectors for line-level connections. Additionally, inputs 5 & 6 share a set of stereo RCA RIAA phono preamps with ground for connecting a turntable. Speaker output A and B offer two sets of stereo 1/4" outputs for connecting two sets of monitors, while the two dedicated headphone outputs feature independent volume control and offer both 1/4" and 1/8" jacks. The digital ADAT lightpipe ports add an additional eight channels of input and output, while two coaxial connectors offer S/PDIF and wordclock I/O.

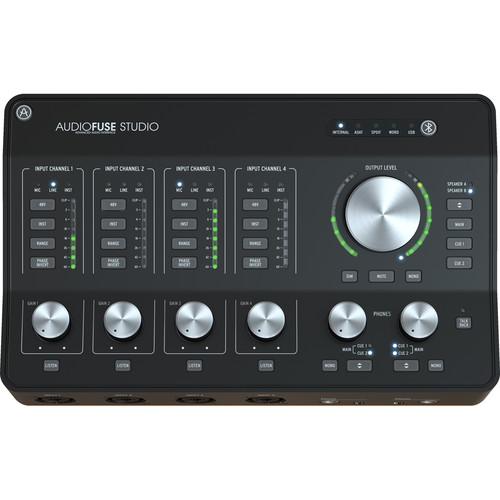

Connect any hardware MIDI device with the included MIDI cable adapters, or use the USB hub to connect controllers and other devices. The dedicated USB Type-C port offers connections to your computer, tablet, or phone. The built-in talkback microphone allows communication from the control room to musicians in a remote studio. The output control section controls output levels with VU meters, cue selection, audio mix selection, mono mode, output dimming, mute, and speaker A/B selection. The Arturia AudioFuse Studio includes the Arturia AudioFuse Software Center and the AudioFuse Creative Suite with tons of professional preamp and effect emulations as well as Analog Lab Lite, a collection of highly regarded instruments and effects. -
- 18 input and 16 output channels
- 8 analog inputs
- 4 x mic/instrument/line
- 4 x phono/line
- 6 analog outputs
- 4 analog inserts
- ADAT in & out
- S/PDIF in & out
- Word-clock in & out
- MIDI in & out
- 3-port USB hub
- 4 microphone preamps with DiscretePRO technology
- 2 phono RIAA preamps
- 24-bit latest generation AD/DA converters at up to 192 kHz sampling rate
- Option for analog soft-clipping
- Talkback feature with a dedicated built-in microphone
- A/B speaker switching
- Separate master & monitor mix channels
- USB Type-C interface with PC, Mac, iOS, Android & Linux compatibility
- Aluminum chassis, leather covered top
In the Box Arturia AudioFuse Studio - 18x16 Audio Interface with Bluetooth 2 x 3.5mm to MIDI DIN Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia AudioFuse Studio - 18x16 Audio Interface with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia STUDIO Specs | | | Channels of I/O | 18 Inputs / 16 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-C (USB 2.0) | | Analog I/O | 4 x Combo XLR / 1/4" TRS Input
2 x RCA Line Input
4 x 1/4" (6.3 mm) TRS Input
4 x 1/4" (6.3 mm) TRS Insert In/Out
4 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/8" (3.5 mm) TRS Headphone Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 4 x TOSLINK / ADAT (I/O) In/Out
2 x RCA Coaxial / S/PDIF (I/O, Word Clock) In/Out | | MIDI I/O | 1 x 5-Pin MIDI In (On Included Breakout Cable)
1 x 5-Pin MIDI Out (On Included Breakout Cable) | | Wireless Connectivity | Bluetooth |
