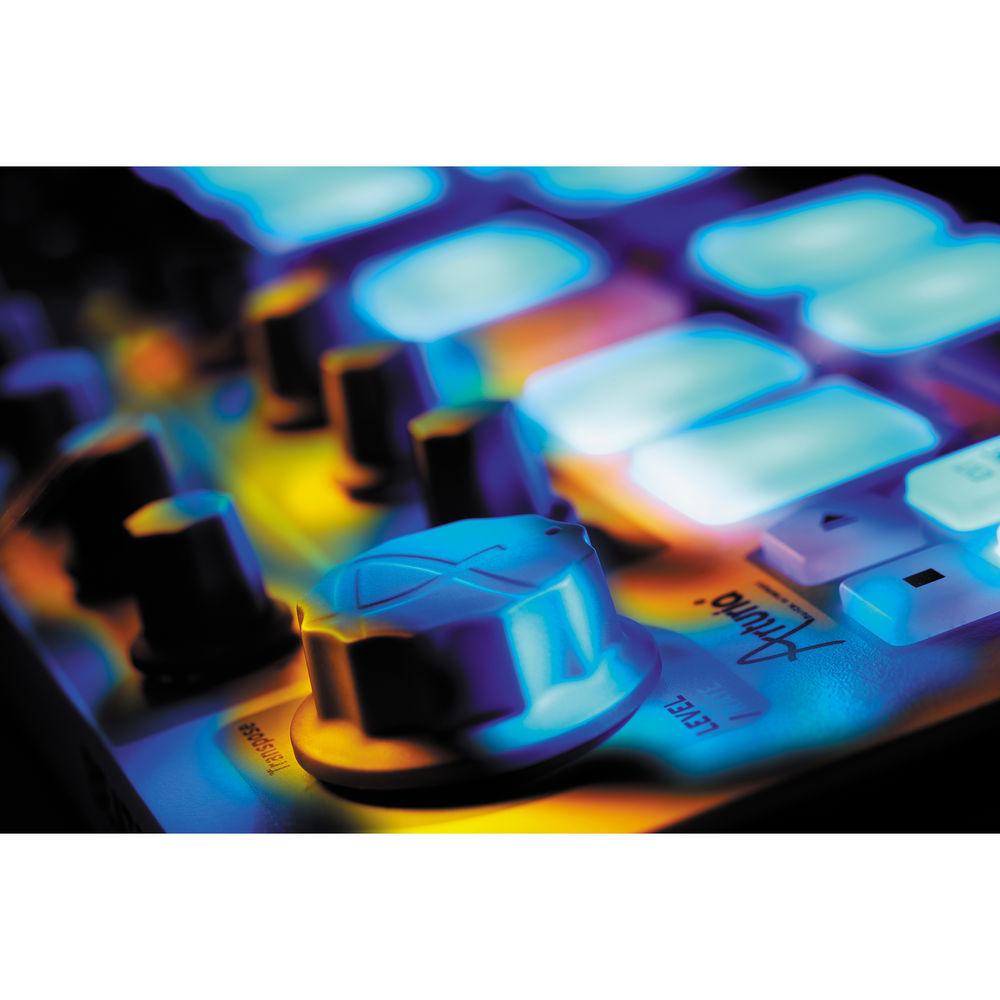

User Manual for Arturia Beatstep Controller & Sequencer Click to enlarge the picture
Contents of the user manual for the Arturia Beatstep Controller & Sequencer
- Product category: Control Surfaces Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Control Surfaces
 |
User manual for the Arturia Beatstep Controller & Sequencer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|

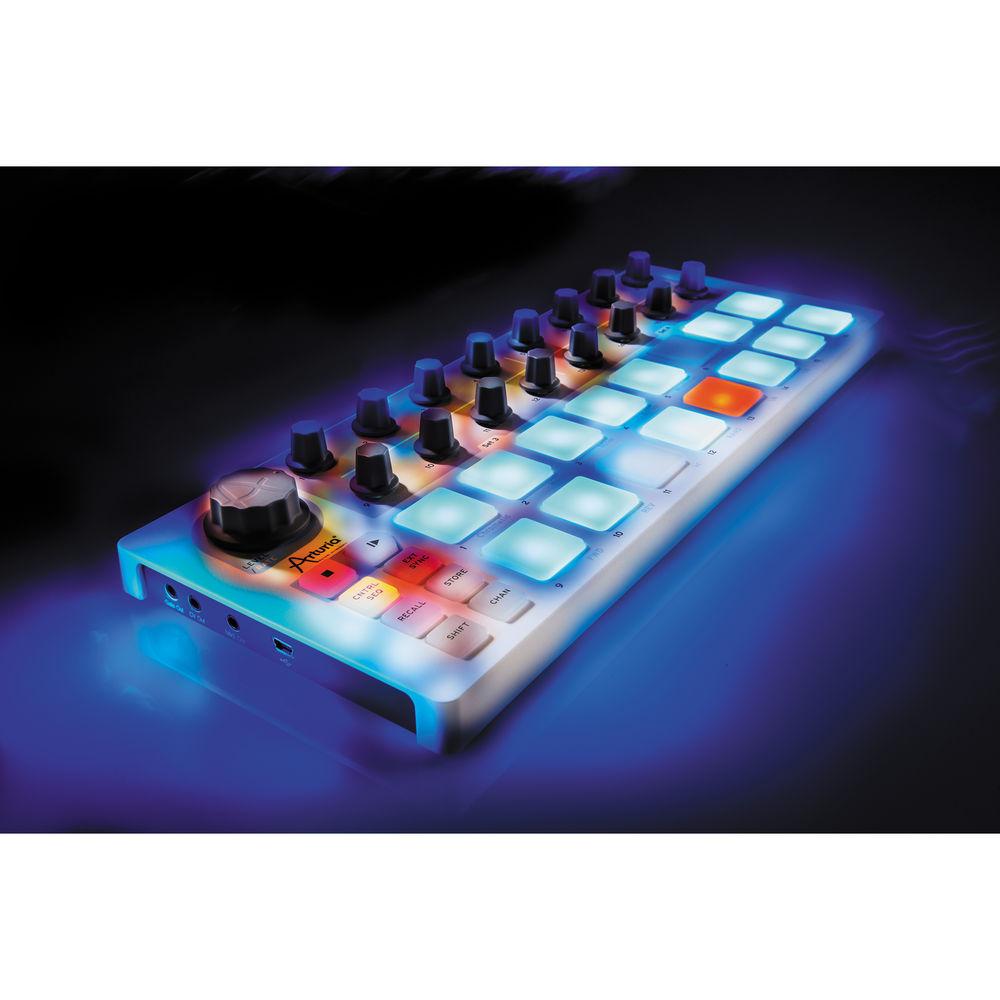

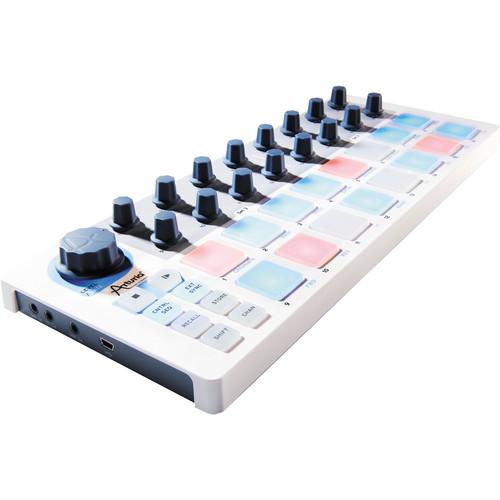

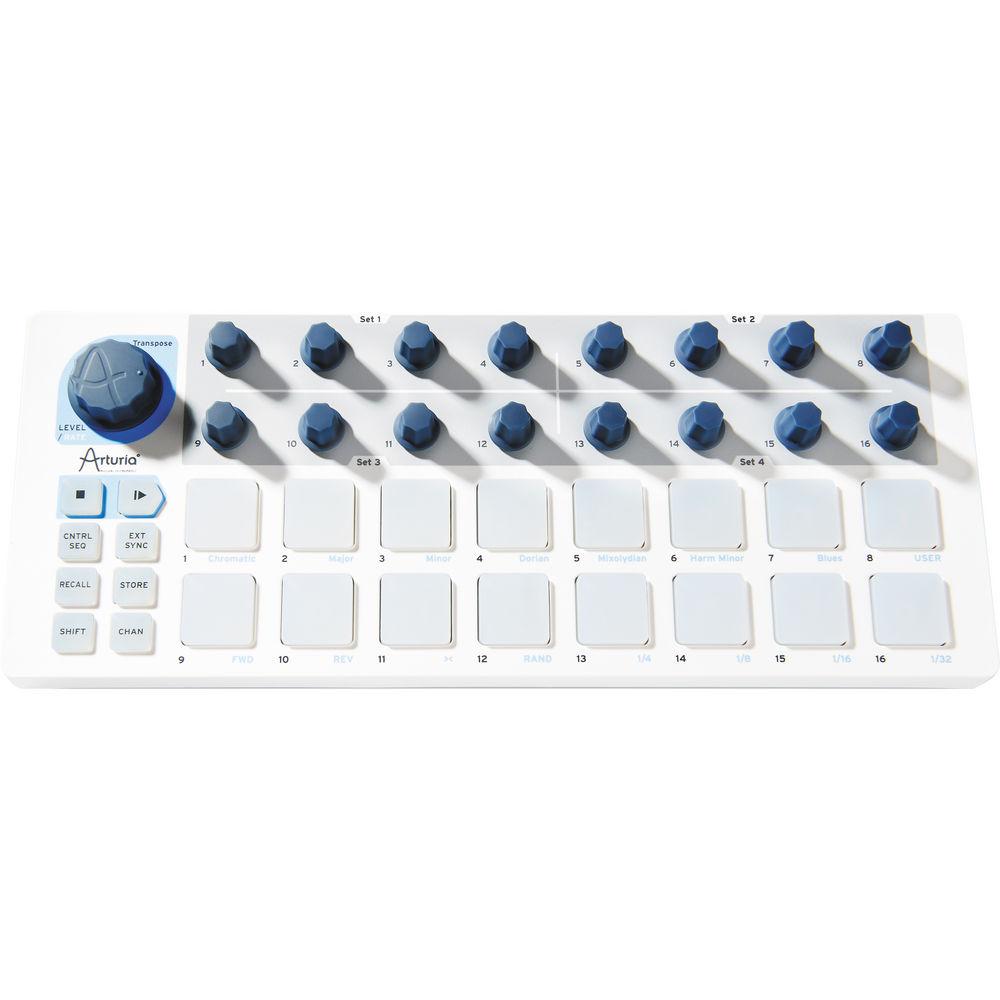

Product description The Arturia Beatstep Controller & Sequencer is a USB class compliant driverless controller that enables control over DAWs, loop triggering software, drum software, VST instruments, VST effects, DJ applications, MIDI instruments, and analog equipment with a CV/GATE input. The unit features sixteen pressure and velocity sensitive pads, sixteen rotary encoders, transport and preset controls with sixteen presets, and a jogwheel for transpose, rate, and level.

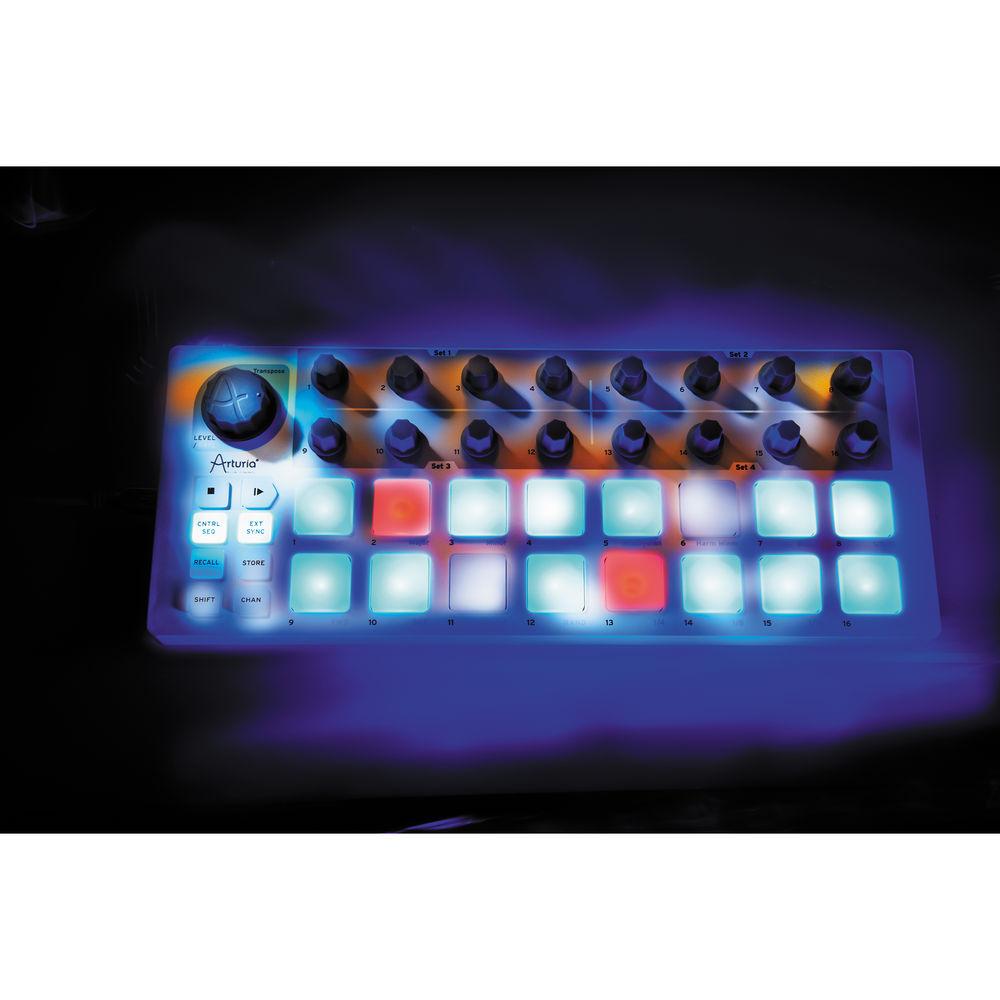

When placed in controller mode, the pads illuminate red via backlit LEDS. In this mode, a performer can use the pads and rotary encoder knobs to control drum software on an iPad (with camera connector kit) or a computer such as BFD, Kontakt, Ableton Live's Drum Rack, EZ Drummer, Addictive Drums, Reason Kong, or Geist. The controller can also be used to trigger clips or tracks in production and DJ software such as Ableton Live, Traktor, and Serato. The rotary encoders can be MIDI mapped to control filters, EQs, delays and other effects. The included MIDI Control Center software provides a user interface for MIDI mapping the functions of the controller with the option of archiving favorite presets. The pads can be set for note generation, MIDI CC buttons, and sending program change messages for a wide range of applications.

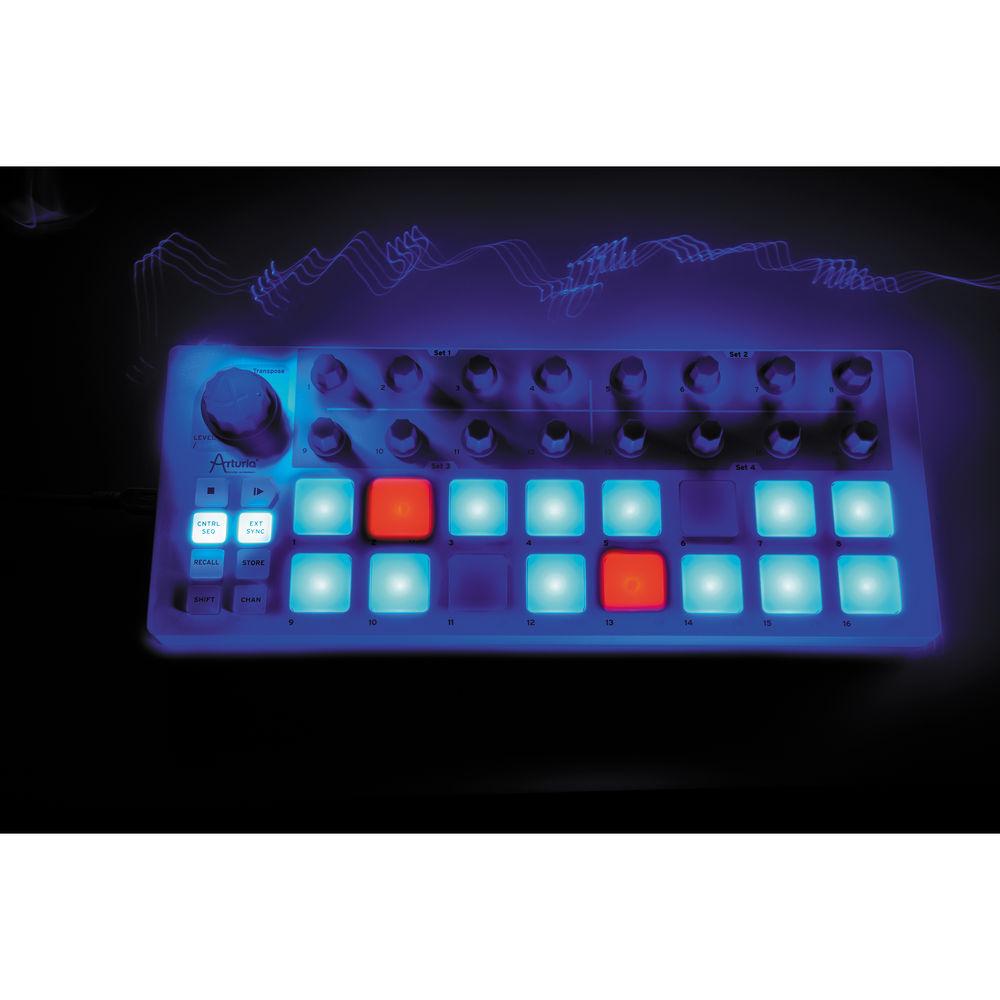

When placed in sequencer mode, the pads illuminate red via backlit LEDs. In this mode, the unit can be connected to MIDI modules, CV/GATE synthesizers, and software instrument plug-ins within a computer via USB. The pads and encoders enable programming steps in the sequence and changing the pitch of each step. The unit includes scale modes to quantize the pitch of the encoders to specific pitches within a given scale. Up to sixteen sequences can be stored in internal memory. The unit can be rapidly switched between controller and sequencer mode for flexible workflows using both hardware and software instruments.

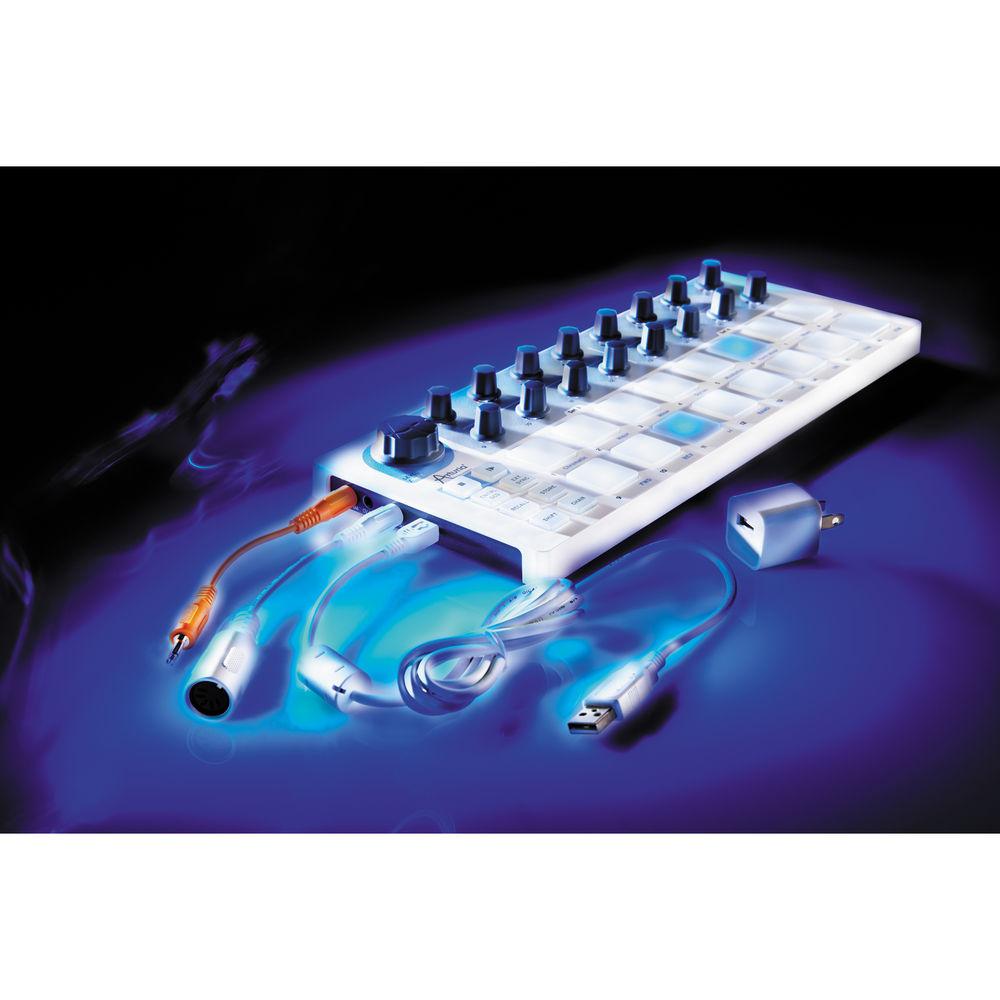

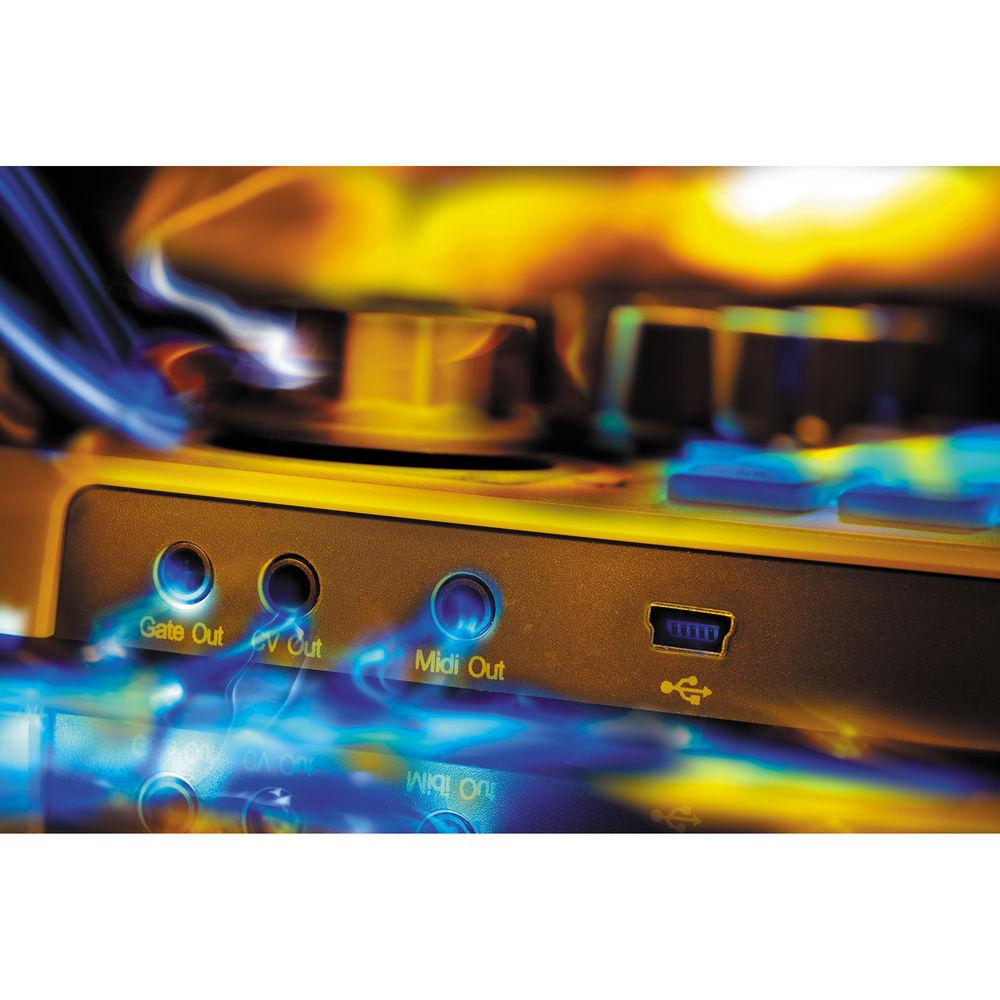

For I/O, the unit includes a class compliant USB input for connection to a computer or iPad, a MIDI breakout cable for connection to traditional MIDI modules, a 1 volt per octave control voltage (CV) output, and a 1 volt per octave GATE output for connection to hardware synthesizers and other equipment. The unit is powered by USB connection to a computer or USB power adapter. In the Box Arturia Beatstep Controller & Sequencer Mini USB to USB Cable 3.5mm MIDI Output Cable Limited 1-Year Year Warranty User Manual PDF 708.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia Beatstep Controller & Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia 430101 Specs | | | Pads | 16x backlit velocity and pressure sensitive pads | | Encoders | 16x assignable encoders with 3 modes | | Platform | Windows 7 and Windows 8
Mac OS X 10.7 or higher | | Presets | 16x user definable presets | | Swing | 50 to 75% | | PC Requirements | PC/Windows: 2 GHz CPU (multiple core required)
2 GB RAM
2 GB free hard disk space
Mac (Intel Only): 2 GHz CPU (multiple core required)
2 GB RAM
2 GB free hard disk space | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 15.7 x 7.0 x 2.5" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
