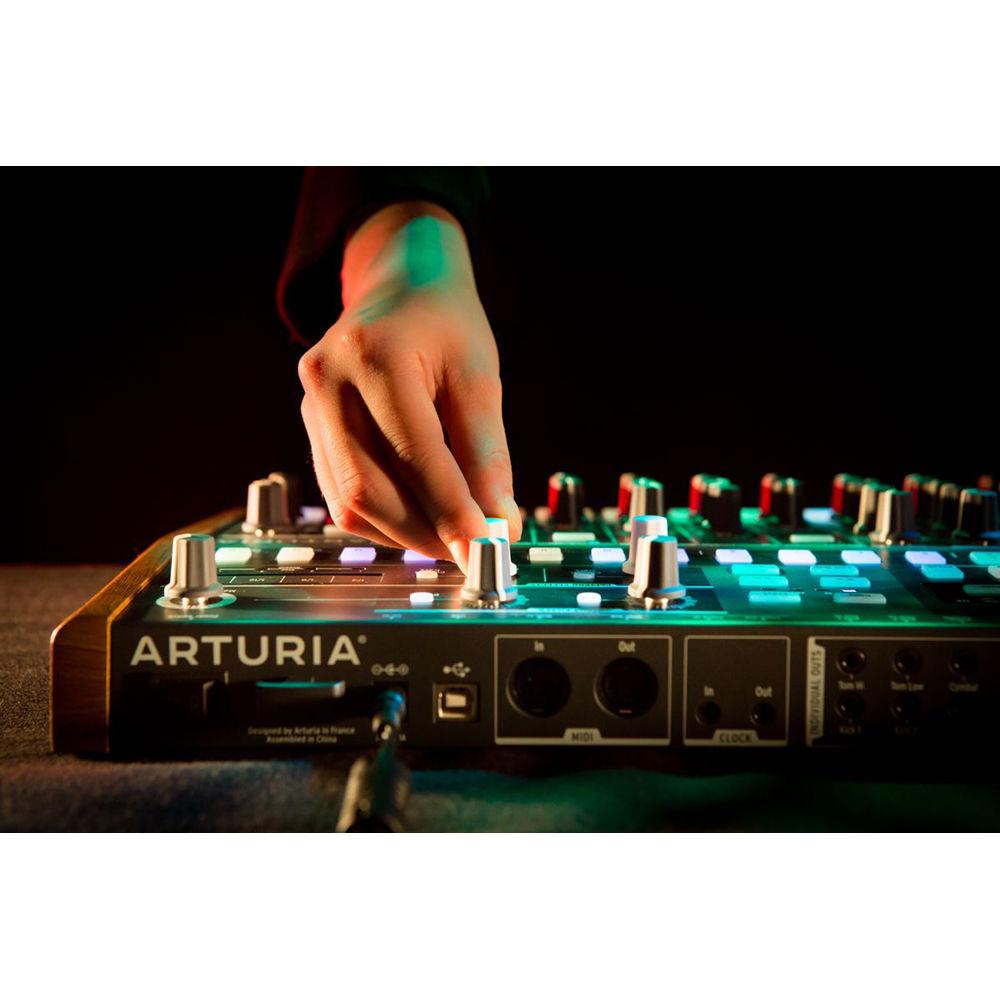

User Manual for Arturia DrumBrute Analog Drum Machine Click to enlarge the picture
Contents of the user manual for the Arturia DrumBrute Analog Drum Machine
- Product category: Drum Machines Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Drum Machines
 |
User manual for the Arturia DrumBrute Analog Drum Machine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|

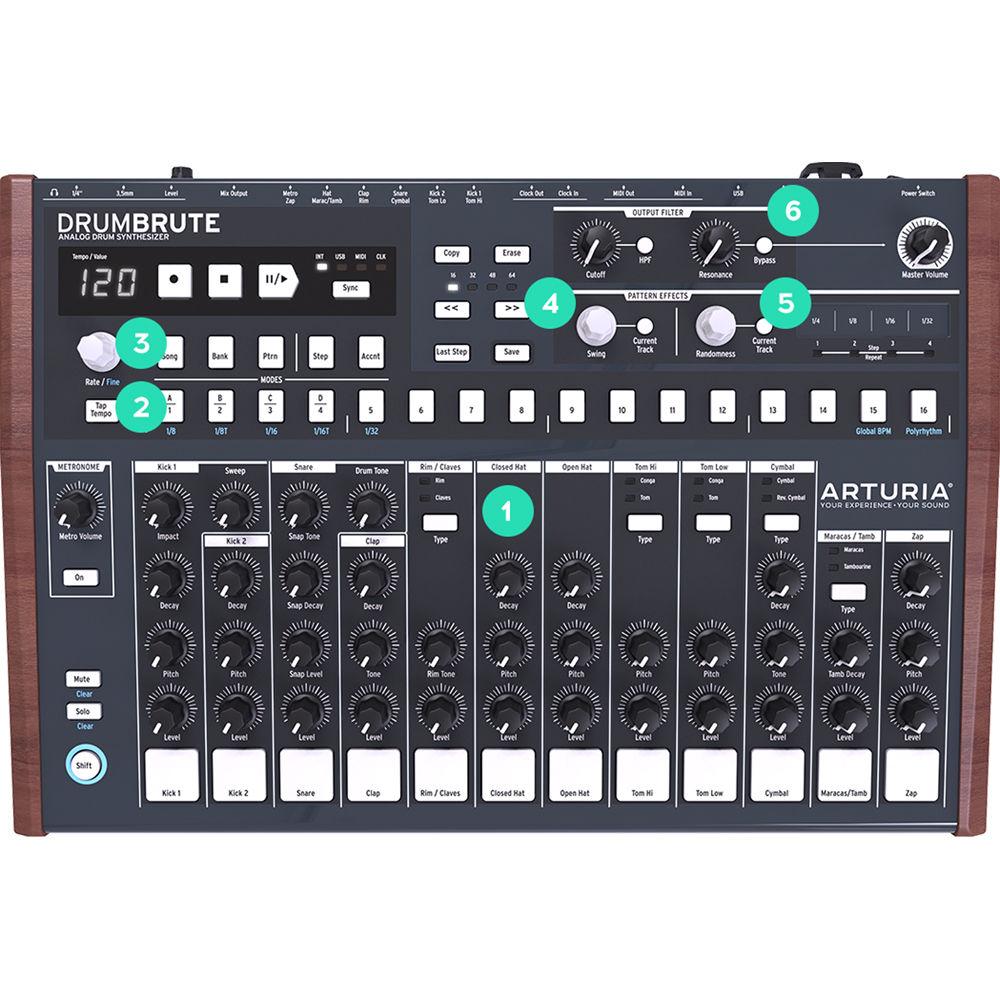

Product description New to B&H: Arturia DrumBrute Read More The DrumBrute from Arturia is a professional-grade, fully analog drum machine aimed at modern indie-rock bands, dance music producers and DJs, hip-hop artists, and electronic musicians. The unit features 17 pure-analog drum sounds, which build on the history of classic drum machines and offer an expanded feature set including high-performance effects and a modern step sequencer.
The DrumBrute offers a wide range of controls, which allow for many new and adventurous sounds including two flavors of kick drums and an unusual reverse cymbal effect. There are 12 individual outputs available, should you wish to mix or effect the sounds with an outboard mixer or effects.
The sequencer offers 64 patterns, each with 64 steps, and each drum track can be a separate length, which allows for the creation of advanced polyrhythms that move and breathe over time. Additionally, the machine offers step repeat for creating looping glitch effects, while the pattern effects offer swing and randomness globally or on a per-track basis.
The on-board Steiner Parker output filter offers high-pass and low-pass modes and features a complete bypass when not in use. There are four sync options (Internal, USB, MIDI, Clock) and four different clock formats allowing the machine to sync up with a variety of analog and vintage gear. -
- Seventeen pure-analog drum sounds
- Kick 1, kick 2, snare, clap, hi-hat 1, hi-hat 2, conga hi, conga lo, tom hi, tom lo, maracas, rimshot, clave, tambourine, cymbal, reverse cymbal, zap
- Wide range of controls allowing for many new and unique sounds
- Two different flavors of kick drums
- Analog reverse cymbal
- 64 patterns with up to 64 steps each
- Separate accent per drum
- Step Repeat for creating looping glitch effects
- Song mode for chaining patterns
- Pattern effects
- Swing and randomness that can be global or per instrument
- Pattern Looper for beat-repeat functions
- Steiner Parker output filter with bypass (high pass and low pass)
- Multiple sync options (Internal, USB, MIDI, Clock)
- Four different clock formats
- Twelve individual audio outputs
- Headphone output with both 3.5mm and ¼” jacks
- Create polyrhythms
- Each drum track can be of separate length
In the Box Arturia DrumBrute Analog Drum Machine Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia DrumBrute Analog Drum Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

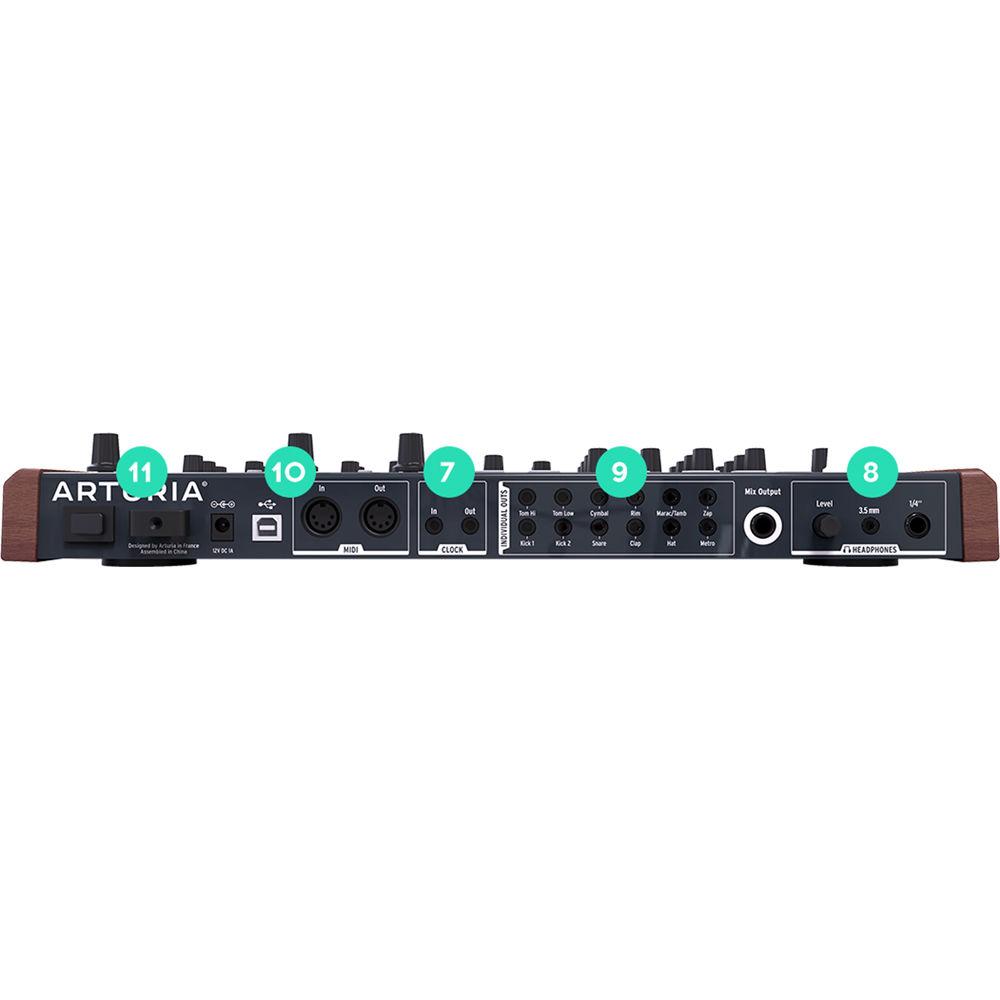

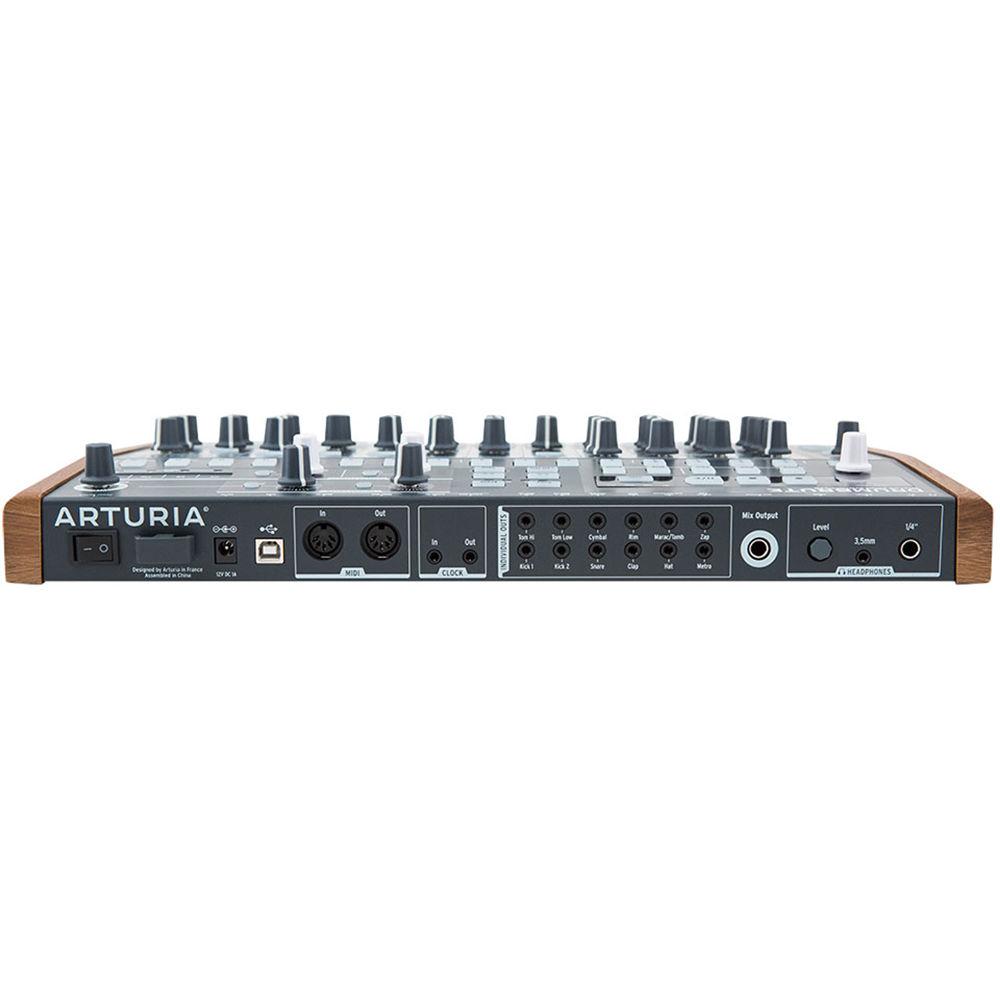

Technical parametersArturia 560101 Specs | Connectors | Mix Output: 1 x 1/4" / 6.35 mm
Individual Drum Outputs: 12 x 1/8" / 3.5 mm (Kick 1, Kick 2, Snare, Clap, Hi-Hats, Metronome, Tom Hi, Tom Low, Cymbal, Rim, Marc/Tamb, Zap)
Clock In/Out: 2 x 1/8" / 3.5 mm
MIDI In/Out: 2 x 5-pin DIN
Headphones: 1/4" / 6.35 mm, 1/8" / 3.5 mm | | Dimensions (W x D x H) | 16.5 x 10.9 x 1.6" / 41.8 x 27.6 x 4.0 cm | | Weight | 6.3 lb / 2.8 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 20.5 x 12.9 x 3.6" |
