User Manual for Arturia KeyLab MKII 61 - Professional MIDI Controller and Software Click to enlarge the picture
Contents of the user manual for the Arturia KeyLab MKII 61 - Professional
- Product category: Keyboard Controllers Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Keyboard Controllers
|
User manual for the Arturia KeyLab MKII 61 - Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|

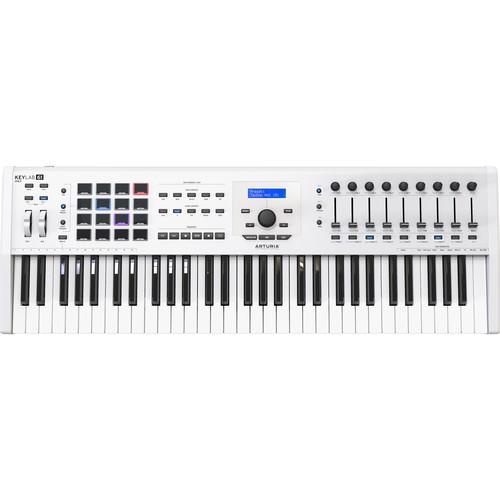

Product description The white Arturia KeyLab MKII is a universal MIDI controller and software package that includes 61 velocity-sensitive keys with aftertouch, a clickable encoder, 9 additional encoders, 9 sliders, 16 RGB-backlit touch and pressure sensitive pads, 6 transport control switches, 4 command switches, a modulation wheel, and a pitch-bend wheel. The system is designed to provide 1:1 control of the included Analog Lab software, Ableton Live Lite, and V-Piano virtual instrument software, as well as any MIDI controllable plug-in or DAW. It can be customized to other software using the downloadable MIDI Control Center software. What's more, the KeyLab MKII offers seamless control well beyond standard MIDI, allowing you to control your DAW software on any platform and includes 10 overlays to help you quickly change between applications. The controller is a Class-Compliant USB device that works straight out of the box with Mac and Windows.
The controller includes three buttons for switching modes, allowing you to quickly change between Analog Lab mode, DAW mode, and a User mode for creating custom maps to control MIDI hardware or software instruments and plug-ins. The Analog Lab mode allows you to control all the elements of Analog Lab without having to reach for your mouse. The software includes over 6500 TAE-powered preset sounds from Arturia's award winning V-Collection. With the KeyLab 61 MKII, you can navigate through presets as well as create and save your own. The keyboard can be split or layered to help create new sounds. All the included software is compatible with all major DAWs including Pro Tools, Logic Pro X, FL Studio, Bitwig, Cubase, Ableton Live, Digital Performer, Studio One, and more. The KeyLab 61 MKII ships with a USB cable and an anti-ground loop adapter. - Features
-
- Software Specifications:
- Includes Analog Lab software with 6500 synth sounds
- Includes Ableton Live Lite
- Includes Piano V
- Hardware Specifications:
- 61-note keyboard with high-quality keybed with velocity and aftertouch
- 16 RGB backlit performance pads
- Control bank with 9 faders and 9 rotary knobs
- Control analog synthesizers and modular equipment with 4 CV/gate outputs, controlling pitch, gate, and modulation
- Seamless integration with all Arturia software instruments
- Presets for multiple DAWs, with magnetic overlays for controls
- Huge connectivity, including expression, sustain, CV/Gate, MIDI, USB and 3 assignable auxiliary pedal inputs
- Perfect Analog Lab integration:
- Select sounds, browse presets, switch parts, smart-assigned controls
- Standalone or plug-in operation: VST, VST3, AU, AAX
- Over 6500 TAE powered preset sounds from Arturia’s award-winning V-collection
- Select sounds, browse presets, switch parts, smart-assigned controls
- Ableton Live Lite: Record, layer, and edit your sounds to create a finished song
- Piano V: Twelve different world-class pianos meticulously crafted using our critically acclaimed modeling technology
- Compatible with all Major Digital Audio Workstations (DAWs): Pro Tools, Logic Pro X, FL Studio, Bitwig, Cubase, Ableton Live, Digital Performer, Studio One
In the Box Arturia KeyLab MKII 61 - Professional MIDI Controller and Software (White) USB Cable Anti-Ground Loop Adapter Analog Lab Software Ableton Live Lite Piano V - Virtual Piano Instrument Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia KeyLab MKII 61 - Professional MIDI Controller and Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia KEYLAB MKII 61 Specs | | | Keyboard | 61 Keys, Synth Action with Aftertouch and Velocity | | MIDI Control Surfaces | 1 x Wheel (Pitch-Bend)
1 x Wheel (Modulation)
16 x Pads
1 x Rotary Encoder (Clickable)
9 x Rotary Encoders
9 x Sliders | | Performance Functions | Transport Controls | | | | I/O | 1 x 5-Pin MIDI Input
1 x 5-Pin MIDI Output
1 x USB Type-B
1 x 1/4" (6.3 mm) TS Sustain Input
1 x 1/4" (6.3 mm) TRS Expression Pedal Input
3 x 1/4" (6.3 mm) TS Pedal Input
1 x 1/8" (3.5 mm) TS CV Input
4 x 1/8" (3.5 mm) TS Gate/Mod/Pitch Output | | OS Compatibility | macOS 10
Windows |
