User Manual for Arturia KeyStep - Controller Sequencer Click to enlarge the picture
Contents of the user manual for the Arturia KeyStep - Controller Sequencer
- Product category: Keyboard Controllers Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Keyboard Controllers
 |
User manual for the Arturia KeyStep - Controller Sequencer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|

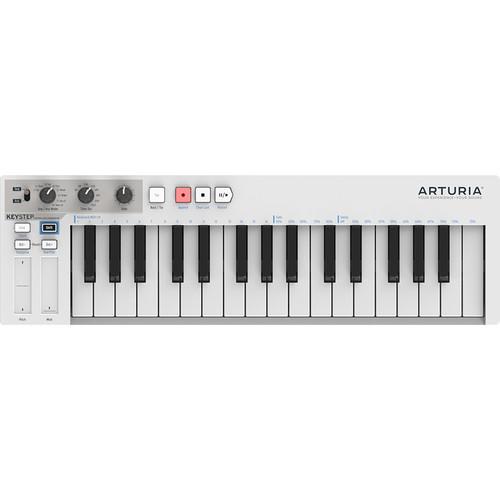

Product description Designed for the mobile musician, producer, or analog enthusiast, the KeyStep from Arturia is a 32-note, slimkey keyboard with an integrated 64-step sequencer/arpeggiator. The slimkey keybed offers velocity and aftertouch, while each step of the 64-step sequencer can have up to 8 notes. The step sequencer offers 8 memories, while the arpeggiator mode offers 8 pattern styles. Additionally, the swing and gate length can be set via the keyboard on-the-fly.
The KeyStep offers a chord-play mode that sets chords and then plays them back with a single note, a feature that can also be used in the arpeggiator mode for chord arpeggiations. Additional performance controls include capacitive-touch pitchbend and modulation strips. For the analog producer, the KeyStep offers pitch and modulation CV (control voltage) outputs, a Gate output, and Sync I/O via 1/8" / 3.5mm connectors. The KeyStep ships with a micro-USB to USB cable. -
- Proprietary Slimkey Keybed: A new 32-note keyboard with velocity and aftertouch, designed by Arturia for keyboardists
- Polyphonic Sequencer / Arpeggiator: Each sequence can have 64 steps; each step can have up to 8 notes. Step-sequencer with 8 memories or Arpeggiator mode with 8 pattern styles. Set swing and gate length from the keys
- Chord Play Mode: Set chords and then play them back with a single note. Can also be used in Arpeggiator mode for chord arpeggiations
- Performance Controls: Capacitive-touch pitchbend and modulation strips
- Digital & Standalone: The USB port allows for standard, class-compliant, bus-powered operation. Connect an optional USB power adaptor to use KeyStep in a standalone situation

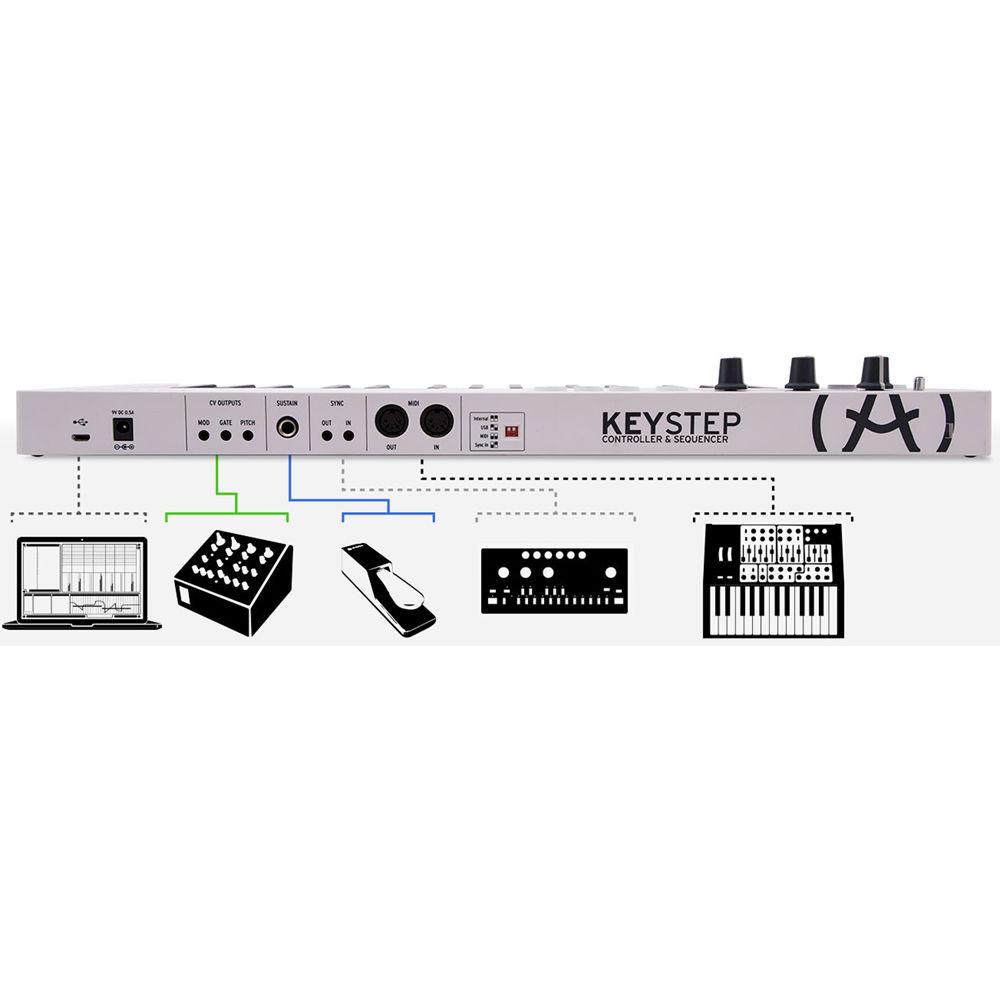

- The three CV outputs send pitch and gate signals, along with a velocity, aftertouch, or mod. ribbon signal, to control an analog instrument or module
- CV supports 1 volt per octave, volt/Hz modes, Gate output 5V or 12V for modern or vintage gear support
- Sync: Clock input and output supports 1 pulse per step, 2 PPQ (Korg Volca), 24 PPQ DIN sync, 48 PPQ DIN sync. The sync mode selectors allow you to select the clock source: internal, USB, MIDI or Sync input
- Connect: MIDI in/out – full size connectors
- Play: Sustain pedal input
- Low Power: Can be powered by Apple iPad (camera connection kit required)
In the Box Arturia KeyStep - Controller / Sequencer Micro-USB to USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia KeyStep - Controller Sequencer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

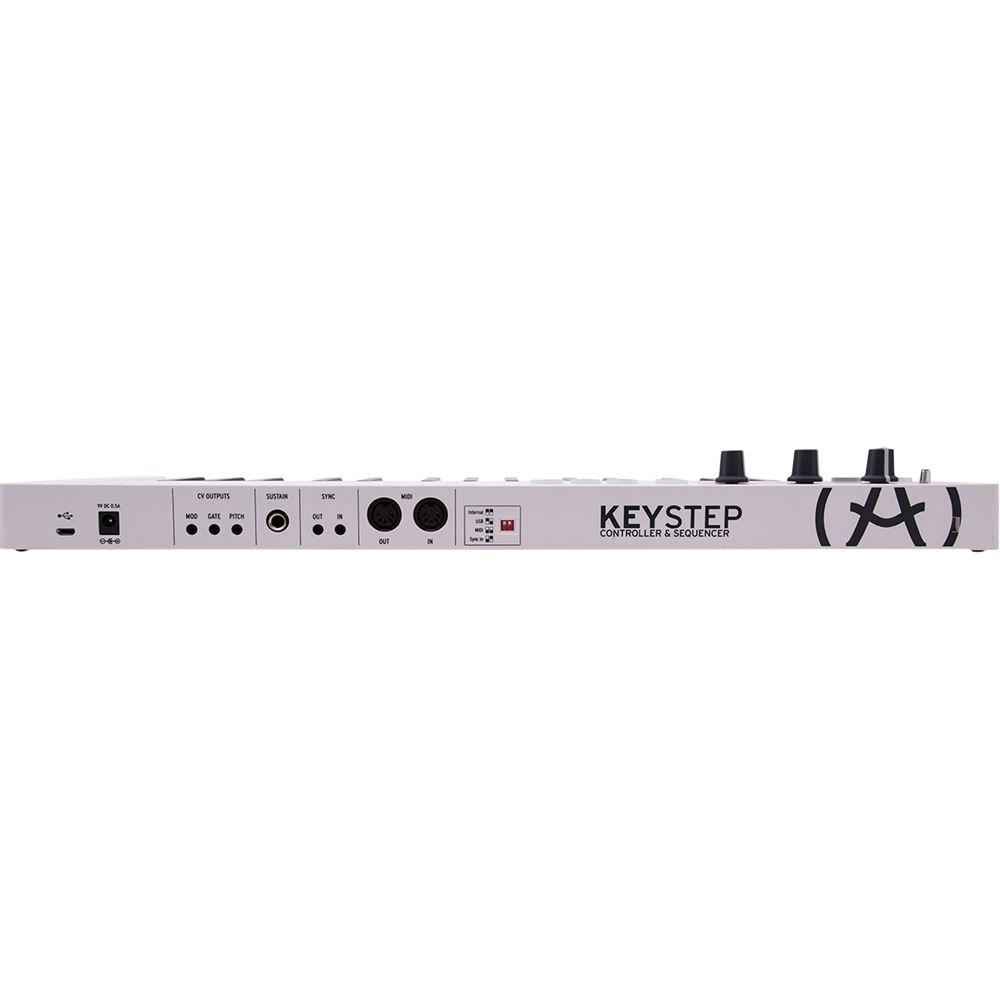

Technical parametersArturia 430201 Specs | | | Keyboard | 32 Slim Keys, Synth Action with Aftertouch and Velocity | | MIDI Control Surfaces | 1 x Ribbon Controller (Pitch-Bend)
1 x Ribbon Controller (Modulation) | | Performance Functions | Arpeggiator, Octave Shift, Sequencer, Transport Controls | | | | I/O | 1 x Micro-USB Bus-Power/Host Connection
1 x 1/8" (3.5 mm) TS CV/Pitch Output
1 x 1/8" (3.5 mm) TS CV/Mod Output
1 x 1/8" (3.5 mm) TS CV/Gate Output
1 x 1/8" (3.5 mm) TS Sync Input
1 x 1/8" (3.5 mm) TS Sync Output
1 x 5-Pin MIDI Input
1 x 5-Pin MIDI Output
1 x 1/4" (6.3 mm) TS Sustain Input | | OS Compatibility | macOS 10
Windows | | | | Dimensions (W x D x H) | 19.0 x 6.0 x 1.5" / 482.6 x 152.4 x 38.1 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 21.8 x 7.4 x 3.2" |
