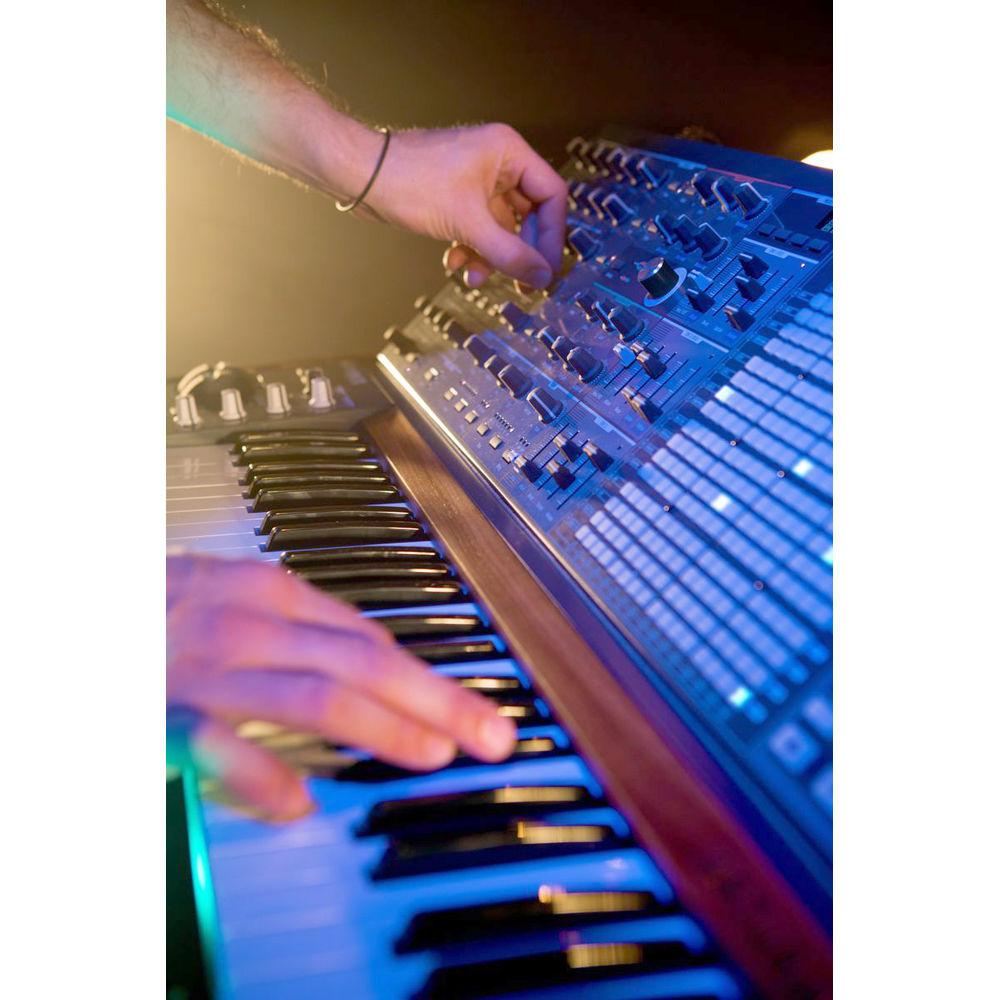

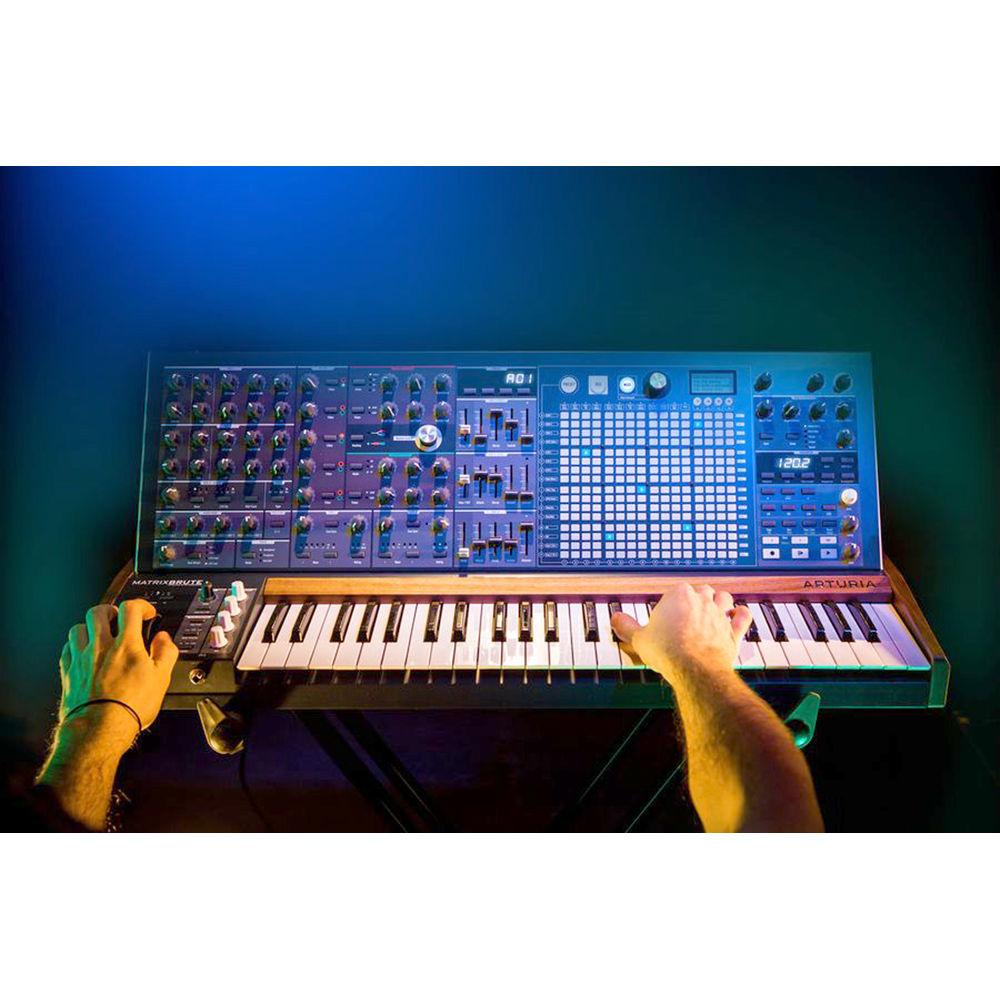

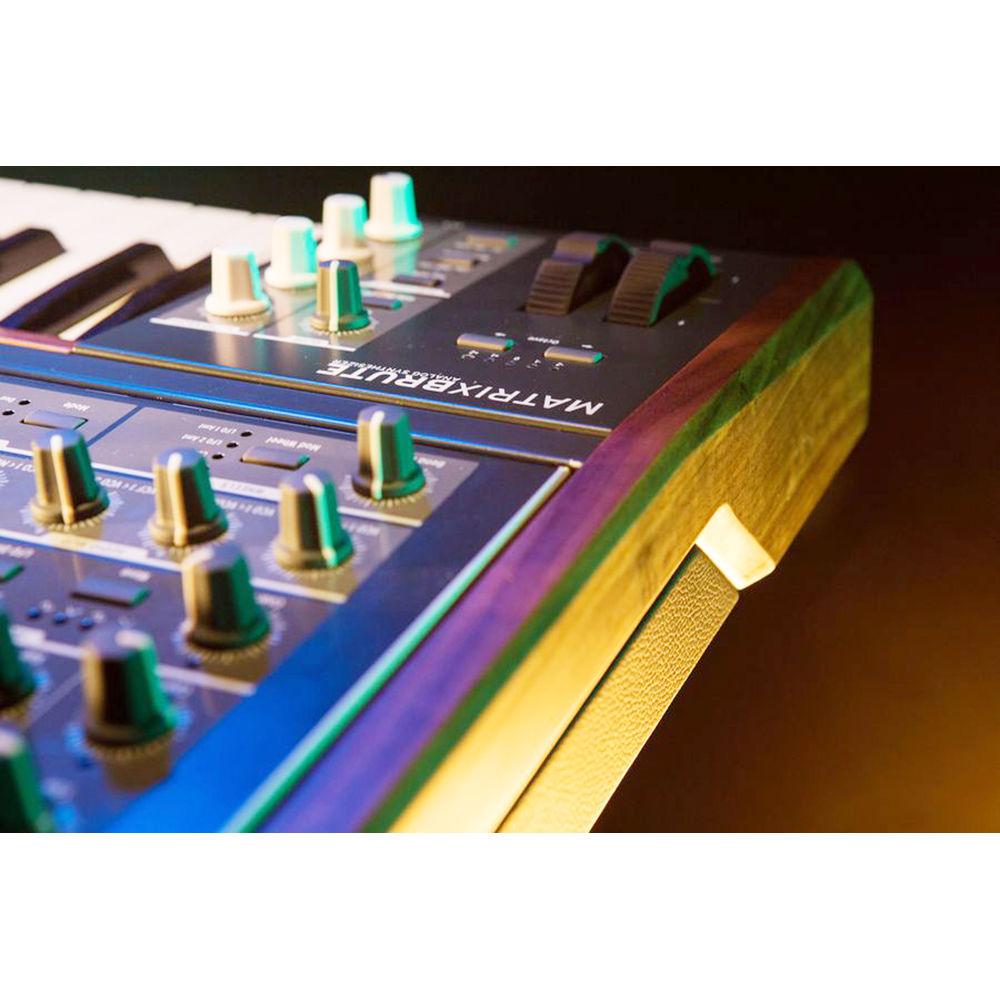

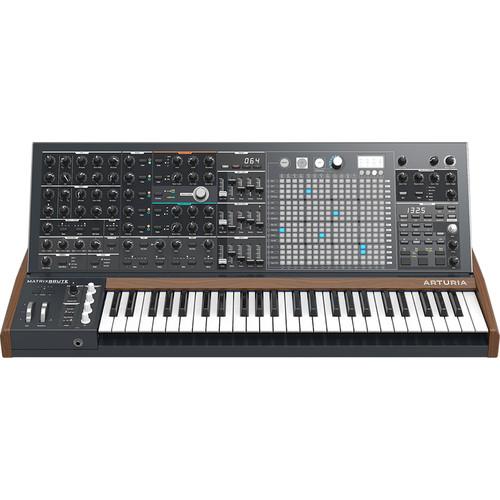

User Manual for Arturia MatrixBrute Analog Monophonic Synthesizer Click to enlarge the picture
Contents of the user manual for the Arturia MatrixBrute Analog Monophonic Synthesizer
- Product category: Synthesizer Keyboards Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Synthesizer Keyboards
 |
User manual for the Arturia MatrixBrute Analog Monophonic Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|
Product description Designed to be as flexible as a modular synthesizer, the MatrixBrute from Arturia is a 100% analog synthesizer that features a 16x16 modulation matrix, 64-step sequencer, and 256 patch memories. The sound engine boasts three analog oscillators with a sub oscillator on oscillators one and two. Additionally, oscillator three doubles as an LFO and can be used as an audio source simultaneously. The noise generator offers white, pink, red and blue noise types.
All oscillators, noise source, and external input are blended in the mixer section before routing to the filters. The multi-mode Steiner-Parker filter and the traditional multi-mode ladder filter can be configured in either series or parallel. The synth also includes two additional LFOs with seven waveforms each and three envelope generators with ADSR capabilities on the first two. The third envelope generator offers a DADSR, which creates an abundance of sound shaping and sculpting tools.
The Matrix section serves as the heart of the MatrixBrute, allowing for complex modulation routing, step-sequencing, and instant preset recall. The modulation routing allows you to assign any of the 16 modulation sources to any of the 16 modulation destinations. The matrix also functions as a 64-step sequencer with separate step, accent, slide, and modulation steps. The preset mode allows you to recall any of the 256 presets at the touch of a button.
The MatrixBrute offers true analog effects to enhance your sonic masterpiece with choices including analog delay, chorus, flanger and analog reverberator. Additionally, the analog effects can be set as modulation destinations in the matrix. The keyboard sports a 49-note velocity-sensitive keybed with aftertouch. On the rear of the synth, there are a number of ports including two expression pedals, one sustain pedal, Gate I/O, and Sync I/O. Additionally, there are 12 CV inputs and outputs which are designed to interface with any standard 1 V/Oct modular synthesizer. The MatrixBrute includes 128 factory presets and ships with a power cord and USB cable. -
- Analog Matrix Synthesizer
- 256 Preset memory locations
- 2 Analog Exponential VCO’s:
- Saw + UltraSaw, Square +Pulse width, Triangle + Metalizer, Sub
- 1 Analog Linear VCO/LFO
- Saw, Square, Triangle, Sine waveforms; LFO time divisions; Key track
- VCO 2>1 Hard Sync
- Audio Mod:
- VCO1>2 ; VCO1 < VCO3> VCO2 ; VCF 1 < VCO3> VCF 2 ; VCF1 < Noise> VCF2
- Noise Generator:
- White ; Pink ; Red ; Blue noise types
- 5-input Audio Mixer with Filter routing
- Steiner-Parker filter with 12+24 db per octave modes ; Drive ; Brute factor; Low Pass, High Pass, Band Pass, Notch
- Ladder filter with 12+24 db per octave modes ; Drive ; Brute factor; Low Pass, High Pass, Band Pass
- 2 LFO’s
- Sine, Tri, Square, Ramp, Saw, Random, S&H
- 3 Envelope Generators
- 2 Attack, Decay, Sustain, Release
- 1 Delay, Attack, Decay, Sustain, Release
- External Audio In
- 16x16 Matrix modulation panel
- 64 step sequencer
- STEP enable, Slide, Accent, Modulation
- Save and recall sequence patterns on the fly
- Analog Effects
- Stereo delay, Delay, Flanger, Chorus, Analog Reverberator
- Arpeggiator
- 12 CV / Gate Inputs/Outputs
- Audio Input, Line or Instrument level
- Stereo audio output
- MIDI and USB I/O
- Pedal inputs for Expression and Sustain
In the Box Arturia MatrixBrute Analog Monophonic Synthesizer Power Cord USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia MatrixBrute Analog Monophonic Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia 550101 Specs | Keyboard | 49-note velocity sensitive with aftertouch | | Polyphony | 3 Voice Modes: Mono, paraphonic, and duo-split | | Synthesis Method | Analog subtractive | | Presets | 256 with 128 factory | | Effects | Stereo delay, delay, flanger, chorus, and analog reverberator | | Sequencer | 64-step with step enable, slide, accent, modulation
Arpeggiator | | Controllers | Performance Controls: Pitchbend Mod wheel Macro Encoders: 4x assignable to any modulation destination | | Inputs and Outputs | Line / Instrument Input: 1/4" / 6.35 mm
Expression Pedal Input: 2x 1/4" / 6.35 mm
Sustain pedal Input: 1/4" / 6.35 mm
CV Input: 12x 1/8" / 3.5 mm
Gate Input: 1/8" / 3.5 mm
Sync Input: 1/8" / 3.5 mm
Gate Output: 1/8" / 3.5 mm
Sync Output: 1/8" / 3.5 mm
CV Outputs: 12x 1/8" / 3.5 mm
Master Output: 2x 1/4" / 6.35 mm | | MIDI | In, Out, Thru | | USB | Connector: Type B | | Headphone Output | 1/4" / 6.35 mm | | Dimensions (WxDxH) | 34.0 x 17.0 x 4.5" / 86.4 x 43.2 x 11.4 cm | | Weight | 49.0 lb / 22.2 kg | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 40.0 x 22.5 x 7.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
