User Manual for Arturia MicroBrute Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Arturia MicroBrute Analog Synthesizer
- Product category: Synthesizer Keyboards Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Synthesizer Keyboards
 |
User manual for the Arturia MicroBrute Analog Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|
Product description - Choosing Your First Hardware Synthesizer for Under $1000

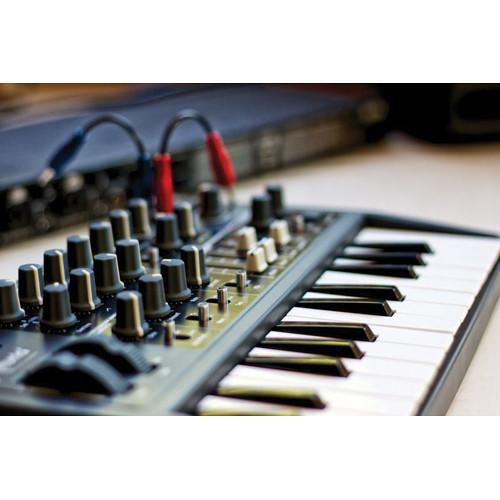

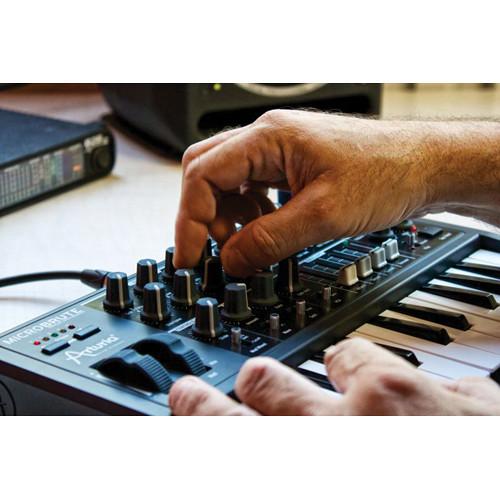

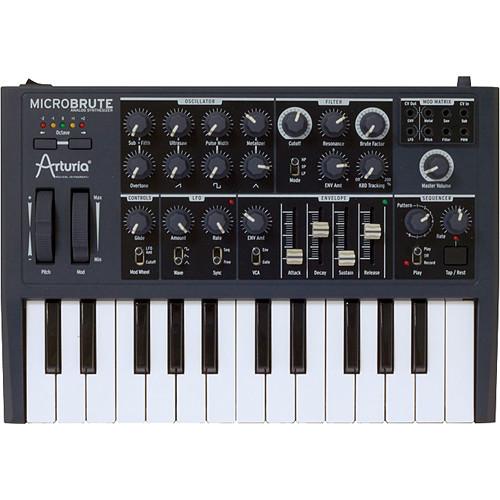

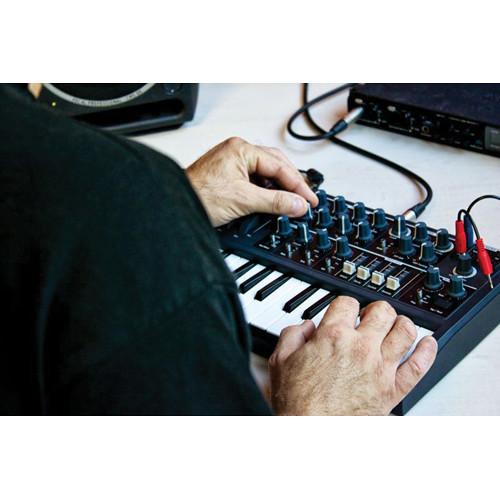

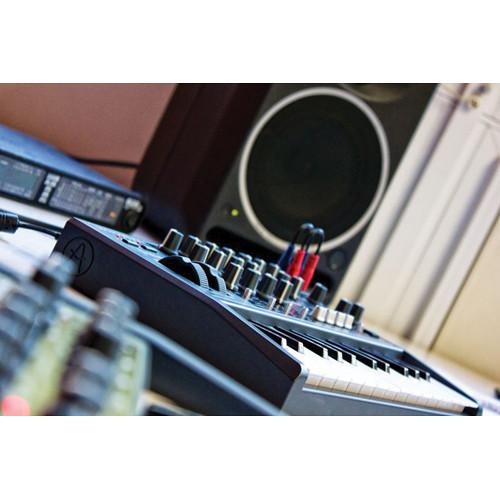

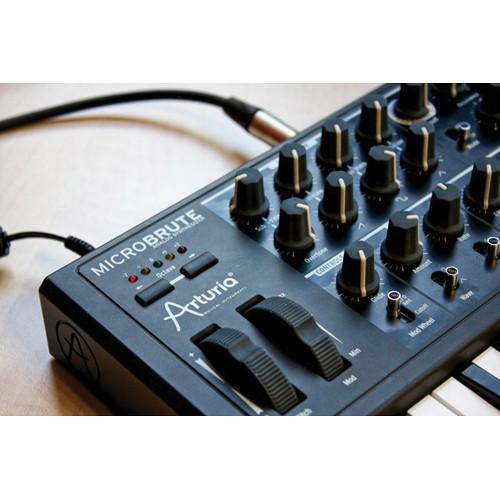

The MicroBrute is a monophonic synthesizer keyboard from Arturia that features a 25-note mini keyboard and an all analog signal path. It also features a compact design and a multi-wave analog oscillator with mixable waveforms.
The MicroBrute's single analog oscillator, is capable of generating sawtooth, square and triangle wave shapes simultaneously and allows you to blend them together to create complex waveforms. It also allows you to add a -1 octave sub square wave into your sound, plus it features an "overtone" control for adding harmonics.
The synth also features a low-frequency oscillator (LFO) with switchable square, saw and sine waveforms and an adjustable rate. Its destination is set to modulate the pitch of the oscillator by default and it has a depth control for adjusting the amount of modulation.

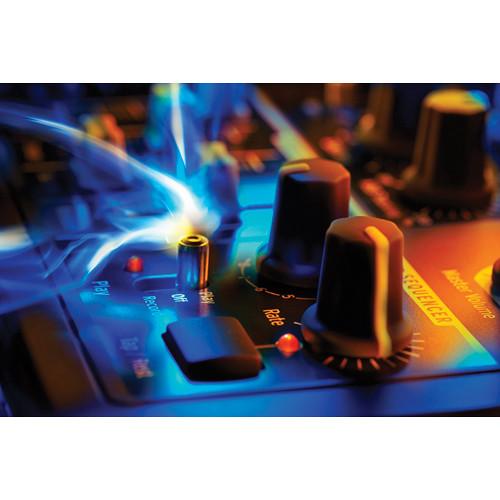

The MicroBrute also has a built-in 64-step sequencer that allows you to input notes one at a time to create rhythmic patterns. It has an internal memory capable of storing up to different 8 patterns and the sequences can be backed up to your computer using the included editor software. - Oscillator features signal enhancing controls including Ultrasaw for generating thick sawtooth waveforms, Metalizer bringing harmonics and pulse width modulation
- Steiner-Parker designed filter section with low pass, band pass and high pass modes, as well as "Brute Factor" control for adding saturation and enhancing low end
- Attack, decay, sustain and release (ADSR) for shaping the envelope of the sound

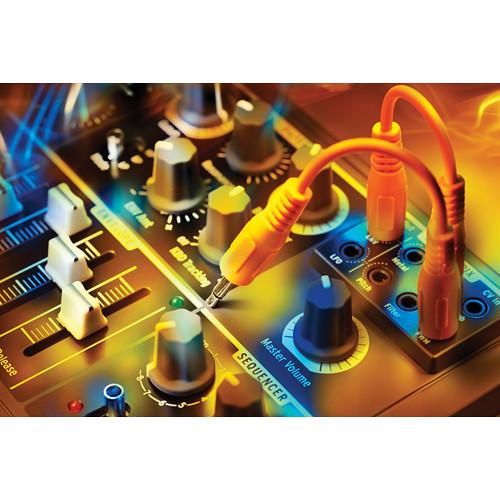

- Mod matrix allows you to reroute default destinations of the LFO and ADSR controls using the two included mini-jack patch cords
- CV/GATE connections for using the MiniBrute with modular synth components
- USB MIDI I/O and standard MIDI input for interfacing with your computer and other MIDI gear
- Audio input for using the MicroBrute as an audio processor
- Standard pitch and mod wheels
In the Box Arturia MicroBrute Analog Synthesizer Power Supply 2 x Mini-Jack Patch Cords Limited 1-Year Warranty User Manual PDF 15.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia MicroBrute Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia MicroBrute Specs | Keyboard | 25-note minikey | | Synthesizer Type | Analog monophonic synthesizer | | Polyphony | Monophonic | | Filter | Steiner-Parker 2-pole multi-mode filter (low pass, band pass, high pass)

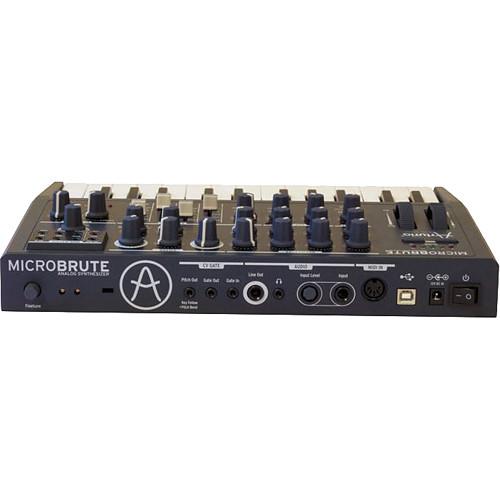

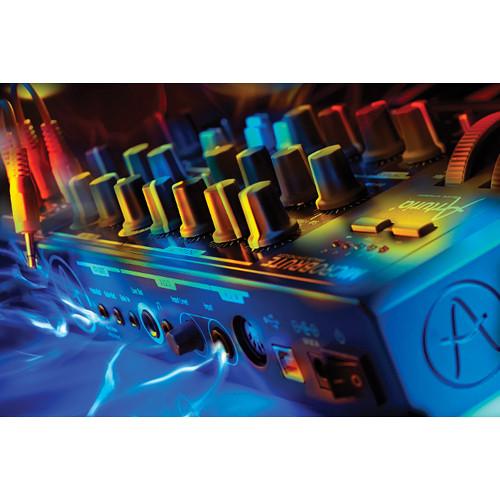

Brute factor control | | Oscillator Type | Analog voltage controlled oscillator | | Oscillator Mixer | Overtone sub/5th generator, sawtooth, square, triangle, audio in (on rear panel) | | Oscillation Mode | Pulse width modulation, Ultrasaw, Metalizer | | LFO | LFO with 3 waveforms (sine, sawtooth, square), clock syncable to arpeggiator (arpeg, or free) | | Envelope Control | ADSR envelope generator | | Keyboard Tracking | Yes, on VCF cutoff | | Mod Wheel | Yes, assignable to cutoff, or LFO amount | | Pitch Wheel | Yes, with selectable bend range via software | | Octave Selector | Yes, from -2 to +2 octaves | | Analog Audio Input | 1/4" analog audio input | | Analog Audio Output | 1/4" audio output
1/8" headphone output | | CV In/Out Controls | CV in jacks: pitch, filter, sub-harmonics, pulse width, metalizer, saw animator
CV out jacks: pitch, envelope, LFO | | MIDI | MIDI in with 5-pin DIN connector
USB MIDI in/out | | Sequencer | 8 memories
Up to 64 steps per memory
Tap tempo
Rate control
Step divisions (via software)
Trigger modes (via software) | | MIDI Sync | Yes | | Construction | Steel bottom panel | | Power | 12V DC 1A power supply | | Dimensions | 12.8 x 8.7 x 2.4" (325 x 221 x 60 mm) | | Weight | 3.86 (1.75 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 16.5 x 10.1 x 3.2" |
