Arturia MicroBrute Analog Synthesizer Creation Edition

Search your instruction manual in PDF to download

User Manual for Arturia MicroBrute Analog Synthesizer Creation Edition

Click to enlarge the picture
Arturia MicroBrute Analog Synthesizer Creation Edition Contents of the user manual for the Arturia MicroBrute Analog Synthesizer Creation Edition
  • Product category: Synthesizer Keyboards Arturia
  • Brand: Arturia
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Arturia Synthesizer Keyboards

Arturia MicroBrute Analog Synthesizer Creation Edition Arturia MicroBrute Analog Synthesizer Creation Edition
User manual for the Arturia MicroBrute Analog Synthesizer Creation Edition contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Arturia product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!



Product description

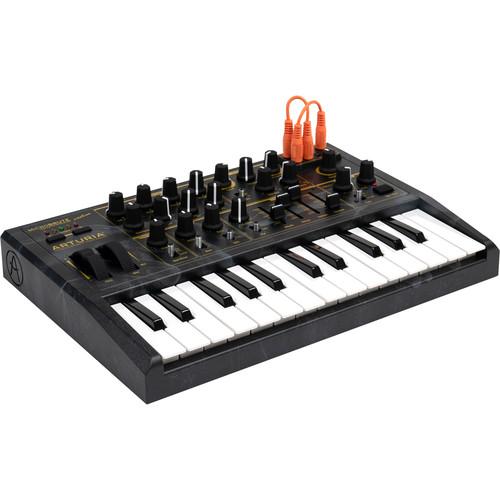

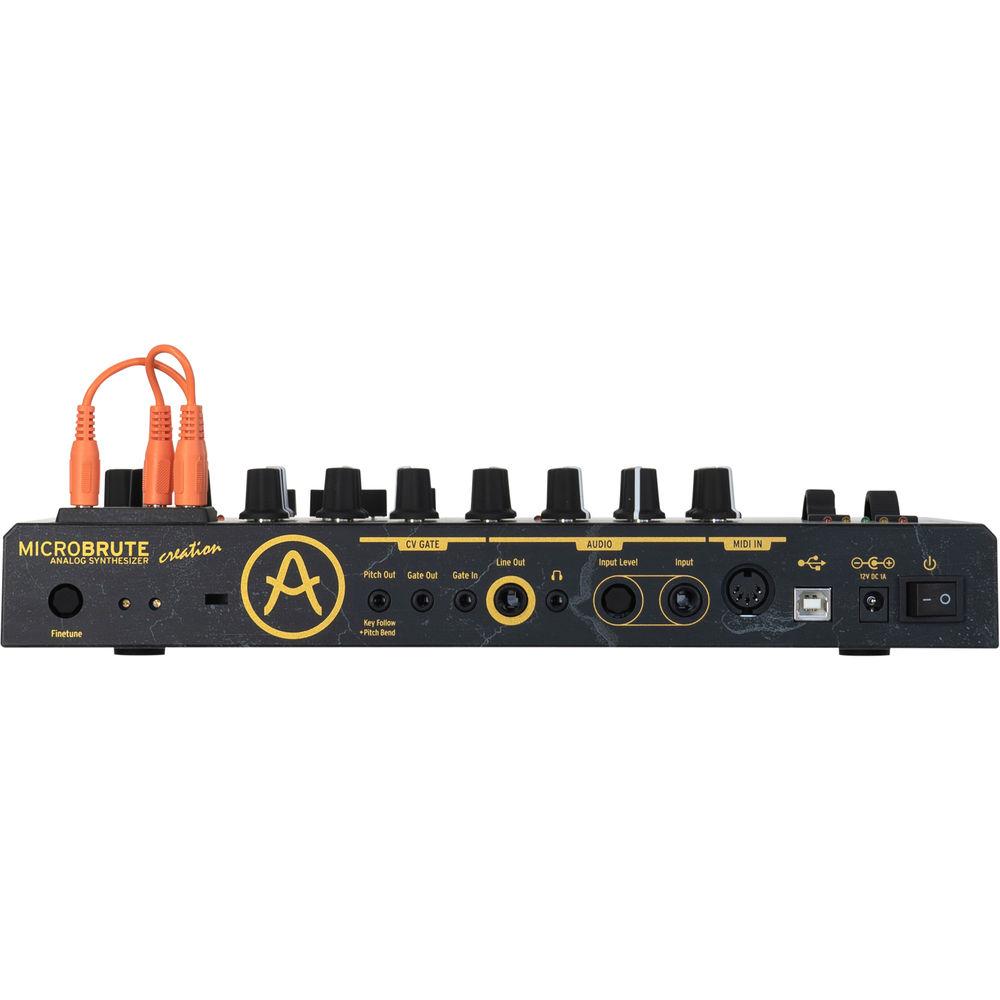

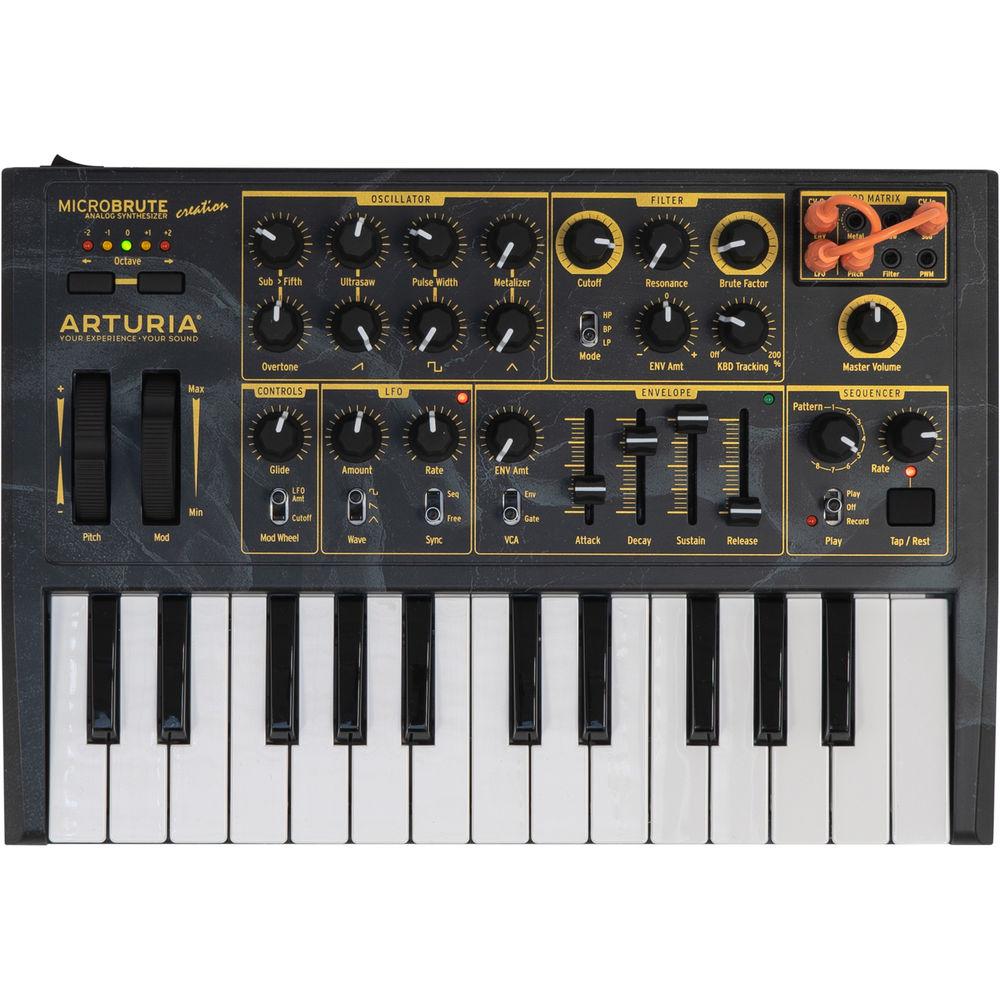

The limited edition Arturia MicroBrute Creation Edition is a monophonic synthesizer keyboard that features a 25-note mini keyboard and an all-analog signal path. It also features a compact design and a multi-wave analog oscillator with mixable waveforms. The Creation Edition reimagines Michelanglo's masterwork "The Creation of Adam" on the faceplate, inviting inspiration as you explore the near-limitless sonic possibilities.

The MicroBrute's single analog oscillator, is capable of generating sawtooth, square and triangle wave shapes simultaneously and allows you to blend them together to create complex waveforms. It also allows you to add a -1 octave sub square wave into your sound, plus it features an "overtone" control for adding harmonics.

The synth also features a low-frequency oscillator (LFO) with switchable square, saw and sine waveforms and an adjustable rate. Its destination is set to modulate the pitch of the oscillator by default and it has a depth control for adjusting the amount of modulation.

The MicroBrute also has a built-in 64-step sequencer that allows you to input notes one at a time to create rhythmic patterns. It has an internal memory capable of storing up to different 8 patterns and the sequences can be backed up to your computer using the included editor software.
  • Limited edition "Creation Edition" with black and metallic color scheme and a reimagined Michelangelo's "The Creation of Adam" faceplate
  • Oscillator features signal enhancing controls including Ultrasaw for generating thick sawtooth waveforms, Metalizer bringing harmonics and pulse width modulation
  • Steiner-Parker designed filter section with low pass, band pass and high pass modes, as well as "Brute Factor" control for adding saturation and enhancing low end
  • Attack, decay, sustain and release (ADSR) for shaping the envelope of the sound
  • Mod matrix allows you to reroute default destinations of the LFO and ADSR controls using the two included mini-jack patch cords
  • CV/GATE connections for using the MiniBrute with modular synth components
  • USB MIDI I/O and standard MIDI input for interfacing with your computer and other MIDI gear
  • Audio input for using the MicroBrute as an audio processor
  • Standard pitch and mod wheels
In the Box Arturia MicroBrute Analog Synthesizer Creation Edition
  • Power Supply
  • 2 x Mini-Jack Patch Cords
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Arturia MicroBrute Analog Synthesizer Creation Edition in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Arturia Microbrute Specs

    Keyboard 25-note mini-key
    Synthesizer Type Analog monophonic synthesizer
    Polyphony Monophonic
    Filter Steiner-Parker 2-pole multi-mode filter (low pass, band pass, high pass)
    Brute factor control
    Oscillator Type Analog voltage-controlled oscillator
    Oscillator Mixer Overtone sub/5th generator, sawtooth, square, triangle, audio in (on rear panel)
    Oscillation Mode Pulse width modulation, Ultrasaw, Metalizer
    LFO LFO with 3 waveforms (sine, sawtooth, square), clock syncable to arpeggiator (arpeg, or free)
    Envelope Control ADSR envelope generator
    Keyboard Tracking Yes, on VCF cutoff
    Mod Wheel Yes, assignable to cutoff, or LFO amount
    Pitch Wheel Yes, with selectable bend range via software
    Octave Selector Yes, from -2 to +2 octaves
    Analog Audio Input 1/4" / 6.3 mm
    Analog Audio Output Main: 1/4" / 6.3 mm
    Headphone: 1/8" / 3.5 mm
    CV In/Out Controls CV in jacks: pitch, filter, sub-harmonics, pulse width, metalizer, saw animator
    CV out jacks: pitch, envelope, LFO
    MIDI MIDI in with 5-pin DIN connector
    USB MIDI in/out
    Sequencer 8 memories
    Up to 64 steps per memory
    Tap tempo
    Rate control
    Step divisions (via software)
    Trigger modes (via software)
    MIDI Sync Yes
    Construction Steel bottom panel
    Power 12V DC 1A power supply
    Dimensions 12.8 x 8.7 x 2.4" / 325 x 221 x 60 mm
    Weight 3.86 lb / 1.75 kg
    Package Weight 6.6 lb
    Box Dimensions (LxWxH) 16.3 x 9.9 x 3.3"
