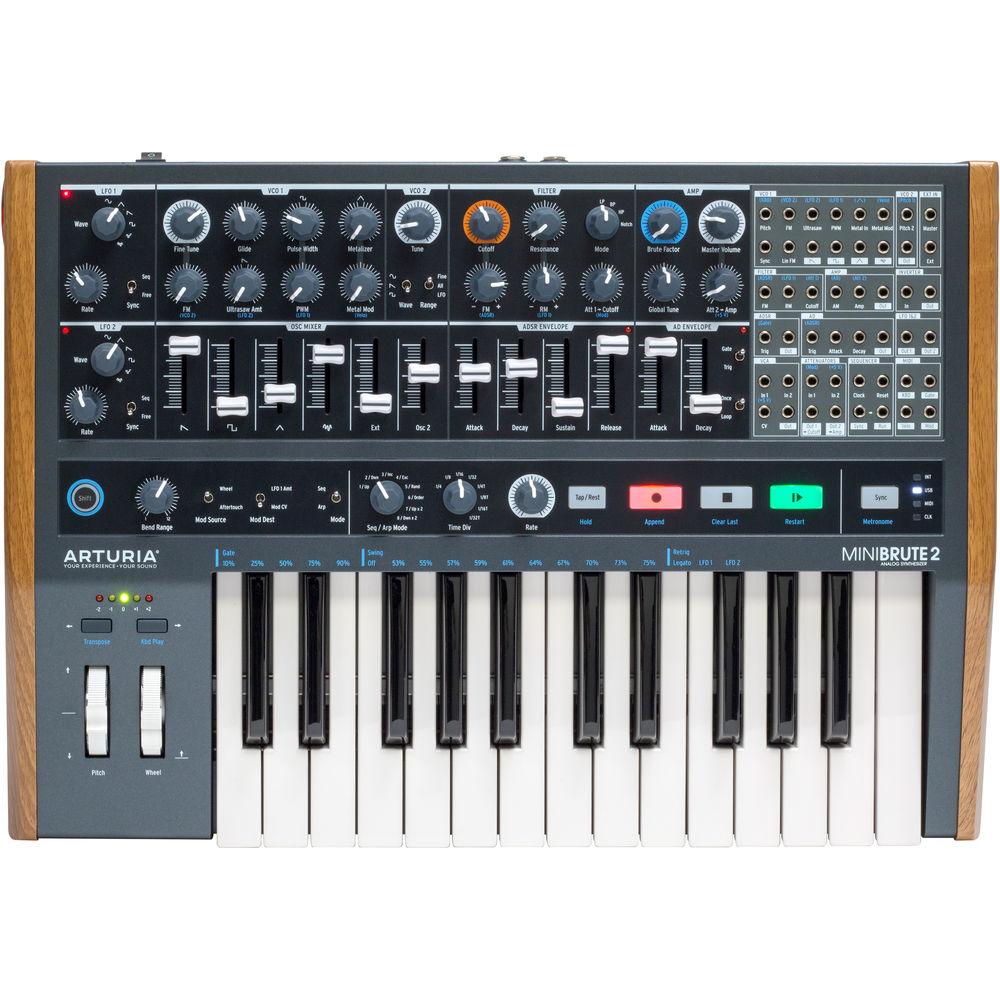

User Manual for Arturia MiniBrute 2 Semi-Modular Monophonic Analog Synthesizer with 48-Point Patchbay Click to enlarge the picture
Contents of the user manual for the Arturia MiniBrute 2 Semi-Modular Monophonic Analog
- Product category: Synthesizer Keyboards Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Synthesizer Keyboards
 |
User manual for the Arturia MiniBrute 2 Semi-Modular Monophonic Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|
Product description NAMM 2018: Arturia Unleashes Unrestrained Analog Instruments and Eurorack Enclosures Read More Building upon the success of the original Minibrute, the Arturia MiniBrute 2 is a semi-modular monophonic analog synthesizer with a 48-point patchbay and full Eurorack compatibility. Updated features include a second VCO, a second LFO, and VCO and filter frequency modulation possibilities, as well as modifier-related modulation destinations and a loopable AD envelope.

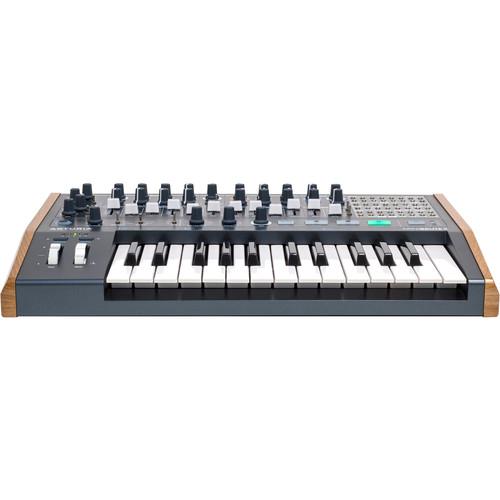

The MiniBrute 2 features a 100% analog signal path and a familiar voice architecture with two independent VCOs. VCO 1 allows for waveform mixing and includes level faders for sawtooth, square, and triangle waveforms, as well as white noise and an external audio input. VCO 2 also includes a level fader and offers a selector with sine, sawtooth, and square wave selections, a tuning knob, and three tuning range selections including Fine, All, and LFO.
Like the original, the MiniBrute 2 includes the classic Steiner-Parker multi-mode filter with LP, BP, HP, and notch selections, as well as the Brute Factor overdrive. There are dedicated knobs for frequency modulation of the filter and resonance modulation via LFO1 by default. Two envelope generators are included and feature a classic ADSR and an AD with multiple modes including looping, allowing for a wide variety of sonic possibilities. No synthesizer would be complete without an LFO and the MiniBrute 2 offers two, each with six waveform selections and the ability to run free or sync to the on-board sequencer/arpeggiator.
The 25-note keyboard responds to velocity and aftertouch, while the modulation and pitch-bend wheels offer additional hands-on performance controls. The integrated sequencer holds up to eight 64-step sequences, or can act as an advanced arpeggiator providing 8 modes of operation. The arp/sequencer can sync to USB MIDI and standard MIDI inputs.

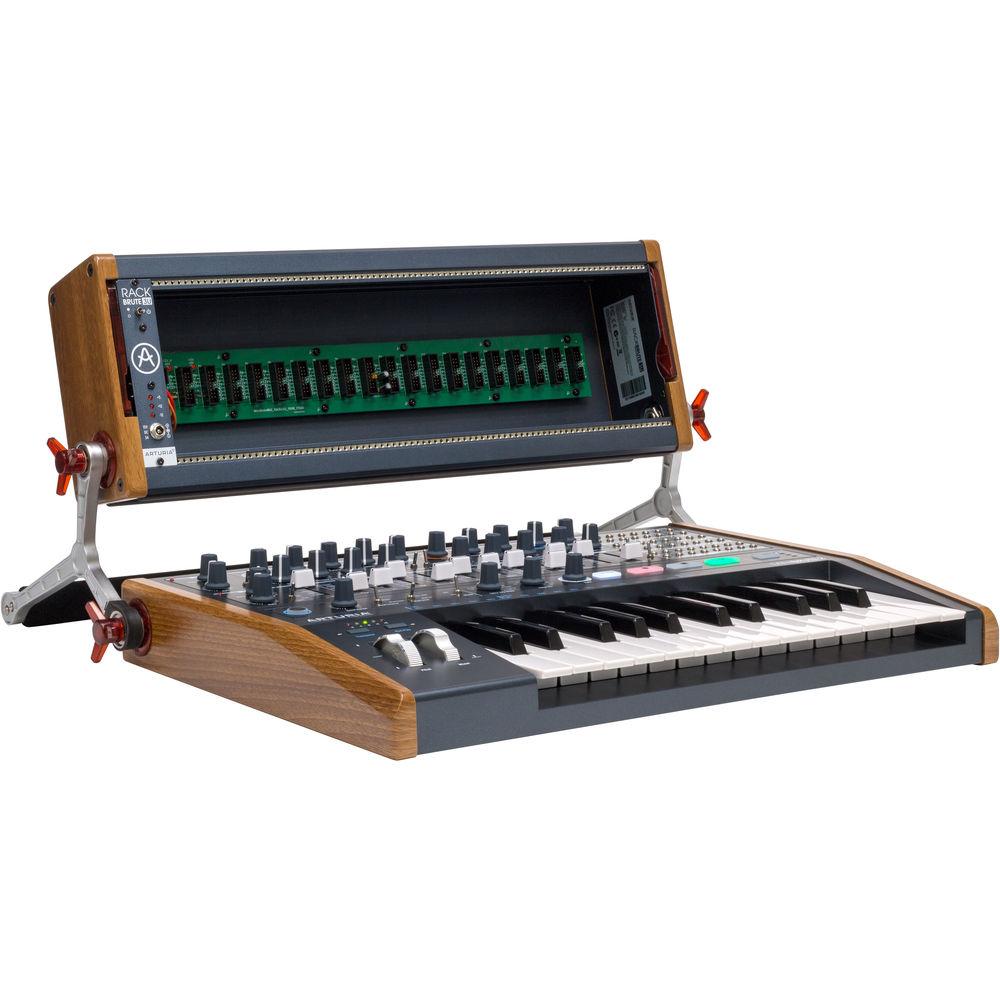

With its user-friendly control interface, classic aesthetic, and potential for endless exploration and tonal tinkering, the MiniBrute 2 definitely encourages creativity. You can experiment with rewiring the instrument's internal architecture or further expand and explore its sonic capabilities by interfacing with Eurorack modules. The rugged aluminum enclosure features wooden sides for vintage synthesizer appeal and is also compatible with the RackBrute link system, allowing for a 3 RU or 6 RU Eurorack enclosure to be connected for creating a customized setup with a variety of positioning options. The Arturia MiniBrute 2 ships with a power supply, eight patch cables, and a cook book with recipes for creating a wide variety of tones and patches. -
- Analog Synthesizer
- 2 x Analog VCO
- VCO1 : Saw + UltraSaw, Square + Pulse width, Triangle + Metalizer (waveform mixing)
- VCO2 : Sine, Saw, Square waveforms (three tuning ranges)
- VCO 2>1 Hard Sync, VCO1 linear and exponential FM
- White noise generator
- External audio in
- Steiner-Parker filter (12dB per octave): Notch, Low-, High-, Band-pass
- 2 x LFO with Sync: Sine, Tri, Saw, Square, Random, Slew Random
- 1 x ADSR envelope
- 1 x AD envelope
- Trig, gate modes
- One shot or loop
- Attack and decay times CV controllable
- 48-point CV and Gate Patchbay
- Inputs and outputs for the voice and sequencer
- Utility Modules: Inverter, attenuators, VCA
- 25-key velocity and pressure sensitive keyboard
- Arpeggiator Types: Up, down, inclusive, exclusive, random, note order, double up, double down modes
- Sequencer Mode:
- 8 step-sequences with rest, tie and legato note entry
- Each sequence can have up to 64 steps
- MIDI and USB I/O
- Includes 8 x patch cables
- Cook Book: Jam-packed full of sonic recipes put together by some of the most illustrious synth-chefs around
In the Box Arturia MiniBrute 2 Semi-Modular Monophonic Analog Synthesizer with 48-Point Patchbay Cook Book - Patch Ideas 8 x Patch Cables Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia MiniBrute 2 Semi-Modular Monophonic Analog Synthesizer with 48-Point Patchbay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia Minibrute 2 Specs | Synthesizer Type | Monophonic | | Analog Audio Signal Path | 100% | | Multimode Filter | Steiner-Parker 12 dB per Octave (2-Pole): Low-pass, band-pass, high-pass, notch
Filter Controls:
Cutoff
Resonance
Mode
FM (controls the amplitude and polarity of the envelope signal sent to modulate the filter cutoff frequency)
Resonance Modulation (RM): Modulates the level of resonance at the cutoff frequency, pre-wired to LFO1 with bipolar control
ATT 1 > Cutoff: Attenuator 1 provides another way of modulating the filter cutoff frequency, pre-wired between pressure-sensitivity and the filter cutoff. | | Oscillators | VCO1: Saw + UltraSaw, Square + Pulse width, Triangle + Metalizer (Waveform mixing)
VCO2: Sine, Saw, Square waveforms
VCO2 Tuning Range: Fine, All, LFO | | Oscillator Mixer | Yes (Sawtooth, Square, Triangle, White Noise, External Audio In, Osc 2) | | Signal Enhancers | VCO 1 Controls
Fine Tune (controls pitch over 1 octave - does not affect VCO 2)
Glide (portamento)
Pulse Width (alters width of square wave)
Metalizer (bringing extreme triangle harmonics)
Frequency Modulation (FM) (default VCO 2 modulates VCO 1)
UltraSaw Amount (generates shimmering sawtooth waveforms)
PWM (Pulse Width Modulation) (default LFO modulates Pulse Width)
Metal Mod (default velocity controls Metal amount) | | LFO | LFO 1&2 Waveforms: Sine, Tri, Saw, Square, Random, Slew Random
Clock syncable to sequencer/arpeggiator | | Envelope Generators | ADSR (Attack, Decay, Sustain, Release)
AD (Attack, Decay) | | Keyboard Tracking | Yes (on the VCF Cutoff) | | Keyboard Type | 25-note keyboard with velocity | | Aftertouch | Yes | | Mod Wheel | - Modulation Wheel: Assignable from patchbay (default to filter cutoff via Att 1>Cutoff knob)
- Mod Destination Switch:
- LFO 1 Vib = The Mod wheel controls the amount of LFO 1, which by default will introduce vibrato
- Mod CV = The Mod wheel becomes a modulation source in the patch bay via the Mod jack in the MIDI section
| | Pitch Wheel | Yes (with selectable bend range) | | Octave Selector | Yes (-2 to +2 octaves) | | External Analog Audio Input | Yes | | CV In/Out Controls | Patchbay
1/8" / 3.5 mm miniature mono jacks
CV Inputs: Eurorack level signals, 100 kOhms, ±5 Vx (Exception: Pitch CV inputs are 6.8 MOhms impedance)
CV Outputs: Eurorack level signals, 680 Ohms, ±5 V
Clocks / Gates Inputs: Eurorack level signals, 68 kOhms, 0 V/+5 V

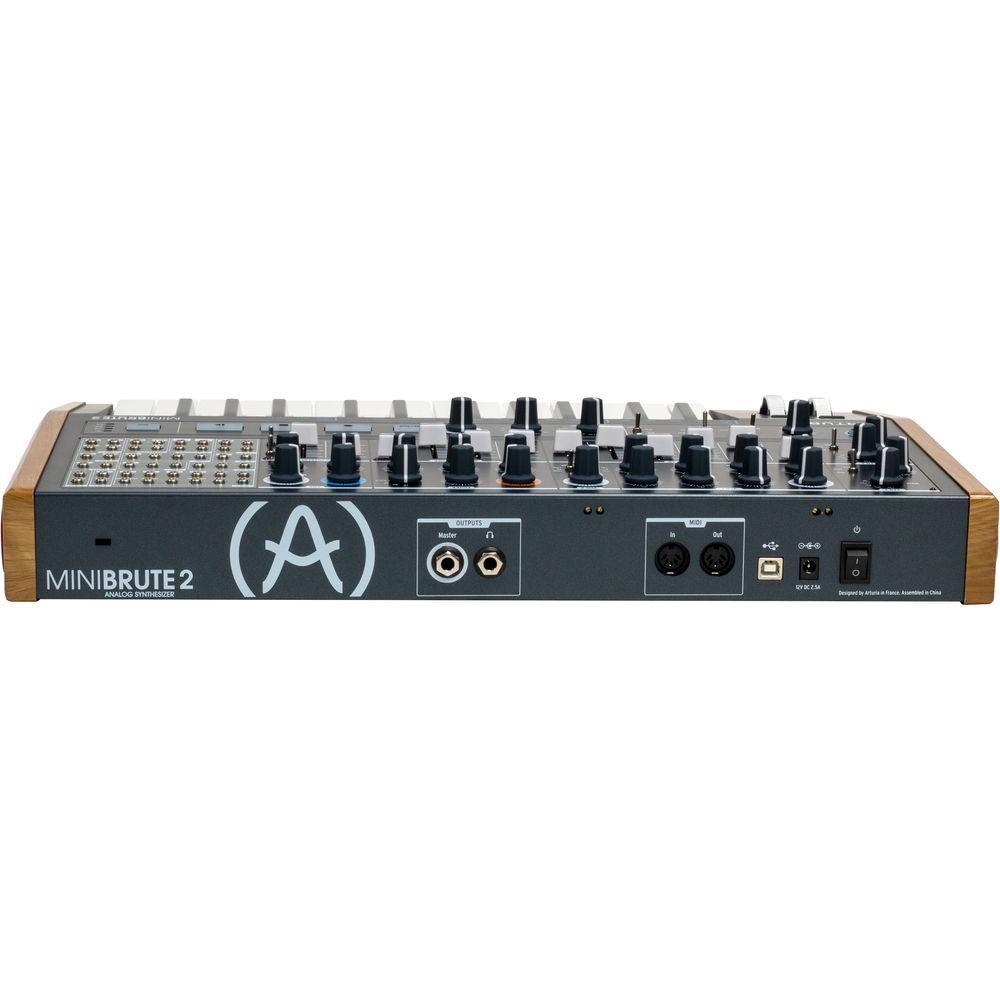

Clocks / Gates Outputs: Eurorack level signals, 2 kR, 0 V/+5 V | | MIDI Input | Yes (5-pin DIN connector) | | MIDI Output | Yes (5-pin DIN connector) | | USB MIDI Input | Yes | | USB MIDI Output | Yes | | Audio Output | 1 x 1/4" / 6.3 mm audio jack | | Headphone Output | 1 x 1/4" / 6.3 mm headphone jack | | Full Function Arpeggiator | 8 x modes
8 x time divisions x 6
11 x swing selections
1 x hold function | | Tempo Knob | Yes | | Tap Tempo | Yes | | MIDI Sync | Yes | | Enclosure | Rugged aluminum and wood enclosure | | Power Supply | 12 VDC / 2 A | | Dimensions (WxDxH) | 19.0 x 13.2 x 2.3" / 484 x 336 x 58 mm | | Weight | 10.6 lb / 4.8 kg | | | | Package Weight | 14.3 lb | | Box Dimensions (LxWxH) | 23.4 x 15.5 x 4.4" |
