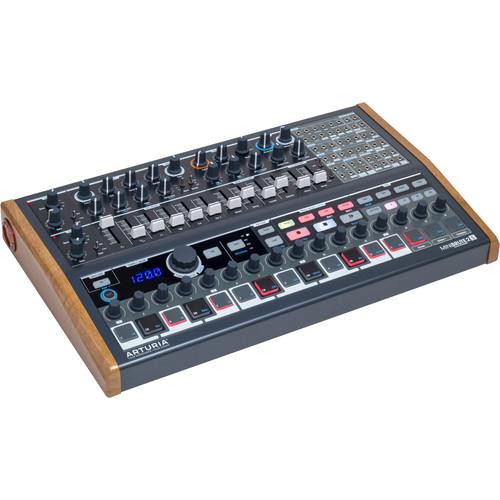

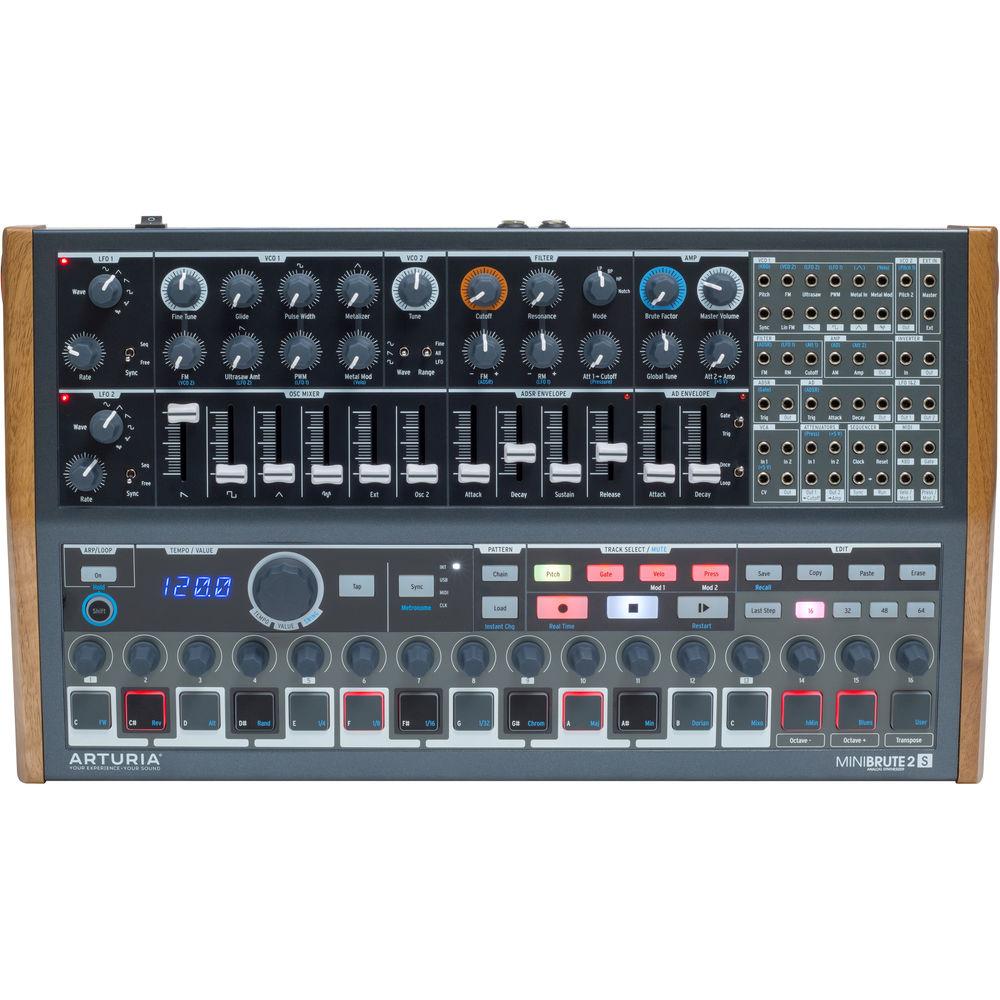

Building upon the success of the original Minibrute, the Arturia MiniBrute 2S is a semi-modular monophonic analog synthesizer with a 48-point patchbay and full Eurorack compatibility. The 2S replaces the keyboard with 16 pressure and velocity sensitive pads and adds an advanced 3-track sequencer borrowed from Arturia's KeyStep controller. Additional updates include a second VCO, a second LFO, and VCO and filter frequency modulation possibilities, as well as modifier-related modulation destinations and a loopable AD envelope.
The MiniBrute 2S features a 100% analog signal path and a familiar voice architecture with two independent VCOs. VCO 1 allows for waveform mixing and includes level faders for sawtooth, square, and triangle waveforms, as well as white noise and an external audio input. VCO 2 also includes a level fader and offers a selector with sine, sawtooth, and square wave selections, a tuning knob, and three range selections including Fine, All, and LFO.
Like the original, the MiniBrute 2S includes the classic Steiner-Parker multi-mode filter with LP, BP, HP, and notch selections, as well as the Brute Factor overdrive. There are dedicated knobs for frequency modulation of the filter and resonance modulation via LFO1 by default. Two envelope generators are included and feature a classic ADSR and an AD with multiple modes allowing for a wide variety of sonic possibilities including looping. No synthesizer would be complete without an LFO and the MiniBrute 2S offers two with six waveform selections and the ability to run free or sync to the on-board arpeggiator/loop.
The 3-track, 64-step sequencer offers up to 64 sequence memories. Sequencer 1 controls pitch, gate, velocity and pressure, while Sequencer 2 or 3 can generate other types of signals, such as gates, CV, pitch, LFOs, Envelopes. Real-time and step editing are available. All sequence patterns can be saved and recalled on-the-fly.

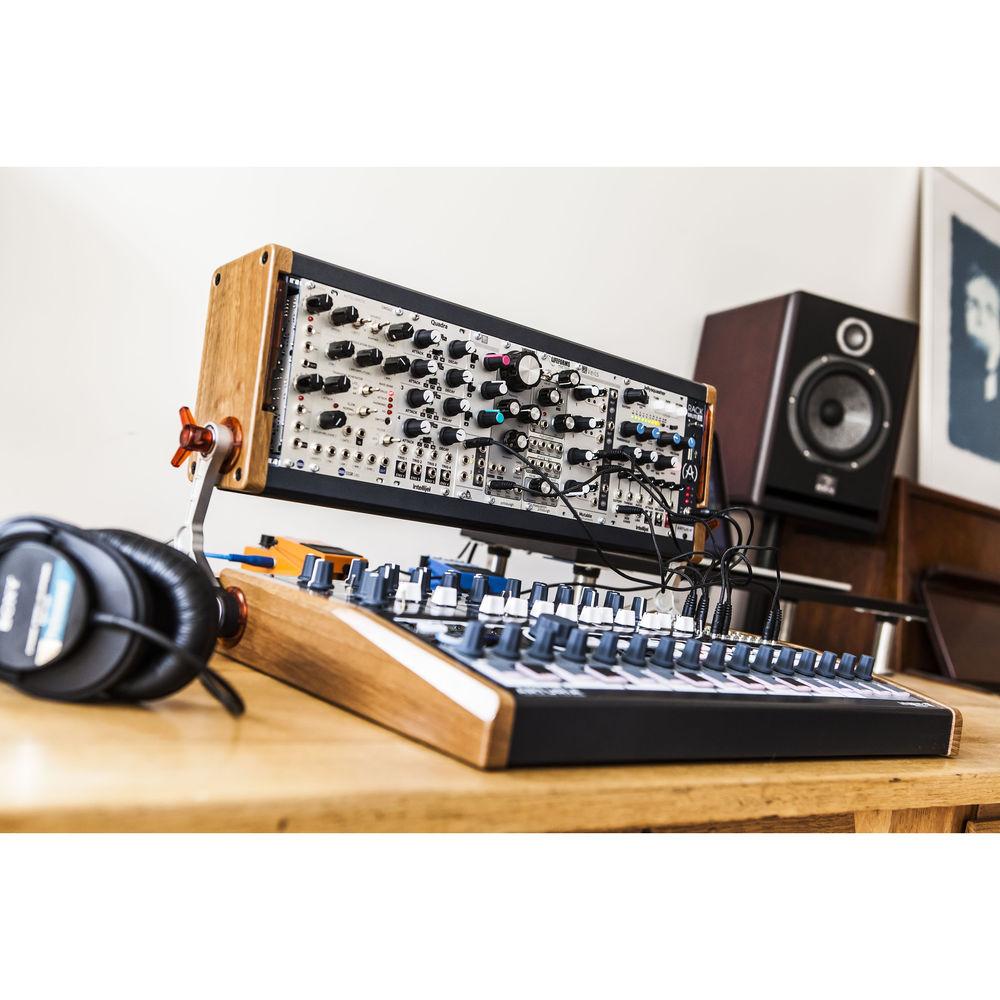

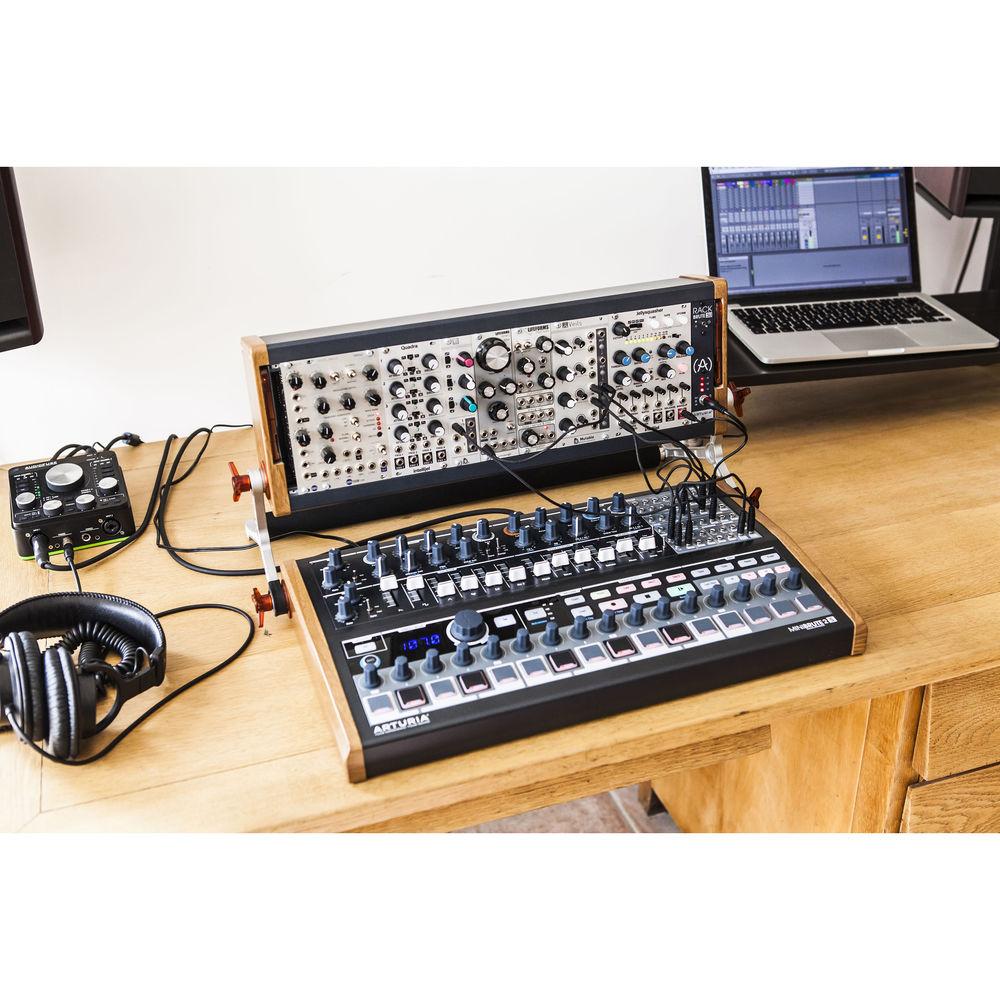

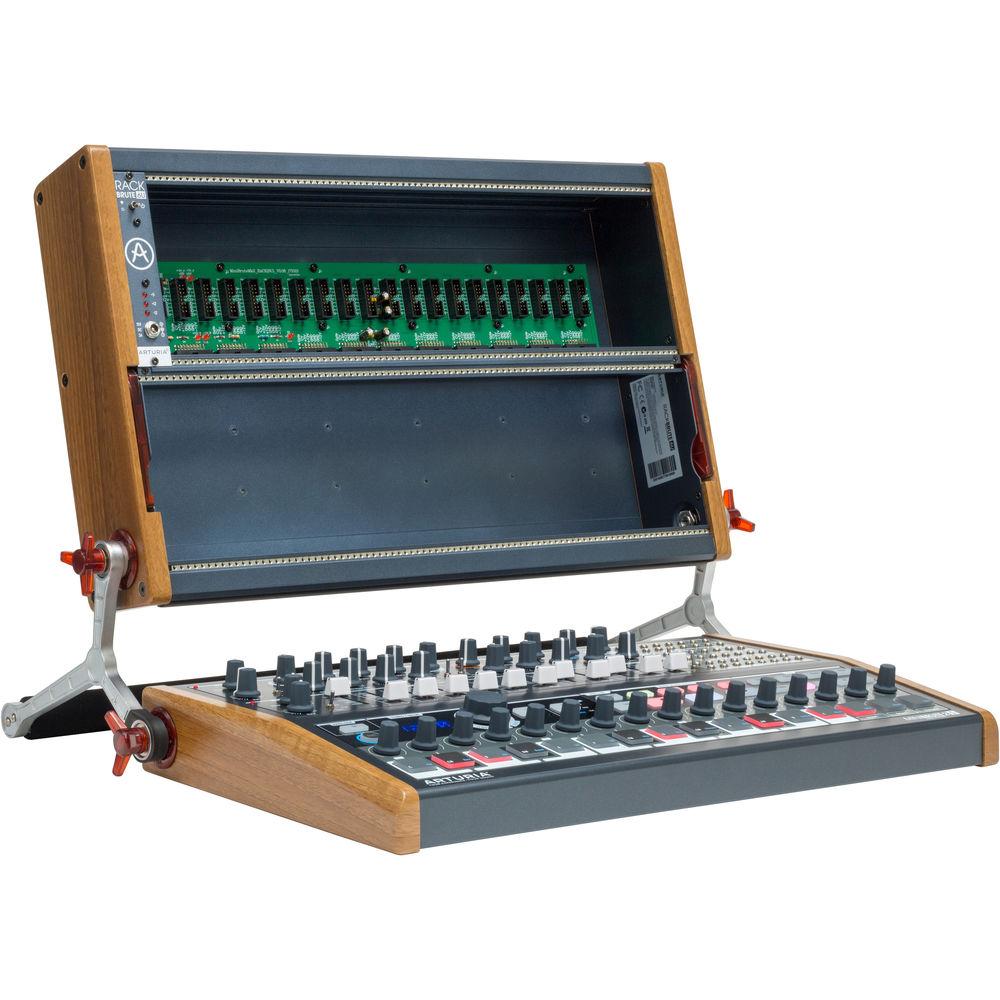

With its user-friendly control interface, classic aesthetic, and potential for endless exploration and tonal tinkering, the MiniBrute 2s definitely encourages creativity. Experiment with rewiring the instrument's internal architecture or further expand and explore its sonic capabilities by interfacing with Eurorack modules. The rugged aluminum enclosure features wooden sides for vintage synthesizer appeal and is also compatible with the RackBrute link system, allowing for Arturia's 3 RU or 6 RU Eurorack enclosure to be connected for creating a customized setup with a variety of positions. The Arturia MiniBrute 2S ships with a power supply, eight patch cables, and a cookbook with recipes for creating a wide variety of tones and patches. -
- Analog Synthesizer
- 2 x Analog VCO
- VCO1 : Saw + UltraSaw, Square + Pulse width, Triangle + Metalizer (waveform mixing)
- VCO2 : Sine, Saw, Square waveforms (three tuning ranges)
- VCO 2>1 Hard Sync, VCO1 linear and exponential FM
- White noise generator
- External audio in
- Steiner-Parker filter (12dB per octave): Notch, Low-, High-, Band-pass
- 2 x LFO with Sync: Sine, Tri, Saw, Square, Random, Slew Random
- 1 x ADSR envelope
- 1 x AD envelope
- Trig, gate modes
- One shot or loop
- Attack and decay times CV controllable
- 48-point CV and Gate Patchbay
- Inputs and outputs for the voice and sequencer
- Utility Modules: Inverter, attenuators, VCA
- 16 x velocity and pressure sensitive pads
- 16 x encoders
- 64 x sequence memories
- Sequence pitch, gate, velocity, and pressure on up to 64 steps
- Sequence modulations such as Gates, LFOs, AD Envelopes, and more
- Real-time or step recording modes
- Arpeggiator/Looper
- Save and recall sequence patterns on the fly
- MIDI and USB I/O
- Includes 8 x patch cables
- Cook Book: Jam-packed full of sonic recipes put together by some of the most illustrious synth-chefs around
In the Box Arturia MiniBrute 2S Semi-Modular Analog Synthesizer/Sequencer with 48-Point Patchbay Cook Book - Patch Ideas 8 x Patch Cables Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia MiniBrute 2S Semi-Modular Analog Synthesizer Sequencer with 48-Point Patchbay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia Minibrute 2S Specs | Synthesizer Type | Monophonic | | Analog Audio Signal Path | 100% | | Multimode Filter | Steiner-Parker 12 dB per Octave (2-Pole): Low-pass, band-pass, high-pass, notch
Filter Controls:
Cutoff
Resonance
Mode
FM (controls the amplitude and polarity of the envelope signal sent to modulate the filter cutoff frequency)
Resonance Modulation (RM): Modulates the level of resonance at the cutoff frequency, pre-wired to LFO1 with bipolar control
ATT 1 > Cutoff: Attenuator 1 provides another way of modulating the filter cutoff frequency, pre-wired between pressure-sensitivity and the filter cutoff. | | Oscillators | VCO1: Saw + UltraSaw, Square +Pulse width, Triangle + Metalizer (Waveform mixing)
VCO2: Sine, Saw, Square waveforms
VCO2 Tuning Range: Fine, All, LFO | | Oscillator Mixer | Yes (Sawtooth, Square, Triangle, White Noise, External Audio In, Osc 2) | | Signal Enhancers | VCO 1 Controls
Fine Tune (controls pitch over 1 octave - does not affect VCO 2)
Glide (portamento)
Pulse Width (alters width of square wave)
Metalizer (bringing extreme triangle harmonics)
Frequency Modulation (FM) (default VCO 2 modulates VCO 1)
Ultrasaw Amount (generating shimmering sawtooth waveforms)
PWM (Pulse Width Modulation) (default LFO modulates Pulse Width)
Metal Mod (default velocity controls Metal amount) | | LFO | LFO 1&2 Waveforms: Sine, Tri, Saw, Square, Random, Slew Random Clock syncable to sequencer / arpeggiator | | Envelope Generators | ADSR (Attack, Decay, Sustain, Release)
AD (Attack, Decay) | | Octave Selector | Yes | | External Analog Audio Input | Yes | | Controls | 16 x velocity and pressure sensitive pads
16 x encoders | | Sequencer | Sequence Memories: 64 Number of Steps: 64 Sequence 1: Pitch, gate, velocity, and pressure Sequence Modulations (Seq 2 & 3): Gates, LFOs, AD Envelopes, and more Sequencer Modes: Real-time or step recording | | Full Function Arpeggiator | 8 x modes
8 x time divisions
Swing: 50% to 75%
1 x hold/latch function | | CV In/Out Controls | Patchbay
1/8" / 3.5 mm miniature mono jacks
CV Inputs: Eurorack level signals, 100 kOhm, ±5 Vx (Exception: Pitch CV inputs are 6.8 MOhm impedance)
CV Outputs: Eurorack level signals, 680 Ohm, ±5 V
Clocks / Gates Inputs: Eurorack level signals, 68 kOhm, 0 V/+5 V
Clocks / Gates Outputs: Eurorack level signals, 2 kOhm, 0 V/+5 V | | MIDI Input | Yes (5-pin DIN connector) | | MIDI Output | Yes (5-pin DIN connector) | | USB MIDI Input | Yes | | USB MIDI Output | Yes | | Audio Output | 1 x 1/4" / 6.3 mm audio jack | | Headphone Output | 1 x 1/4" / 6.3 mm headphone jack | | Tempo Knob | Yes | | Tap Tempo | Yes | | MIDI Sync | Yes | | Enclosure | Rugged aluminum and wood enclosure | | Power Supply | 12 VDC / 2.5 A (power) | | Dimensions (WxDxH) | 19.0 x 11.0 x 2.2" / 484 x 277 x 56 mm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 11.1 lb | | Box Dimensions (LxWxH) | 23.4 x 13.2 x 4.4" |
