User Manual for Arturia RackBrute 3U Eurorack Case with Integrated Link System Click to enlarge the picture
Contents of the user manual for the Arturia RackBrute 3U Eurorack Case with
- Product category: Expansion Options Arturia
- Brand: Arturia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Arturia Expansion Options
 |
User manual for the Arturia RackBrute 3U Eurorack Case with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Arturia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Arturia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Arturia product will considerably shorten its lifespan!
|

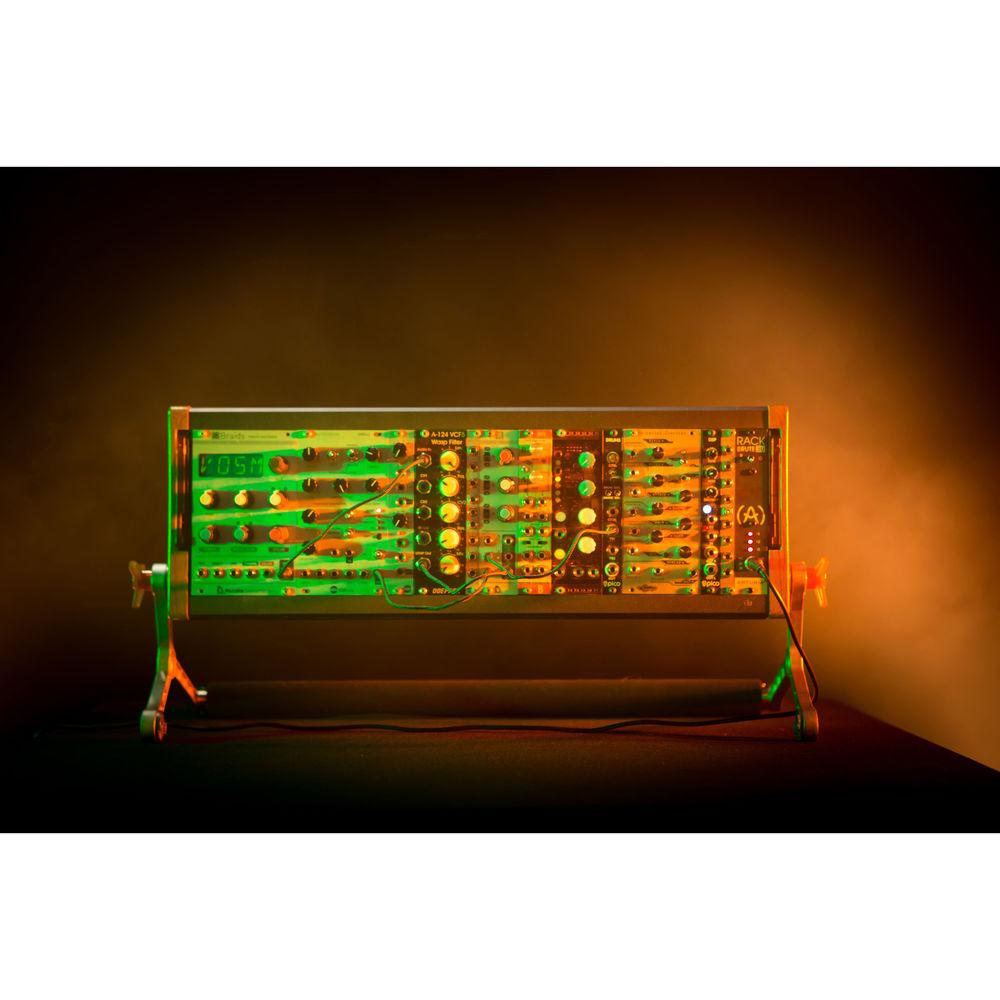

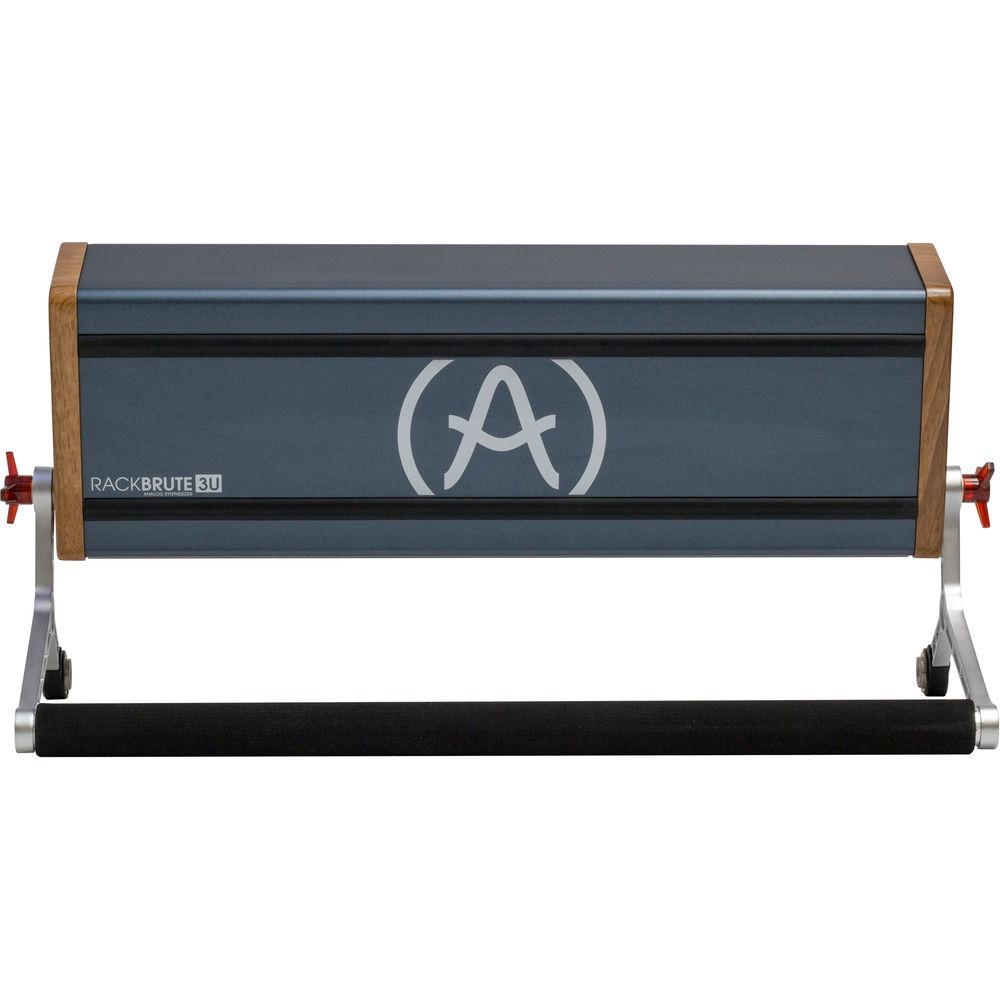

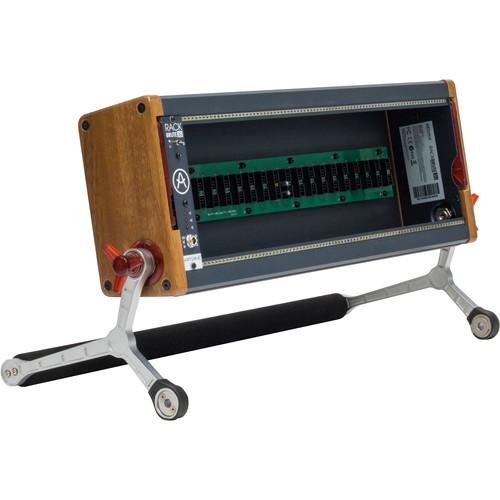

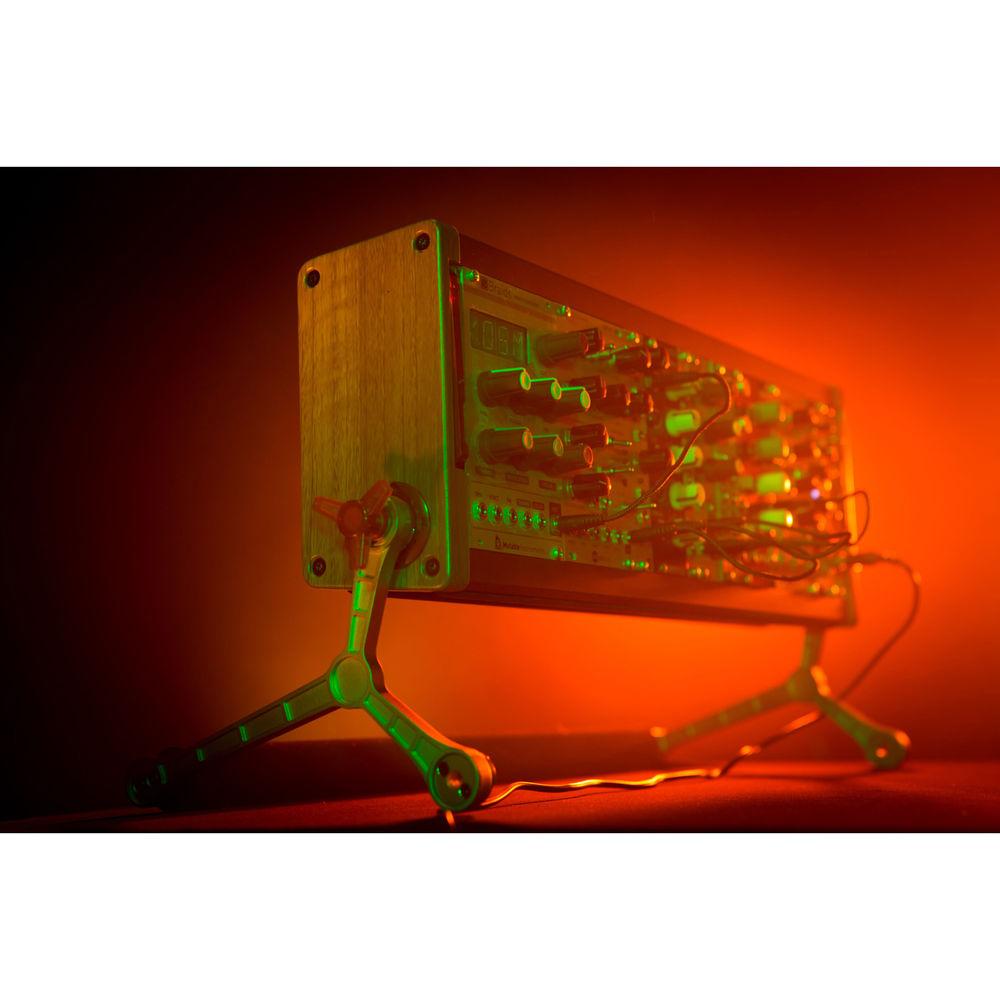

Product description The 3 RU, Arturia RackBrute 3U is an adjustable 88 HP Eurorack housing system that will store, protect, and power Eurorack modules. The rugged aluminum case is strong, yet lightweight, and features nut strip rails for easy installation of your Eurorack modules. The RackBrute ships with a 5 HP power module pre-installed, which connects to the nose filtered internal bus board for connecting up to 20 modules. The RackBrute Link System allows you to combine units that are Link-enabled such as the MiniBrute 2 and 2S and/or additional RackBrute enclosures.
When transporting, the case features integrated spacers to help stabilize the RackBrute and any Link-enabled enclosure. The RackBrute 3U ships with a power supply, power cord, Link Fixing System (handle and 4 screws), and an extra set of screws, washers, and rubber pads. -
- Eurorack format, 88 HP
- Aluminum chassis
- Provided with a 5 HP power module

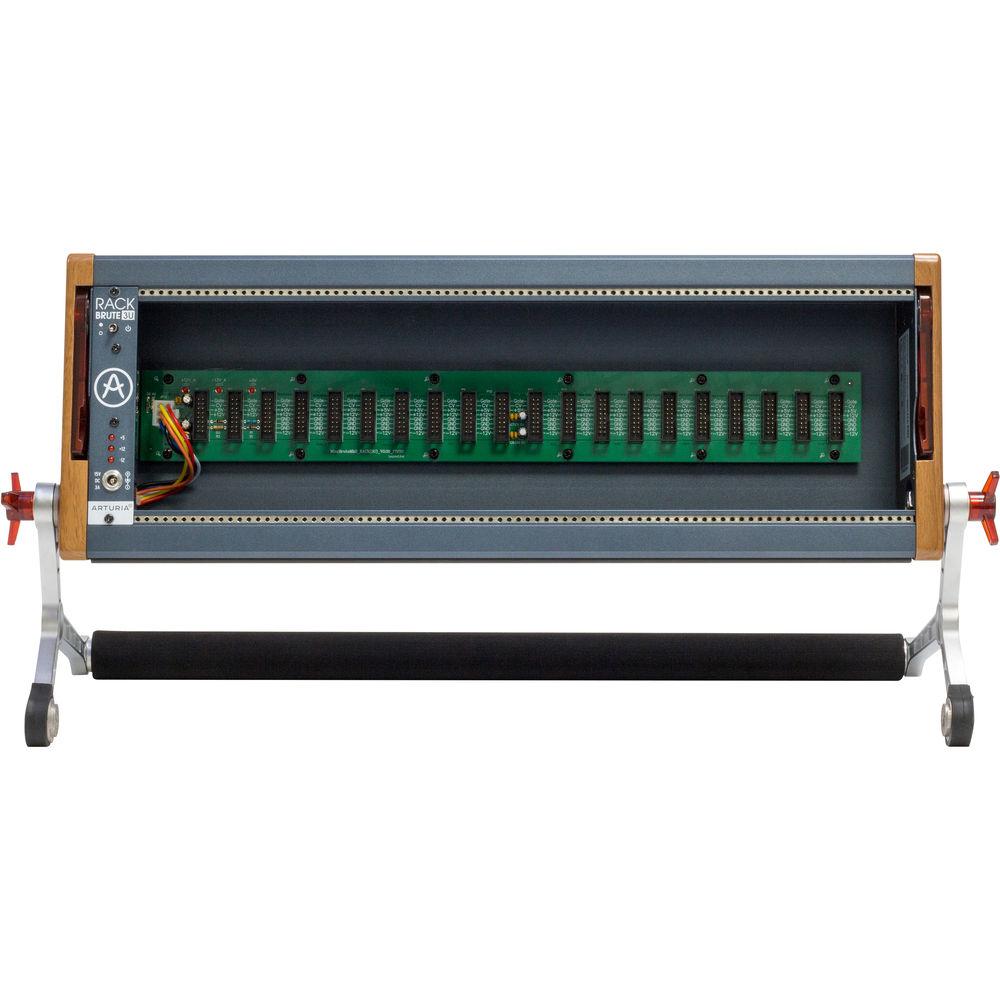

- Power rail with noise filtering and 20 standard power slots

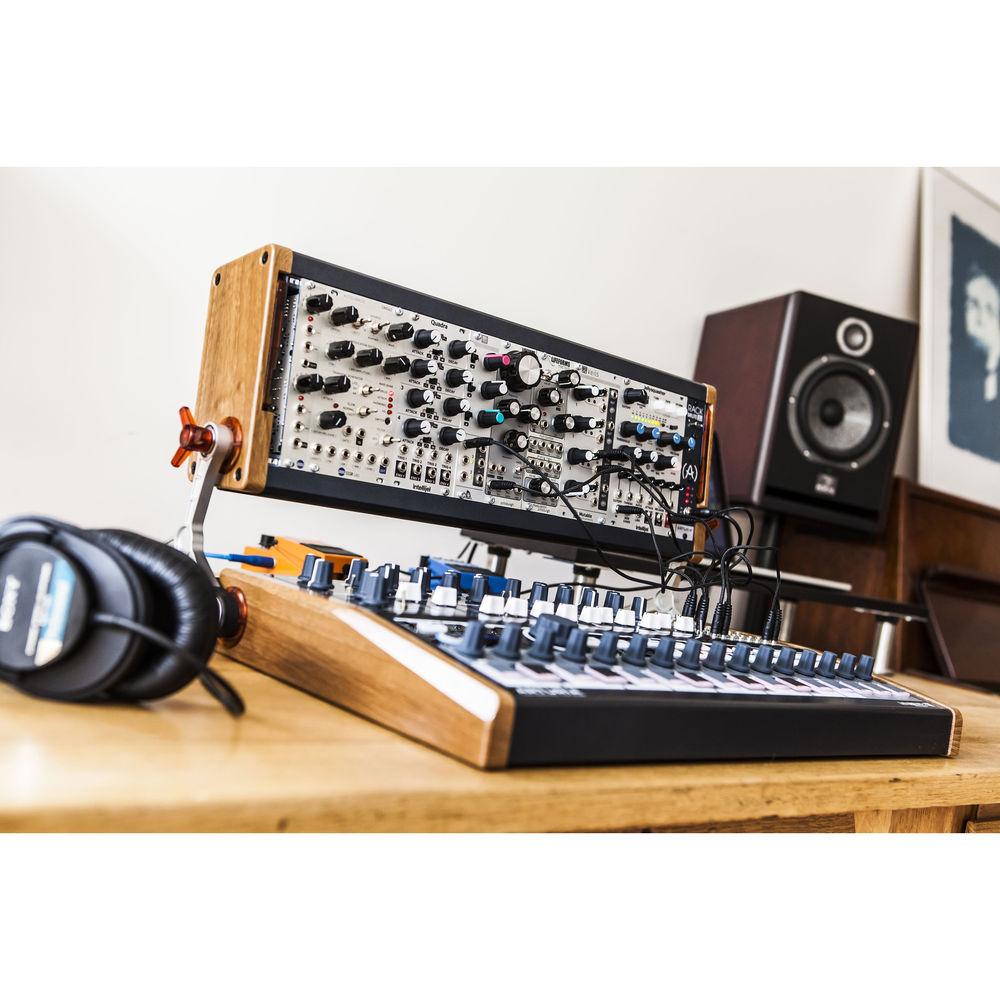

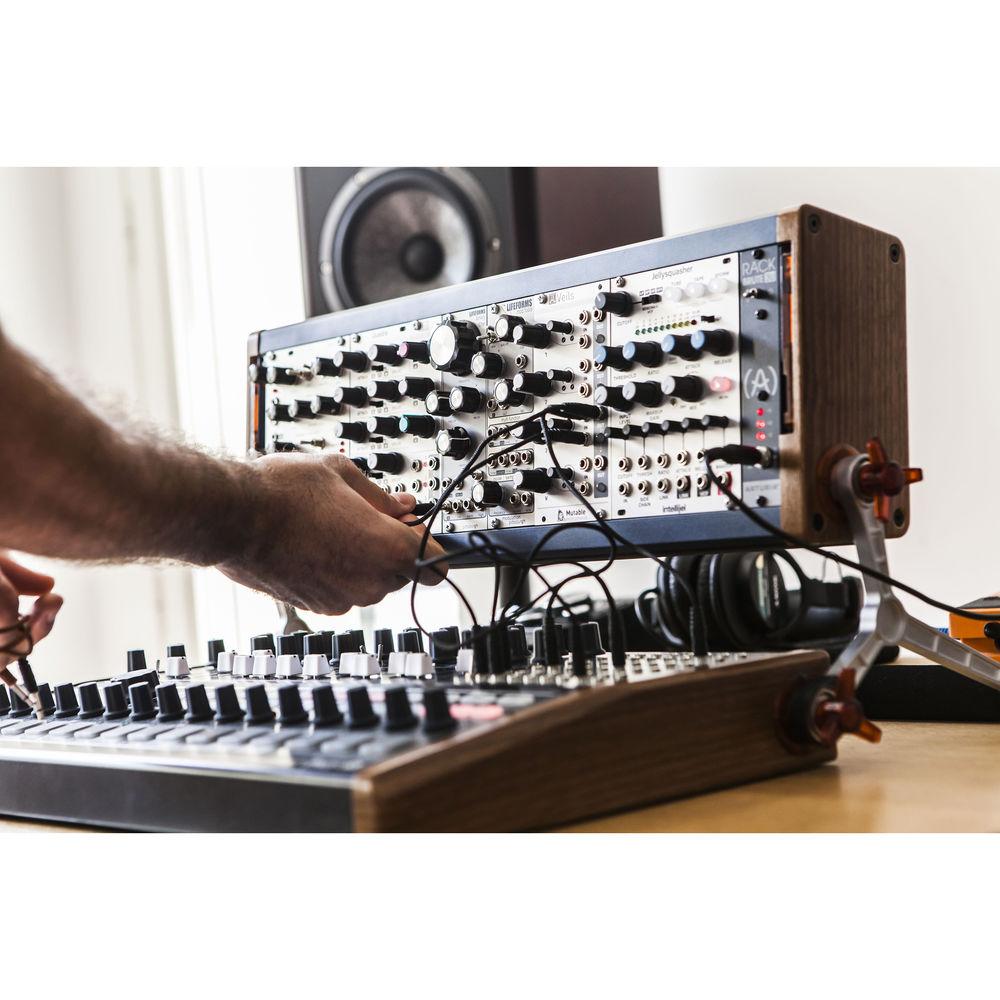

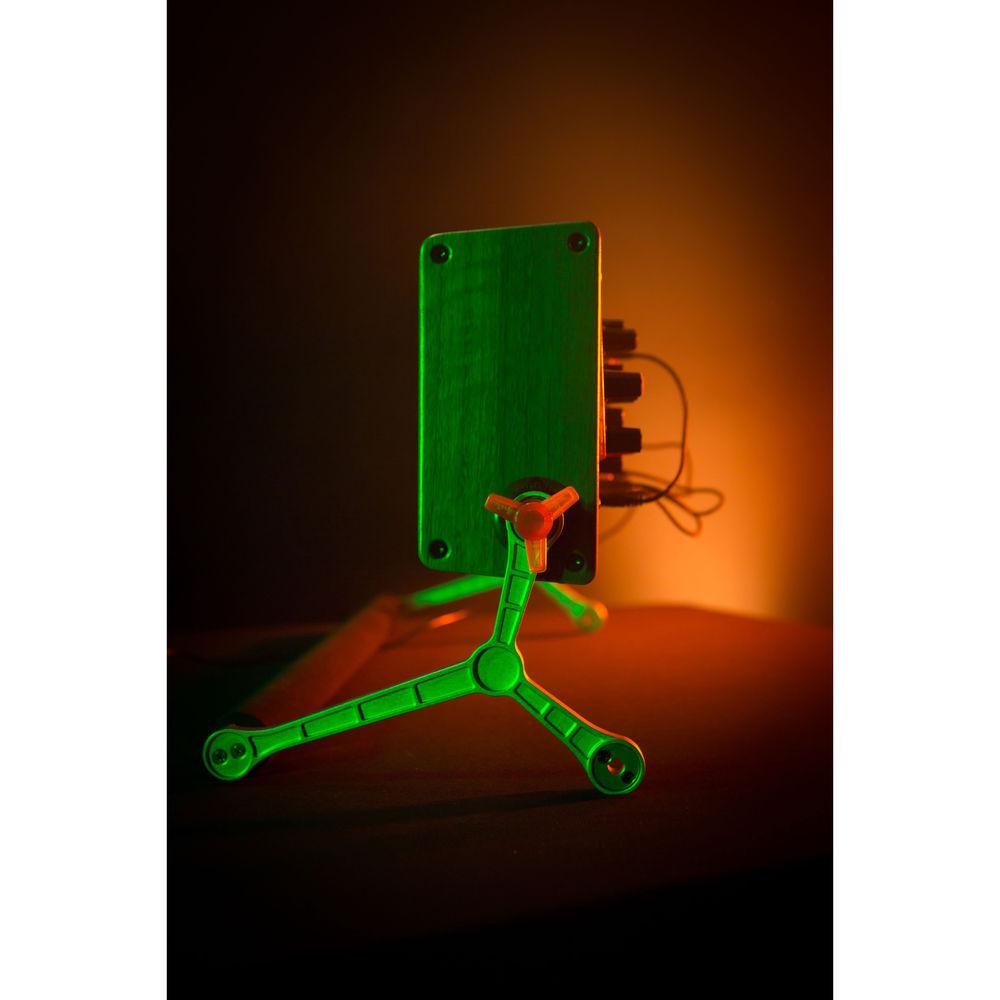

- Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
- Built-in spacers for the highest protection in transport configuration
In the Box Arturia RackBrute 3U Eurorack Case with Integrated Link System (88 HP) Power Supply Power Cord Link Fixing System (Handle + 4 Screws) Set of Extra Screws and Washers + Rubber Pads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia RackBrute 3U Eurorack Case with Integrated Link System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia 532101 Specs | Format | Eurorack: 88 HP
Rails: Nut strip | | Enclosure | Aluminum | | Power Module | Power Module: 5 HP
Up to 1600 mA on +12 V and 1600 mA on -12 V (2 separate circuits of 800 mA)
Up to 900 mA on 5 V (USB + 5V modules)
Power Rail
Noise Filtering: Yes
Standard Power Slots:
20 standard power slots with up to 800 mA on +12 V and -12 V | | Compatible With | Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations | | Protection | Built-in spacers for the highest protection in transport configuration | | Dimensions (W × H × D) | 19.0 x 6.6 x 3.3" / 48.3 x 16.8 x 8.4 cm | | Weight | 4.7 lb / 2.1 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 25.2 x 9.5 x 6.1" |
