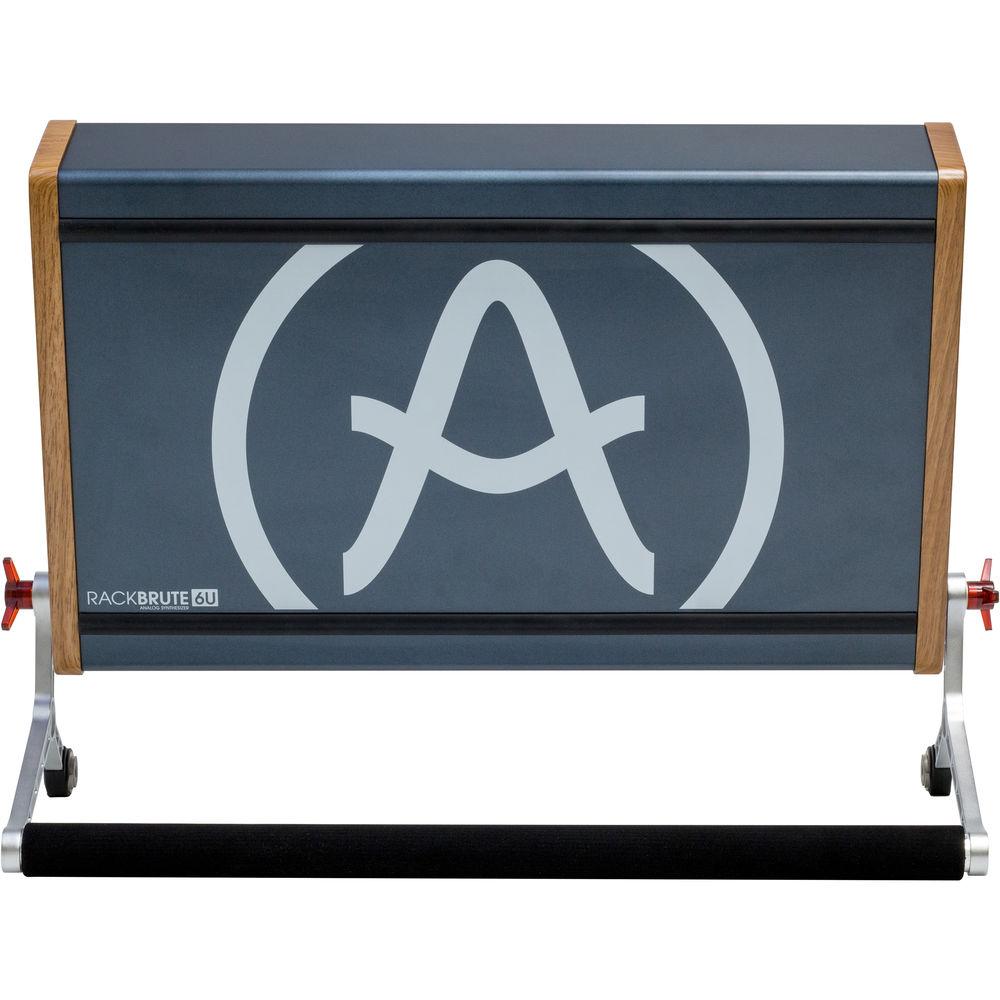

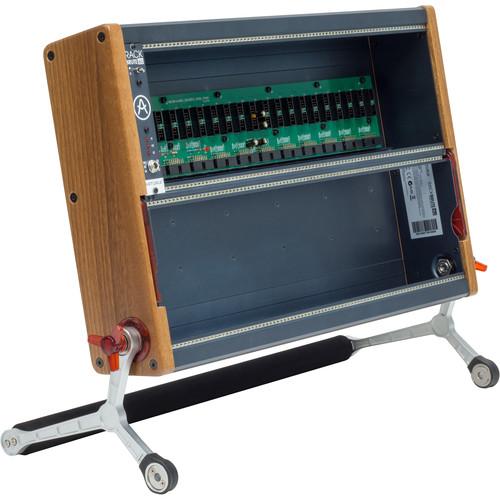

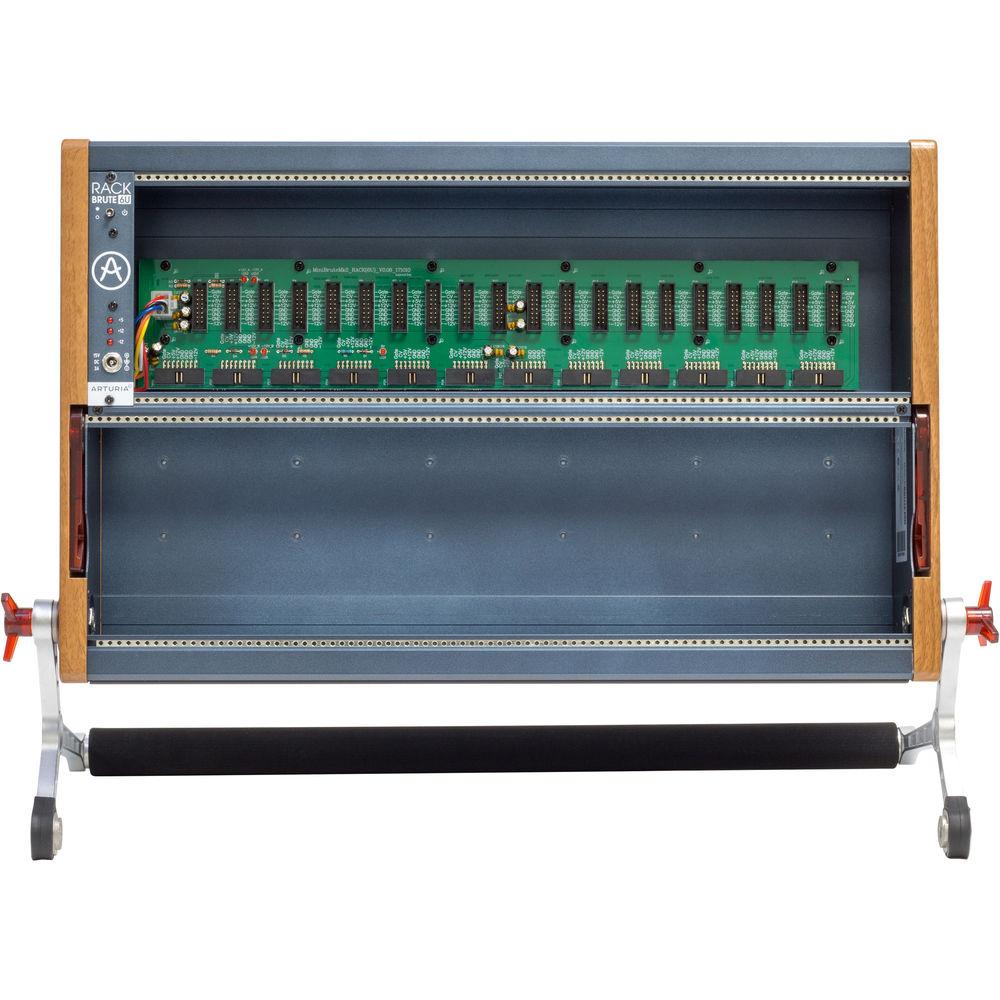

Product description The 6 RU, Arturia RackBrute 6U is an adjustable 176 HP Eurorack housing system that will store, protect, and power Eurorack modules. The rugged aluminum case is strong, yet lightweight, and features nut strip rails for easy installation of your Eurorack modules. The RackBrute ships with a 5 HP power module pre-installed, which connects to the nose filtered internal bus board for connecting up to 32 modules. The RackBrute Link System allows you to combine units that are Link-enabled such as the MiniBrute 2 and 2S and/or additional RackBrute enclosures.
When transporting, the case features integrated spacers to help stabilize the RackBrute and any Link-enabled enclosure. The RackBrute 6U ships with a power supply, power cord, Link Fixing System (handle and 4 screws), and an extra set of screws, washers, and rubber pads. -
- Eurorack format, 176 HP
- Aluminum chassis

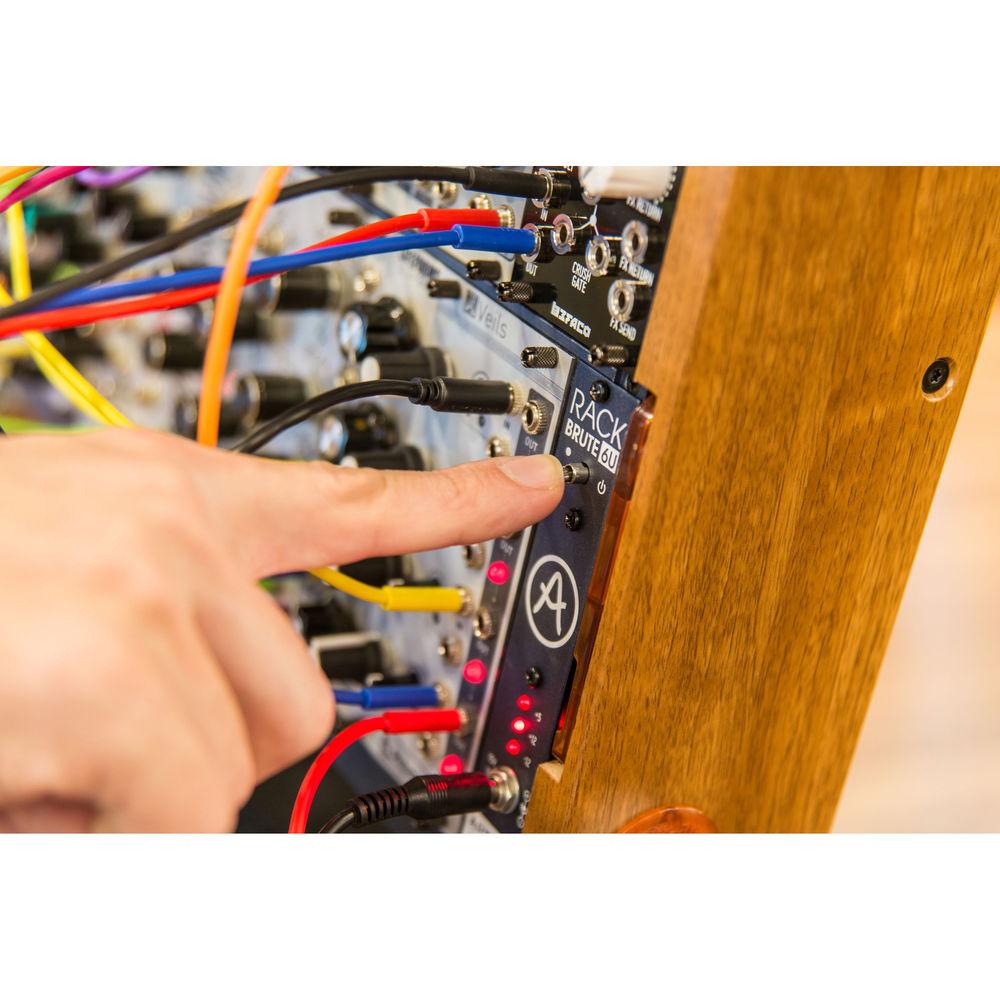

- Provided with a 5 HP power module
- Power rail with noise filtering and 32 standard power slots

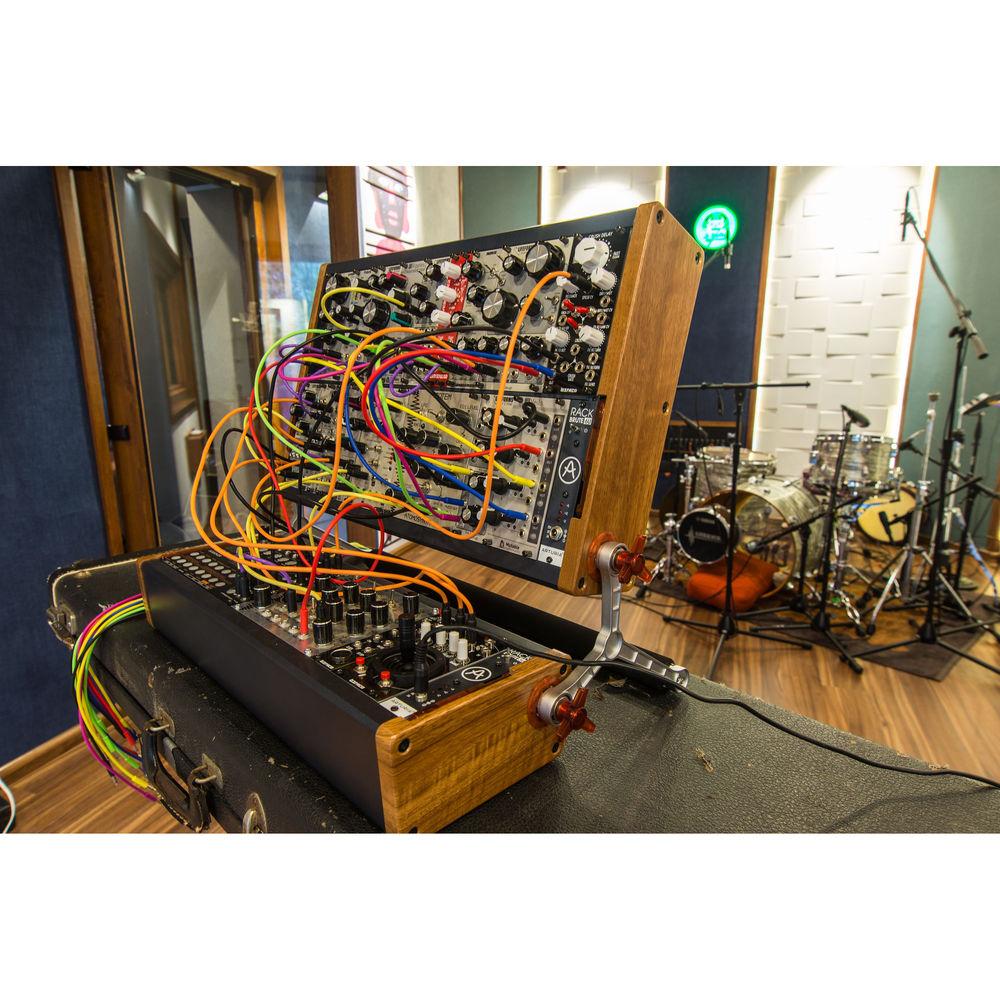

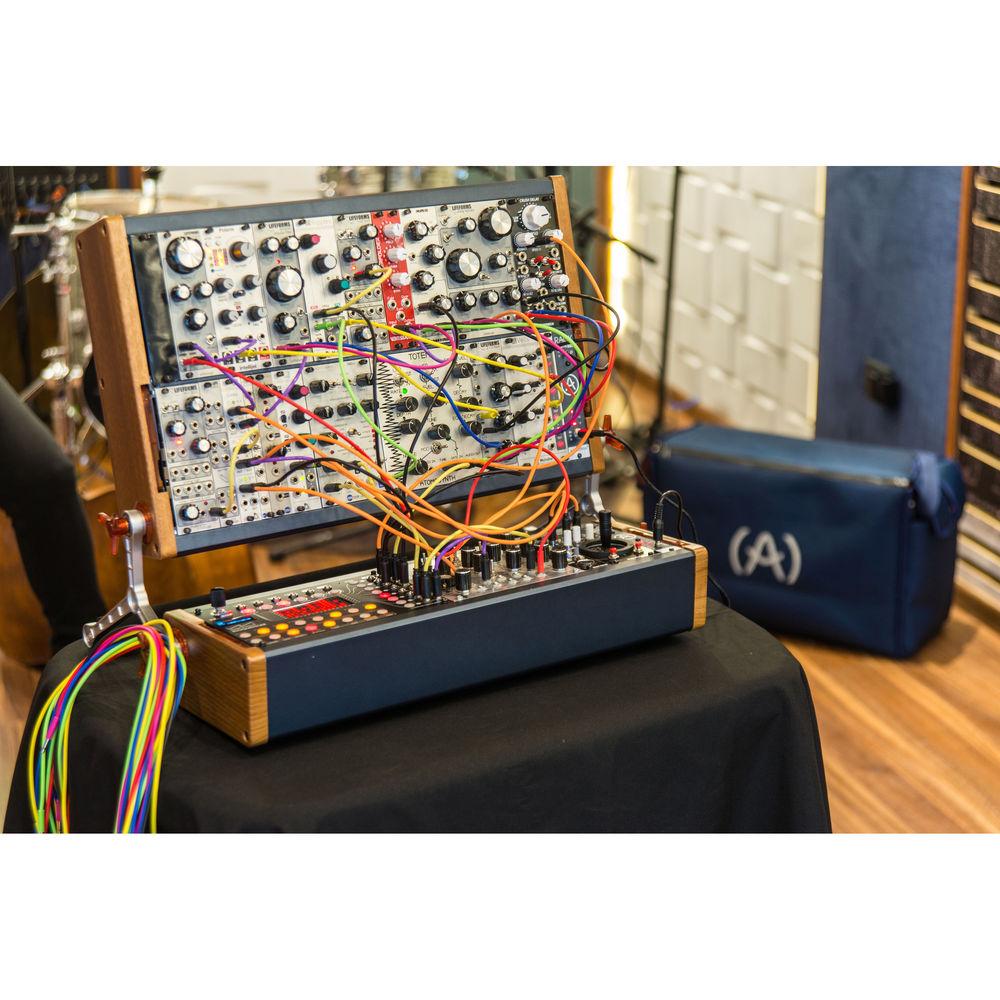

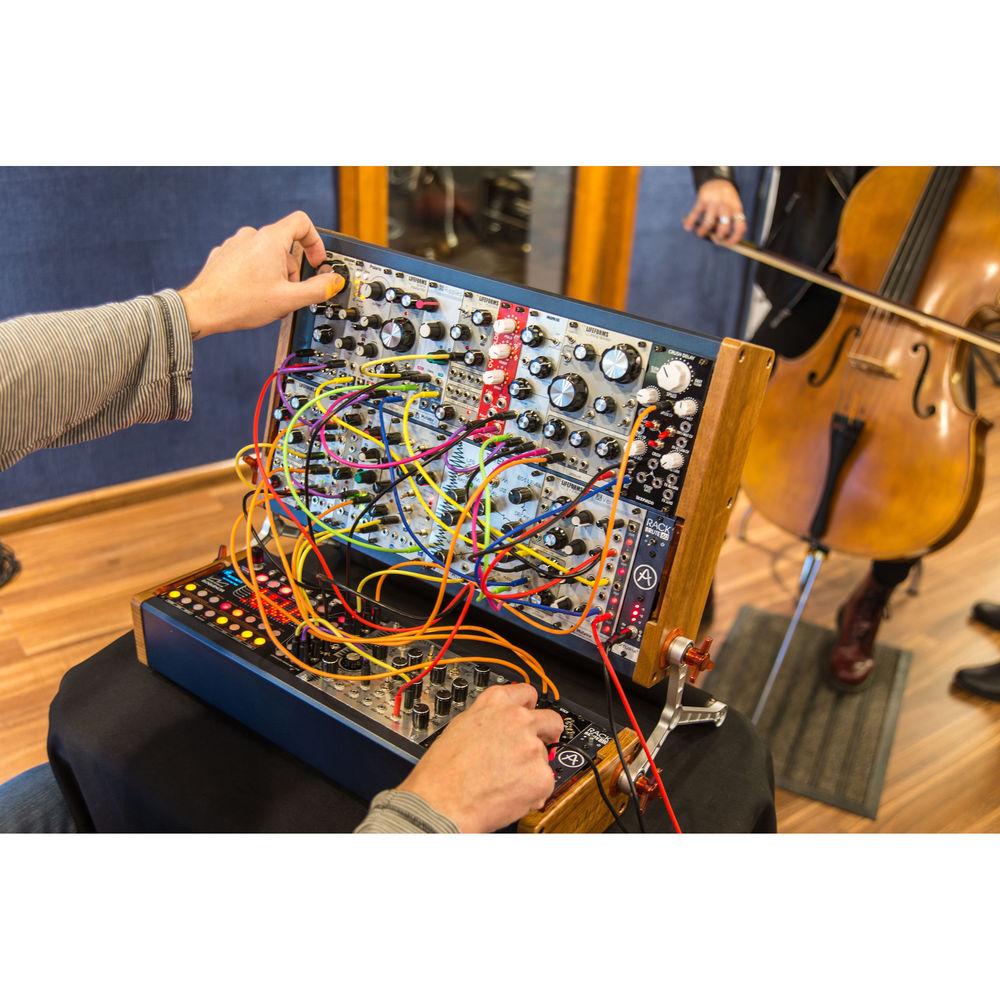

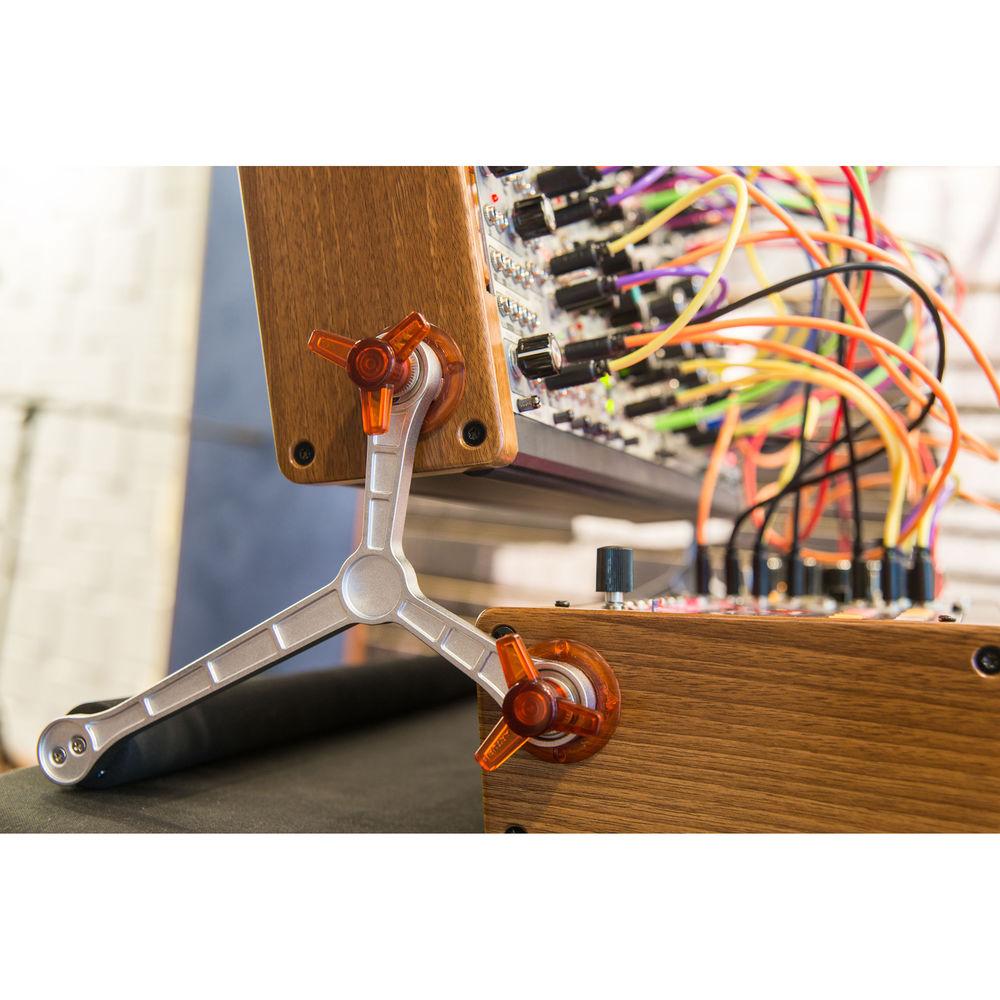

- Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations

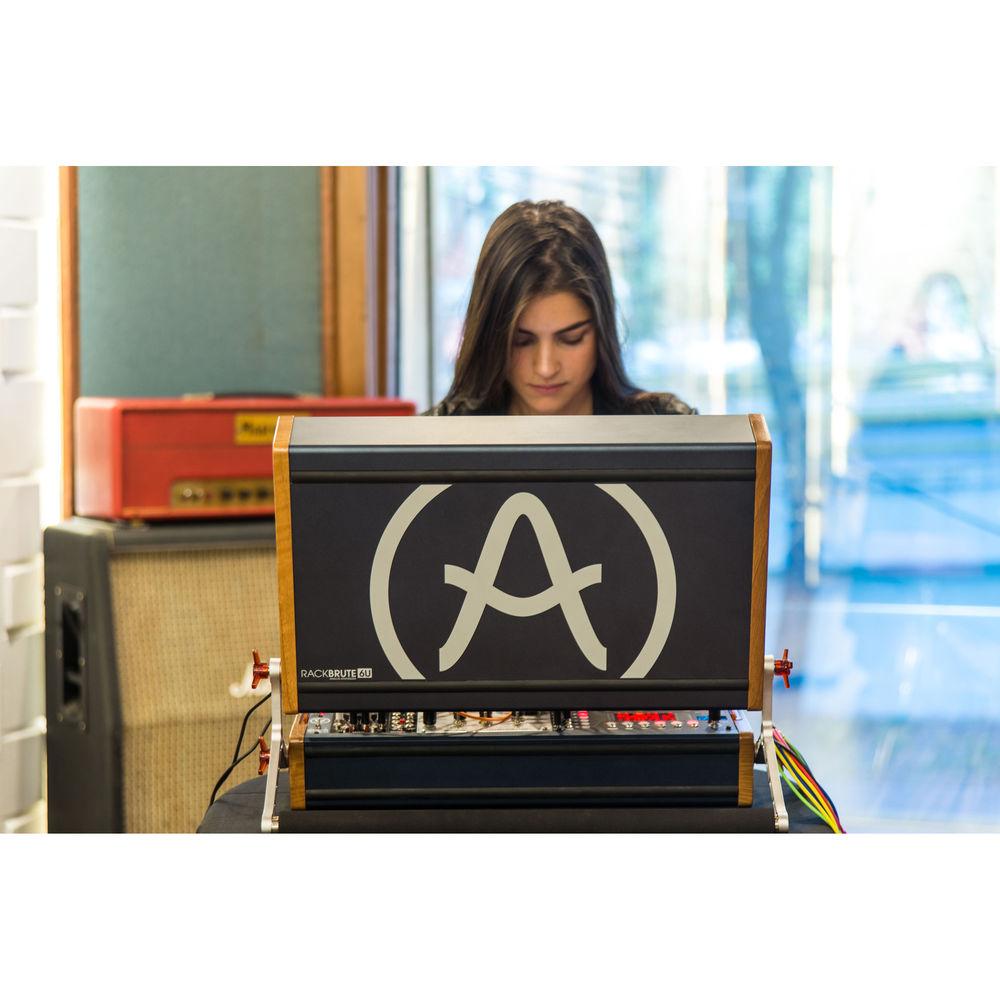

- Built-in spacers for the highest protection in transport configuration
In the Box Arturia RackBrute 6U Eurorack Case with Integrated Link System (176 HP) Power Supply Power Cord Link Fixing System (Handle + 4 Screws) Set of Extra Screws and Washers + Rubber Pads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arturia RackBrute 6U Eurorack Case with Integrated Link System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArturia 532001 Specs | Format | Eurorack: 176 HP
Rails: Nut strip | | Enclosure | Aluminum | | Power Module | Power Module: 5 HP
Up to 1600 mA on +12 V and 1600 mA on -12 V (4 separate circuits of 800 mA)
Up to 900 mA on 5 V
Power Rail
Noise Filtering: Yes
Standard Power Slots:
32 standard power slots
20-slot zone with up to 800 mA on +12V and -12V
12-slot zone with up to 800 mA on +12 V and -12 V | | Compatible With | Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations | | Protection | Built-in spacers for the highest protection in transport configuration | | Dimensions (W × H × D) | 19.0 x 13.2 x 3.3" / 48.3 x 33.5 x 8.4 cm | | Weight | 8.3 lb / 3.8 kg | | | | Package Weight | 12.85 lb | | Box Dimensions (LxWxH) | 25.2 x 13.5 x 6.1" |
