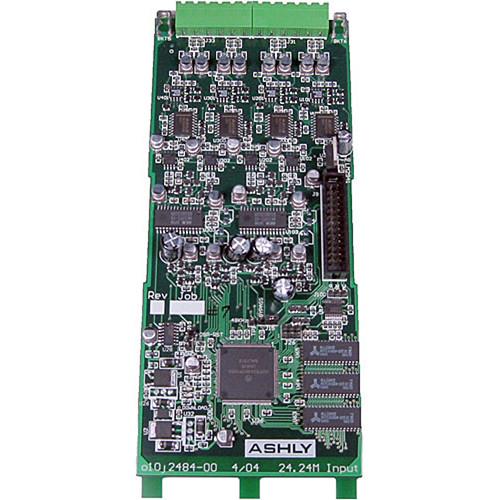

Product description The 24.24M Input from Ashley is a four-input expansion module for the Protea 24.24M Matrix Processor base unit. Each card provides an additional four channels of input and brings with it dedicated DSP and analog-to-digital converters. The card is field installable and require no additional programming from the base unit. Up to five input cards can be installed for a total of twenty-four inputs. Because of the on-board DSP, the base unit's processing is not impacted by the addition of the cards. - Four-channel input expansion card for Protea 24.24M Matrix Processor
- Includes its own dedicated DSP and analog-to-digital converters
- Each input channel has fixed processing blocks that include a microphone preamp with +48V phantom power, gain, delay, fifteen EQ filters, gate, auto-leveler and ducker
- The Hi-/Low-pass filter block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes
- Base unit automatically recognizing presence of the card without requiring additional programming
UPC: 694970702219 In the Box Ashly 24.24M Input - 4-Input Expansion Module for Protea 24.24M Matrix Processor Ribbon Cable Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly 24.24M Input - 4-Input Expansion Module for Protea 24.24M Matrix Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NE24.24M INPUT Specs | Frequency Response | 20Hz to 20kHz, +/-0.25dB | | Dynamic Range | >110dB unweighted, 20Hz to 20kHz B/W | | Input Connections | Euroblock | | Input Impedance | 18kΩ | | Output Impedance | 112Ω | | Maximum Input Level | +20dBu | | Maximum Output Level | +20dBu | | Sample Rate | 48kHz | | RTA Mic Phantom Voltage | Not applicable | | THD & Noise | <0.01% @1kHz, +20dBu | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | Specialties | Contains dedicated DSP and analog-to-digital converters | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.158 x 6.299 x 3.228" |
