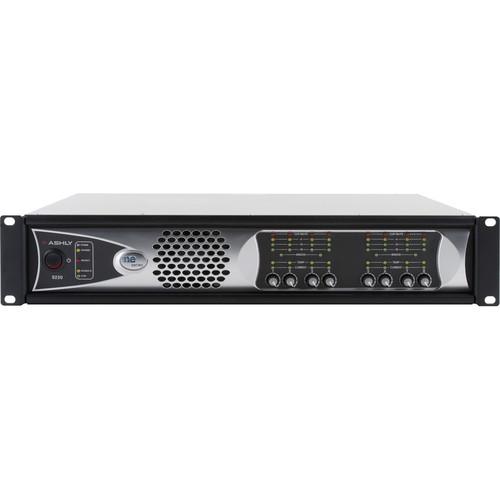

Product description The 8-Channel 2000W Network-Enabled Power Amplifier from Ashly delivers a minimum power of 150W RMS per channel into 8 ohm loads and 250W RMS per channel into 4 ohm loads with all channels operating. The amplifier features pre-installed OPDAC8 internal 8-channel digital to analog converter and CobraNet network audio interface card; and is designed around an energy efficient Class-D platform with a switching power supply. When switched into bridged-mono mode, channels 1+2 or 3+4 or 5+6 or 7+8 of the amplifier delivers over 500W RMS into an 8 ohm load.The power amplifier includes Euroblock input connectors, Euroblock output connectors, and balanced analog inputs. Besides remote standby for power up, DC remote level control, and contact closure preset recall, the amplifier also features Ethernet control & monitoring of power functions, level, mute, polarity, temperature, current, and amplifier fault conditions. The front panel indicates power status, standby, protect, power switch On/Off, signal level, bridge, temperature & current levels, and Ethernet communication. The amplifier mounts in a standard 19” rack using two spaces (3.5” high). -
- 10/100 Ethernet for remote control and monitoring
- Low-Z (4 ohms)
- CobraNet and OPDAC8 Input Cards
- DC voltage remote gain control
- Switched-mode power supply, Class-D output
- Stepped & calibrated input attenuators
- Remote power standby
- All front panel controls can be disabled via software
- Temperature-sensitive variable speed fan with front-to-back airflow
- 4-stage level meters
- Output current and temperature indicators
- cTUVus, CE, FCC, and RoHS safety/compliance
In the Box Ashly 8-Channel 2000W Network-Enabled Power Amplifier with OPDAC8 & CobraNet Cards (Low-Z) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly 8-Channel 2000W Network-Enabled Power Amplifier with OPDAC8 & CobraNet Cards in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NE8250BC Specs | Frequency Response | 20 Hz to 20 kHz, (unweighted) ± 1 dB | | Input Impedance | 20 kOhms, balanced | | Voltage Gain | 26 dB | | Input Sensitivity | 6.2 dBu | | Maximum Input Level | +21 dBu | | Software Control | 80 Hz (12 dB/oct), 400 Hz (6 dB/oct), Off | | Distortion | 8 Ohms load:
< 0.5 % typical (SMPTE)
< 0.5 % typical (20 Hz to 20 kHz) (THD-N) | | Damping Factor | > 250 (8 Ohms, 1 kHz) | | Circuitry | Class D | | Maximum load protection | Output Overcurrent, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse | | Controls | Ethernet 10/100, Channel bridge switch, Remote standby, Preset recall (4), Remote Level (8), Remote Data | | Connectors | Input/Output: Euroblock (each channel) | | Required AC Mains | 120 VAC or 240 VAC, ±10% 50 to 60 Hz | | Cable Connectors | 15 A Edison, 3-Prong IEC | | Signal to Noise Ratio | > 107 dB (20 Hz to 20 kHz, unweighted) | | LED Indicators | Signal Level
Red: Clip
Yellow: -6 dB
Green: -18 dB, -12 dB
Bridge: Green per channel pair
Temperature: Yellow per channel
Current: Green per channel (proportional to output) | | Output | 250 W per channel | | Current Draw | Standby Mode: 290 mA
Idle (No Signal): 565 mA
Typical (1/8 Power Pink Noise): 5.00 A
Maximum (1/3 Power Pink Noise): 11.0 A | | Thermal Dissipation | Standby Mode: 63.8 BTU/hr
Idle (No Signal): 187 BTU/hr
Typical (1/8 Power Pink Noise): 700 BTU/hr
Maximum (1/3 Power Pink Noise): 775 BTU/hr | | Dimensions (W x H x D) | 19 x 3.5 x 16" (48 x 8.9 x 41 cm) |
