Product description - Ashly digiMIX24 24-Channel Digital Mixer

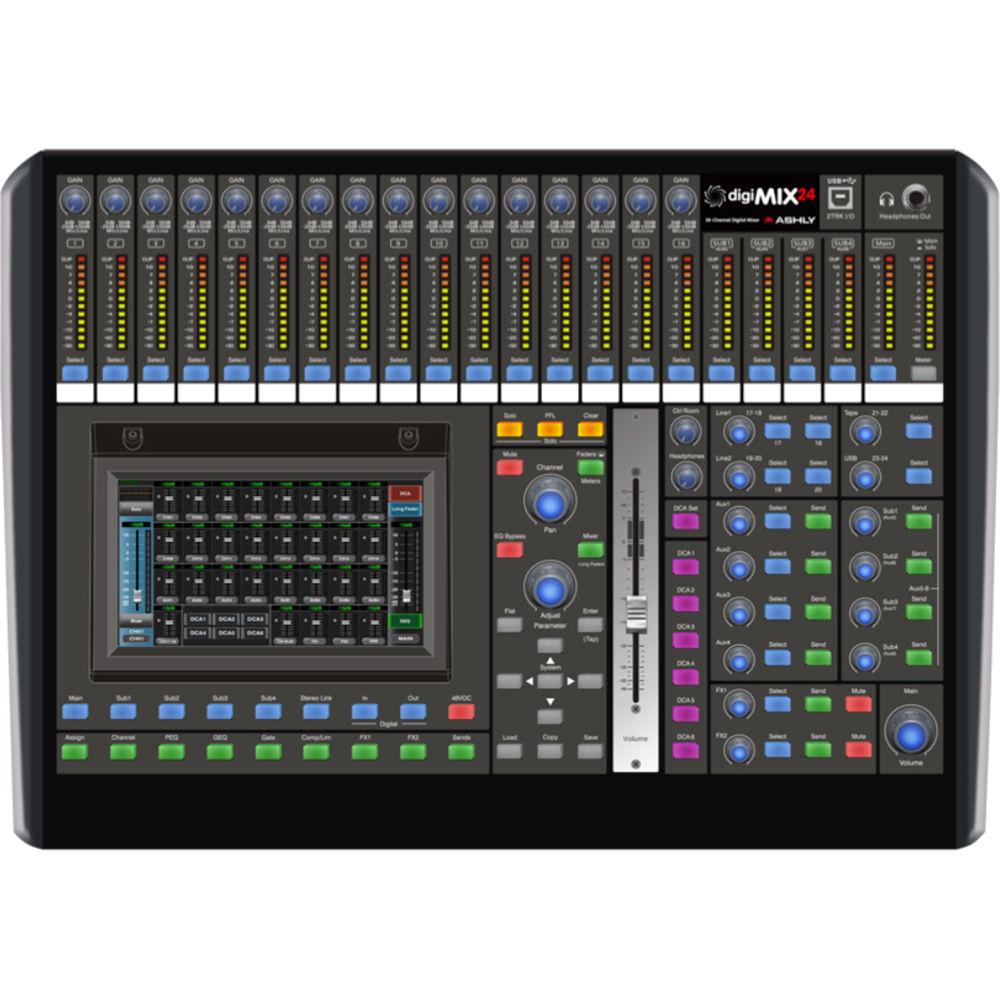

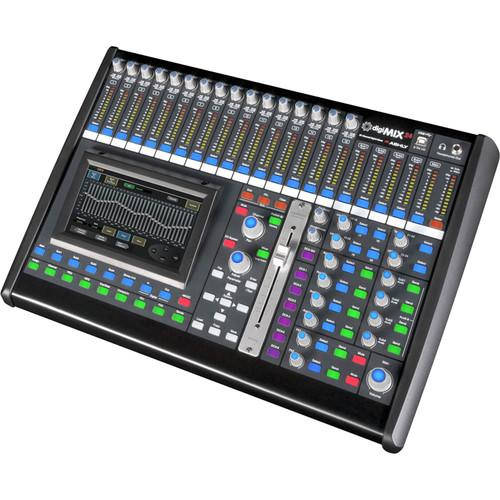

The digiMix24 from Ashly comes in a light and compact chassis and is designed as a versatile and user-friendly 24-channel digital console, ideal for mixing live sound in worship and educational facilities, and for recording in project studios.The unit combines the feel of traditional analog mixers with the convenience and flexibility of a recallable digital mixer. The live-control surface features real knobs, a motorized 100mm fader which can be assigned to any individual channel, and an Intelligent Meter Bridge that displays signal levels and fader positions. Use the 7" color-LCD touchscreen to navigate sub menus and toggle various settings quickly and intuitively. The unit offers an EZ Mode with simplified and secure control for non-technical users in schools or houses of worship, and a Normal Mode with the depth and flexibility expected by audio professionals.The digiMix24 comes with 16 Class-A microphone preamps, 16 line inputs, and 14 mix buses configurable in two Performance Modes, with either eight aux outputs or a combination of four aux & four subgroup outputs. DSP options abound, with 33 channels of dynamic and equalization processing, a 31-band graphic EQ, and two stereo effects processors with reverb, delay, chorus and more. Other features include individual channel delay in 0.2 ms increments (up to 300 ms) for easy sync of video and audio, a USB interface for stereo recording and playback, and user presets to save, load, or copy setups.Additionally, the software can be controlled wirelessly with the companion app for iOS, allowing the user to set stage-monitor volumes or to mix from different places in the venue. Optional cards provide Dante 32-channel connectivity and USB connectivity for 32-channel multitrack recording or playback (both cards available separately). -
- Digital mixing console with 24 inputs x 14 mix buses
- 32-bit A/D and D/A converters, 32-bit DSP processing, 48 kHz sampling rate
- 16 discrete Ashly Class-A mic/line combo inputs
- Offers two performance modes – 24 x 8 aux channels or 24 x 4 aux / 4 subgroups
- Live-control surface with physical controls
- 7" color-LCD touchscreen for graphical viewing, assigning, and setup
- Precision Alps motorized 100mm fader
- Intelligent meters display input levels and fader's volume position
- EZ-Mode for secure, simplified touchscreen or iPad control
- Eight separate Aux outputs, eight separate channel inserts
- 33 channels of DSP processing – Expander/Gate, Comp/Limiter, PEQ
- 31-band graphic EQ for Main, Aux, and Subgroup outputs
- Two stereo FX processors with 12 digital FX – Reverb, Delay, Chorus & more
- Six DCA groups for level, mute, and solo
- Stereo-solo any channels or mix bus
- User presets for DSP channel, GEQ, FX, and scene settings, plus channel-copy function
- Individual channel delays in 0.2 ms increments, up to 300 ms for easy sync of video and audio playback
- USB 2-track audio lets you record and play back in stereo
- Control software using Windows or Mac, or wirelessly with iOS app
- Compact and light at under 20 lb for portability
UPC: 694970189102 In the Box Ashly digiMIX24 24-Channel Digital Mixer Limited 5-Year Warranty (3 Years for Touchscreen Display & Motorized Fader) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly digiMIX24 24-Channel Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly DIGIMIX 24 Specs | General | ADC Dynamic Range: 110 dB, unweighted
Internal Processor: 32-bit floating point
Sample Rate: 48 kHz
DAC Dynamic Range: 106 dB, unweighted
ADC/DAC Bit-Depth: 32-bit

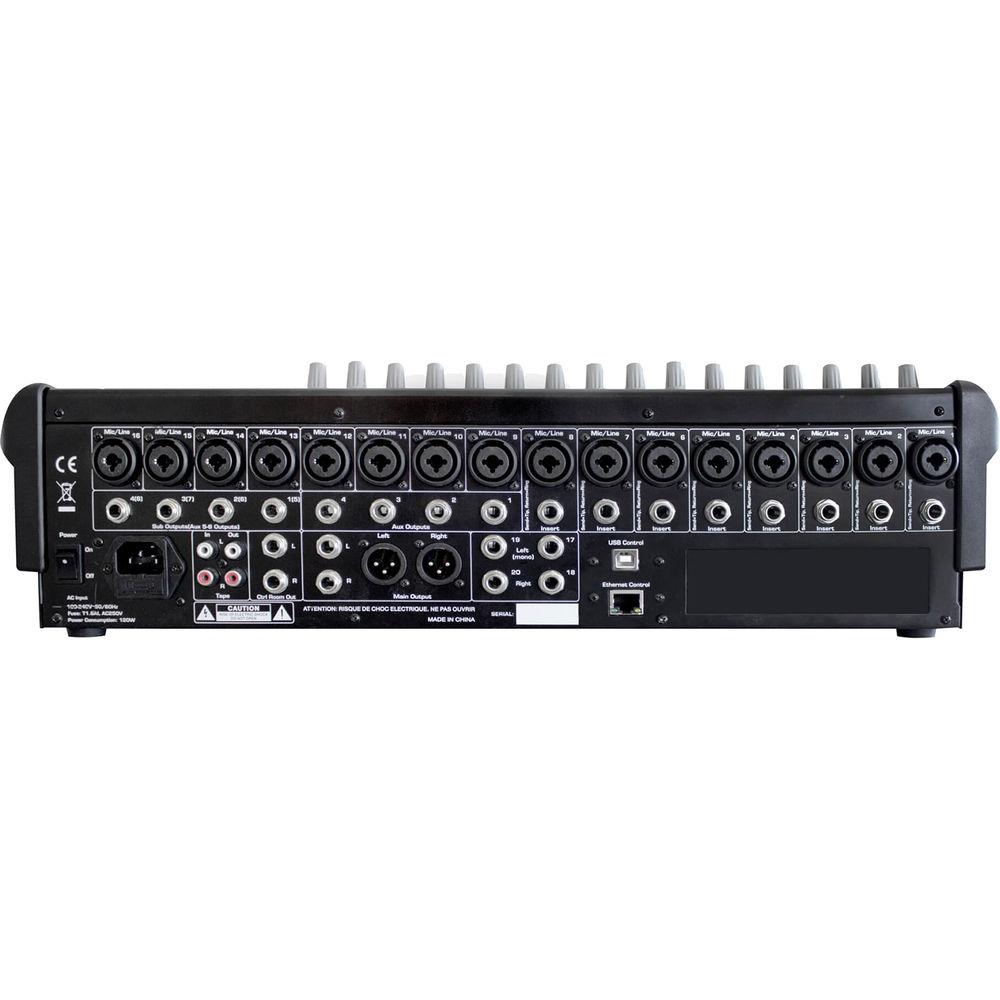

Software Compatibility: Windows, Mac, iOS | | Microphone Inputs | 16 x discrete Class-A preamps
Connector Type: XLR combos, balanced
Impedance: 6.8 kOhms
Frequency Response to Main Output: 20 Hz to 20 kHz (0 / -1.5 dB)
Distortion (THD + N) to Main Output: < 0.01% at 0 dBu, 20 Hz to 20 kHz
Equivalent Input Noise: -126 dBu, unweighted, 20 Hz to 20 kHz (150 Ohms source)
Gain (Trim): 0 to +50 dB
Maximum Input Level: +20 dBu
Phantom Power: +48 VDC, +0 / -4 V (assignable to channels 1-16) | | Line Inputs | 16 x mono inputs
Connector Type: 1/4" TRS, balanced
Impedance: 75 kOhms
Frequency Response to Main Output: 20 Hz to 20 kHz at 0 dBu (0 / -1.5 dB)
Distortion (THD + N) to Main Output: < 0.01% at 0 dBu, 20 Hz to 20 kHz
Gain (Trim): -20 to +30 dB
Maximum Input Level: +20 dBu | | Stereo Line Inputs | 2 x stereo pairs
Connector Type: 1/4" TRS, balanced
Impedance: 27 kOhms
Frequency Response to Main Output: 20 Hz to 20 kHz, ±0.5 dB
Distortion (THD + N) to Main Output: < 0.01% at 0 dBu, 20 Hz to 20 kHz
Gain: -∞ to +10 dB
Input Level (Max): +20 dBu | | Inserts | Connector Type: 1/4" TRS, unbalanced, tip = send, ring = return
Maximum Output Level: +20 dBu, 120 Ohms source impedance
Maximum Input Level: +20 dBu, 5.0 kOhms source impedance | | Tape L/R Input | Connector Type: RCA, unbalanced
Frequency Response to Main Output: 20 Hz to 20 kHz, ±0.5 dB
Distortion (THD + N) to Main Output: < 0.01% at 0 dBu, 20 Hz to 20 kHz
Gain: -∞ to +10 dB
Input Level (Max): +10 dBu | | USB | Connector Type: Type-B
Frequency Response to Main Output: 20 Hz to 20 kHz, ±0.5 dB
Distortion (THD + N) to Main Output: < 0.02% at 0 dBu, 20 Hz to 20 kHz
Gain: -∞ to +10 dB
Input/Output Level (Max): +15 dBu = full scale digital | | Maximum Output Levels | Main Outputs (Max): Balanced XLR and TRS phone jack, +20 dBu, 240 Ohms source impedance
AUX 1-4 Outputs: Pseudo-balanced TRS phone jack, +20 dBu, 240 Ohms source impedance
SUB 1-4 Outputs: Pseudo-balanced TRS phone jack, +20 dBu, 240 Ohms source impedance
Tape Outputs (Unbalanced RCA): +10 dBu, 1 kOhm
Control Room Outputs: Balanced TRS phone jack, +20 dBu, 240 Ohms source impedance
Residual Output Noise: -86 dBu (one channel assigned at 0 dB), -78 dBu (all channels assigned at 0 dB) | | Crosstalk | Adjacent Channels (1 kHz): -82 dB
Noise: -70 dB (bus noise, adjacent channels 20 Hz to 20 kHz) | | Noise Gate / Expander | On Inputs, FX
Threshold Range: -84 to 0 dB
Attack Time: 0.5 to 200 ms
Release Time: 10 to 1000 ms
Ratio; 1:1 to ∞ | | Compressor / Limiter | On Inputs, Subgroups, Main, Aux, FX
Threshold Range: -50 to 0 dB
Attack Time: 10 to 150 ms
Release Time: 10 to 1,000 ms
Ratio: 1:1 to ∞
Gain: 0 to +24 dB | | Parametric Equalizer | On Inputs, Subgroups, Main, Aux, FX
Filter Type (EQ1, EQ2, EQ3, EQ4): Parametric, low shelf, high shelf
Parametric Filters: 20.6 Hz to 20 kHz, Q 0.4 to 24, boost / cut ±24 dB
Shelving Filters: 20.6 Hz to 20 kHz, boost / cut ±24 dB
HPF and LPF: 20.6 Hz to 20 kHz, 20 filter types
HPF and LPF Filter Types:
Bypass, Butterworth (BW) 6 dB/oct
Bessel (BS) 6 dB/oct
BW 12 dB/oct
BS 12 dB/oct
Linkowitz/Riley (LR) 12 dB/oct
BW 18 dB/oct
BS 18 dB/oct
BW 24 dB / oct
BS 24 dB/oct
LR 24 dB/oct
BW 30 dB/oct
BS 30 dB/oct
BW 36 dB / oct
BS 36 dB/oct
LR 36 dB/oct
BW 42 dB/oct
BS 42 dB/oct
BW 48 dB/ oct
BS 48 dB/oct
LR 48 dB/oct | | Graphic Equalizer | On Main, Aux, Subgroups
Filter Type: 31-band, constant Q, boost/cut ± 24 dB | | FX | Sends from all 24 inputs
FX output assigns to Aux, Subgroups, Main
Effect Types: 3 x reverbs, delay, tremolo, flange, chorus, combinations
Stereo Link: Inputs, Subgroups, Aux
DCA groups: 6 x groups, level, mute, solo
Preset Types: 48 x DSP channel, 48 x GEQ, 104 x DFX, 24 x scene | | Temperature | Operating (Free-Air): 41 to 113° F (5 to 45° C) Storage: -4 to 140° F (-20 to 60° C) | | Power Requirements | AC Mains: 100-240 VAC, 50/60 Hz, 120 W max | | Dimensions (L x W x H) | 20.15 x 5.65 x 14.0" (512 x 356 x 144 mm) | | Weight | 17.65 lb (8.01 kg) | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 23.0 x 18.0 x 9.0" |
