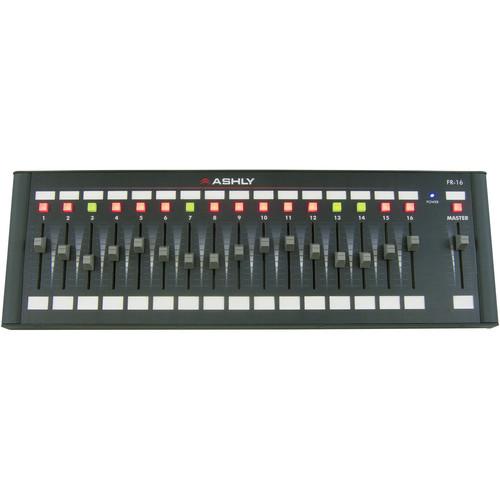

User Manual for Ashly FR-16 Remote Level Control Click to enlarge the picture
Contents of the user manual for the Ashly FR-16 Remote Level Control
- Product category: Networked Audio Systems Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Networked Audio Systems
|
User manual for the Ashly FR-16 Remote Level Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The Ashly FR-16 Remote Level Control is an optional, Ethernet powered remote control for Ashly NE (network enabled) products, such as the ne24.24M, NE two-channel power amplifiers with DSP, NE multi-channel power amplifiers with DSP, ne4800/8800 DSP processors, and all PEMATM power amplifiers. The Ashly FR-16 features 16 assignable faders and buttons for remote operation over gain, mixer level, muting and more. The FR-16 communicates via Ethernet and optional Protea NE Software v5.10 or higher (Windows). - Remote level control for your system
- 16 assigned mixer/gain blocks
- For use on these Ashly products:
- ne24.24M
- NE two-channel power amplifiers (pe)
- NE multi-channel power amplifiers (pe)
- ne4800 / ne8800 DSP processors
- PEMATM power amplifiers
v - May be used with the neWR-5 wall remote (optional)
- IEEE 802.3af power over ethernet (PoE) (class 2)
- Signal level option on mute buttons
- Assignable signal level LED breakpoints
- Communication failure indicator
- User defined labels per channel
- Mounting:
- standard US wall box (4 or 7 gang)
- surface mount with panel cutout
- freestanding desktop
- Panel lock-out contact closure
UPC: 694970595545 In the Box Ashly FR-16 Remote Level Control 5 Year Warranty Table of Contents
|
