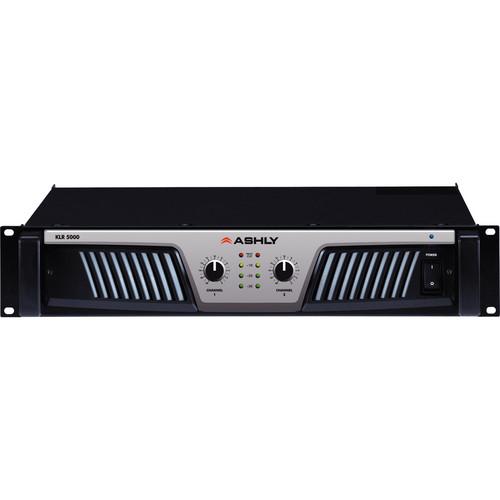

Product description The KLR-5000 Two-Channel High Performance Amplifier from Ashly delivers a minimum power of 2500W per channel into 2 Ohm loads, 1700W RMS per channel into 4 Ohm loads, or 1000W RMS per channel into 8 Ohm loads with both channels operating. The KLR-5000 is optimized to deliver high levels of sustained power, extraordinary audio performance, and road-proven reliability into 2, 4, or 8 ohm loads and are housed in a uniform, rugged, 2RU chassis. The output topography of the KLR-5000 is a two step class-H design. The protection circuits include output over current protection, DC output protection, chassis internal temperature monitoring, inrush limiting and a main circuit breaker. The KLR-5000 incorporates the latest technologies delivering quality and value for professional performance at an extremely affordable price. Whether your application is professional audio or fixed performance installation, the KLR-5000 amplifier is optimized to provide reliable audio performance with sonic perfection. - Balanced inputs via 3-pin Euroblock and combo XLR/ 1/4" TRS
- Switch mode power supply provides high efficiency and low weight
- Forced air cooled (front in, rear out)
- Front mounted attenuators
- Front panel indicators for output level, clip/ protect, and power on/ off
- Gain selectable switch for both channels
- Rack ears for permanent installation in a standard 2RU enclosure
- Neutrik Speakon output connectors
- 3-position gain switch (1V, 32dB or 26dB sensitivity)
- 3-position mode switch (bridged, stereo or parallel mono)
- 3-position HPF switch (30Hz, 50Hz or off)
- Permanently attached power cord
- Extensive protection circuitry
In the Box Ashly KLR-5000 Two-Channel High Performance Amplifier 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly KLR-5000 Two-Channel High Performance Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly KLR-5000 Specs | Power Rating | 8Ω, 20Hz-20kHz, 1% THD: 1000W
4Ω, 20Hz-20kHz, 1% THD: 1700W
2Ω, 20Hz-20kHz, 1% THD: 2500W
Bridged mono mode:
4Ω, 20Hz-20kHz, 1% THD: 5000W | | Current Draw | All channels driven @ 4Ω
Idle: 1.14A
1/8th power pink noise: 17.5A
1/3 power sine wave: 24.7A
S/N (20Hz-20kHz, unweighted): >110dB | | Circuit | 2 step class H | | Online Thermal Dissipation | All channels driven @ 4Ω
Idle (BTU/ hr): 215
1/8th power pink noise (BTU/ hr): 3111
1/3 power sine wave (BTU/ hr): 4395
Input gain switch: 1.4V, 26dB, 32dB | | Frequency Response | 1W @ 8Ω 20Hz-20kHz (-3dB down point): +0.3dB 5Hz-70kHz | | Signal-to-Noise Ratio | S/N (20Hz-20kHz, unweighted) | | Damping Factor | 100Hz @ rated power @8Ω: >380 | | Total Harmonic Distortion (THD) | 20Hz-20kHz: 10dB below rated output @ 4Ω | | Impedance | 12 kΩ, balanced | | HPF | 30Hz, 50Hz, off (12dB/ Oct) | | Protection | Output over current, DC output, chassis temperature, mains breaker (KLR-5000 uses internal mains fuse) | | Cooling | Variable speed fan, front-to-rear air flow | | Front Panel | Protection/ clip, signal, power | | Attenuation | Per channel, front panel | | Input Connections | 3-pin Euroblock, XLR, ¼" TRS phone jack | | Output Connectors | Each channel four pin Speakon type | | Power Requirements | 3-prong NEMA 5-20 | | Temperature | 14-104°F (-10-40°C) | | Humidity | 0-90% | | Compliance | cCSAus, FCC, CE, RoHS | | Dimensions | 19 x 3.5 x 16" (482 x 88 x 407mm) | | Weight | 28.2 lb. (12.8kg) | | | | Package Weight | 35.1 lb | | Box Dimensions (LxWxH) | 22.6 x 21.6 x 6.5" |
