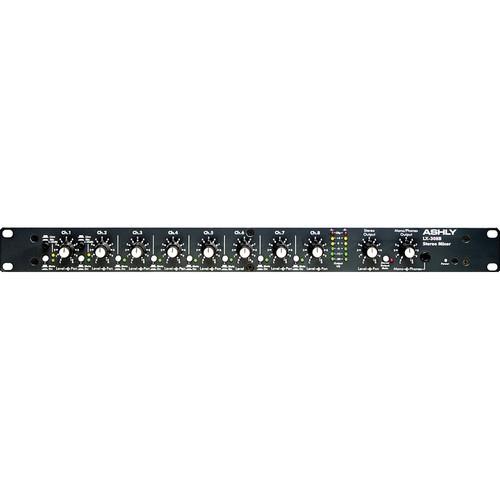

Product description The Ashly LX-308B is a stereo mixer designed to accommodate multiple stereo devices such as CD players, video equipment, tape recorders, keyboards, instruments, projection equipment, and more. The mixer features 16 mono 1/4" TRS inputs paired in eight stereo channels. Channels 1 and 2 are switchable between mic- and line-level, whereas channels 3 through 8 are strictly line-level channels. In addition to level control dials, every channel features stereo Pan and Mute control.A Mute switch is also available on the Master output. Stereo Master and Mono outputs are located on the rear. Sub inputs and outputs are pre-master level, and are suitable for linking multiple mixers when needed. The LX-308B is designed in a durable, 1 RU rack-mountable enclosure that allows for easy transport and storage.The LX-308B mixer is ideal for live sound applications where a keyboard mixer is necessary or in conference, educational, and recording scenarios. - 8 Stereo Inputs
- The Ashly LX308B is a true stereo mixer featuring 8 stereo-paired 1/4" TRS phone inputs (16 total) designed to accommodate balanced or unbalanced stereo devices.
- Mic & Line Level Switchable
- Channels 1 and 2 are switchable between mic and line level signal, allowing either microphones or line devices to be used.
- Main Output & Sub Input/Output
- Stereo-paired 1/4" TRS main and sub outputs route stereo signal to speakers or recording devices. The sub input and output are unaffected by the master level control, making it suitable for linking multiple mixers.
- Mono Output
- In addition to stereo outputs, the LX308B is also equipped with a summed 1/4" mono output for added flexibility.
- Pan & Mute Control
- All channels feature stereo Pan and Mute controls. A Mute switch on the stereo output is also provided.
- Rack Mountable Design
- Single space, rack-mountable design allows convenient storage and portability.
UPC: 694970528697 In the Box Ashly LX-308B Stereo Line Mixer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly LX-308B Stereo Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly LX-308B Specs | Inputs | 16 x 1/4" TRS line inputs, phone type (8 stereo pairs)
2 x 1/4" sub inputs (stereo pair) 1 x 3.5 mm stereo line input jack | | Outputs | 2 x 1/4" sub outputs, phone type
2 x 1/4" TRS main outputs, phone type
1 x 1/4" TRS mono output, phone type | | Output Noise | Residual Output: < -100 dBu (all levels at minimum)
Master Output, Level, One Input @ Nominal: < -90 dBu | | Total Harmonic Distortion (THD) | < 0.02% at +20 dBu (20 Hz to 20 kHz) | | IMD SMPTE | < 0.01% at 28 dBu | | Voltage Gain | Inputs (or Sub-Inputs to Master Outputs): 0 dB, levels at nominal
Input to Master Output: 30 dB, levels at max
Input in Mic Position to Master Outputs: 61 dB, channel 1 or 2
Sub-Inputs to Master Outputs: 15 dB, master level at max | | Crosstalk | Adjacent Inputs or Input to Output: < -80 dB at 1 kHz
Adjacent Inputs or Input to Output: < -60 dB at 20 kHz | | VU Meter | 2 x 5-segment LED meters, 0 VU = +4 dBu | | Indicator | Peak indicator activated when internal signal is 3 dB below clipping | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz, 30 W | | Dimensions (W x H x D) | 19.0 x 1.8 x 9.4" / 483.0 x 44.0 x 239.0 | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 23.0 x 14.15 x 4.55" |
