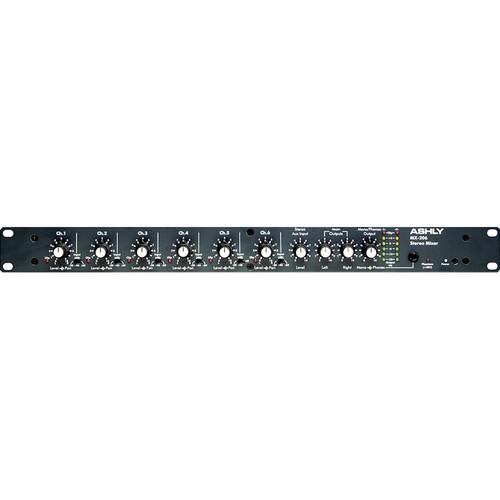

Product description The Ashly MX-206 Stereo Microphone Mixer is a 6-input microphone mixer designed to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement and portable installations. The MX-206 features 6 studio grade, low-noise XLR 3-pin microphone preamps. Each input features a 20dB Pad switch that avoid signal overload due to excessive gain. All of the MX-206's microphone preamps are capable of supplying +48V phantom power (globally switched) to condenser microphones. The output section features a balanced XLR mono, and L/R RCA stereo outputs. An Aux stereo input also features unbalanced L/R RCA stereo input connections and can be used to input signal from playback devices or additional mixers. The front panel features Level and Pan control as well as -20, -40 & -60dB gain switches for each input channel. The MX-206's compact, single-rack-space design allows easy storage and transport for mobile use. - 6 Microphone Inputs
- The MX-206 6 channel microphone mixer features low noise XLR microphone preamps on all input channels.
- Stereo and Mono Output
- The output section features a single XLR mono output connection and L/R unbalanced RCA stereo outputs.
- Stereo AUX Input
- A L/R unbalanced stereo RCA Aux input can be used for playback devices such as CD and cassette players, as well as signals from other mixers.
- Pad Switches
- Every channel features a Pad switch that provides the attenuation needed to avoid overload from microphones that output high gain levels.
- Gain Switches
- The front panel features -20, -40 & -60dB input level gain switches.
- Pan Control
- All channels feature level and Pan control for complete control over signal placement within the stereo field.
- +48 Volt Phantom Power
- All input channels provide +48V phantom power for condenser microphones.
UPC: 694970726864 In the Box Ashly MX206 Stereo Microphone Mixer 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly MX206 Stereo Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly MX206 Specs | Total # Of Inputs | 6 - Balanced 3-pin XLR | | Mic/Line Inputs | 6 - Balanced 3-pin XLR Microphone Inputs | | Stereo Line Inputs | No | | In-Line Inputs/Returns | not applicable | | AUX Sends | No | | AUX Returns | No | | Inserts | No | | BUS (Group) Outputs | Stereo output bus only | | 2 Trk Master I/O | Master Output: L/R Balanced 1/4" TRS Phone Tape I/O: L/R RCA Phono | | ALT I/O | Mono Output: Balanced 3-pin XLR | | Monitor Outputs | Headphone Output: 1/4" TRS Phone | | EQ Section | No | | Solo/Mute | Individual channel Mute switches & Stereo Output Mute switch | | Channel Level Control | Sealed Rotary Potentiometers (POTS) | | Trim/Gain Control | same as Channel Level | | Phantom Power | not applicable | | Metering | VU Meters: Two 5-segment LED meters. 0 VU = +4dBu
Peak Indicators: Left and right peak clip indicators | | Frequency Response | +/- 0.2dB 20Hz - 20kHz | | Dynamic Range | Not Specified by Manufacturer | | Signal-to-Noise Ratio | (20Hz - 20kHz noise bandwidth):
-100dBu residual output noise, all level at minimum -87dBu master out, master level and one input level at unity gain | | Total Harmonic Distortion (THD) | Less than 0.02% THD @ +20dBu, 20Hz - 20kHz | | Power Supply | 120VAC nominal, 93VAC minimal, 50-60Hz, 12 watts (240VAC available) | | Dimensions | 19 x 1.75 x 6.6" (482.60 x 44.45 x 167.64mm) (WxHxD) | | Weight | 8 lbs (3.63 kg) | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 3.0" |
