Product description

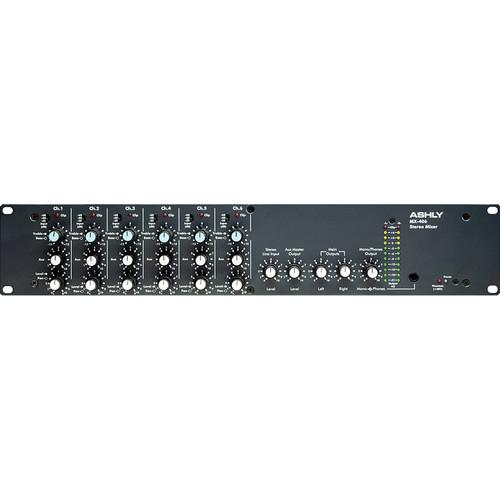

The Ashly MX-406 is a six input audio mixer with line and microphone inputs on each channel. The MX-406 may be used to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement, portable installations and project studios. The MX-406 features six studio grade, low-noise XLR and 1/4" combination connectors that are capable of microphone and line level signal. Each input features -20, -40 and -60dB input gain control settings. All mic preamps are capable of supplying +48V phantom power (globally switched) to condenser microphones. The output section features stereo balanced 1/4" phone line XLR mono connectors. Unbalanced L/R RCA stereo connections are featured for connecting player / recorder devices. 1/4" TRS Phone inserts are featured on all inputs and enable routing to external signal processors. The front panel features Level, Pan and a 3-band EQ control. Its compact, 2U (two space) rackmount design allows easy storage and transport for mobile use.
    Six Microphone and Line Inputs
  • The MX-406 six channel microphone mixer features low noise XLR and 1/4" Phone connectors on all input channels. Each channel accepts microphone and line level signal.
    Stereo and Mono Output
  • The output section features a stereo balanced 1/4" phone line and single XLR mono line output connection.
    Stereo AUX Input
  • A L/R unbalanced stereo RCA Aux input can be used for playback devices such as CD and cassette players, as well as signals from other mixers.
    Pad Switches
  • Every channel features a Pad switch that provides the attenuation needed to avoid overload from microphones that output high gain levels.
    Gain Switches
  • The front panel features -20, -40 & -60dB input level gain switches.
    Pan Control
  • All channels feature level and Pan control for complete control over signal placement within the stereo field.
    +48 Volt Phantom Power
  • All input channels provide +48V phantom power for condenser microphones.
UPC: 694970339972 In the Box Ashly MX406 Six Channel Rackmountable Stereo Line and Microphone Mixer with Switchable Pad, 48V Phantom Power and Input Sensitivity Per Channel
  • 5 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ashly MX406 Six Channel Rackmountable Stereo Line and Microphone Mixer with Switchable Pad, 48V Phantom Power and Input Sensitivity Per Channel in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ashly MX406 Specs

    Total # Of Inputs 6 - Balanced 3-pin XLR & 1/4" Phone Combination Jacks
    Mic/Line Inputs 6 - Balanced 3-pin XLR Microphone
    6 - Balanced 1/4" Phone
    Stereo Line Inputs Stereo Line Input: L/R Stereo RCA Phono
    In-Line Inputs/Returns not applicable
    AUX Sends Aux Master Output: Single Stereo 1/4" TRS Phone
    AUX Returns No
    Inserts Input Channels 1 through 6: Single Stereo 1/4" TRS Phone
    BUS (Group) Outputs Stereo output bus only
    2 Trk Master I/O Stereo Output: L/R Balanced 1/4" TRS Phone Stereo Line Output (Record): L/R RCA Phono
    ALT I/O Mono Output: Balanced 3-pin XLR
    Monitor Outputs Headphone Output: 1/4" TRS Phone
    EQ Section Bass +/- 12dB @ 70Hz, shelving
    Treble +/- 12dB @ 8KHz, shelving
    Solo/Mute Individual channel Mute switches & Stereo Output Mute switch
    Channel Level Control Sealed Rotary Potentiometers (POTS)
    Trim/Gain Control same as Channel Level
    Phantom Power +48 VDC supplied to all mic inputs
    Metering PEAK INDICATORS: Peak Clip indicator on each input channel and left and right outputs, illuminates 3dB below clipping
    Frequency Response 20Hz - 20kHz +0.5 / -1.0dB
    Dynamic Range Not Specified by Manufacturer
    Signal-to-Noise Ratio (20Hz - 20kHz noise bandwidth):
    EIN: <-127dBu
    Residual Output Noise: <-100dbu TRS outputs, all levels at minimum
    Residual Output Noise: <-80dbu Aux Out, Aux Master and all Ch. Aux at nom.
    Total Harmonic Distortion (THD) Less than 0.05% THD @ +4dBu, 20Hz - 20kHz
    Power Supply 100-240V, 50-60Hz, 30 watts
    Dimensions 19 x 3.50 x 8" (482.60 x 88.9 x 203.2mm) (WxHxD)
    Weight 15 lbs (6.80 kg)
    Package Weight 13.3 lb
    Box Dimensions (LxWxH) 24.0 x 14.7 x 4.2"
