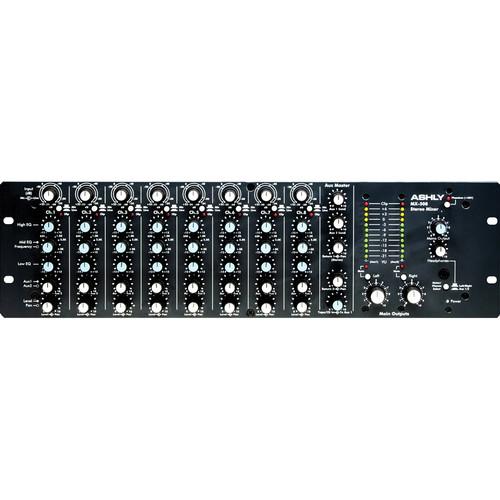

Product description The Ashly MX-508 is a full featured stereo audio mixer designed for recording and sound reinforcement applications. The MX-508 features 8 channels with stereo 1/4" TRS line level inputs on each channel. In addition every channel features balanced 3-pin XLR microphone inputs with globally switched +48V phantom power. Send & Return inserts are located on every channel enabling signal to be routed to external processors, monitor mixers, recorders, etc. Two Stereo Aux sends provide additional routing for effects processors. Transformer balanced XLR stereo main outputs provide the highest possible output gain with minimal noise floor. Secondary transformer-less, 1/4" phone outputs provide additional stereo output when necessary. Sub I/O's allow cascading multiple mixers. A 3-band EQ with sweepable mid range is provided on every channel. The MX-508 is designed in a rack mountable enclosure for easy transport and storage. - 8 Stereo Channels
- The MX-508 is a true stereo mixer featuring 8 1/4" TRS Phone inputs with panning control on each channel.
- 8 Balanced Microphone Inputs
- In addition to line inputs, the MX-508 features XLR microphone inputs on every channel. Each channel is individually switchable between microphone and line level signal.
- Inserts On All Channels
- All channels feature send and return inserts, enabling signal routing to external signal processors, monitors etc.
- Sweepable EQ Section
- A 3-band EQ section with sweepable mid range is featured on every channel.
- Transformer Balanced Output
- The main outputs feature transformer balanced XLR connectors. Transformer balancing provides high output gain with minimal noise floor.
- Sub Input & Output
- Stereo Sub input and outputs feature stereo 1/4" TRS phone connections and route signal pre-master fader. The Sub I/O's are ideal for linking multiple mixers.
- Mono Output
- A 1/4" phone, summed mono output is provided for added flexibility.
UPC: 694970393882 In the Box Ashly MX508 Stereo Microphone Mixer 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly MX508 Stereo Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly MX508 Specs | Total # Of Inputs | 8 Total Stereo Inputs | | Mic/Line Inputs | 8 Line: Stereo 1/4" TRS Phone single TRS stereo inputs
8 Microphone: XLR 3-pin Female | | Stereo Line Inputs | all 8 channels feature stereo line inputs | | In-Line Inputs/Returns | No | | AUX Sends | 2 AUX Sends: 1/4" TRS Phone
Maximum Voltage Gain - 76dB +/- 2dB Mic Input to Aux Master 1 Out, pre ch. level | | AUX Returns | 2 AUX Returns: Stereo 1/4" TRS Phone 1-stereo & 1-mono both, pannable
Maximum Voltage Gain - 92dB +/- 2dB Mic Input to Aux Master 2 Out, pre ch. level | | Inserts | Channels 1 - 8
Send: 1/4" TRS Phone Return: 1/4" Phone | | BUS (Group) Outputs | stereo output bus only | | 2 Trk Master I/O | L/R Stereo 3-pin XLR male transformer balanced | | ALT I/O | Tape In: L/R RCA Phono
Tape Out: L/R RCA Phono | | Monitor Outputs | L/R Stereo 1/4" Phone | | EQ Section | Low: +/- 12dB @ 70Hz, shelving
Mid: +/- 12dB peaking, 140Hz - 8kHz High: +/- 12dB @ 15kHz, shelving | | Solo/Mute | Individual Mute switches on stereo (L/R) outputs. | | Channel Level Control | Sealed Rotary Potentiometers (POTS) | | Trim/Gain Control | Sealed Rotary Potentiometers (POTS)
84dB channel input to program output | | Phantom Power | +48V Global Switched | | Metering | VU Meters: Two 10-segment LED meters
Peak Indicators: Clip Indicator on every input | | Frequency Response | 20Hz to 20kHz, +0.5 / -1.0dB | | Dynamic Range | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 20Hz to 20kHz noise bandwidth
<-129dbu equivalent input hum and noise w> | | Total Harmonic Distortion (THD) | <0.05% @ +4dBu, 20Hz to 20kHz
<0.05% @ +20dBu, 30Hz to 10kHz | | Power Supply | 120VAC nominal, 50-60Hz, 35 watts
93VAC minimum (240VAC available) | | Dimensions | 19 x 5.25 x 9.6" 48.26 x 13.335 x 24.384cm (WxHxD) | | Weight | 23 lbs (10.43kg) | | | | Package Weight | 18.15 lb | | Box Dimensions (LxWxH) | 24.8 x 15.0 x 6.1" |
