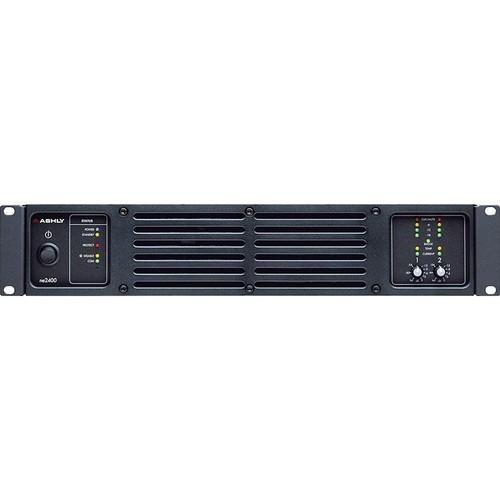

User Manual for Ashly ne2400pe Network-Enabled Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Ashly ne2400pe Network-Enabled Stereo Power Amplifier
- Product category: Power Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Power Amplifiers
|
User manual for the Ashly ne2400pe Network-Enabled Stereo Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The ne2400pe from Ashly is a rackmount stereo power amplifier with network capability, ideal for installed audio applications. The amplifier has a 10/100 Ethernet jack that allows you to control and monitor the amplifier's functions over a network with the included Proteane software. The rear panel offers XLR and Euroblock analog inputs, Speakon and Euroblock speaker outputs, and XLR and Euroblock analog Aux outputs.
The factory-installed Protea DSP module allows you to configure each input with DSP blocks for dynamic control, gain function, graphic and/or parametric EQ, high and low pass filters, time delay, metering, and a test signal generator. It also offers a mixer section that allows you to route an input to any and all outputs. The outputs have the same DSP function as the inputs, with the added capability of an automated crossover setup. Up to 35 DSP presets and subpresets can be stored and recalled in real time via Ethernet with the included software.
A blank panel on the rear allows you to install an optional CobraNet CNM-2 card for CobraNet capability, or an AES/EBU input to support digital audio. Other useful amplifier functions include DC voltage control, preset recalls, and remote power standby. LED indicators provide you with at-a-glance knowledge of power, standby, network, protection circuitry, audio levels, operating mode, temperature, and current. - Rackmount Design
- The rackmount design allows you to install the amplifier in any standard equipment rack for use in a studio or other venues
- Multiple Operating Modes
- Choose between stereo or bridged operating modes for flexible performance
- Network Capability
- A 10/100 Ethernet port allows you to monitor and control amplifier functions over a network with the Proteane software
- Protea DSP
- Each input can be configured with DSP blocks for dynamic control, gain function, graphic and/or parametric EQ, high and low pass filters, time delay, metering, and a test signal generator. A mixer section allows you to route an input to any and all outputs. Output channels have the same DSP function as the inputs, with the added capability of an automated crossover setup. Up to 35 DSP presets and subpresets can be stored and recalled in real time via Ethernet with the included software
- Standard Connectors
- XLR and Euroblock inputs and Aux outputs are provided, along with Speakon and Euroblock speaker outputs
- Level Controls
- Each input has its own stepped and calibrated attenuator knob
- Expandable
- An input slot on the rear panel allows you to add an optional CobraNet CNM-2 card or an AES/EBU input for added functionality
- Voltage Control and Remote Power
- The amplifier features DC voltage control and remote power on/off via software
- Protection Circuitry
- Built-in protection circuitry shields the amplifier against damage from overloads and overheating
- Indicators
- The amplifier has 4-level signal and clip LEDs, as well as LED indicators that display power, standby, protect, network, temperature, current, and power switch disable status
- Cooling
- Temperature-sensitive variable-speed fans keep the internal components cool for reliable operation
In the Box Ashly ne2400pe Network-Enabled Stereo Power Amplifier (700W/Channel @ 8 Ohms) Power Cable 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly ne2400pe Network-Enabled Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NE2400PE Specs | Power Rating | 700W/Channel @ 8Ω
1200W/Channel @ 4Ω
2400W @ 8Ω Bridged | | Damping Factor | > 250 | | Input Sensitivity | 26 or 32dB, or 1.4V (Switch-Selectable) | | Input Impedance | 20 kOhms, Balanced | | Gain | Variable | | Frequency Response | 20Hz - 20kHz ±1dB | | Signal-to-Noise Ratio | > 108dB | | Total Harmonic Distortion (THD) | < 0.5% | | Connectors | 2 x XLR Inputs
2 x Euroblock Inputs
2 x XLR Aux Outputs
1 x Euroblock Aux Output
2 x Speakon Outputs
1 x Euroblock Speaker Output
1 x 10/100 Ethernet Port
1 x Remote Euroblock Connector
1 x Input Expansion Slot
1 x AC Power Input | | Controls | 1 x Power Switch
2 x Level Control Knobs
1 x Mode Selector Switch
1 x High Pass Filter Switch
1 x Sensitivity Selector Switch | | Indicators | 2 x 4-Segment Level/Clip LED Meters
2 x Temperature LEDs
2 x Current LEDs
1 x Bridge LED
1 x Power LED
1 x Standby LED
1 x Protect LED
1 x Power Switch Disable LED
1 x COM LED | | Cooling | Variable-Speed Fan, Front-to-Back Airflow | | Power Consumption | 0.7A, 45W (1/8 Idle) | | Power Requirements | 100-220VAC | | Dimensions (HxWxD) | 3.5 x 19 x 15.5" (89 x 483 x 392mm) | | Weight | 21 lbs (9.5kg) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 4.0" |
