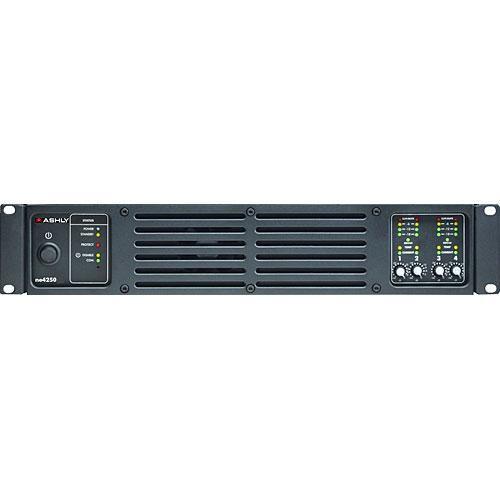

User Manual for Ashly ne4250 4-Channel Network Enabled Amplifier Click to enlarge the picture
Contents of the user manual for the Ashly ne4250 4-Channel Network Enabled Amplifier
- Product category: Power Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly Power Amplifiers
|
User manual for the Ashly ne4250 4-Channel Network Enabled Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The ne4250 from Ashly is a professional-quality 4-channel power amplifier with Ethernet capability designed for installed applications. Housed in a robust 2RU enclosure, this highly-efficient amplifier uses standard Euroblock input and output connectors, allowing it to connect to practically any 4 or 8 Ohm system.
The ne4250 has an Ethernet port, which offers Ethernet control and monitoring of the amplifier functions using the Proteane software. It also has a normal/bridge switch, allowing you to switch the amplifier into Bridge Mode. Other features include a wide complement of protection circuitry, remote level control, and the ability to expand the unit's capability via optional expansion modules.
- Professional Quality
- The rugged 2RU enclosure fits in any standard equipment rack
- Multichannel
- The amplifier provides 4 channels of audio I/O
- Ethernet Control
- The built-in Ethernet port gives you the ability to control and monitor amplifier functions over a network using the Proteane software
- Connectivity
- Standard Euroblock input and output connectors provide wide compatibility with 4 and 8 Ohm systems
- Bridge Mode
- The amplifier can be switched between Normal and Bridge modes if desired
- Protection Circuitry
- Built-in protection circuitry guards against damage from overheating and overcurrent
- LED Displays
- Multiple LED displays show the status of signal, power, standby, protect, power switch disable, and comm activity
- Remote Features
- In addition to software control, the amplifier also has connections for remote standby and remote level control
- Optional Expansion
- Multiple expansion modules are available for adding additional functionality, such as DSP, AES/EBU connectivity, mic inputs, or CobraNet networking
UPC: 694970460973 In the Box Ashly ne4250 4-Channel Network Enabled Amplifier (4 x 250W @ 4 Ohms) Power Cord 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly ne4250 4-Channel Network Enabled Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly ne4250 Specs | Power Rating | 150W/Channel @ 8 Ohms
250W/Channel @ 4 Ohms
500W @ 8 Ohms Bridge Mode | | Damping Factor | > 250 | | Input Level | +21dB | | Input Impedance | 20 kOhms, Balanced | | Gain | -50 to +12dB | | Frequency Response | 20Hz - 20kHz | | Signal-to-Noise Ratio | > 98dB | | Total Harmonic Distortion (THD) | < 0.5% | | Input Connections | 4 x Euroblock Inputs
1 x Ethernet Port
1 x Remote Standby Contact
1 x Preset Recall Connector
1 x Data Connector
1 x Remote Level Control Connector
1 x AC Power Input | | Output Connectors | 4 x Euroblock Outputs | | Controls Front Panel | 1 x Power Switch
4 x Channel Attenuator Knobs | | Controls Rear Panel | 1 x Normal/Bridge Switch | | Indicators | 1 x Power LED
1 x Standby LED
1 x Protect LED
1 x Power Switch Disable LED
1 x Comm LED
4 x LED Level Meters
4 x LED Temperature Meters
4 x LED Current Meters | | Cooling | Front-to-Rear Airflow | | Dimensions (WxHxD) | 19 x 3.5 x 15.5" (483 x 89 x 394mm) | | Weight | 21 lbs (9.5kg) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 4.0" |
