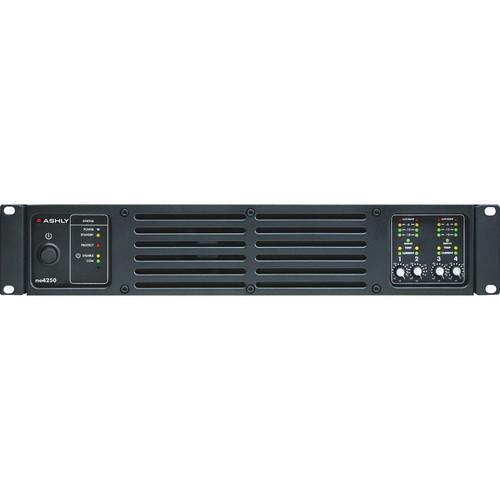

User Manual for Ashly ne4250.70 Network Enabled Four-Channel Amplifier with ProTea DSP 250W @ 70V Click to enlarge the picture
Contents of the user manual for the Ashly ne4250.70 Network Enabled Four-Channel Amplifier
- Product category: 70-Volt Amplifiers Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly 70-Volt Amplifiers
|
User manual for the Ashly ne4250.70 Network Enabled Four-Channel Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The ne4250.70 Network Enabled Four-Channel Amplifier with ProTea DSP 250W @ 70V from Ashly will simplify your sound installation with its slew of features. It features Ashly's ProTea integrated DSP processing on both its outputs and 4-channel mic input section. Additionally, it has a CobraNet digital interface installed for integration into a CobaNet digital system.
This four-channel amplifier provides 250W per channel at 70V with euroblock inputs and outputs. Setup and control of this unit is simple with Ethernet connection and Protea ne software. Each channel has its own level attenuator and 4-step level and clip-LEDs. - Use Protea ne software to control and setup via Ethernet connection
- Euroblock connections for inputs and outputs
- The ne4250.70 has multiple layers of protection circuits including over current, thermal and mains protection
In the Box Ashly ne4250.70 Network Enabled Four-Channel Amplifier with ProTea DSP 250W @ 70V AC Cable 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly ne4250.70 Network Enabled Four-Channel Amplifier with ProTea DSP 250W @ 70V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly ne4250.70 Specs | Power Rating | 250 W per Channel | | Voltage | 70 V | | Damping Factor | > 250 | | Input Sensitivity | 6.2 dBu | | Input Impedance | 20 kOhms, balanced | | Gain | Not specified by the manufacturer | | Frequency Response | 20 Hz - 20 kHz, (unweighted) ±dB | | Signal-to-Noise Ratio | > 98 dB | | Total Harmonic Distortion (THD) | Not specified by the manufacturer | | Input Connections | Euroblock
Ethernet | | Output Connectors | Euroblock | | Controls Front Panel | AC Power Switch
Individual input attenuators | | Controls (Rear) | Ethernet 10/100
Remote standby
Preset recall (4)
Remote Level (4)
Remote Data | | Indicators | Power (Blue)
Standby (Yellow)
Protect (Red)
Disable (Yellow)
Com (Green)
Bridge (Green)
Signal Level -18dB, -12dB (Green), -6dB (Yellow), Clip (Red), Temp (Yellow) | | Cooling | Temperature dependent speed-controlled fan (Front in, Side out) | | Power Consumption | 200 W | | Power Requirements | 120 VAC | | Dimensions | 3.5 x 19 x 15.5" (88.9 x 483 x 394mm) | | Weight | 21 lbs (9.53kg) | | Specialties | Control via Ethernet connection with Protea ne Software | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 4.0" |
