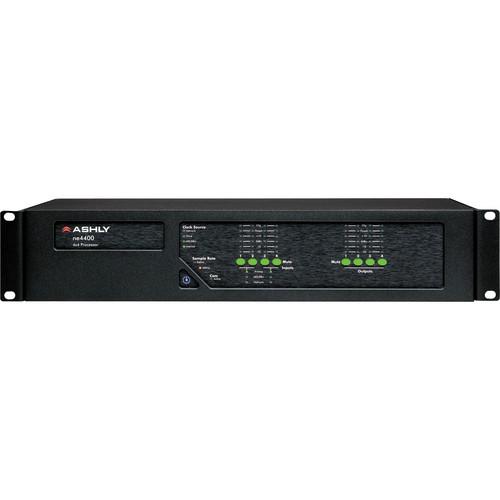

User Manual for Ashly ne4400S - Network Enabled Digital Signal Processor with AES Output Option Click to enlarge the picture
Contents of the user manual for the Ashly ne4400S - Network Enabled Digital
- Product category: System Processors Ashly
- Brand: Ashly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ashly System Processors
|
User manual for the Ashly ne4400S - Network Enabled Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ashly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ashly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ashly product will considerably shorten its lifespan!
|
Product description The ne4400S from Ashly is a network-enabled DSP processor that offers easy setup and control using standard 10/100 Ethernet protocol and Protea ne software. The unit features four analog inputs and four analog outputs, along with four channels of AES3 output, with the digital card filling one of the four option bays that provide expanded functionality.
The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit processors with sample rates of either 48 or 96 kHz. Processing blocks include a 4 x 4 matrix mixer, a full array of graphic, parametric and all-pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.
The Protea Software Suite also includes an automatic feedback suppressor, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, signal delay up to 1365 ms on every channel and a choice of sinewave, pink or white noise generators.
All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne software on a PC platform. Hot-plug software control allows for plugging any function into any channel block, even when running live audio with recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access provides a tamper-proof audio system. - Features
-
- Audio processor and controller for networked systems
- Easy and intuitive user interface
- Four-channel AES3 digital output
- 10/100 Ethernet and RS-232 computer interface standard
- Extensive DSP
- 32-bit SHARC DSPs
- 24-bit A/D and D/A conversion
- 48 and 96 kHz sample rates
- Hot-plug software control
- Automatic DHCP network IP configuration
- Butterworth, Bessel, Linkwitz-Riley, and Notched-Linkwitz-Riley filters
- FIR filter capability
- Advanced automatic feedback suppression
- Wordclock input and output
- Euroblock connectors for audio, preset recall, DC remote level control and data in/out
- Remote controls for level, logic I/O and programmable functions
- Third-party control friendly, input and output metering, multi-level security
- cTUVus, CE, FCC, RoHS safety compliance
- CobraNet, Dante, and microphone input options
- Protēa DSP Functions and Processors
-
- Input source selection
- Brick wall limiter
- Compressor
- Autoleveler controls
- Ambient noise compensation (output only)
- Ducking (high/low priority, trigger, filibuster, ducked program)
- Gate
- Advanced gate controls
- Gain
- EQ:
- 31-band
- Parametric 2, 4, 6, or 10 band
- High/Low Shelf 6/12 dB per octave
- All-Pass
- Variable Q HP/LP
- Notch/Band-Pass
- Feedback Suppressor (inputs only and 48 kHz sampling rate)
- Crossover: 2-, 3-, 4-way crossover and High-Pass/Low-Pass filters
- Delay:
- Input time, distance, and temperature @ 48 kHz sampling rate
- Input time, distance, and temperature @ 96 kHz sampling rate
- Audio metering tool
- Signal Generator Tool (pink noise, white noise, sine wave)
- Matrix mixer
- Processors
UPC: 694970471429 In the Box Ashly ne4400S - Network Enabled Digital Signal Processor with AES Output Option AC Power Cable Five (5) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ashly ne4400S - Network Enabled Digital Signal Processor with AES Output Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAshly NE4400S Specs | Frequency Response | 20 Hz to 20 kHz,
+/-0.1 dB, A>D
+/-0.25 dB, D>A
+/-0.25 dB, A>A | | Dynamic Range | 20 Hz to 20 kHz (unweighted)
>115 dB, A>D
>114 dB, D>A
>114 dB, A>A | | THD + N | 1 kHz, +20 dBu analog (-1.0 dBFS digital)
>0.001%, A>D
>0.002%, D>A
>0.002%, A>A
>0.00001%, D>D | | Latency | @48 kHz
1.42 ms, A>D
0.90 ms, D>A
2.21 ms, A>A
0.10 ms, D>D
@96 kHz
0.71 ms, A>D
0.45 ms, D>A
1.11 ms, A>A
0.05 ms, D>D | | Wordclock | Input/Output Type: 75 Ω BNC
Lock Range: 48 kHz +/- 4%, 96 kHz +/- 4%
Input Impedance: Selectable 75 Ω or high impedance
Input Voltage Range: 1.0 to 7.0 Vpp
Output Impedance: 75 Ω
Output Level: 5.0 Vpp nominal, unterminated | | Master Clock | Sources
Audio network
Wordclock
AES3
Internal crystal clock
Modes
Prioritized auto switching
Manual | | Inputs | Analog Line
Input Type: Active balanced Euroblock
Input Impedance: 20 kΩ
Maximum Input Level: +20 dB | | Outputs | Analog
Output Type: Servo-Balanced Euroblock
Output Impedance: 20 Ω
Maximum Output Level: +20 dBu
AES3
Output Type: Transformer balanced male XLR
Output Impedance: 110 Ω
Maximum Output Level: 5.0 Vpp | | Other Connectors | 10/100 Ethernet port
RS-232 port
Remote level control
Logic I/O
Data in/out ports
On/Off switch | | Environmental | 40 to 120°F (4 to 49°C) non-condensing | | Power Requirements | 90~240V AC, 50/60 Hz
70 W maximum | | System Requirements | Computer running under Windows 8, 7, Vista, XP (32- and 64-bit systems) | | Dimensions (WxDxH) | 19.0 x 8.5 x 3.5" (483 x 216 x 89 mm) | | Weight | 10 lb (4.5 kg) | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 23.5 x 14.6 x 4.4" |
